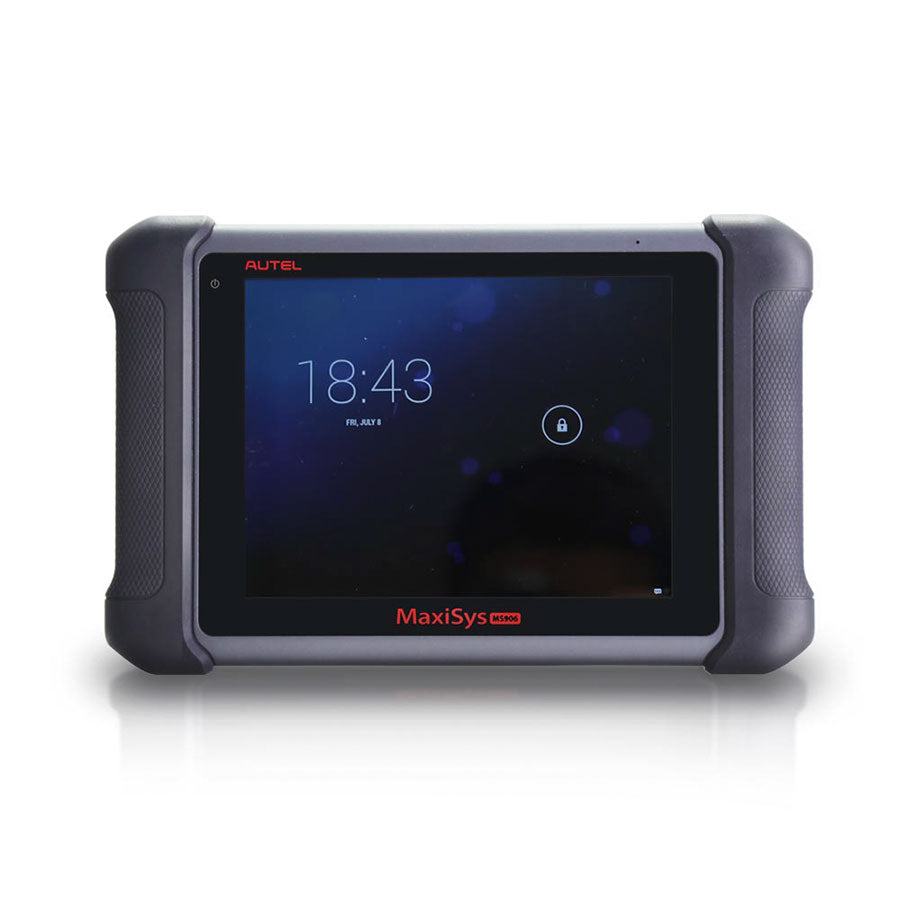

AUTEL MaxiSYS MS906 Auto Diagnostic Scanner Updated Version of Autel MaxiDAS DS708

Extraordinarily powerful Samsung Exynos Hexa-core processor

8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology

Internal reliable 32GB SSD for better performance

Extremely easy-to-use with integrated vehicle communication interface

Built-in 8-megapixel rear camera with autofocus and flashlight

802.11b/g/n Wi-Fi to access your favorite web resources

Unique ergonomic design with rubberized outer protection and a rugged internal housing

Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation

Open source Android Operating System for fast boot-up and multitasking

Easy and intuitive navigation makes finding what you need simple and fast

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Exceptional OE-Level system coverage for all electronic systems

Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

Smart AutoVIN technology for identifying vehicles easily

Automatic system and software updates with real-time push message notifications via WiFi

Instant remote control tech support anytime, anywhere

Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

Convenient data management system for managing internal program applications and reviewing data


Product Specifications:

Operating System		Android™ 4.4.2, KitKat
Processor		Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory		2 GB RAM & 32 GB ROM
Display		8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity		Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear)		Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output		Microphone, Single Speaker
Power and Battery		3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage		DC/12 V (9-35 V)
Power Consumption		5 W
Operating Temperature		-10 to 55°C (14 to 131°F)
Storage Temperature		-20 to 70°C (-4 to 158°F)
Housing		Rubberized outer protection and rugged internal housing
Dimensions (W x H x D)		270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
Weight		NW: 0.96 kg (2.12 lb.)
