[EU&UK Version] LAUNCH X431 PRO3S+ V5.0 Bi-Directional Scan Tool, 37+ Reset Service, OE-Level Full System Bluetooth Diagnostic Scanner, ECU Coding

X-431 PRO3 (PRO3S+ V5.0) User Manual

1. The LAUNCH X431 PRO3S+ V5.0 is designed for:

• Professional automotive technicians and mechanics
• Auto repair shops
• Diagnostic technicians
• Users who need full-system vehicle diagnostics and advanced service functions
• Users who need ECU coding, online coding, key programming and bi-directional control
• Users who need remote diagnosis
• Users who need ADAS calibration with the optional ADAS equipment
• Users who need commercial vehicle diagnosis with the optional HDIII module

2. The LAUNCH X431 PRO3S+ V5.0 can perform:

• All-System And All-Function Diagnostics: Provides full car model and full-system vehicle diagnosis, including reading DTCs, clearing DTCs, reading data streams, actuation tests and special functions.
• Bi-Directional Control / Active Test: Sends commands to vehicle systems and components to verify system inputs and outputs, such as turning on the radiator fan, modulating the throttle, opening and closing windows, operating mirrors, performing injector buzzer tests, turning interior and exterior lights on, sounding the horn and testing door lock actuators.
• ECU Coding: Re-flashes vehicle control modules and reprograms adaptive data for certain components after repairs or replacements.
• Online Coding: Supports online coding for compatible Volkswagen, Audi, Benz, BMW, Seat and Porsche vehicles.
• Key Programming: Supports adding, deleting and reprogramming keys, rewriting smart keys, replacing smart key ECUs, replacing knob ignition and key relearning.
• Anti-Theft IMMO Service: Provides anti-theft IMMO functions for compatible Volkswagen, Audi, Skoda and Seat vehicles.
• Guided Functions: Provides step-by-step guided functions for compatible Volkswagen, Audi, Skoda and Seat vehicles.
• Component Matching: Supports component matching for compatible Volkswagen, Skoda, Seat, BMW, GM, Ford, Opel, Mazda, Fiat, Honda, Nissan, Hyundai, Kia and Subaru vehicles.
• Online Account Login Service: Supports online account login service for compatible Volkswagen, Audi, Skoda and Seat vehicles.
• Online Calibration & Parameterization: Supports online calibration and online parameterization for compatible Volkswagen, Audi, Skoda and Seat vehicles.
• Flash Hidden Functions: Supports hidden function customization for compatible BMW, Porsche, Toyota and Subaru vehicles.
• Power Balance: Supports power balance functions for compatible Chrysler, GM and Ford vehicles.
• Programmable Module Installation: Supports programmable module installation for compatible Ford and Mazda vehicles.
• AutoAuth For FCA/SGW: Provides OBDII diagnosis, active testing and calibration for modern FCA/SGW vehicles equipped with a security gateway module in 2017 and later. FCA Americas can be registered and used for free.
• 37+ Professional Special Functions: Includes Oil Reset, Fuel Injector Coding, Brake Reset, SAS Reset, Battery Reset, ABS Bleeding, Electronic Throttle Relearn, TPMS Reset, Key Coding, DPF Regeneration, Gear Learn, EPB Reset, AFS Headlamp Reset, Sunroof Initialization, Suspension Reset, Gearbox Reset, Tire Reset, A/F Reset, AdBlue Reset, Coolant Bleeding, NOX Sensor Reset, Stop/Start Reset, Seat Calibration, Transport Mode, Windows Calibration, A/C System Relearn/Initialization, EGR Reset, Fuel Alcohol Level Reset, Fuel Trim Reset, High Voltage Battery Diagnostics, GPF Regeneration and Language Change.
• Health Report: Generates, shares and prints health reports.
• Remote Diagnosis: Supports remote diagnosis.
• ADAS Calibration: Supports ADAS calibration with optional equipment.
• TPMS: Supports TPMS-related functions and can work with the optional X431 TSGUN.
• Commercial Vehicle Diagnosis: The user can subscribe to the commercial vehicle software package and use the optional HDIII Heavy Duty Module to configure the scanner as a comprehensive heavy-duty diagnostic tool.

3. What Vehicles And Systems Does It Support?

Supported Vehicle Brands:

• European Cars: Audi, Mercedes-Benz, Maybach, BMW, Mini, HCBMW, Rolls-Royce, Citroen, Fukang, Ferrari, Fiat, Abbas, Lancia, Romeo, NanjingFiat, GAZ, Land Rover, Jaguar, Martha Lahti, Open, GMSA, Vauxhall, Peugeot, DFPeugeot, Porsche, Renault, Dacia, Rover, SAAB, Skoda, Seat, Smart, Transporter & V-Class, VAZ, Volvo, VW, Bingley and Bugatti.
• American Cars: Brazil Fiat, Brazil GM, Chrysler, Dodge, Jeep, GM, Buick, Cadillac, Chevrolet, Ford, ChinaFord, Lincoln and EuropeanFord.
• Asian Cars: Daewoo, Daihatsu, Honda, Acura, DFHonda, GZhonda, Hyundai, Ikco, India Mahindra, India Maruti, India Tata, JPIsuzu, TLIsuzu, Kia, Luxgen, Mahindra, Malaysia Asia Pacific Perodua, Malaysia Asia Pacific Proton, Maruti, Mazda, YQMazda, Mitsubishi, Nissan, Infiniti, DFNissan, Perodua, Proton, SAIPA, Ssangyong, Subaru, Suzuki, TATA, Toyota, Lexus and TJToyota.
• Australian Cars: Australia Ford and Australia Horton.
• Chinese Cars: Chang'an, ChangCheng, Chenghe, DR Automotive, ECUADI, BYD, Foton, Hafei, Haima, Brilliance, Jiangling, Iveco, JAC Refine General, Gonow Auto, Xiamen Golden, Kowloon, Lifan Auto, GSMW, SAIC Chase, MVW Automotive, Chery, SAIC and MG, SGM, CHCHEVROLET, CHBuick, CHCadillac, Tianjin FAW, XinKai, ZhongShun, ZOTYE and Zhongxing.

(Note: Some car brands can only be used after the payment, please contact us before purchase.)

Supported Vehicle Systems And Functions:

• The scanner provides all-system and all-function diagnostics and supports OBD I and OBD II vehicles. Diagnostic functions include DTC reading and clearing, data stream, actuation tests, ECU coding, online coding, key programming, IMMO service and various special functions.
• It also supports compatible functions such as component matching, online account login, online calibration, online parameterization, power balance, programmable module installation, flash hidden functions and guided functions.
• Vehicle Coverage: Covers more than 10,000 models.
• Supported FCA/SGW Vehicles: Applicable to FCA vehicles equipped with a security gateway module in 2017 and later.

4. Please Note The Following Limitations:

• Some vehicle brands require additional payment before use. Please contact us to confirm compatibility and activation requirements before purchase.
• Special functions are vehicle-dependent and may not be available on all vehicle models.
• Certain functions, including Gear Learn, are available only for specific vehicle models.
• ADAS calibration requires additional ADAS equipment.
• Heavy-duty truck diagnosis requires the additional LAUNCH X431 HDIII Heavy Duty Module.
• The factory presets the language and vehicle software to English. Please contact us if you need to change the language.
• The product supports OBD I and OBD II vehicles. Vehicle coverage and available functions vary by vehicle model.

6. Launch X431 Pro3S+ V5.0 Specifications:

1. Display Tablet:

Operating system: Android 10.0
Memory: 4GB
Storage: 64GB
Screen: 10.1 inch capacitive touch screen with a resolution of 1280 x 800 pixels
Camera: Rear-facing 8.0MP camera
Communication: Bluetooth/USB
Working temperature: 0℃ ~ 50℃
Storage temperature -20℃ ~ 70℃

2. VCI Connector:

Working voltage: 9 ~18V
Power consumption ≤2.0W
Working temperature: -10℃ ~ 50℃
Relative humidity: 20% ~ 90%

7. Software Update And Free Update Period:

• 2 Years Free Software Subscription
• Supports One-click Update
• The product features an update function through the software.

8. Global Version Or Regional Version:

This product is offered in EU&UK Version and Global Version:

• EU&UK Version: For UK/EU country customers.
• Global Version: For customers outside the UK and European countries.

9. Warranty And Technical Support:

• 5 Years Warranty

• Lifetime Technical Support

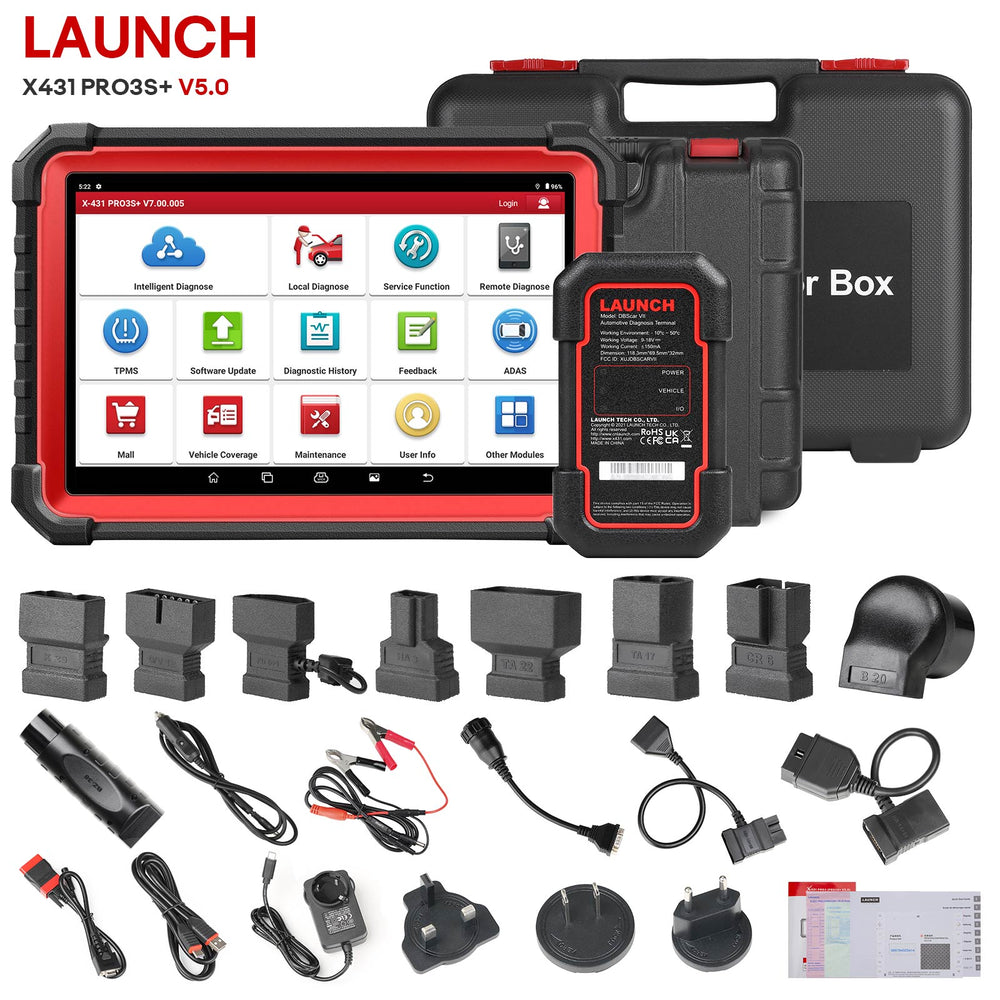

10. Package Includes:

1pc x Display tablet
1pc x VCI connector
1pc x HDB15F to HD15F data cable
1pc x HD15M to OBD II 16 adaptor
1pc x Password envelope
1pc x Power adaptor kit (1 + 2 switching adaptors)
1pc x Type-A to Type-C USB cable
1pc x Multilingual quick start guide
1pc x User manual
1pc x Non-16 pin adaptor kit
