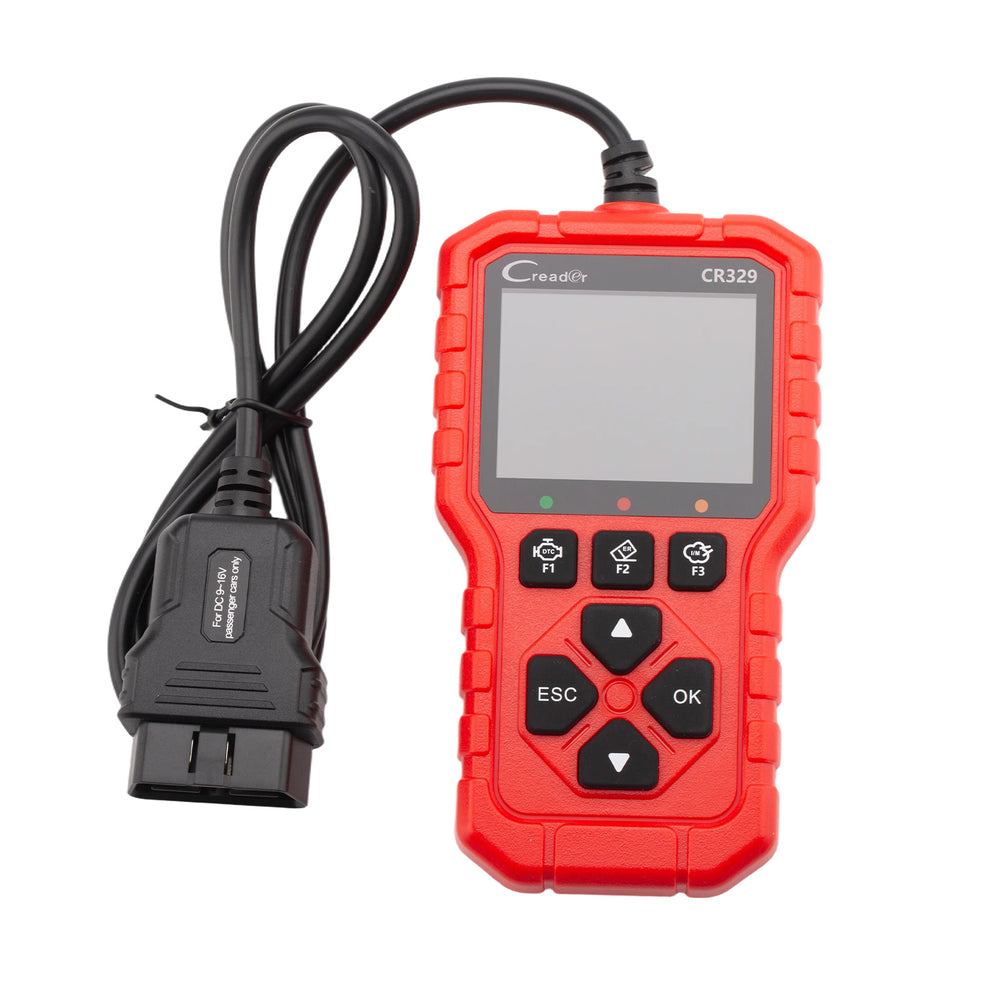

LAUNCH Creader CR329 Passenger Car Scan Tool - Standard E-commerce Package
LAUNCH

LAUNCH Creader CR329 Passenger Car Scan Tool - Standard E-commerce Package

SKU Y-HKSC573 In stock Ships from US warehouse
$39.00 USD
$39.00 USD

Sourced through authorized channels. Serial verifiable with the manufacturer.

  • 12-month warranty
  • Technical support in English, Mon–Sat
Not sure this fits your job? Talk to a technician

Overview

 Launch Creader CR329 Quick Guide

1. The LAUNCH Creader CR329 is designed for:

  • Passenger car owners who need an easy-to-carry OBD II diagnostic tool
  • DIY users performing basic OBD II vehicle checks
  • Users who need to read and clear diagnostic trouble codes
  • Users who want to monitor live vehicle data and battery voltage
  • Drivers who need to check OBD II diagnostic information and vehicle status

2. Supported key functions & Features

OBD II & CAN Diagnostics: Supports OBD II and CAN for the majority of car models from 1996 to current models.

Read & Clear Trouble Codes: Reads and clears DTCs and supports turning off the Malfunction Indicator Light.

I/M Readiness Status: Checks the vehicle's I/M Readiness status.

Live Data Stream: Displays single data streams as curves and supports filtering data stream items through Custom Data Set.

Real-Time Data Curves: Supports selecting two data streams for simultaneous curve display.

Freeze Frame Data: Views freeze frame information.

O2 Sensor Test: Supports O2 sensor testing.

On-Board Monitoring: Supports Mode 6 on-board monitoring functions.

EVAP System Test: Tests the integrity of the EVAP system through Mode 8.

Vehicle Information: Displays vehicle information.

DTC Library: Supports one-click trouble code lookup with an extensive DTC database.

Fault Data Review: Supports viewing fault data from the last detection and previewing it before printing.

Cloud Printing: Supports printing through a QR code.

Battery Voltage Waveform: Displays voltage changes over time in a graphical waveform.

Battery Test: Detects battery performance through voltage measurement.

Supported OBD II Diagnostic Modes: Read Codes, Erase Codes, Freeze Frame, Performance, Vehicle Information, I/M, Mode 6, O2 Sensor Test, and Mode 8.

3. System Setup:

Language: Supports 10 languages: English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, and Japanese.

Unit Of Measure : Allows flexible unit settings to ensure data is displayed in a format familiar to the user.

Contrast :
  • Contrast refers to the difference in brightness between the brightest and darkest areas on the screen.
  • High contrast: Images appear sharper with distinct blacks and whites.
  • Low contrast: The screen may look hazy with blurred details.
  • Adjust contrast using the Up and Down button.

Beep :The device includes a buzzer, which can be turned ON or OFF.

About :Displays the device version number.

4. What Vehicles, Brands, Years & Systems Does It Support?

Supported Vehicle Systems: Supports OBD II and CAN diagnostic systems.

Supported Vehicle Years: Supports the majority of car models from 1996 to current models.

5. Please note the following limitations:

Diagnostic Scope: This tool is designed for OBD II and CAN diagnostics and supports the majority of compatible passenger car models from 1996 to current models.

6. Product Specifications:

Screen: 2.8inch
Storage: 32Mbit Flash
Working temperature: 0℃~50℃
Voltage: 12V
Buttons: Up，Down，OK，ESC，F1 (Read DTCs)，F2 (Clear DTCs)， F3 (I/M Readiness Status)
Certificates: CE, FCC, IC, ROHS
Languages: 10 languages – English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, Japanese.
Size: 160*90*28mm

7. How to Use?


Connection Steps:

1. Turn off the ignition switch and ensure the vehicle is in a safe condition.
2. Locate the DLC (Data Link Connector), usually found below the steering wheel or on the driver-side dashboard.
3. Connect the diagnostic cable to the vehicle's DLC interface.
4. Turn on the ignition switch (the engine may remain off or running). The device will automatically launch the diagnostic system

Diagnostic Procedure:

1. Connect the Device: Turn on the ignition after connecting to the DLC, and the device will automatically start up.
2. Access the Main Interface: Once the system identifies the vehicle, you will enter the main function screen.
3. Select a Function: Choose the required function, such as trouble code inquiry, data playback, or auxiliary functions.
4. Follow On-screen Prompts: Complete the detection by following the guidance on the screen—simple and efficient.

Product Structure:

8. Launch Creader DIY scanner CR529 vs CR3008 Plus vs CR HD V2 vs CR329 vs CR3001 vs CR319 vs CR300

9. Package includes:

1pc x Main Unit with Diagnostic Cable
1pc x Quick Start Guide
1pc x GPSR
1pc x Desiccant

In the box

Weight
0.3 kg
Package size
20cm*15.5cm*4.5cm ( Inch: 7.85*6.09*1.77 )
