GODIAG GT107+ DSG Plus Gearbox Data Adapter with GODIAG G-A ECU/TCU Cable Work with AUTEL IM508 IM608 Series to Read & Write Gearbox Data DQ250, DQ200

GODIAG GT107+ DSG Plus Gearbox Data Adapter with GODIAG G-A ECU/TCU Cable

GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.
GODIAG G-A ECU/TCU cable is used to connect AUTEL IM608 IM508 with GT107, GT107+ or GODIAG ECU GPT Boot adapter to read and write data on VAG gearbox ECU and engine ECU, clone ECU.

The Connection Diagram

1. To read DQ250 with Autel IM608 & GT107+

2. To read DQ200 with Autel IM608 & GT107+

3.3. To read MED17.5 with Autel IM608 & GT107+

Supported ECU Models:

Transmission Control Unit (TCU)

DQ200DTC1766, DQ200_G2_PQTC1784, DQ250_MQBTC1766, DQ380, DQ500(Continental)TC1766

Engine

EDC17C46TC1767, EDC17C54TC1797, EDC17C64TC1797, EDC17C74TC1793S, EDC17CP14TC1796, EDC17CP20TC1796. EDC17CP24TC1796, EDC17CP44TC1797, EDC17U01TC1766, EDC17U05TC1796, ME17.1.1TC1797, ME17.1.6TC1797, ME17.5.20TC1767, ME17.5.22TC1724N, ME17.5.24TC1724N, ME17.5.26TC1724N, ME17.5.6TC1767, MED17.1.1TC1797,  MED17.1.6TC1797, MED17.5TC1766, MED17.5.1TC1766, MED17.5.2TC1767, MED17.5.20TC1766, MED17.5.21TC1782, MED17.5.25TC1782, MED17.5.5TC1766, MED17.5.5TC1767.

Note: Due to the large number of supported ECU models, it is impossible to list them all. Please go to the software to find more supported ECU models.

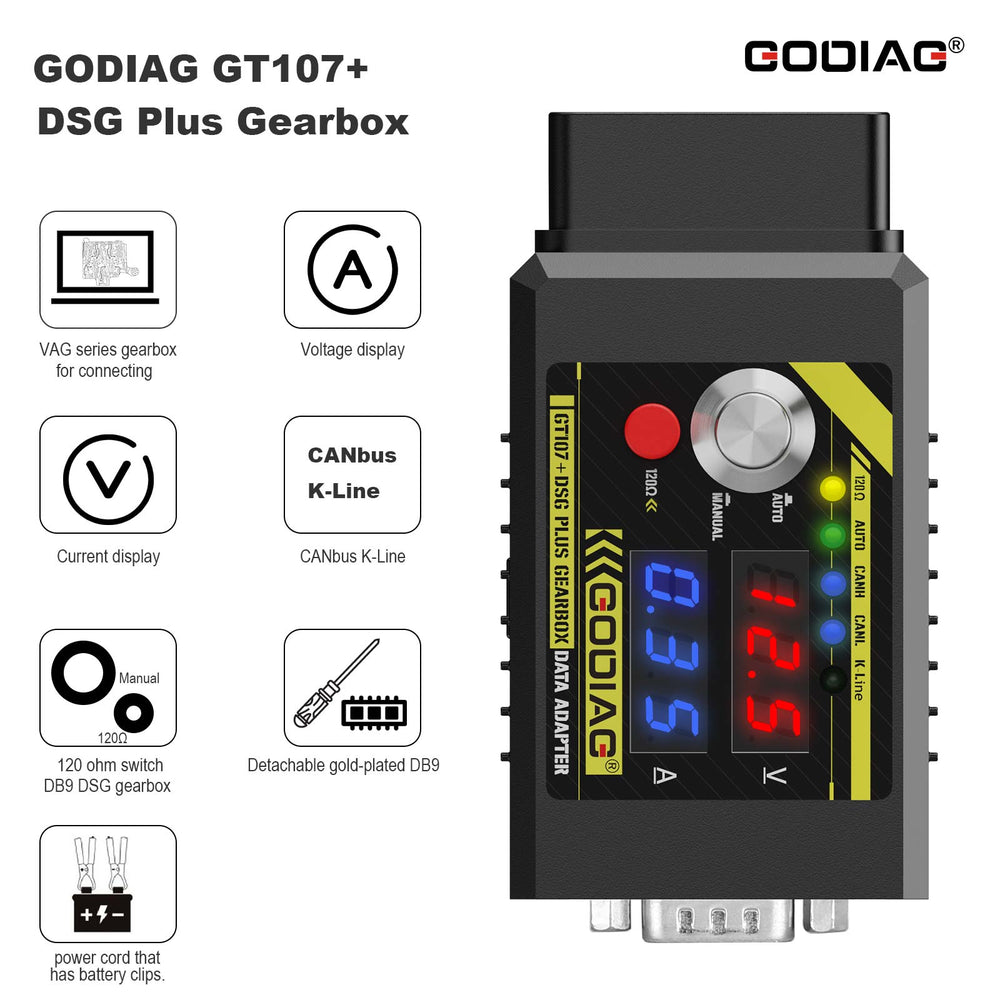

GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display

GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500, you can also choose "Manual".

Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

Product Features:

1. The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW...
2. Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.
3. The current display can display the current working current of the gearbox ECU, which is used to judge the working condition of the gearbox ECU.
4. The communication indicator can display the current CANbus K-Line communication status.
5. Manual and automatic power switch, 120 ohm switch. There are  boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.
6. Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
7. Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.

Package Includes:

1pc x Godiag GT107+ ECU Prog AD
1pc x DB9 DSG Gearbox Universal Conversion Jumper
1pc x Power Cord with Battery Clips
1pc x Probe
1pc x Manual
1pc x GODIAG G-A ECU/TCU cable
