Overview
Product Introduction:

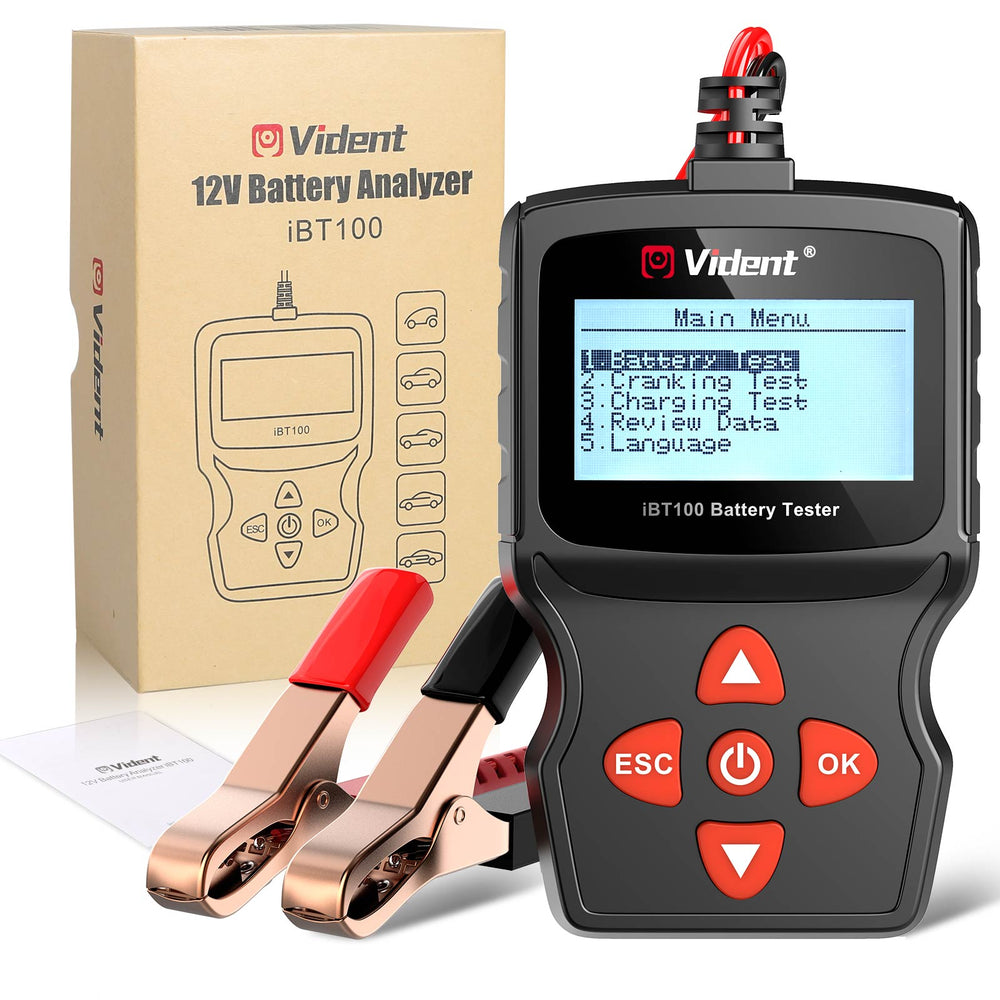

iBT100 12V Battery Analyzer is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries as a low cost solution. It provides a quick, easy and affordable solution for technicians to check battery health and faults.
Hardware Features:
LCD Display - shows menus, testresults and operation tips
Test Cable -Connects the testerto battery for testing.
ESC Button - exits a screen and generally returns to previous screen.
OK Button - executes a selected option and generally goes to the next screen.
RESTART BUTTON - Restart the test of battery
UP and Down Buttons - scroll to select an option or change the values. UP Button is also used to call up the language setup menu when starting the tester.
Product Functions:
Multiple vehicle applications-passenger cars and light duty trucks.
Test batteries rated from 100 to 2000CCA.
Test multiple battery types-regular flooded, AGM flat plate, AGM spiral, GEL and EFB
Test multiple rating systems - CCA, CA, MCA, JIS, DIN,IEC, EN, SAE, BCI, GB
Test the batteries on the car directly - no need to removethe battery
Quick and accurate test result display in just 3 seconds
Does not emit light, heat or spark, or discharge battery-keeps operation safe for all levels of users.
Automatic temperature compensation
Extremely easy to use with large backlight LCD display and menu-driven operation
Multilingual menu and test results- English, French, German, Spanish, Dutch, Portuguese
Detects bad cells
Detects bad cells
Software Features:
Battery Standards:
Product Specifications:
Battery Standards:
Product Specifications:
| Item | Range | Accuracy |
| Voltage measuring | 6V to 18V | 0.50% |
| Battery type | Flooded, AGM, GEL | N/A |
| Battery rating | 100 - 2000CCA | ±(3%+10)CCA |
| Standard support | CCA, CA, MCA, JIS, DIN, IEC, EN, SAE, BCI, GB | N/A |
| Operation Temperature | 0 to 60°C (-4 to 140°F) | N/A |
| Storage Temperature | 0 to 70°C (-4 to 158°F) | N/A |
| Product Size | 125mm(4.0”)*80mm(2.96’’)*24mm(0.78”) | N/A |
| Product Weight | 240g | N/A |
Package includes:
1PC x iBT100 Battery Analyzer
1PC x User's Manual
