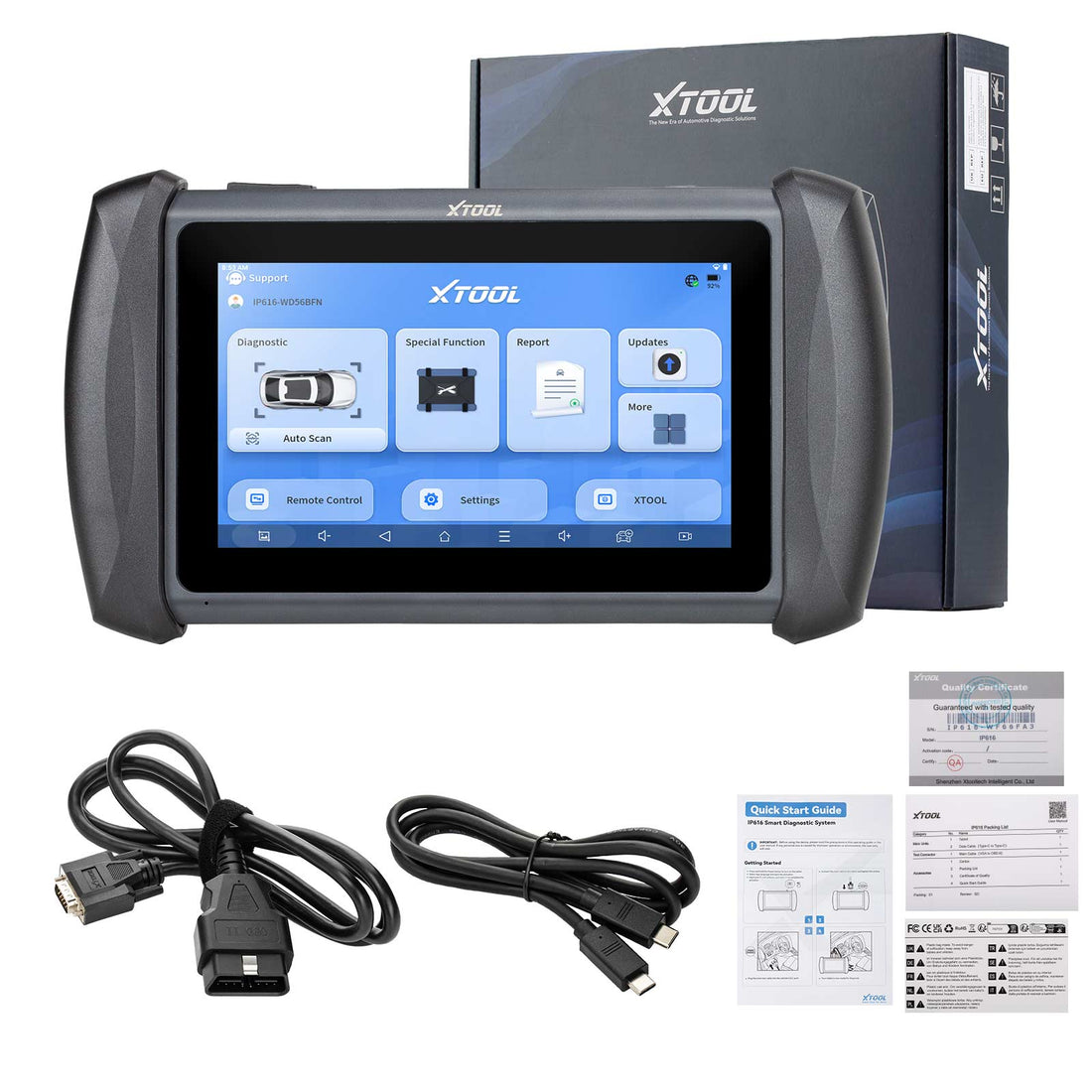

XTOOL InPlus IP616 OBD2 Car Automotive Diagnostic Tools with 31 Reset Service Auto Key Programmer Lifelong Free Update

1. the xtool inplus ip616 is designed for:

• diyers
• mechanics
• electricians
• car maintenance shops
• home mechanics, backyard mechanics, shade tree mechanics, weekend mechanics, and retired mechanics
• users who need all-system automotive diagnostics, 31+ service functions, obd2 diagnostics, and key programming capabilities

2. supported diagnostic & service functions

all-system diagnostics: performs oe-level diagnosis on all available electronic control systems, including engine, transmission, srs/airbag, abs, tpms, body, a/c, brake system, emission system, fuel system, light system, wiper system, sas system, immo system, battery system, oil service system, and more.

diagnostic functions: reads and clears dtcs, retrieves ecu information and freeze frames, views, graphs, records and plays back live data, performs functional tests, and supports bi-directional controls and actuation tests according to the source comparison information. however, the ip616 itself is specifically stated as not having bi-directional control abilities.

full obd2 functions: supports all 10 obd2 modes, including read codes, clear codes, live data, read freeze frame, read ecu information, o2 sensor monitoring test, i/m readiness, component test, on-board monitor test, and vehicle information.

8-in-1 live data graphing: displays up to 8 individual pids in one view and allows users to view, record, and play back live data for analysis, including engine rpm, temperatures, ignition advance, vehicle speed, o2 sensor data, map/tps values, mass airflow, coolant/fuel/transmission oil temperature, cylinder balance rates, fuel trim, battery voltage, wheel speed sensor data, fuel rail pressure, and more.

auto vin & auto scan: automatically identifies the vin and performs a comprehensive scan of available vehicle systems. four vehicle identification methods are available: auto scan, manual vin input, automatic detection, and manual selection. auto scan does not work on all vehicles, so the other three methods can be used when necessary.

health report & print: allows users to customize diagnostic reports with business name and address and output pdf diagnosis reports.

31+ reset & service functions: includes oil reset, epb reset, sas calibration, dpf regeneration, bms reset, throttle adaptation, tpms service, abs bleeding, injector coding, gearbox reset, suspension reset, seat calibration, key programming, window initialization, headlight, ecu configuration, a/f settings, start/stop reset, airbag repair, instrument cluster, language change, transport mode, tire upgrade, gear learning, power balance, eeprom, electronic pump activation, egr relearn, vgt relearn, hv battery, and a/c relearn.

key programming: supports key programming functions including read pin/pin code calculation, checking the number of keys, generating dealer keys, all-keys-lost, and adding keys. the source specifically states that ip616 is not a professional key programming tool and recommends checking compatibility with the vin, key type, and key adding situation.

flash hidden functions & ecu configuration: can customize certain vehicle settings, such as disabling daytime running lights, disabling seat belt chimes, and folding rear-view mirrors. these functions currently work on some bmw, vw, audi, skoda, toyota, lexus, scion, mazda, ford, and lincoln vehicles.

remote technical support: users can contact the seller to arrange an appointment for remote technical support.

3. what vehicles does it support?

85+ Brands & 10000+ Models Coverage:

America: for Ford, for GM, for GMC, for Chrysler, for Chevrolet, for Buick, for Cadillac, for Jeep, for Dodge, for Lincoln/for Saturn/for Pontiac/for Hummer/for Mercury…

Europe: for Mercedes, for VW, for Land Rover, for BMW, for Audi, for Citroen, for Porsche, for Bentley, for Seat, for Saab, for Volvo, for Skoda, for Jaguar, for Lamborghini, for Smart, for Mini, for Alfa Rome, for Renault, for Vauxhall…

Asia: for Subaru, for Mitsubishi, for Isuzu, for Nissan, for Mazda, for Infiniti, for Acura, for Scion, for Hyundai, for Lexus, for Kia, for Toyota/Honda…

Australia: for Holden, for OPEL…

Vehicle Coverage:


ACURA	AUDI	AUSFORD	BYD
FIAT	GM	EURFORD	CHRYSLER
HOLDEN	HONDA	HYUNDAI	INFINITI
ISUZU	JAC	JAGUAR	KIA
LANCIA	LANDROVER	LEXUS	LIFAN
MAZDA	MIT	NISSAN	OPEL
PERODUA	PROSCHE	PROTON	RENAULT
ROEWE	SAAB	SEAT	SKODA
MG	SSANGYONG	SUBARU	SUZUKI
TOYOTA	VOLVO	VW	MINI
SCION	BENTLEY	ROMEO	USAFORD
SMART	TRANSPORTER	GREATWALL	GEELY
CHERY	ABARTH	BENZ	VAUXHALL
BUICK	CADILLAC	CHEVROLET	GMC
HUMMER	PONTIAC	SATURN	CVVW
DODGE	MASERATI	BMW	GAZ
UAZ	RENAULTSAM	DACIA	LINCOLN
JEEP	ASTONMARTIN	FERRARI	HYUNDAI CV
NISSANGTR	PEUGEOT	CITROEN	ZAZ
IZH	PAZ

• chrysler vehicles from 2018 and later with the 12+8 cable adapter
• gm, gmc, cadillac, chevrolet, and buick vehicles after 2020 with can fd
• key programming for vw/audi/skoda 4th and 5th generation and mqb with kc100
• key programming for bmw, vw, and benz with kc501, with benz support noted as not for all vehicles
• some benz all-keys-lost functions with m821
• toyota 8a/4a all-keys-lost with m822
• toyota/lexus all-keys-lost without disassembly with ks-1

supported systems: engine, transmission, abs, srs/airbag, tpms, immo, battery, oil service, sas, body, a/c, brake, emission, fuel, lighting, wiper, and other available electronic control systems.

supported protocol: can fd is supported without purchasing a separate can fd adapter.

4. please note the following limitations:

vehicle limitations: does not support heavy-duty trucks or motorcycles.

bi-directional control: the ip616 does not have bi-directional control abilities.

auto scan: auto scan does not work on all vehicles. manual selection, manual vin input, or automatic detection can be used when auto scan is unavailable.

peugeot/citroen diagnosis: an internet connection is required when diagnosing peugeot/citroen vehicles.

special functions: specific special functions are available only for specific vehicle models and are not available for all cars.

flash hidden functions: available only on specific vehicles. current supported applications include some bmw, vw, audi, skoda, toyota, lexus, scion, mazda, ford, and lincoln vehicles.

ecu programming: the ip616 cannot program ecus or re-flash modules such as ecm, pcm, bcm, abs, etc. after replacing modules.

key programming: the ip616 is not a professional key programming tool. compatibility should be checked with the vin, key type, and key adding situation before purchase.

5. additional equipment & authorization requirements

key programming accessories: key programming functions require additional devices depending on the vehicle and function, including kc100, kc501, ks-1, m821, and m822.

kc100: supports key programming for vw, audi, skoda 4th/5th generation, mqb key, and related applications.

kc501: supports key programming for bmw, vw, and benz, with benz support not available for all vehicles.

m821: supports some benz all-keys-lost functions.

m822: supports toyota 8a/4a all-keys-lost.

ks-1: supports toyota/lexus all-keys-lost without disassembly.

eeprom adapter: supports pin code reading, vehicle module initialization, and chip programming.

12+8 cable adapter: required for chrysler 2018 and later vehicles and is not included in the package.

separate purchase: kc100, kc501, ks-1, m821, and m822 need to be purchased separately.

can fd: can fd is supported directly, so a separate can fd adapter is not required.

6. software, operating system & supported system

operating system: android 10.

memory: 2gb ram + 32gb rom.

display: 7.0-inch touchscreen with 1024 × 600 resolution.

connectivity: usb, wi-fi, and wired connection.

sensors: gravity sensor and light sensor.

audio: microphone and speaker.

supported protocols: obdii, eobd, and can fd.

languages: arabic, german, english, spanish, finnish, french, italian, japanese, korean, polish, portuguese, russian, traditional chinese, and vietnamese. english is the default language, and an s/n is required to change the language.

Product Specifications:

Items	Description
Operating system	Android 10
Memory	2G(RAM)+32G(ROM)
Display	7.0-inch touch screen with 1024X600 resolution
Connectivity	USB/WI-FI/Wired
Sensors	Gravity sensor, light sensor
Audio Input/Output	Microphone/Speaker
Power and Battery	5000mAh, 3.65V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃
Storage Temperature	-40 to 70℃
Humidity	<90%
Dimension(L*W*H)	249*142*33.5mm
Live or not	Live
Weight	2.26KG

7. software updates & update period

lifetime free updates : supports lifetime free software updates and one-click wi-fi updates.

update offer : lifetime free updates are listed as a limited-time offer.

8. Package Includes:


Category	No.	Name	QTY
Accessories	1	Color Carton	1
	2	Certificate of Quality	1
	3	User Manual	1
	4	Packing List	1
	5	Tool Case	1
Main Units	6	P710 Tablet	1
	7	Charger US Adapter	1
	8	Charge EN Adapter	1
	9	Charger for Tablet	1
	10	Charger EU Adapter	1
Test Connectors	11	VGA to OBD II Main Cable	1
	12	USB Cable	1
	13	Type C to USB Adapter	1
