OBDSTAR iScan JAPAN Intelligent Motorcycle Diagnostic Tool Key Programming Portable Tablet Scanner

ISCAN JAPAN Supported Languages
ISCAN JAPAN COVERAGE

1.The OBDSTAR iScan JAPAN is designed for:

This exclusive Japanese motorcycle diagnostic tablet is suitable for professional motorcycle repair shops focusing on Honda, Kawasaki, Suzuki, Yamaha, full-time Japanese motorcycle maintenance technicians, motorcycle locksmiths providing Japanese bike key matching service, and private owners of Japanese motorcycles for self-inspection and daily maintenance.

2. Supported Key Functions & Features

OBDSTAR iScan JAPAN is an industrial portable diagnostic tablet specially customized for four major Japanese motorcycle brands. It adopts RK3128 quad-core processor and 5-inch capacitive touch screen to deliver factory-level professional diagnosis experience.

• Pre-installed Android 5.1.1 system, simple intuitive menu with random switching for quick operation
• Complete basic diagnostic suite: read/erase fault codes, real-time data stream, bi-directional actuator test, ECU & module setting/coding
• Support recording and playback real-time data stream to quickly locate faulty sensors and electronic components
• Built-in Wi-Fi module for one-click online firmware upgrade; one-click remote technical assistance from OBDSTAR engineers
• Built-in professional repair database: fault guidance, maintenance help data, official technical bulletins, diagnostic socket position diagrams
• Multi-form data display: text, waveform, instrument panel diagram for intuitive fault analysis
• Full-system automatic scan & automatic VIN recognition
• Comprehensive advanced calibration: ECU programming, instrument coding, TPMS setting, maintenance light reset, CO adjustment, idle speed tuning, A/F reset, ABS calibration, EOL mode, transmission memory clear
• Exclusive special function: full immobilizer key programming for Honda, Kawasaki, Suzuki, Yamaha motorcycles
• Brand-specific special maintenance functions: sensor learning, ABS actuator activation, frame number writing, throttle reset, battery calibration, steering lock registration and more

3. What Vehicles Does It Support?

• Exclusive Supported Brands: HONDA, KAWASAKI, SUZUKI, YAMAHA all series motorcycles
• Supported Vehicle Years: All mainstream Japanese two-wheelers; new models are continuously added via monthly official online updates
• Supported Electronic Control Systems: Engine ECU, ABS control unit, transmission module, instrument cluster, TPMS, anti-theft immobilizer, EPS, battery management system and all factory original on-board electronic modules

4. Please Note the Following Limitations

1. Single-brand locked device, only for four Japanese motorcycle brands; cannot diagnose European, American motorcycles, ATV, UTV, snowmobiles, passenger cars and trucks
2. Unable to work with aftermarket modified racing ECUs without factory standard communication protocols
3. Only supports electronic diagnosis, coding and calibration; cannot complete mechanical disassembly and physical hardware repair
4. Vintage Japanese motorcycles without standard factory OBD diagnostic ports and original ECU are not supported
5. No support for third-party refitted anti-theft systems

5. Hardware Accessories & Licensing Requirements

1. All core diagnosis and Japanese motorcycle key programming functions are pre-activated before factory delivery, no extra paid authorization or annual basic subscription needed
2. All dedicated brand adapters, main cable and power charger are included in original package, no extra basic accessories to purchase separately
3. Wi-Fi network only required for online updates and remote support; all core functions run stably offline
4. No mandatory hardware dongle required for daily maintenance and key matching work

6. OBDSTAR iScan JAPAN Specification

• Operating System: Android 5.1.1
• CPU: RK3128 quad-core ARM Cortex A7
• Battery: 2600mA rechargeable polymer lithium battery
• Expandable Storage: Support up to 32G Micro SD (TF) card
• Built-in Storage: 16GB
• LCD Screen: 5-inch capacitive touch screen, resolution 800*480
• Wireless Module: Built-in Wi-Fi
• Working Temperature: -20℃ ~ 55℃ (14℉~131℉)
• Storage Temperature: -20℃ ~ 70℃ (-4℉~158℉)
• Main Unit Weight: About 700g
• Overall Dimension: 198mm115mm31mm

7. Software Update

1. This device comes with 18 full months of free official online firmware, vehicle database and special function updates after registration
2. After the free update period expires, users can voluntarily purchase annual update subscription at official unified price
3. All core diagnosis and key programming functions can be permanently used without renewal
4. New Japanese motorcycle models and brand exclusive calibration functions are released monthly during free update period

8. Global Version

This is global universal version without regional lock, no country or area-based function shielding. Multiple mainstream global languages pre-installed, suitable for Japanese motorcycle repair technicians and private users all over the world.

9. Warranty

The whole machine enjoys official 1-year limited warranty starting from purchase date. Free repair or component replacement service is provided for non-artificial manufacturing defects. Damage caused by falling impact, unauthorized disassembly, water ingress, self-modified wiring and overload power supply is excluded from warranty coverage.

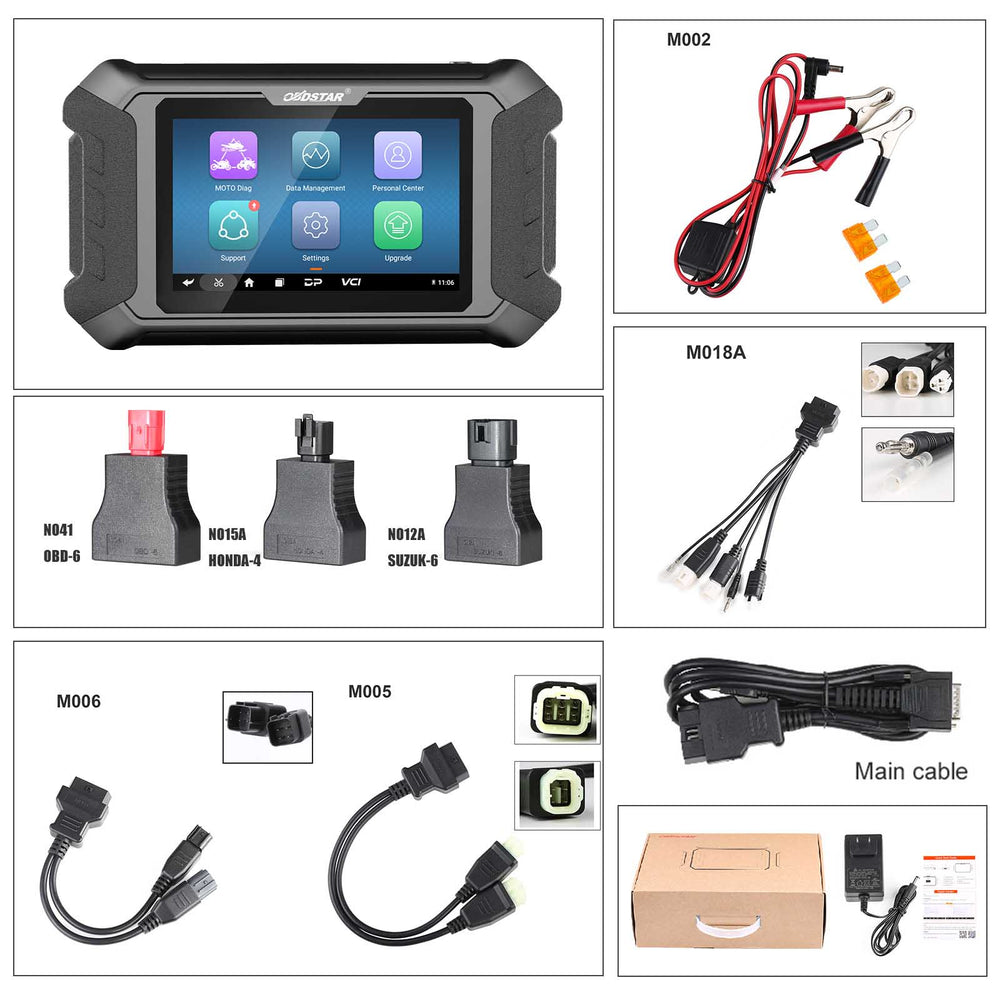

10. Package List
