Overview

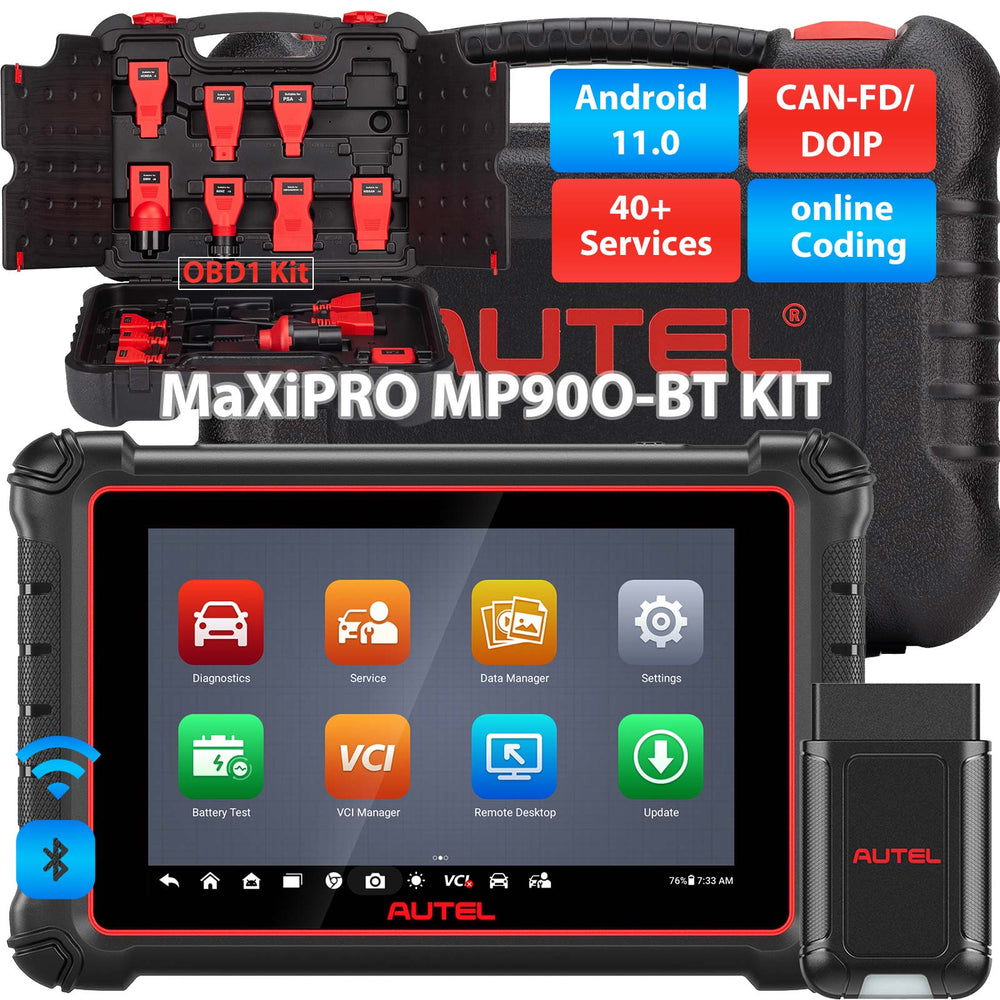

MaxiPRO MP900-BT KIT_User Manual
MP900-BT KIT_Quick Guide
Product Introduction:
Featuring the powerful quad-core processor, and an 8.0-inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiPRO MP900-BT KIT is your ideal auto diagnostics and service tool. MP900-BT provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).
Product Features
Includes OE-compliant non-OBD II adapter kit for specific vehicles
8-inch LCD capacitive touchscreen with 1280 x 800 resolution display
MaxiVCI V150 for wireless connection
Read/clear codes for all available systems
Display live data in text, graph & analog for easy data review
Expansive 40-plus menu of service and maintenance tasks
Features DoIP and CAN FD protocols
AutoVIN technology can automatically identify the vehicle's make, model and year information in no time
Support Pre & Post Scan function
Reset service mileage and service intervals
Relearn parking brake pad after replacement
Forced regeneration and adjusting injectors
Support battery registration and reset
Reset Steering Angle Sensor (SAS)
Product Comparison:
Product Specifications:
Product Comparison:
| Model | MP900-BT KIT | MP900-BT |
| Read Codes | √ | √ |
| Erase Codes | √ | √ |
| Live Data | √ | √ |
| ECU Information | √ | √ |
| Active Test | √ | √ |
| Service Functions | √(40+kinds) | √(40+kinds) |
| Complete OBD Diagnostics | √ | √ |
| Pre & Post Scan | √ | √ |
| ECU Coding | √ | √ |
| Guided Function | √ | √ |
| Tire Pressure Monitoring System | Basic | Basic |
| Immobilizer Function | Basic | Basic |
| DoIP | √ | √ |
| CANFD | √ | √ |
| Battery Analysis | √ | √ |
| Videoscope | √ | √ |
| Non-OBD II Adapters | √(Included) | -- |
| Processor | Quad-core 1.8GHz | Quad-core 1.8GHz |
| Operating System | Android 11 | Android 11 |
| Memory | 4G + 64G | 4G + 64G |
| Display | 7" LCD | 7" LCD |
| Battery | 7700mAh | 7700mAh |
| Internet Updatable | WiFi | WiFi |
| Multilingual Support | √ | √ |
| Historical Test Records | √ | √ |
| Save and Playback Data | √ | √ |
| Print Data via Windows PC | √ | √ |
| Vehicle communication method | Wireless (bluetooth) | Wireless (bluetooth) |
Product Specifications:
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 | |
| Wi-Fi | |
| Bluetooth | |
| Mini SD card (supports up to 64GB) | |
| Audio Input/Output | Input: N/A |
| Output: buzzer | |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Battery Charging Input | 5 V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Package includes:
1pc x main unit
1pc x MaxiVCI V150
1pc x power adapter
1pc x USB type-C cable
1pc x Honda-3 adapter
1pc x Nissan-14 adapter
1pc x Mitsubishi/Hyundai-12+16 adapter
1pc x Kia-20 adapter
1pc x BMW-20 adapter
1pc x Volkswagen/Audi-2+2 adapter
1pc x GM/Daewoo-12 adapter
1pc x Benz-14 adapter
1pc x Benz-38 adapter
1pc x Benz-38 adapter
1pc x Fiat-3 adapter
1pc x PSA-2 adapter
1pc x soft cloth
1pc x quick reference guide
1pc x packing list
1pc x carrying case(with main unit)
1pc x carrying case(with adapters)
