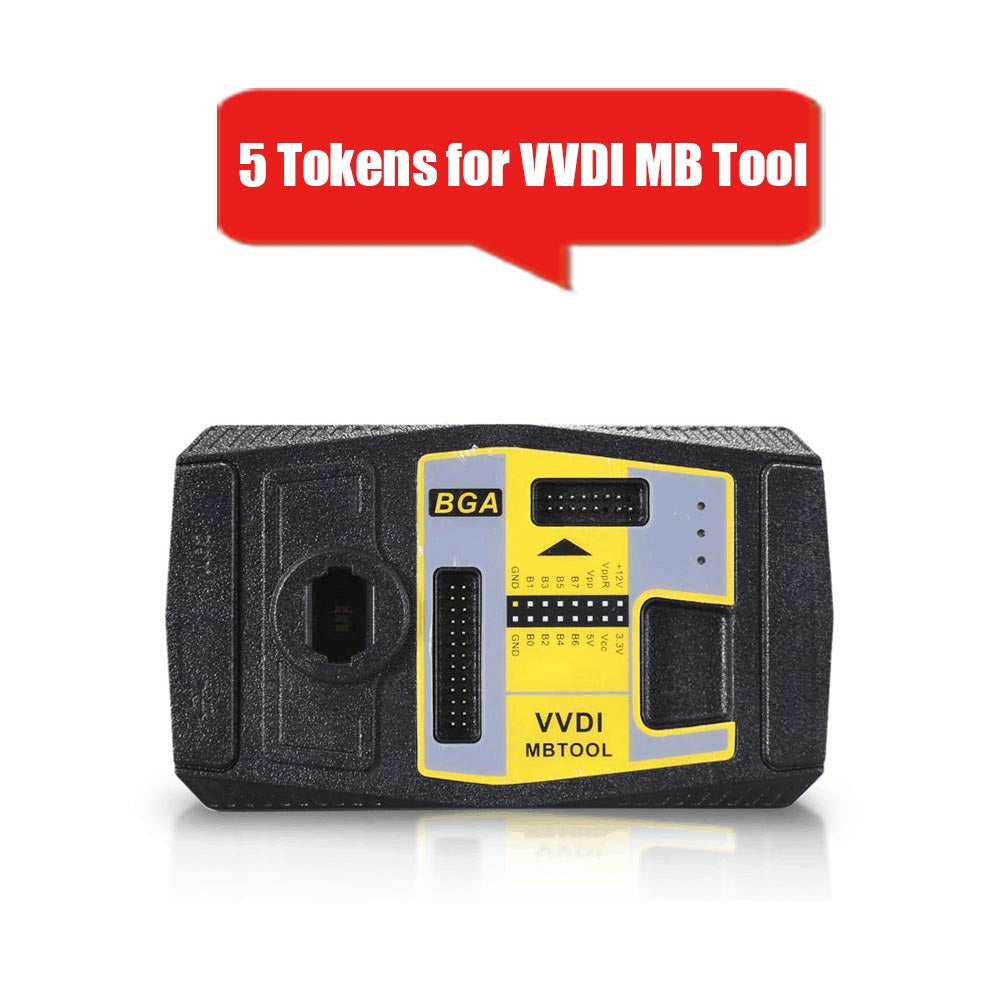

VVDI2 MB BGA Tool Benz Password Calculation Token 5pcs Lot
Overview
The password calculation function can obtain key password through EIS and working key (online). It supports CAN protocol EIS for password calculation.
It supports BGA keys and other NEC keys, including NEC V51 and V57 keys. No soldering is required, providing a safe method for operation.
Data acquisition time depends on the key version, typically ranging from 3.5 to 13 minutes. BGA versions take about 5 minutes, while some versions may take around 3.5 minutes. Server calculation time is approximately 30 seconds to 1 minute.
Supported Types
- W164
- W164 2009 and later
- W166, W197, W212, W218, W246
- W169, W209, W211
- W172, W204, W207
- W216
- W221
- W639 2009 and later
Functions
Mode: OBD and IR adapter mode used for communication with EIS
Chassis: Select chassis number or use auto detect in EIS tools
Data Acquisition Steps
- Insert working key into ignition and wait 15 seconds
- Insert working key into IR reader to verify key and vehicle
- System performs data acquisition
- Insert working key into ignition and wait 30 seconds
- Insert working key into IR reader and wait until completion
- Save acquisition data
Upload Data
Upload saved acquisition data to the server for password calculation.
Important Note
After successful password calculation for one SSID, the server will not accept repeated calculation requests with the same SSID within 2 hours. After 2 hours, new submissions will be treated as a new task.
Query Result
Users can query calculation results within 24 hours. Results include time, SSID, status, and filename. The password will be automatically filled into the password field after successful calculation.
Auto Refresh
The system will automatically refresh server results until no task remains for the device. Data acquisition can be started again while auto refresh is running.
Stop Acquisition After Success
If data acquisition is running while auto refresh is active, the program will stop the process once the correct password is found.
Status Description
Queuing: Task is in queue with estimated waiting time
Processing: Task is being processed, usually within 1 minute
Password: Password successfully generated
Discard: Duplicate SSID submission within 2 hours will be discarded
Already Upload: File already exists in the server queue
Pay Required: Device is not authorized for calculation, contact dealer for activation
Failed: Task failed, data acquisition can be repeated, failed tasks are free
