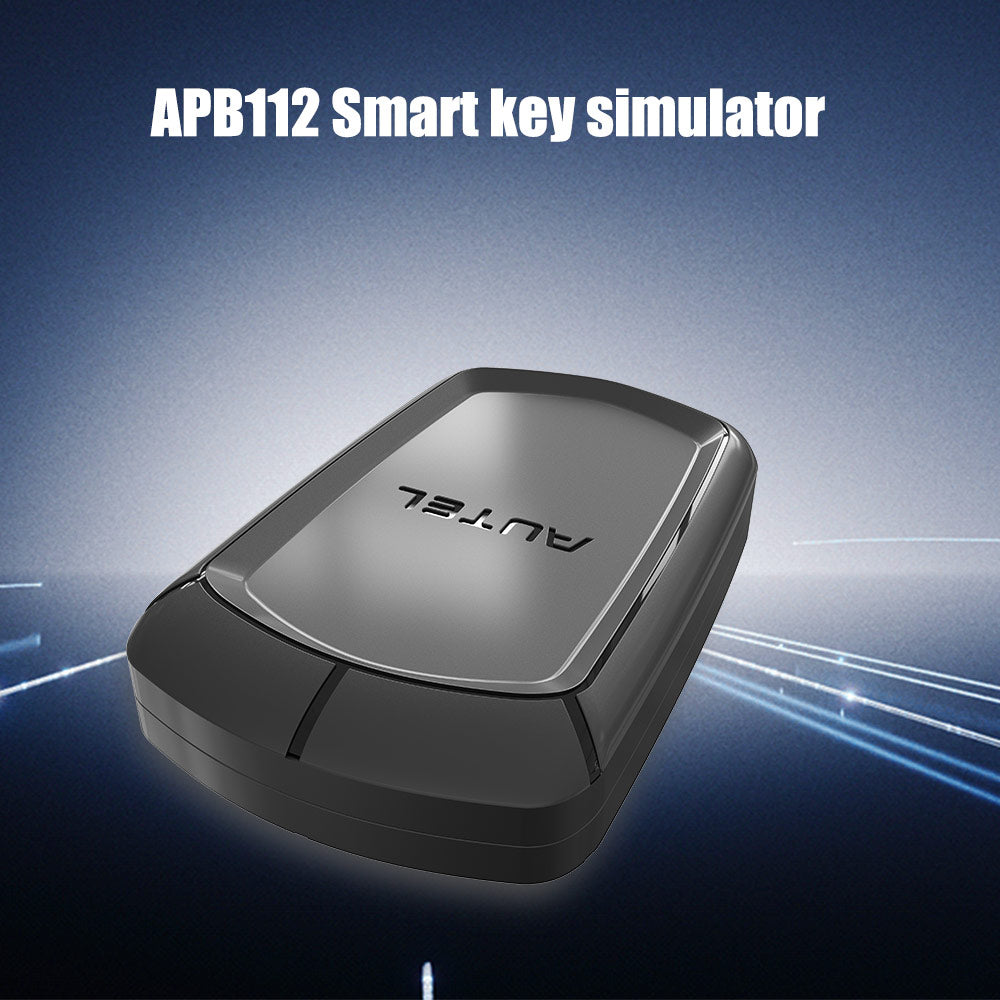

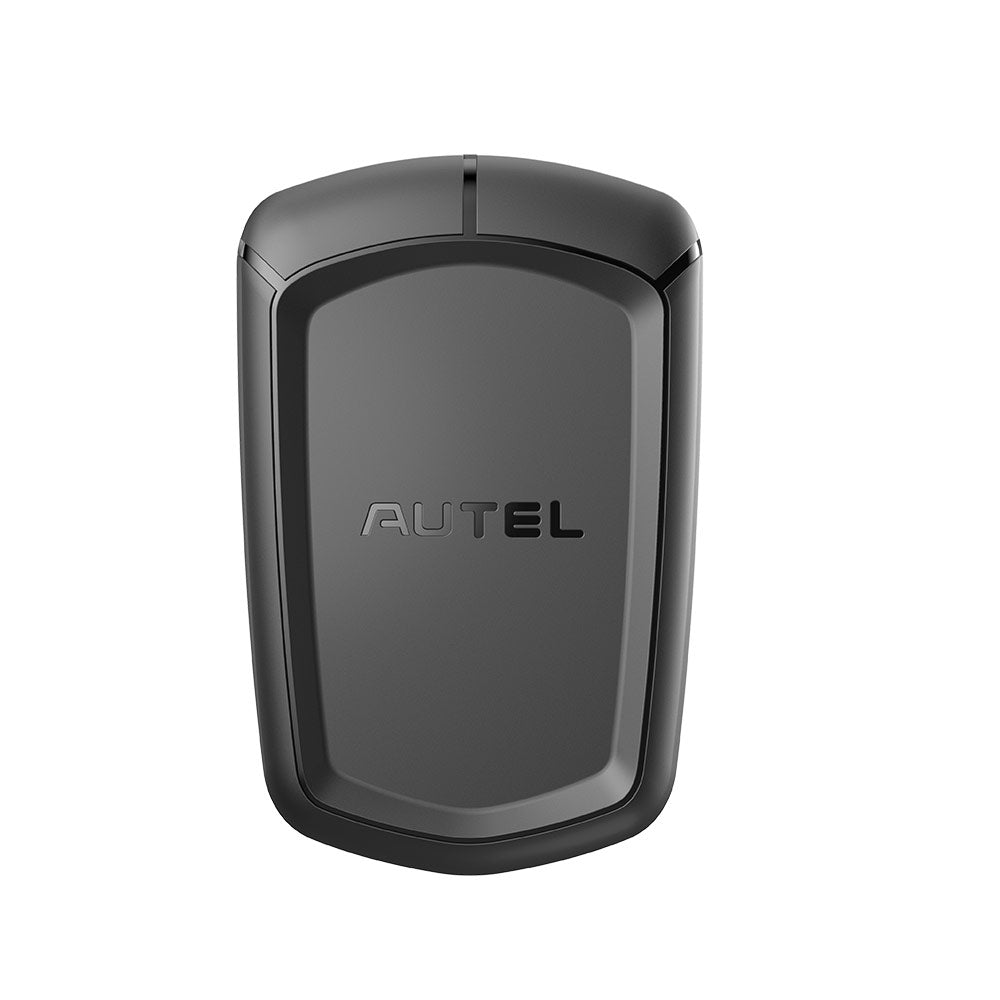

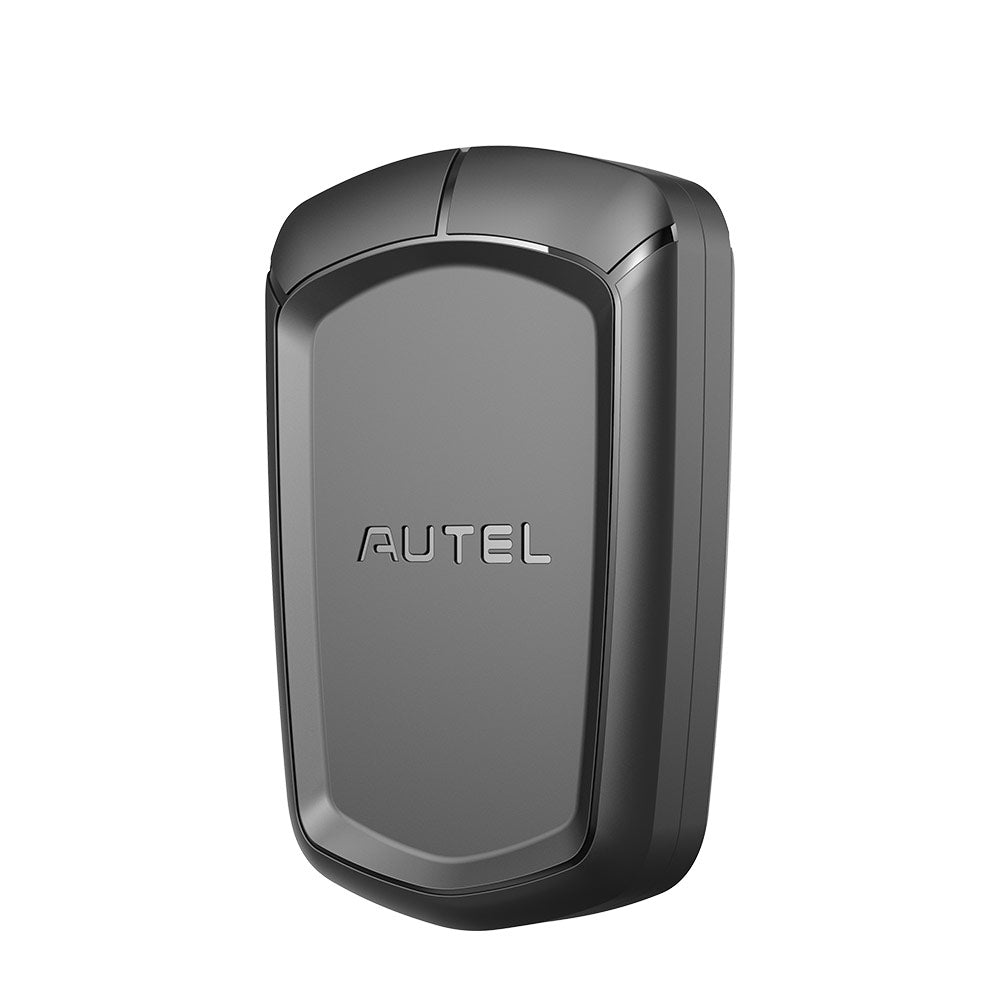

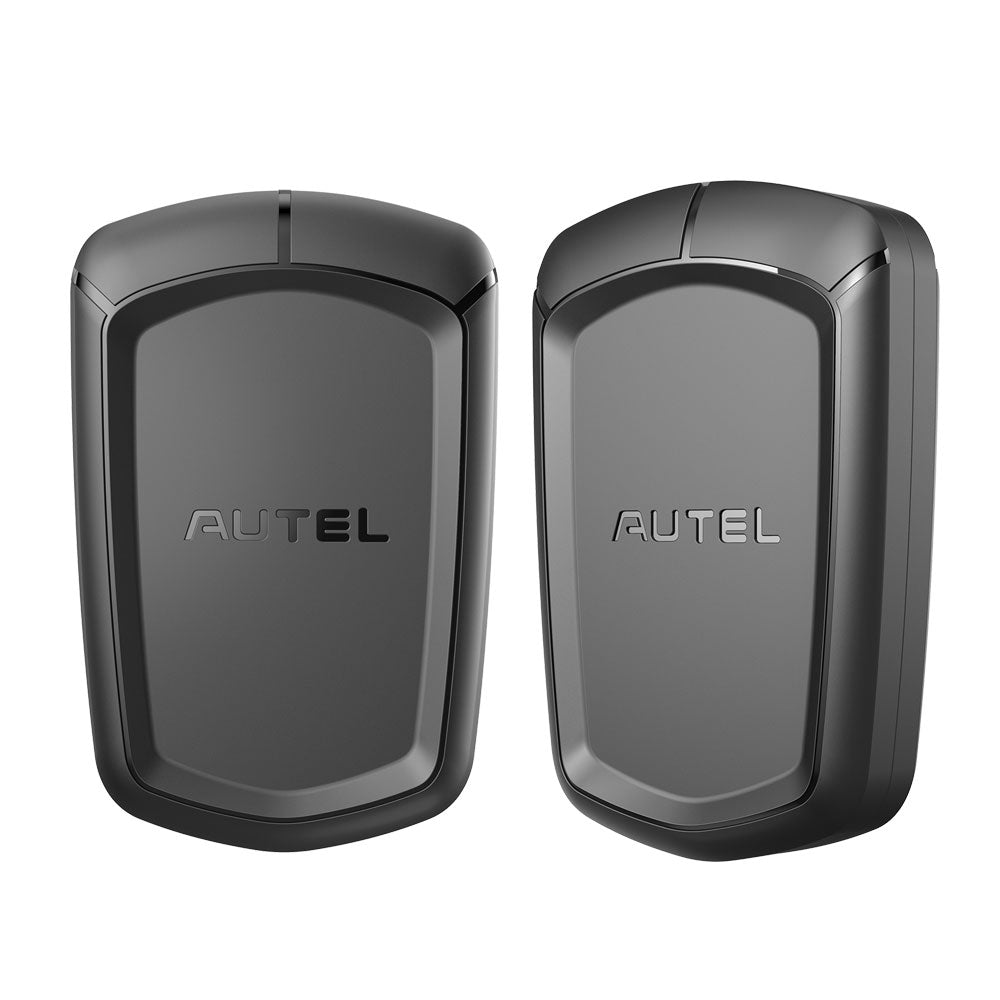

AUTEL APB112 Smart Key Simulator

Description:
The Autel APB112 Smart Key Simulator is used to collect data transmitted from the ignition coil to help identify ignition coil issues and decode vehicle key chip data. It can also simulate vehicle key chips.

AUTEL APB112 Function List:

1. Smart key simulator
2. Compatible with IM508 and IM608
3. 46 and 4D data collection
4. 46 smart key password calculation
5. 46 chip simulation
6. Toyota 4D (94/D4, 98) smart key simulation
7. Toyota H (88/A8, A9, 39) smart key simulation
8. Collects data from the ignition coil
9. Identifies ignition coil issues
10. Decodes vehicle key chip data
11. Simulates vehicle key chip (e.g. 4D chip)
12. Must be used with an Autel diagnostic tool
13. Toyota/Lexus smart key all keys lost support
14. Chip decoding (Hyundai 46)

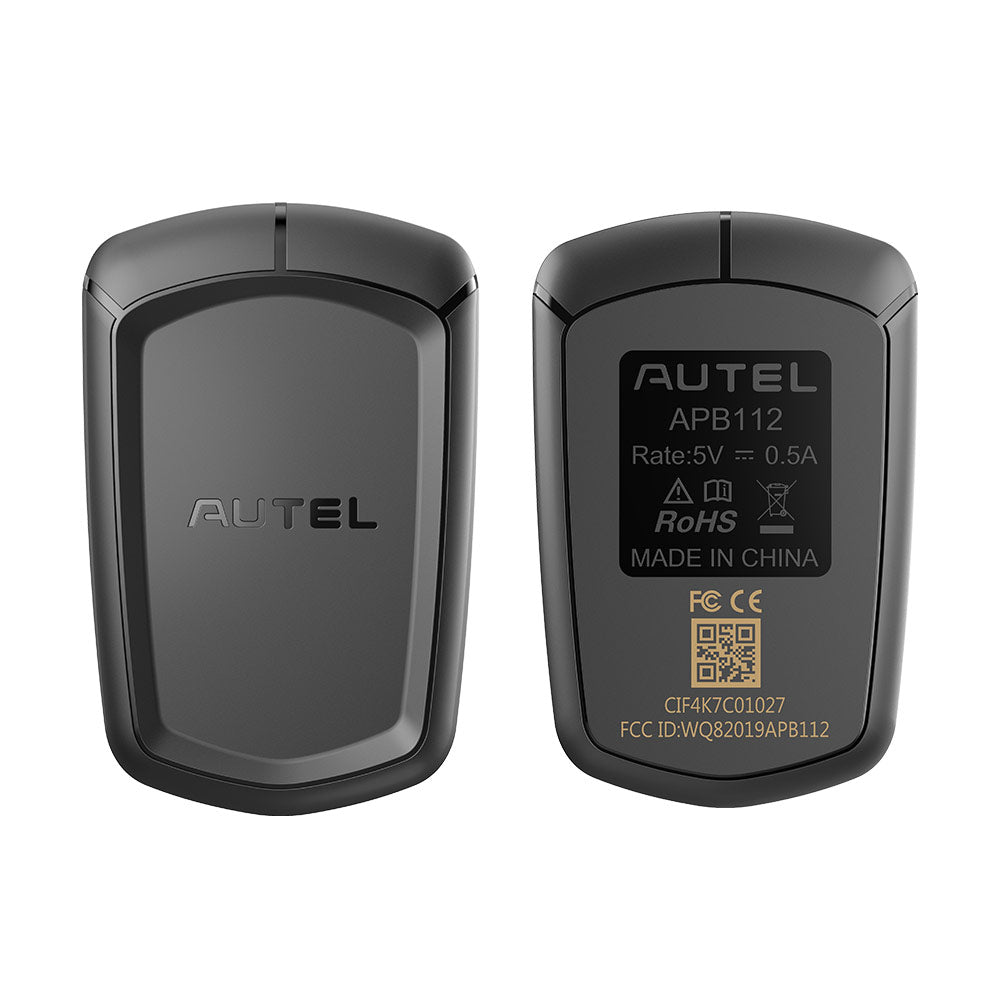

AUTEL APB112 Smart Key Simulator Overviews:

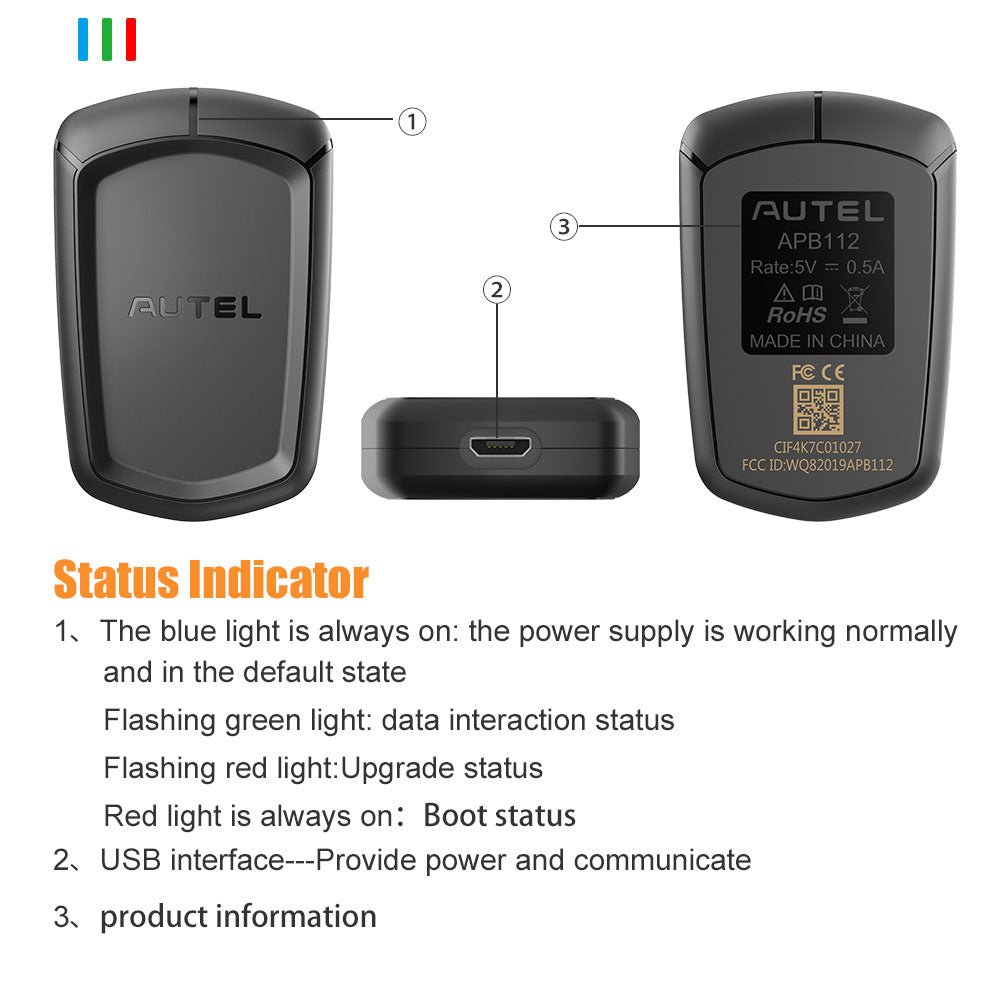

Status Indicator:
Indicates the current working status

1. Solid blue light – power supply is working properly and device is in default state
2. Flashing green light – data communication in progress
3. Flashing red light – firmware upgrading status
4. Solid red light – booting status

USB Interface:
Provides power supply and data communication

How to Use AUTEL APB112:

Important Notice:
Before operating or maintaining the APB112, please read the instructions carefully and pay special attention to safety warnings and precautions.

This device cannot be used alone and must work together with Autel MaxiIM IM608 or Autel MaxiIM IM508 (compatible with XP200, XP400, and XP400Pro). Do not disconnect the USB cable during use.

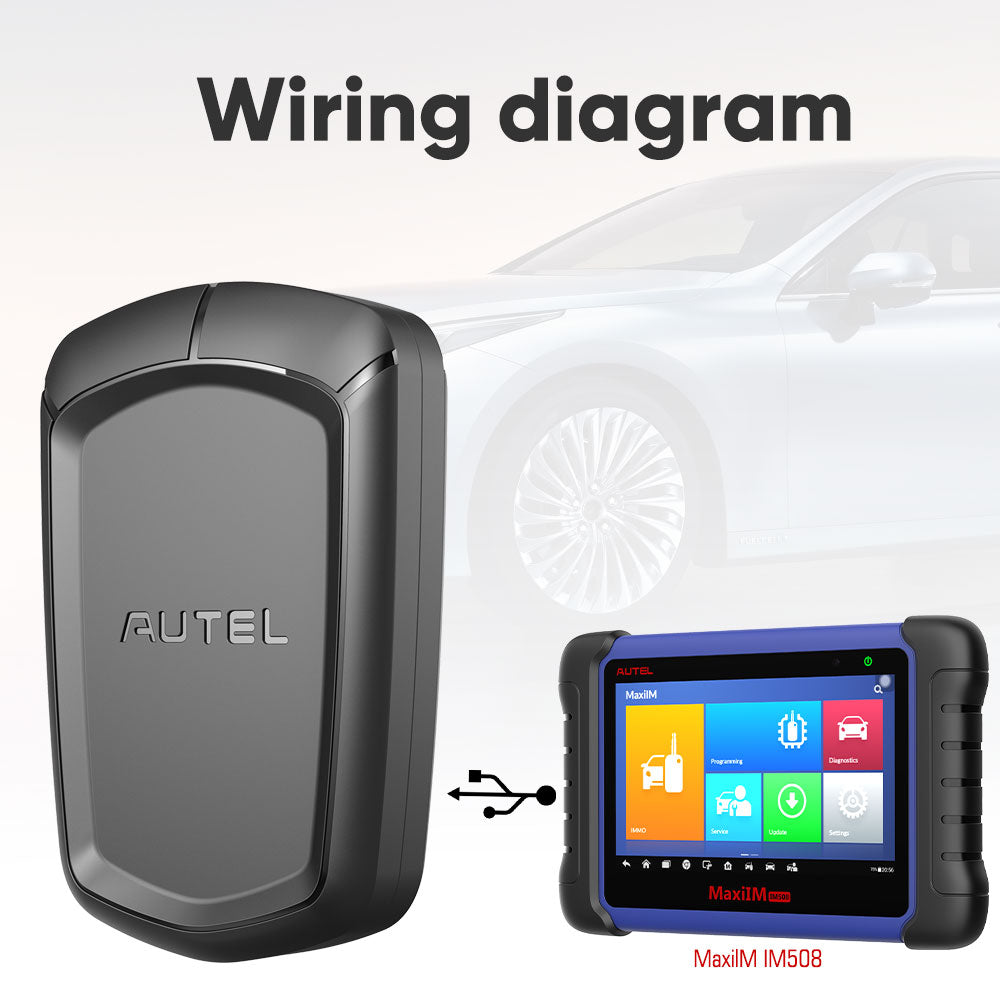

1. Connect the APB112 Smart Key Simulator to the Autel diagnostic device using the supplied USB cable.
2. After connection, the status indicator will turn solid blue, indicating the device is working properly and will automatically communicate with the diagnostic device.
3. The APB112 application will be automatically updated on the Autel diagnostic device based on the selected vehicle system function.
4. Place the smart key simulator close to the ignition coil for data collection used for chip decoding. After decoding, the original vehicle chip data can be copied.
5. The emulator chip can generate different types of key chips through future updates according to requirements.

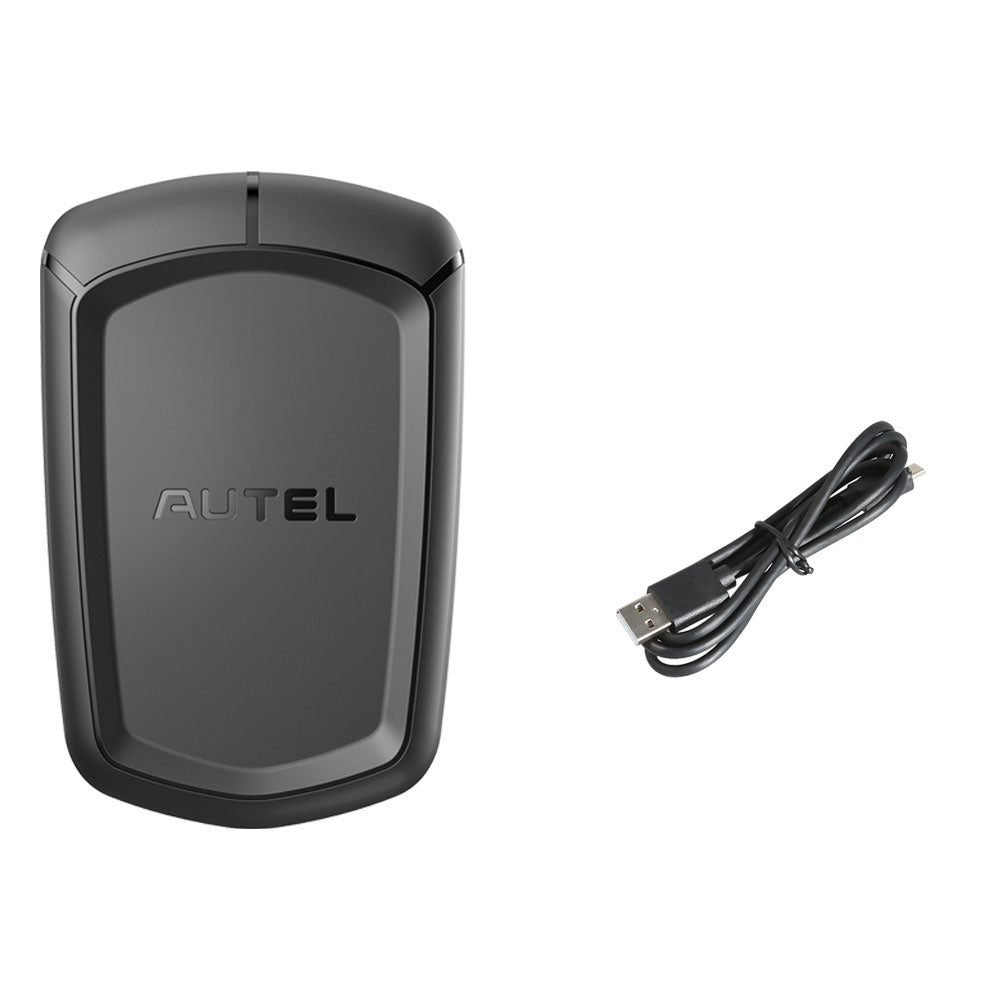

AUTEL APB112 Package List:

1pc x APB112 Smart Key Simulator
1pc x USB cable
1pc x Quick Reference Guide
