Autel MaxiCOM MK900 All System Diagnostic Tool Supports FCA Autoauth & SGW No IP Limit Upgrade of MK808S, MK808BT PRO

MaxiCOM MK900 -User Manual V1.0-EN

MK900- Quick guide

1. The Autel MaxiCOM MK900 is designed for:

• Auto repair workshops
• Mechanics and technicians
• Users requiring OE-level all-system diagnostics
• Users who need 40+ service functions and 3000+ active tests
• Users working with U.S., Asian, European, and luxury vehicle brands

2. Supported Diagnostic Functions & Features

• OE-Level All-System Diagnostics: Full-system scanning, reading and clearing fault codes, live data, ECU information, active tests, and special functions.
• 40+ Service Functions: Oil Reset, EP-B, BMS, ABS Bleed, TPMS, Airbag Reset, D-P-F Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, and more.
• Advanced Service Functions: Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, and more.
• 3000+ Active Tests: Bidirectional control for accessible vehicle actuators, including radiator fan, throttle, windows, mirrors, injectors, interior/exterior lights, horn, door locks, fuel pump, A/C, clutch, oil pressure control, dynamic camera, vehicle level position, brake vacuum, valves, parking brake, and more.
• Scan VIN/License: Retrieves VIN data through license plate or barcode scanning. This technology is mostly for 2006+ cars; if it fails, manual VIN input and scan can be used.
• Basic IMMO Functions: Adds or replaces car keys for vehicles equipped with basic IMMO systems.
• Pre- & Post-Scan Reports: Provides pre-scan reports to identify possible vehicle problems and post-scan reports to verify repairs and confirm that issues have been fixed.
• Wi-Fi Printing: Supports printing diagnostic information through a Wi-Fi printer within the Wi-Fi network range.
• Videoscope Inspection: Works with the Autel MV108S endoscope for high-definition inspection of hard-to-reach areas. The MV108S is sold separately.
• FCA SGW Access: Provides diagnostic access to 2018+ FCA vehicles equipped with the SGW secure module, including code clearing, bidirectional functions, active tests, actuation, and relearns.
• Renault SGW Access: With specialized Renault unlocking software and device, it can access restricted ECMs of 2015+ Renault RGW-equipped vehicles and perform advanced diagnostic and programming functions.
• CAN-FD & DoIP: Supports CAN-FD and DoIP communication protocols.

3. What Vehicles, Years & Systems Does It Support?

• Vehicle Coverage: 80+ manufacturers, 150+ makes, and 10,000+ models across the globe.
• American Brands: Ford, GM, Chrysler, Chevrolet, and other listed American brands.
• Asian Brands: Toyota, Nissan, Honda, Hyundai, Mazda, Holden, Lexus, Mitsubishi, Suzuki, Kia, Infiniti, Isuzu, Mahindra, Maruti Suzuki, and others.
• European Brands: VW, Audi, Volvo, Fiat, Porsche, Renault, Mercedes-Benz, BMW, Saab, Scion, Subaru, Abarth, Acura, Alfa Romeo, Bentley, Bugatti, Citroen, Dacia, Daewoo, Jaguar, Lancia, Land Rover, Mini, Opel, Peugeot, Seat, Skoda, Smart, Sprinter, Vauxhall, and others.
• Luxury Brands: Rolls-Royce, Lamborghini, Porsche, Bentley, Maybach, Bugatti, Ferrari, Roadster, Pagani, Koenigsegg, TechArt, McLaren.
• Basic IMMO Vehicle Brands: Honda, Toyota, Infiniti, Chrysler, Dodge, Jeep, GM, Ford, Peugeot, Saab, BMW, Mini, Opel, Vauxhall, Alfa Romeo, and others.
• FCA Coverage: Most FCA vehicles made from 2018–2022, including Chrysler 300 and Pacifica; Dodge Challenger, Charger, Durango, Journey, Ram; Cherokee, Compass, Gladiator, Grand Cherokee, Grand Commander, Renegade, Wrangler; Alfa Romeo Giulia and Giulietta/Stelvio; Fiat 500X, 500L, 500BEV, Toro, Doblo, Ducato, Novo Strada, and Mobi.
• Renault Coverage: 2015+ Renault RGW-equipped vehicles, including Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, and Captur II.
• Supported Systems: Engine, ABS, SRS/Airbag, Transmission, CEM, DIM, ASDM, BBS, IMS, SWM, HUD, SCL, TACM, AUD, and other available electronic systems.
• Supported Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, and CAN FD.

4. Please Note the Following Limitations:

• Basic IMMO Limitation: The IMMO key add/replace function only works for vehicles equipped with basic IMMO systems.
• VIN/License Scan: The VIN/license scanning technology is mostly for 2006+ cars. If it fails, manual VIN input and scan can be used.
• Renault SGW Access: Access to restricted ECMs on 2015+ Renault RGW-equipped vehicles requires specialized Renault unlocking software and device.
• FCA SGW Coverage: The listed FCA SGW vehicle coverage specifically states most FCA cars made in 2018–2022.

5. Additional Devices & Accessories

• Renault SGW Access: Requires specialized Renault unlocking software and device to access restricted ECMs on 2015+ Renault RGW-equipped vehicles.
• Videoscope Inspection: Compatible with the Autel MV108S endoscope, which is sold separately.

6. MK900 Specifications:

MaxiCOM MK900 vs MaxiCOM MK900-BT vs MaxiCOM MK900-TS vs MaxiCOM MK808

8. Software Updates & Free Update Period

• Free Software Updates: 1 year subscription included with purchase.
• Update Schedule: Weekly/monthly software upgrading.
• After the Free Update Period: The scanner will still work without software renewal.

9. Global Version

• Vehicle Coverage: Supports 80+ manufacturers, 150+ makes, and 10,000+ models across the globe.
• Version: No-IP limitation version.

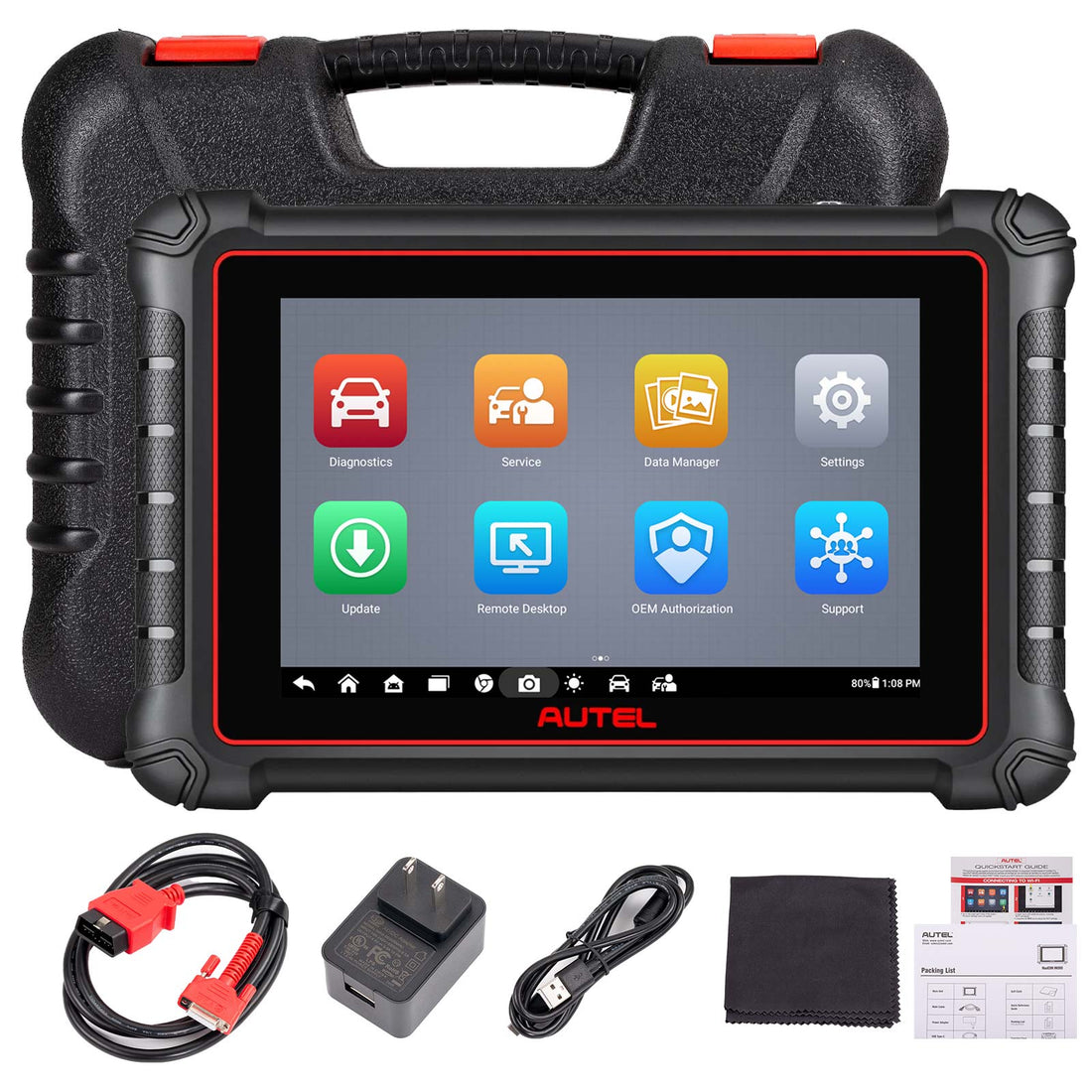

10. Package includes:
1pc x MaxiCOM MK900 main unit
1pc x main cable
1pc x power adapter
1pc x USB type-C cable
1pc x soft cloth
1pc x quick reference guide
1pc x packing list
1pc x carrying case
