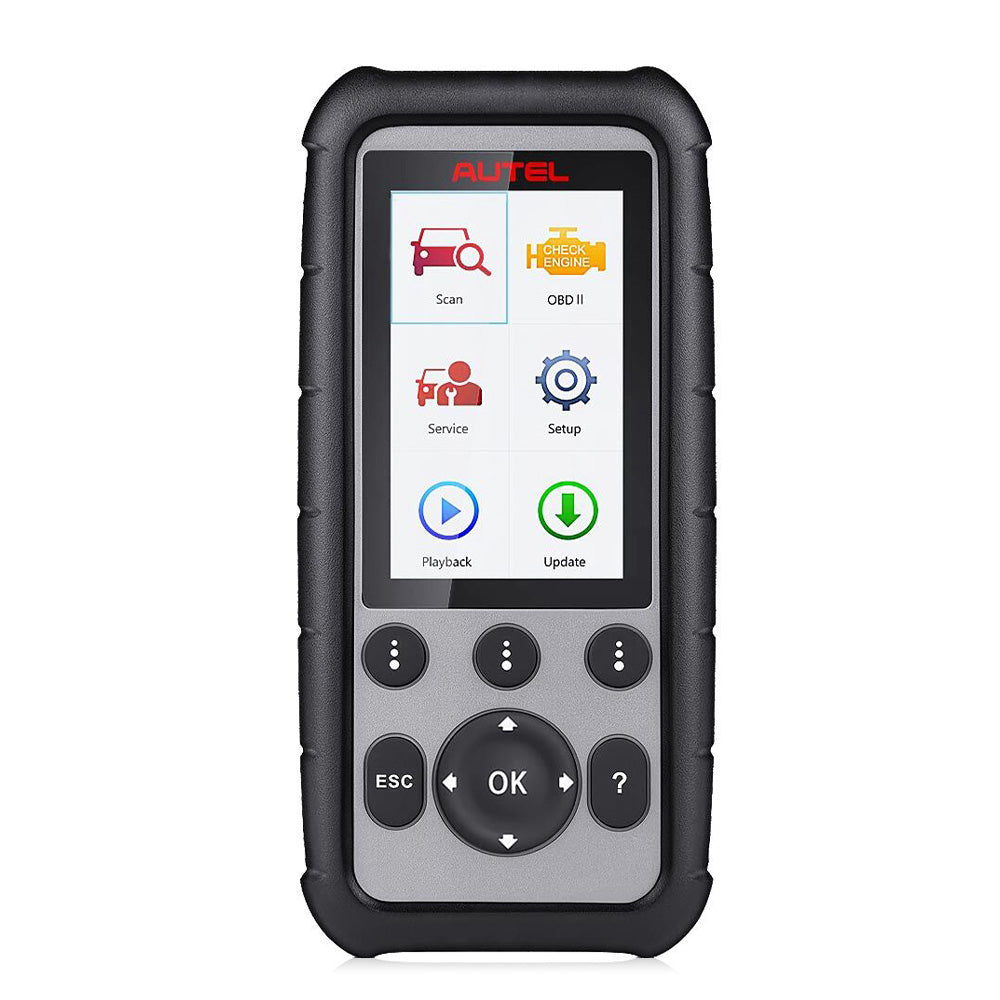

Autel MaxiDiag MD806 Pro OBD2 Scanner Car Automotive Diagnostic Tool Auto Code Reader OBDII OBD Scan Tool

2. Supported Diagnostic Functions & Features

• Full System Diagnosis: Provides access to all vehicle systems and subsystems, retrieves ECU information including unit type, version numbers, and other specifications, reads and erases DTCs, and displays live data for each parameter item.

• Auto Scan: Performs a comprehensive scan of all available vehicle systems on the vehicle ECU to locate faulty systems and retrieve related DTCs.

• Supported Vehicle Systems: Supports diagnosis of Engine, Automatic Transmission, ABS, SRS (Airbag), Suspension, Audio, IMMO Immobilizer, Air Conditioning, Auto Headlamp, ACC, Car Radio Audio, Car Door Windows, and other available vehicle systems and subsystems.

• Read & Clear Codes: Reads detected diagnostic trouble codes, provides detailed DTC information, and clears codes after the fault causing the specific DTC has been repaired.

• Live Data: Displays graphical live data from vehicle computer modules and allows viewing of vehicle operating parameters at the moment a DTC is detected.

• DTC Lookup: Provides a built-in DTC lookup library with code definitions and detailed explanations to simplify the analysis and repair process.

• Record Data & Playback: Records vehicle module Parameter Identification (PID) data to help diagnose intermittent vehicle problems, saves data files to the Micro SD card, and supports playback of recorded data.

• Freeze Frame: Displays vehicle operating parameters at the moment a DTC is detected, including parameters such as engine speed (RPM), engine coolant temperature (ECT), and vehicle speed sensor (VSS).

• I/M Readiness: Checks the operation of the Emission System on OBD II-compliant vehicles and reads I/M readiness status for state emissions compliance.

• O2 Monitor Test: Displays the latest O2 sensor test results in graphical form for troubleshooting fuel-efficiency and vehicle-emission-related problems.

• On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems, including continuously and non-continuously monitored systems.

• Component Test: Allows initiating a leak test for the vehicle's EVAP system by commanding the vehicle's on-board computer to start the test.

• Vehicle Information: Retrieves Vehicle Identification Number (VIN), Calibration ID Nos. (CINs), Calibration Verification Nos. (CVNs), and In-use Performance Tracking on 2000 and newer vehicles that support Mode 9.

• Modules Present: Displays module IDs and communication protocols for OBD II modules in the vehicle.

• Oil Reset: Resets the Engine Oil Life System after an oil change so it can calculate when the next oil change is required.

• BMS: Supports battery registration and reset, evaluates battery charge state, monitors close-circuit current, registers battery replacement, activates the rest state of the vehicle, and charges the battery via the diagnostic socket.

• EPB: Supports electric parking brake functions and parking brake pad relearn after replacement.

• SAS: Supports steering angle sensor calibration, permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM, and automatically clears the steering angle sensor fault memory after successful calibration.

• DPF: Supports diesel particulate service, including forced regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.

• Throttle: Supports throttle-related service functions.

• Adjust A/F: Supports Adjust A/F functions.

• Service Mileage & Intervals: Resets service mileage and service intervals.

• Brake Warning Light: Supports turning off the ECU brake warning light.

• OBD II Diagnostics: Provides quick access to the drive train systems of OBD II vehicles and supports the Power-train Control Module (PCM) and Transmission Control Module (TCM) when detected.

• OBD II Functions: Supports all OBD II protocols, all 10 test modes, and enhanced OBD II Mode 6.

• Print Diagnostic Reports: Supports printing diagnostic reports via PC connection.

• Multi-Language: Supports English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek, and Simplified Chinese. A serial number is required to change the language.

3. What Vehicles Does It Support?

Processor	ARM® Thumb® Processor running at up to 400 MHz
Memory	32MB, 166 MHz
Display	4.0 inch LCD with 800x480 resolution
Connectivity	Mini USB: 2.0
	Micro SD Card (16GB)
Power Consumption	1.7 W
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	5% - 95% non-condensing
Housing	Strong plastic housing with protective rubber boot
Dimensions	202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight	313 g (0.69 lb)

11. Product Comparison Chart

Product Name	MD806 Pro	MD808 Pro
Product Picture
Weight	0.69lb	3.45lb
Dimensions	8.35 x 3.62 x 1.4 inches	13 x 10.5 x 4 inches
No. of Supported Languages	13	13
Read TPMS Sensor Data	√	√
Reprogram TPMS	√	√
System Diagnoses	All	All
Code Definitions	√	√
Read TPMS Codes	√	√
Read/Clear SRS, ABS, EPB, DPF, SAS, BMS Codes	√	√

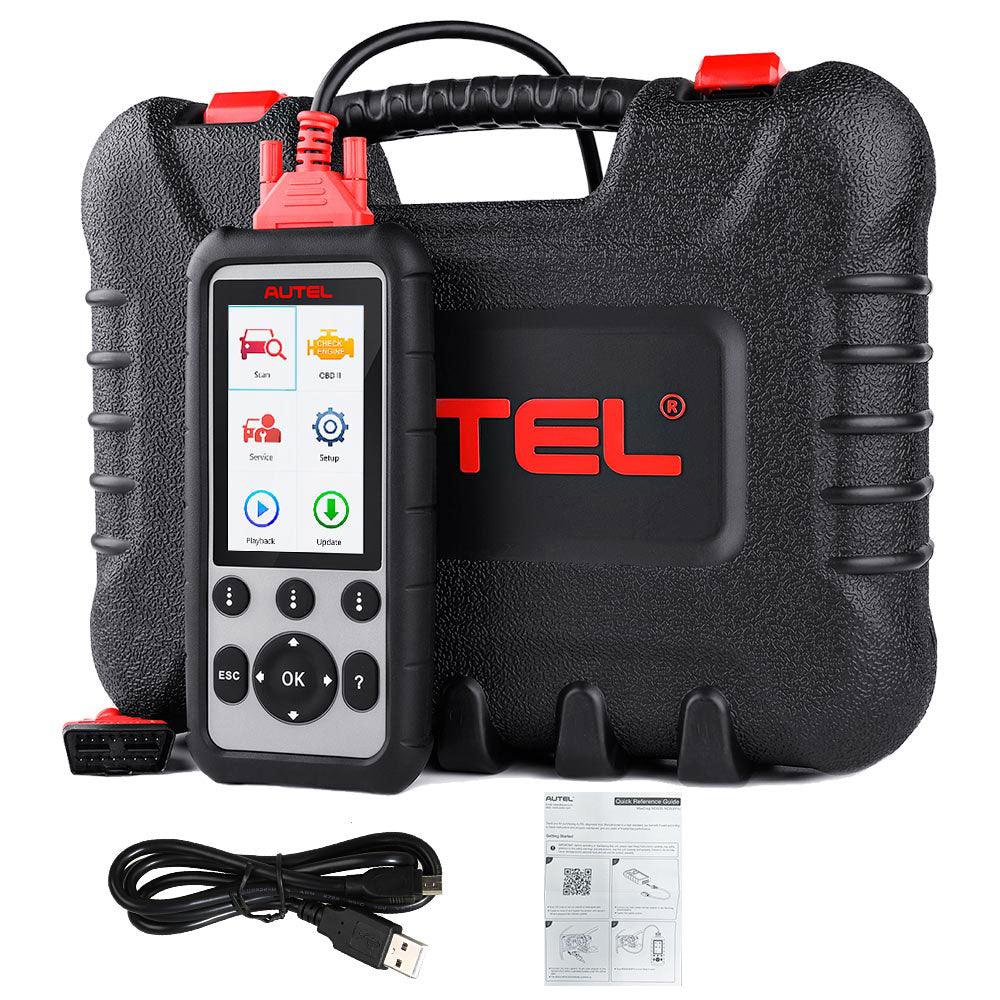

12. Package Includes:

1pc x MD806Pro Main Unit

1pc x OBD II Cable

1pc x USB Cable

1pc x Micro SD Card

1pc x User Manual

1pc x Carry Case
