What is the Autel MaxiIM IM608 Pro II?
The Autel MaxiIM IM608 Pro II is a professional all-in-one key programming, immobilizer and OE-level diagnostic tool for locksmiths and automotive technicians. Combined with the XP400 Pro and MaxiFlash JVCI+, it supports advanced key programming, All Keys Lost, IMMO functions, EEPROM/MCU read and write, ECU coding, diagnostics and J2534 programming for supported vehicles.
1. Who Is the Autel IM608 Pro II Full Kit For?
- Professional Locksmiths: Designed for experts who perform advanced immobilizer programming, key learning, All Keys Lost (AKL) solutions, and IMMO ECU EEPROM/MCU reading and writing.
- Auto Repair Shops & Master Technicians: Ideal for comprehensive workshops needing an all-in-one tool combining OE-level full system diagnostics, bi-directional controls, and advanced ECU coding/programming.
- Automotive Electronics Specialists: Specialized in module replacement, ECU flashing, hidden feature activation, and complex circuit repairs for premium brands like Mercedes-Benz, BMW, VW, and Audi
2. Autel IM608 Pro II Key Programming & IMMO Functions
Key Programming & IMMO
- All Keys Lost (AKL)
- Add Smart Keys
- Key Learning
- Remote Programming
- PIN Code Reading
- IMMO ECU Reset
- IMMO Adaptation
- EEPROM Read/Write
- MCU Read/Write
- Chip Read & Write
- Transponder Generation
OE-Level Diagnostics & ECU Coding
- OE-Level Full System Diagnostics
- Read & Clear DTCs
- Live Data Stream
- Freeze Frame
- ECU Information
- Auto VIN Scan
Advanced Functions
- ECU Coding
- J2534 ECU Programming (Supported Vehicles)
- Active Tests (Bi-directional Control)
- More than 40 Maintenance Services including:
- Oil Reset
- EPB
- SAS
- DPF Regeneration
- TPMS Reset
- BMS Reset
- Injector Coding
- Throttle Adaptation
- ABS Bleeding
- And many more
3. Autel IM608 Pro II Vehicle Coverage
Supports over 80 vehicle brands :BMW、Mercedes-Benz、Volkswagen、Audi、Porsche、Toyota、Lexus、Honda、Nissan、Mazda、Subaru、Ford、GM、Hyundai、Kia、Chrysler、Land Rover、Jaguar、Volvo、Peugeot、Renault、Fiat and many more.
Supports approximately: 1996–2025 vehicles
Supports Systems:Engine、Transmission、ABS、SRS、Airbag、IMMO、EPB、TPMS、BMS、SAS、BCM、HVAC etc.
4. Please note the following limitations:
- Holden software is not supported.
- Mercedes-Benz and BMW online ECU programming are not supported via J2534.
- Not every function is available for every vehicle.
- Vehicle compatibility depends on model, year, and ECU configuration.
- XP400 PRO should never be connected directly to a vehicle, as doing so may damage the device.

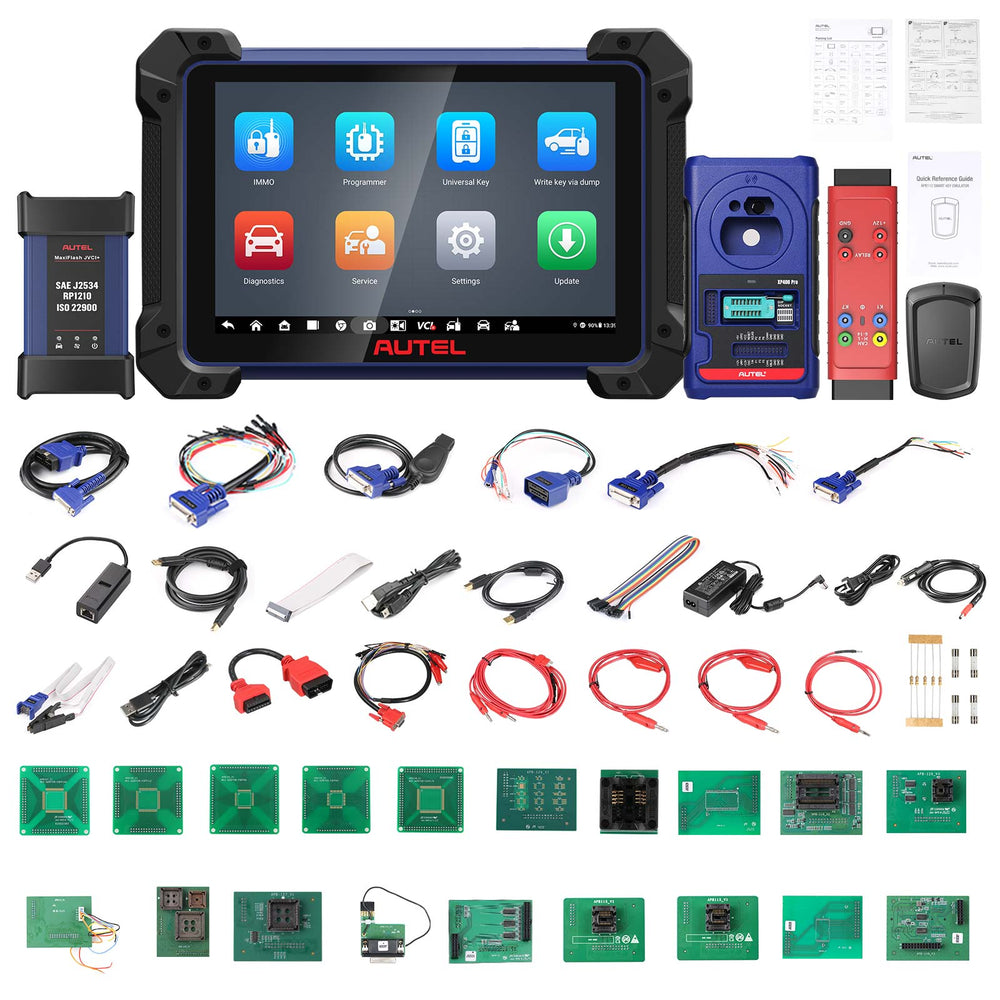

5. What’s Included in the Autel IM608 Pro II Full Kit?
This Full Kit includes the XP400 Pro programmer, G-BOX3 adapter, APB112 smart key simulator, and IMKPA key programming adapter kit.
Note: Autel MaxiIM tools require NASTF SDRM validation. Check info here.
6. Autel MaxiIM IM608 Specification:
| Operating System | Android 10 |
| Processor | Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
| Memory | 4GB RAM &128GB On-board Memory |
| Display: | 10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 64GB); HDMI |
| Sensors | Light sensor for brightness auto adjust |
| Power and Battery | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Net Weight | NW: 1.58 kg (3.48 lb.) |
| Supported Automotive Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
7. Software Update
- 2 Years of Free Software Updates
- After 2 year, need IM608 PRO II Software Subscription
- Continue using the tool after the free update period without interruption.
- Optional paid subscription is required only if you wish to receive future software upgrades, new vehicle coverage, and new functions.
8. Global Version
- No IP restriction
- Supports worldwide use
- Multi-language support
- Suitable for customers in North America, Europe, Asia, Australia, South America, and most other regions
9. Warranty
- Warranty: 1 Year
- 30-Day Return Policy
- Lifetime Technical Support
10.Autel IM608 II vs IM608 Pro vs IM508
11.Package List:
1pc x APB112(Chinese Version)
1pc x APB114
1pc x APB115
1pc x APB118
1pc x APB119
1pc x APB121
1pc x APB122
1pc x APB123
1pc x APB126
1pc x IMKPA Tool
