Autel MaxiTPMS TS601 TPMS Relearn Tool, Sensor Programming Tool, OBDII Code Reader, Active test for TPMS system, Advanced Version of TS401/TS501/TS408
AUTEL

Autel MaxiTPMS TS601 TPMS Relearn Tool, Sensor Programming Tool, OBDII Code Reader, Active test for TPMS system, Advanced Version of TS401/TS501/TS408

SKU HKSC209 Sold outShips from US warehouse
$269.00 USD
$269.00 USD

Sourced through authorized channels. Serial verifiable with the manufacturer.

  • 12-month warranty
  • Technical support in English, Mon–Sat
Not sure this fits your job? Talk to a technician

Overview

Product Introduction:
Autel MaxiTPMS TS601 is a professional TPMS diagnostic and service tool which can wirelessly diagnose TPMS problems and reprogram the vehicle's ECU. It is the best solution for busy tire and automotive workshops that require a diverse tool.

Product Features:
1.At-A-Glance TPMS Status Screen
The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features and compare sensor and ECU data, then instantly pinpoint system faults to identify the fix. This at-a-glance view of all sensor information, easily shows the location of sensor battery which is low and needs to be replaced soon.
2.Easy To Use Software Operation
Performing a basic sensor activation or complex diagnostic tool functions is easy by following the program options and on-screen display instructions. The TS601 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete.
Download free software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!
3.OBDII Connected TPMS & Vehicle Diagnoses
The TS601 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning. The TS601 also offers advanced TPMS diagnoses like live data graphing for performance vehicles and complete system diagnostics like Emissions Testing and Live Data Graphing to help technicians complete multiple projects quickly with a single tool.

Product Functions

Activates all magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals

Receives both 315MHz and 433MHz signals

Reads / writes sensor ID from vehicle ECU

Reads / clears codes of TPMS system and resets malfunction indicator light

Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information

Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.

Retrieves TPMS ECU information

Performs actuation tests and special functions

Programs vehicle ECU to learn sensor IDs and positions

Capable of programming single tires for Chrysler, Renault, and Citroen

Checks Remote Keyless Entry (Key FOB) for transmissions

Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process

Pre-selection process offers faster activation and diagnostics

Provides visual and audible responses to confirm sensors are working properly

On-screen code definitions

Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions

Proper LF signal to prevent being fooled by other RF signals

Built-in rechargeable Li-polymer battery

Automatic power-off to preserve battery life

Support 13 languages: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian,Traditional Chinese

One year free update on the internet via USB port

Ergonomic design with strong protective rubber housing

Complete TPMS Functions  Get easy and accurate test result of reading code, clearing code, live data stream and so on for TPMS system WITHOUT any TPMS sensor activation operations.
TPMS Active Test  Autel TS601 help you drive the TPMS actuators without using the vehicle’s control, to check its running condition effectively. (Note: its active test is ONLY available for TPMS system.)
4 Programming Modes  Easy and quick auto create, manual create, copy by OBD, and copy by activation to program the sensor data into a new sensor. (Note: this function is ONLY available for Autel MX-Sensor.)
Warm Tips:  The sensor relearn procedure varies by your vehicle’s make, model and year. This TPMS relearn tool can also help you kill the dreadful check engine light(malfunction indicator lamp). It is backed by high and regular software update frequency, with professional and timely after-sale service.
Product Specifications:
Display TFT color display (320 x 240 dpi)
Power 3.7 V Li-polymer battery; 2400 mAh
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Connectivity Mini USB 2.0 x 1
Dimensions (W x H x D) 202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48")
Weight 0.4 kg (0.88 lb)
Warranty 1 year
Software Update Free


The Product Comparison Chart:

Product Name TS401  TS501 TS508 TS601 MS906TS
Product Picture
Activate TPMS sensors √ √ √ √ √
Read sensor data √ √ √ √ √
Relearn by OBD function × √ √ √ √
TPMS Diagnose(Read/Clear Codes) × √ √ √ √
Copy by OBD × √ √ √ √
Check Key FOB × √ √ √ ×
Tire Type/Pressure × × √ √ √
TPMS live data × × × √ √
Basic OBDII code reader × × × √ √
Other TPMS special functions × × × √ √

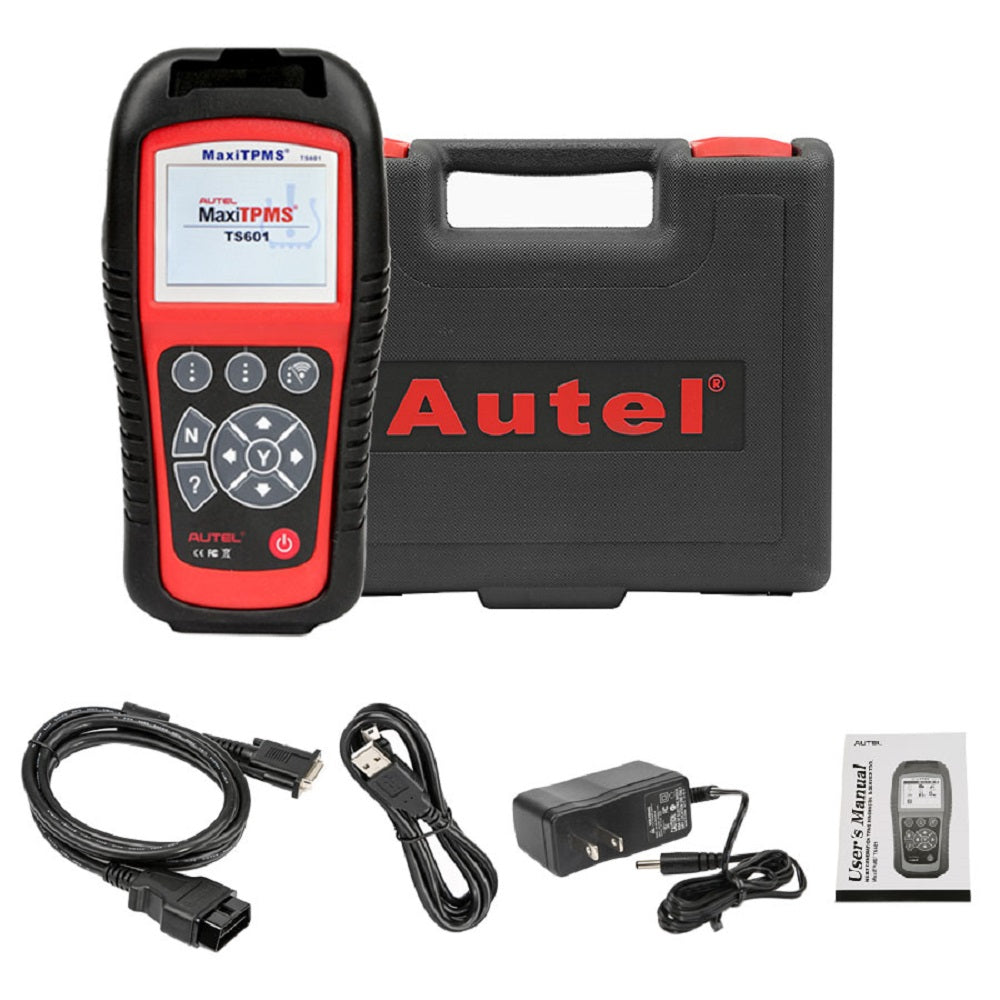

Package Includes:
1pc x TS601 Main Unit
1pc x OBDII Cable
1pc x USB Cable
1pc x SD Card
1pc x Charger
1pc x User's Manual
1pc x Carry Case

In the box

Weight
2.0 kg
Package size
28cm*24cm*12cm ( Inch: 11*9.42*4.71 )
