Overview
Product Introduction:

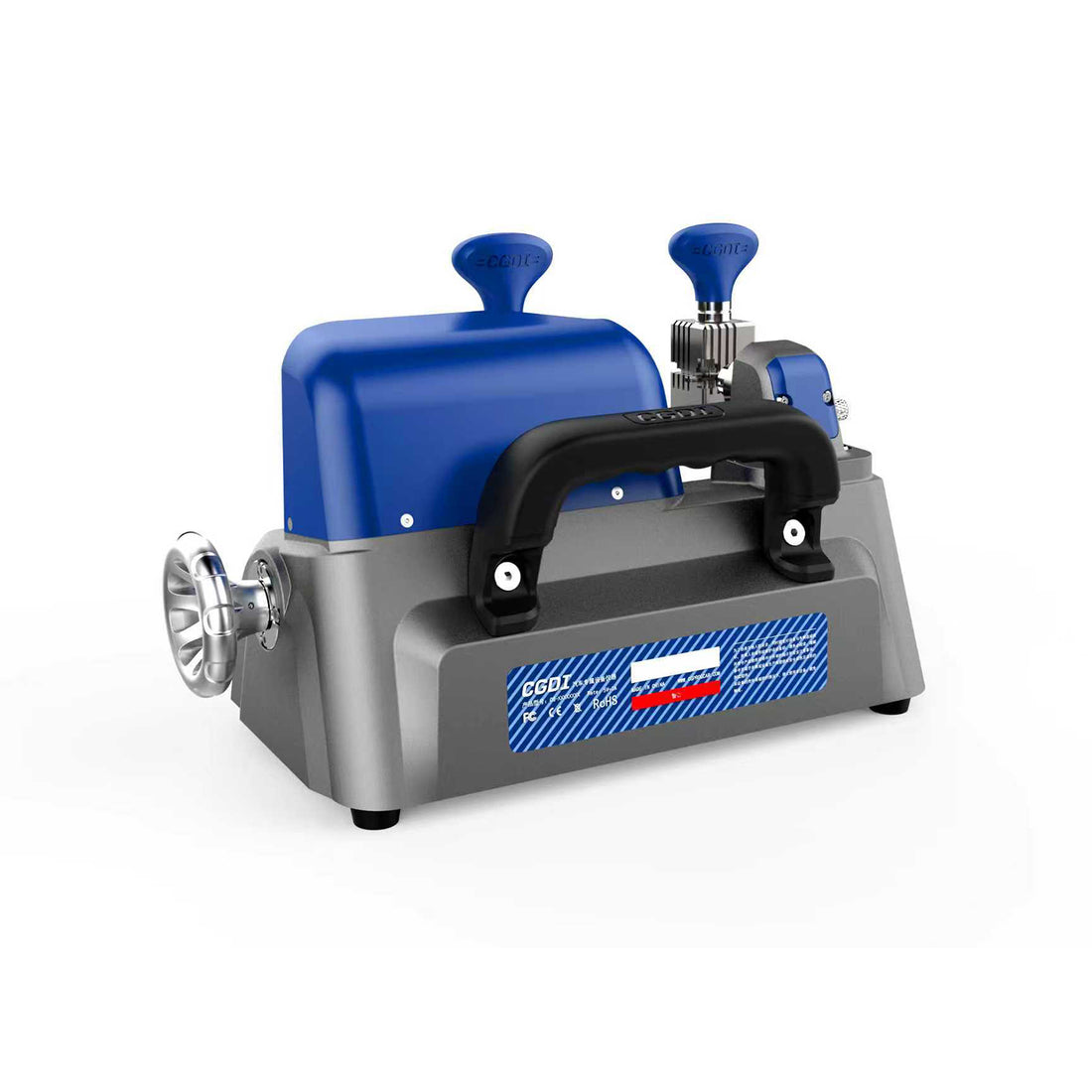

The W1 compact manual key cutting machine is a professionally designed key processing machine. It features a compact size, lightweight design, easy operation, and excellent portability.
The W1 enables fast and precise duplication of various automotive keys and civilianmechanical keys.
Product Features:
High-Precision Cutting Performance
Durable Aluminum Body Structure
Ergonomic & Smooth Operation
4-Sided Rotating Clamp Design
Built-in LED Working Light
Equipped Grinding Wheel - Efficient Deburring
Stable, Efficient, Professional - Made for Every Key Expert
Product Structure:
Product Highlights:
Modern, minimalist design with smooth lines
Integrated full-aluminum unibody, strong and durable
Compact and lightweight for easy portability
Ergonomic design with intuitive operation
Adjustable guide system for precise cutting
Cutting and polishing in one step
Built-in high-performance lithium battery for long runtime(Optional)
Product Structure:
Product Specifications:
Input Voltage: 100～240V AC
Input Frequency: 50～60/Hz
Power Consumption: 50W
Power Supply Parameters: 12V DC/5A
Battery Capacity: 2600mAh
Spindle Speed: 2100rpm
Motor Torque: 1.0Nm
Clamp Spacing: 95mm
Table Stroke: 70mm
Operating Temperature: 0～45℃
Operating Humidity: 10～90%
Machine Net Weight: 11.2kg
Machine Dimensions: 385mm*185mm*205mm
Package includes:
1pc x Machine
2pcs x Align Stoppter
2pcs x Φ1.2mm needle
2pcs x Φ1.7mm needle
1pc x Power Adapter
1pc x Product inspection certificate
1pc x Product manual
