DIAGXT T80 Universal Oscilloscope & Automotive Oscilloscope, Store, Parse, Modify, Send CAN Bus Data, Beginner-friendly with 4G Memory

DIAGXT T80 Manual

2. Supported Key Functions & Features

4-Channel Automotive Oscilloscope

The T80 supports simultaneous signal acquisition from multiple channels.

Advantages:

• Analyze multiple signals at the same time
• Compare input and output signals
• Improve fault diagnosis efficiency

Easy Operation Design

The T80 is designed for automotive technicians who are unfamiliar with traditional oscilloscopes.

Features:

• Simple operation interface
• Touchscreen control
• Physical buttons
• Preset measurement options

Basic training can help beginners start waveform testing quickly.

High Sampling Rate and Large Storage

Specifications:

• Single channel sampling rate: 1G Sa/s
• Storage capacity: 4GB

Benefits:

• Capture high-speed signals
• Record long-duration waveforms
• Review waveform data repeatedly

Long-Time Waveform Recording

The large storage capacity allows continuous waveform recording.

Suitable for:

• Ignition signals
• Sensor signals
• Timing signals
• Intermittent fault analysis

Built-in Automotive Waveform Database

The T80 provides:

• 400 standard diesel engine timing waveforms

Users can compare measured signals with standard waveform references.

Waveform Raw Data Saving and Viewing

Supports:

• Raw waveform data storage
• Waveform playback
• PC viewing
• Data export

Unlike image-only storage, the T80 saves original waveform information for further analysis.

CAN Bus Analysis Function

The T80 supports CAN communication analysis.

Functions include:

• CAN waveform viewing
• CAN data collection
• CAN data saving
• CAN data parsing
• CAN data modification
• CAN data sending

Waveform Decoding

Supports waveform decoding:

• CAN
• UART
• SPI

Waveform Transmission Function

The T80 can send correct waveform signals to vehicle ECU for testing.

Applications:

• Verify timing signal faults
• Check ECU response
• Compare normal and abnormal signals

Example:

If a vehicle cannot start due to suspected timing signal failure, technicians can send a correct waveform signal to verify whether ECU activation occurs.

Multimeter Function

Built-in basic multimeter functions help technicians measure electrical signals before waveform analysis.

Benefits:

• Quickly check voltage
• Locate test points
• Capture important waveforms

Flexible Power Supply Design

Supports:

• Rechargeable battery operation
• Vehicle power supply
• Portable workshop use

The adjustable hinge and fixed bracket design allow:

• Handheld operation
• Bench oscilloscope use

3. What Vehicles Does It Support?

The DIAGXT T80 is a universal automotive oscilloscope and is not limited to specific vehicle brands or years.

It can be used on vehicles equipped with electronic control systems and electrical signal circuits.

Supported Vehicle Types

Compatible with:

• Passenger cars
• SUVs
• Pickup trucks
• Light commercial vehicles
• Diesel vehicles
• Gasoline vehicles

Supported Vehicle Brands

The T80 can be used for electrical diagnosis on vehicles from various manufacturers, including:

• Toyota
• Honda
• Nissan
• Ford
• Chevrolet
• BMW
• Mercedes-Benz
• Volkswagen
• Audi
• Hyundai
• Kia
• Volvo
• Other vehicle brands

Supported Vehicle Systems

The T80 can analyze signals from:

• Engine sensors
• Actuators
• Ignition systems
• Fuel systems
• Timing systems
• ECU communication systems
• CAN bus systems

Supported Signal Types

• Analog signals
• Digital signals
• CAN signals
• UART signals
• SPI signals

Supported Vehicle Years

No fixed year limitation.

Compatibility depends on:

• Vehicle electronic architecture
• Signal type
• Communication protocol

4. Please Note the Following Limitations

1. Only low-voltage signal testing; cannot measure high-voltage new energy vehicle motor/battery circuits
2. Does not support LIN, FlexRay automotive bus decoding; only CAN/UART/SPI are available
3. Battery continuous working time only 1.5 hours, long-time bench testing requires vehicle cigarette lighter power supply
4. Cannot read/clear DTC fault codes or perform ECU coding/programming; it is a signal measuring tool, not a diagnostic scanner
5. Not suitable for heavy construction machinery, large marine engines and industrial equipment signal testing
6. Raw waveform storage limited to internal 4GB memory, external SD card only for data export (cannot extend real-time capture storage)
7. Does not support high-current power component load testing without matched isolation probes

5. Hardware Accessories & Licensing Requirements

• No hardware activation code, annual subscription or paid authorization; all built-in waveform library and CAN functions are unlocked out of box
• All necessary test probes, signal transmission harness and wiring terminals are included in standard package
• No mandatory extra equipment required for daily vehicle signal measurement
• PC only needed for exported waveform data viewing; no paid analysis software required

6. Software Version & Supported Operating Systems

• Independent embedded firmware on the handheld main unit, updated via Wi-Fi wireless connection
• Exported waveform data compatible with Windows 7/10/11 PC for offline viewing; Mac OS not supported
• No dedicated mobile APP; all measurement operations completed on the 7-inch touch screen
• Pre-installed full 400-set diesel waveform database, no separate software installation needed

7. Software Update

• All official firmware, waveform library and CAN protocol expansion updates are permanently free via Wi-Fi
• Free update content: add new vehicle sensor standard waveforms, optimize CAN decoding logic, fix touch and trigger bugs
• No annual update subscription fee, no free update expiration period for the whole service life
• One-click wireless upgrade without USB connection to computer

8. Global Version

100% global universal version without regional lock, IP or country function shielding. All CAN and sensor signal protocols are universal for European, American and Asian vehicles, no area-limited waveform library restrictions.

9. Warranty

• Standard manufacturer hardware warranty: 12 months from original purchase date
• Warranty coverage: factory defects of mainboard, touch screen, built-in battery, probe input channels under normal vehicle low-voltage testing
• Excluded from warranty: overvoltage signal burnout, liquid water damage, artificial disassembly, broken probes and wiring terminals from improper operation
• 30-day return service (buyer bears return shipping for non-quality issues); lifetime free text & video technical support

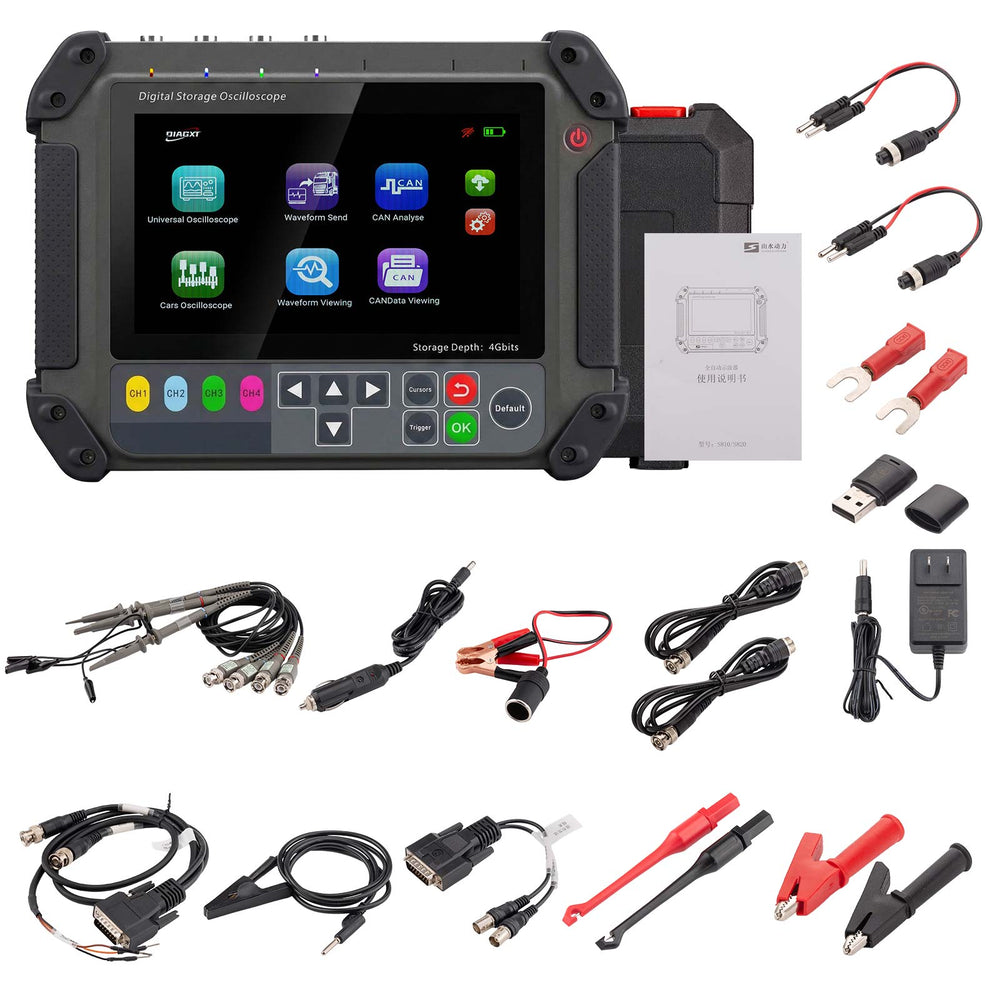

10. Package List

1pc x Main Unit

1pc x Charger

1pc x Male Cigarette Lighter

1pc x Female Cigarette Lighter

4pcs x Oscilloscope Probes

1pc x Ground Wire

2pcs x Banana Connectors

1pc x Waveform Transmission Harness

2pcs x Quick-connect extension cables

2pcs x 4.0 Barbed Wires
2pcs x Spade terminals

2pcs x Aligator clips
1pc x USB drive
