[EU UK Version] XTOOL InPlus IP616 All System Diagnostic Scan Tool with 31+ Services, Key Programming, Supports CAN FD, Lifetime Updates

Xtool IP616 vs D7 vs IP819 vs D8 vs D8 BT vs D9

Product Description
Supports CAN FD protocol & 10000+ Vehicles Coverage.

XTOOL InPlus IP616 All System OBD2 Diagnostic Scan Tool EU UK Version

Xtool InPlus IP616 is a cost-effective auto diagnosis tool for 85 car brands.IP616 supports all system diagnostics, over 31 special functions, key programming with kc501, flash hidden functions and CAN FD protocols.

Xtool IP616 Highlights:

• All System Diagnostic
• 31+ service reset functions
• Key programming with KC501/KC100 (purchase separately)
• Supports CAN FD protocol & 10000+ Vehicles Coverage
• Lifetime free update: One Click WIFI Update
• 8-IN-1 Live Data Graphing
• ABS Auto Bleeding
• Auto VIN & Auto Scan
• Flash Hidden functions
• 14 Languages Supported: Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese. English in default, provide S/N to change language.

Support All System Diagnoses:

XTOOL Inplus IP616 can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.

Include: ABS system, Engine system, SAS system , TPMS system , IMMO system , Battery system ,Oil service system , SRS system , ect..


• Read&Clear Codes: turn off warning lights and reset monitors and clear DTCs.
• DTCs Look Up: help to locate the problem and learn the definition of the DTCs.
• 8-IN-1 Live Data Graphing: combine 8 PIDs mostly in one graphing to check the work status of modules, include emission, misfire, O2 sensor data, MAP/TPS value, mass airflow, clutch sensors, water/trans oil/coolant/fuel temp, cylinder balance rates, long/short fuel trim, engine rpm, battery voltage, wheel speed sensor, fuel rail pressure, etc., support data record/playback.
• Display up to 8 Individual PIDs in One View: New live data graphing feature allows you to check multiple PIDs graphing at the same time.(Please scroll down the screen to check all 8 graphing.)
• Retrieve ECU information, Freeze Frame
• ALL 10 Modes OBD2 Functions: O2 Sensor monitoring test, I/M Readiness, Component test, On-board Monitor Test (Mode 06), retrieve vehicle information, read codes, clear codes, data stream display, freeze frame, etc.
• Auto VIN&SCAN: 4-Way to detect vehicles by Auto Scan/Manual Input VIN/Automatic Detection/Manual Selection.

Note:

• AUTO SCAN does not work on all vehicles, try other three ways instead if Auto Scan is not available.
• InPlus IP616 does not have Bi-directional control abilities! If you need it, you can consider XTOOL IP819!
• Internet needed to be connected when diagnose for Peugeot/Citroen vehicles.
• Support 12V sedans, light duty trucks, SUVs, mini vans. Not support Heavy duty trucks or motorcycles.

31+ reset functions:

XTOOL InPlus IP616 diagnostic scan tool offers comprehensive maintenance services options that they would ever need to DIYers, home mechanic, backyard mechanic, shade tree mechanic, weekend mechanic, retired mechanic, whoever want to service their own cars, and the cars of their family’s, neighbors’ and friends’.

• Oil Reset: Perform reset for a new countdown of engine oil life system once changed the oil.
• EPB Reset: Reset brake pads to maintain the electronic braking system safely and effectively.
• SAS Calibration: Erase the fault steering angle sensor memories and make calibration for the Steering Angle Sensor.
• DPF Regeneration: Clear the blockage via the continuous burning of the particulate matter captured in the DPF filter.
• BMS Reset: Register the newly replaced car battery into the ECU.
• ABS Bleed: Bleed the air out of the ABS system for firm brake pedals.
• Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.
• HV Battery: Check HV battery pack voltages.
• EGR Relearn: Relearn the EGR system after replacement.
• A/C Relearn: Relearn the A/C system after replacement.
• VGT Relearn: Relearn the VGT Turbo after replacement.
• Key Programming: Read PIN, add new transponder key, add new smart key, remote learning, A_K_L, make dealer key. Note: Not professional key programming tool. Please come with VIN #, key type(with pics), key adding situation for compatibility check.

And it also includes frequently used special functions like Throttle Relearn, TPMS Reset, Airbag Reset, Gearbox Match, Suspension Calibration, ECU Configurations, Power Balance, Seat Match, Gear Learning, Headlight, Window Initialization, Language Change, Transport Mode, Tire Upgrade, EEPROM, A/F Reset, Start/Stop Reset, Electronic Pump Activation and etc. NOTE: Only specific special functions are available to a vehicle. Please come to us with VIN # and functions to check compatibility before purchase.

Auto VIN

Auto VIN/AUTO SCAN does not work on all vehicles, Manual selection/inputting functions are available on the IP616 and can help you access the diagnosis menu.


Key Programming:
With KC100: Programming key for VW/ for Audi/ For Skoda 4th, 5th / For MQB Key, etc.
With KC501: Programming key for BMW/ for VW/ for BENZ(NO for all)
With M821:Programming  some B-ENZ key all lost
With M822: For Toyota 8A/4A Key All Lost
With KS-1: For Toyota/Lexus All Key lost No disassembly
With EEPROM Adapter:
1. Pin Code Reading
2. VehicleModule Initializing
3. Chip programming

Function for Immobilizer/Key Programming:
Read PIN code/pin code calculation
Check number of keys
Generate dealer key
All key lost
Add key


ECU CONFIGURATION (CUSTOMIZATION) -- Flash Hidden Functions & Customize Vehicle Settings

You can activate the higher-level car functions and disable the annoying features. Customize some extra options according to your needs, as shown below:

• Disable daytime running light
• Disable seat belt chime
• Fold rear-view mirror, etc

NOTE:

• Flash Hidden Functions work on specific vehicles. Please check compatibility with VIN # prior to purchase.
• Work on some BMW, on VW, on AUDI, on SKODA, on TOYOTA, on LEXUS, on SCION, on MAZDA, on FORD, on LINCOLN ONLY currently.
• XTOOL InPlus IP616 can NOT program ECUs or re-flash modules like ECM, PCM, BCM, ABS, etc after replacing modules.

Vehicle Coverage:


IP616 Scanner Specifications:

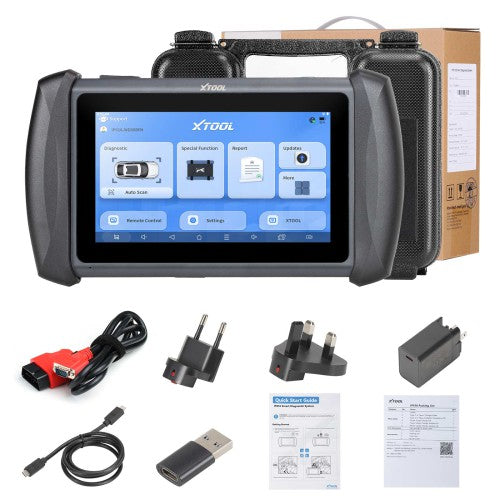

Package List:
