Overview
SK420-Godiag CAS1 CAS2 SER BMW Mech-Key Test Platform EN-V1.1
1. The GODIAG BMW CAS1/CAS2 Mech‑Key Test Platform is Designed for:
- Professional auto‑locksmiths specializing in BMW CAS1 / CAS2 mechanical key programming and all‑keys‑lost jobs
- Automotive ECU / IMMO repair technicians for bench testing of disassembled CAS anti‑theft modules
- Independent repair workshops performing BMW key addition, CAS data backup and module function verification
- Automotive electronics engineers doing solder‑free bench diagnosis for BMW CAS modules
- Automotive vocational training institutions for hands‑on teaching of BMW CAS1/CAS2 anti‑theft system operations
2. Supported Key Functions & Features
The built-in indicators and sensing area make it possible to quickly determine whether the key and CAS module are synchronized.
Synchronous detection of module and key:
Check whether the CAS2 module and mechanical key can be synchronized:
Step 1: Connect the CAS2 module according to the connection diagram
Step 2: Put the key into the key sensing area
Step 3: Connect the power supply.
Step 4: Press the start switch (press the start switch once to turn on the CAS power and automatically detect whether the key and CAS are synchronized, press it again to turn off the CAS power and turn off the detection).
Synchronization judgment method: when the detection start switch is pressed, the Power indicator light will light up. If the key is synchronized with CAS2, the CAS module key induction coil indicator light will flash regularly. If it is an unsynchronized key, the key induction coil indicator light will only flash quickly for 2 seconds. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]
Step 5: Press and hold the analog start/stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. The INDUC sensor indicator light also goes out. After releasing, the IMMO synchronization detection indicator light will light up. The INDUC sensor indicator light flashes.
CAS1 module and key synchronization detection:
1.Connect the device according to the connection diagram. Please use 12V 2.5A for power supply, otherwise the CAS1 module cannot be driven. [Do not connect the CAS2 module]
2.Press the start switch [you can see the START-STOP indicator light on the CAS lights up]
3.Insert the key into CAS1
4.Press the CAS1 key. If the key is synchronized with the CAS1 module, the CAS1 key will be locked. It will automatically exits if the key is not synchronized.
CAS2 mechanical key module key programming and module programming identification diagnostic connection demonstration:
The following uses Xhorse vvdi2 device to perform BMW CAS2 mechanical key programming and matching operations:
1.Connect the CAS2 mechanical key module and key programming diagnostic equipment according to the connection diagram. Press the start button to provide power to CAS2.
2.Select “key learn—CAS/EWS Information---Connect-- Read EEPROM”. [Note: Take away the key and do not perform synchronization detection between the key and the CAS2 module before connecting to read data. Just press the start button to power the CAS module. If the CAS module detects a synchronized key, then the connected device cannot read the data. ]
Save to File...
If you want to read the CAS mileage or modify the CAS mileage, please operate the corresponding menu“Read KM”.
It can also read CAS code-DME.
3.Key programming steps: select “key learn—CAS Key Learn ---Connect” , select “Get Key Info” and “Save Key Info”.
4. Select an unused key position, be sure to select the “prepare dealer key with programmer” menu, and use the VVDI2 key programmer to generate the key. If the key is placed in the key sensing area of the GODIAG BMW CAS1/CAS2 Mech-Key Test Platform, the dealer key will not be generated.
5. After programming the dealer key, place the key into the Godiag BMW CAS1/CAS2 Mech-Key Test Platform sensor port for testing. For test steps, please refer to module and key synchronization detection.
If the new key detection is out of sync, please synchronize CAS and DME or synchronize CAS and ELV. Reconnect the device and module and press the button‘Check the start switch’ If the IMMO light cannot light up, enter the VVDI2 menu “Key Learn—CAS/EWS Information—Connect—Synch DME-CAS or Synch CAS-ELV” for synchronization operation. [When performing synchronization, the key must be placed in the key sensing programming area of the VVDI2 device.]
The following uses the Xhorse vvdi2 device to perform the BMW CAS1 key programming and matching operation:
1.Connect the CAS1 module and the key programming diagnostic device according to the connection diagram. Press the START switch on the Godiag BMW CAS1/CAS2 Mech-Key Test Platform and the POW indicator light will light up, indicating that the test platform has output power. The indicator light on the CAS1 mode will also light up. [Please use 12V 2.5A power supply, otherwise it will not be able to drive the CAS1 module]
2.Select “key learn—CAS/EWS Information---Connect-- Read EEPROM”. [Be careful not to insert the key. If the data cannot be read, please reconnect and turn on the platform power.] [Note: Do not perform a synchronization test between the key and the CAS1 module, otherwise the connection or data reading will not be possible. If a synchronization test is performed, please disconnect the power supply and reconnect the device and CAS module.]
Save to File...
If you want to read the CAS mileage or modify the CAS mileage, please operate the corresponding menu "Read KM". It can also read CAS code-DME.
4.Select an unused key position, be sure to select the “prepare dealer key with programmer” menu, and use the VVDI2 key programmer to generate the key. [Because the CAS1 module key identification socket or GODIAG BMW CAS1/CAS2 Mech-Key Test Platform key sensor cannot generate dealer keys.]
5. After the dealer key is successfully programmed, place the key into the CAS1 module key module socket for testing. For test steps, please refer to the CAS1 module and key synchronization detection steps.
If the IMMO light cannot light up, enter the VVDI2 menu “Key Learn—CAS/EWS Information—Connect—Synch DME-CAS or Synch CAS-ELV” for synchronization. [When performing synchronization, the key must be placed in the VVDI2 device key sensing area.]
3. What Vehicles Does It Support?
Supported Brands
BMW passenger vehicles equipped with CAS1 and CAS2 mechanical‑key anti‑theft systems
Supported Year Range
BMW models fitted with CAS1 / CAS2 mechanical‑key IMMO modules
Supported Vehicle Systems
CAS1, CAS2 mechanical‑key anti‑theft modules (mechanical‑key version only); bench‑mode operations for IMMO data read‑write, key matching and synchronization test
4. Please Note the Following Limitations
- Only for CAS1 / CAS2 mechanical‑key modules; NOT for CAS2 semi‑intelligent smart‑key variants
- Incompatible with Autel, OBDSTAR diagnostic devices
- Cannot work together with GODIAG GT100 / GT100+ series equipment
- For Lonsdor tools: Unable to perform bench OBD data read‑write; only key‑CAS synchronization detection is available after chip‑level data reading via separate programmer
- Pure bench‑test hardware; cannot perform on‑vehicle OBD key programming directly
- Cannot repair physically burnt / short‑circuited CAS mainboards; only provides bench signal & power access
- Not applicable for BMW FEM/BDC, CAS3/CAS3+, CAS4/CAS4+ and non‑BMW vehicle IMMO systems
5. Hardware Accessories & Licensing Requirements
- Passive bench‑platform hardware; no built‑in chip activation codes, no annual‑subscription authorization fees
- Mandatory separate matching key‑programming devices (sold separately): Xhorse VVDI2, Key Tool Plus Pad, BMW VVDI‑BIM, CGDI‑BMW.
- Mandatory separate power supply: External 12V DC 2.5A bench power adapter (required to drive CAS1 module)
- No extra adapters required for standard CAS1 / CAS2 mechanical‑key bench work; OBD2‑DB25 cable included in package
6. GODIAG BMW CAS1/CAS2 Mech‑Key Test Platform Specification:
- Supported Module: BMW CAS1 / CAS2 (Mechanical‑Key Version Only)
- Operation Mode: Disassembled module bench test only
- Connection Interface: OBD2 to DB25 communication port
- Control Buttons: Analog Ignition Start‑Stop switch
- Indicators: Power LED, IMMO synchronization LED, built‑in prompt buzzer
- Power Input Requirement: External 12V DC, minimum 2.5A for CAS1
- Cable Type: Shielded automotive harness
- Product Weight: 0.4 KG
- Package Dimension: 20cm * 15cm * 5cm
- Operating / Storage Temp: ‑20℃ ~ 70℃
7. Software Update
- This is passive analog bench hardware with no‑on‑board upgradable firmware or program chip
- Zero‑cost, no online / offline upgrade functions, no free‑update expiration period
- All new‑model compatibility depends on the database updates of your paired third‑party BMW key‑programming tool
8. Global Version
100% global‑universal hardware without regional‑protocol lock. Works for US, EU, UK, Asia‑market BMW CAS1 / CAS2 mechanical‑key modules; no country‑specific function shielding.
9. Warranty
- Standard manufacturer hardware warranty: 12 months counted from original purchase date
- Warranty coverage: Factory defects of internal wiring harness, DB25 port, switches, LED indicators and buzzer under correct bench‑installation operation
- Excluded from warranty: Damage caused by reverse‑power input, over‑current, PCB short‑circuit, liquid ingress, unauthorized disassembly and cable cutting
- 30‑day return service (buyer bears return‑shipping costs for non‑quality‑related issues); lifetime online text‑based technical support

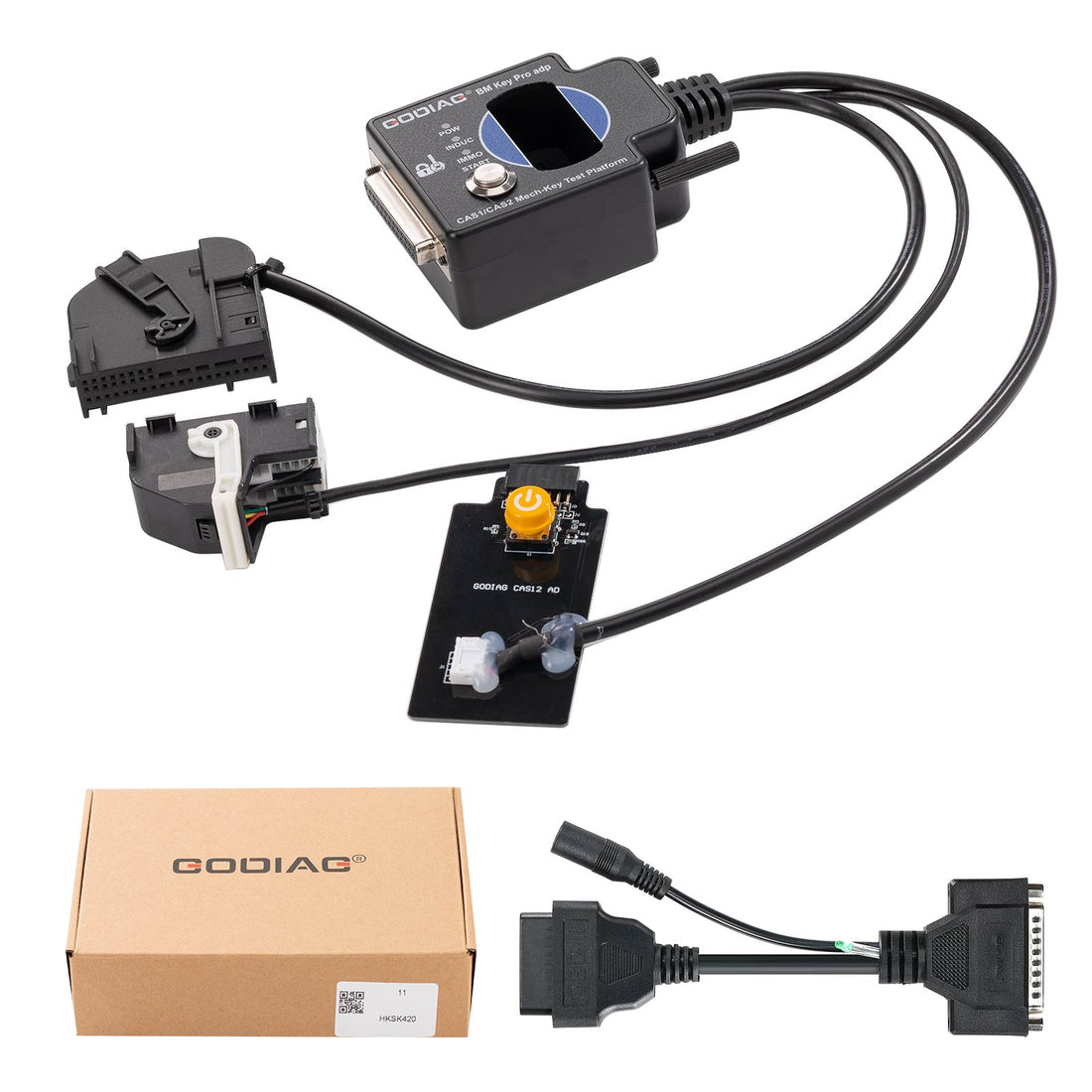

10. Package List
1pc x GODIAG BMW CAS1/CAS2 Mech-Key Test Platform
1pc x OBD2 to DB25 Cable
