GODIAG ECU IMMO Prog AD GT105 II Break Out Box ECU Connector + Full Protocol OBD2 Universal Jumper Breakout Tricore Cable
Godiag

GODIAG ECU IMMO Prog AD GT105 II Break Out Box ECU Connector + Full Protocol OBD2 Universal Jumper Breakout Tricore Cable

SKU HKSE158-C-1 In stock Ships from US warehouse
$37.00 USD
$39.99 USD $37.00 USD

Sourced through authorized channels. Serial verifiable with the manufacturer.

  • 12-month warranty
  • Technical support in English, Mon–Sat
Not sure this fits your job? Talk to a technician

Overview

1. The GODIAG GT105 II is designed for:
  1. Professional auto locksmiths handling all-keys-lost matching for VAG, Ford, Toyota, Porsche, Mitsubishi vehicles
  2. ECU tuning & repair technicians performing bench/OBD ECU read, write and clone with MPPS, KESSV2, FGTECH etc.
  3. General repair shops needing stable uninterrupted power supply during vehicle battery replacement
  4. Field mobile technicians without fixed workshop power for outdoor ECU & IMMO programming
  5. Technicians using Autel, Xhorse, CGDI, VVDI series key programmers and diagnostic tablets
  6. Automotive electronics training personnel for OBD protocol signal judgment practice

2. Supported Key Functions & Features

ECU Programming Power Supply

The GT105 II provides stable 12V power during ECU operations.

Supports:

• ECU data reading
• ECU data writing
• ECU cloning
• ECU tuning
• ECU programming connection

Compatible programming devices include:

• MPPS
• FGTECH
• KESS V2
• BYSHUT
• DISPROG
• Other compatible ECU programmers

Full Protocol OBD2 Jumper Function

The included OBD2 universal jumper supports:

• OBD2 ECU connection
• Programming power adjustment
• Special ECU programming connections

Supports independent:

• PIN 4 Body Ground
• PIN 5 Signal Ground

PIN 4 and PIN 5 can be switched between:

• Short circuit mode
• Independent ground mode

Stable Power Supply During Battery Replacement

The GT105 II prevents ECU data loss during vehicle battery replacement.

It helps maintain:

• ECU memory data
• Audio system settings
• Remote key settings
• Window initialization
• Throttle adaptation data

Helps prevent unnecessary fault codes caused by power interruption.

12V Outdoor Power Supply

The GT105 II can obtain 12V power directly from a vehicle battery.

Applications include:

• Outdoor ECU programming
• IMMO data reading
• Key programming
• Diagnostic device power supply
• 12V key cutting machine power supply

IMMO Activation and Key Matching Support

The GT105 II helps activate immobilizer systems and wake up modules for key programming.

Supported applications include:

• Ford all keys lost smart key matching
• VAG 4th and 5th generation IMMO wake-up
• Toyota ECU synchronization
• Mitsubishi all keys lost matching assistance
• Porsche Cayenne IMMO key learning

Communication Indicator Monitoring

Built-in indicator lights display communication status.

Supports monitoring:

• PWM
• CAN High
• CAN Low
• K-Line

When communication occurs, the corresponding indicator flashes.

Technicians can quickly judge:

• Whether the diagnostic device communicates with the vehicle
• Whether ECU communication is normal

Ignition Simulation Function

Built-in ignition switch provides simulated ignition power.

Features:

• Independent ignition control
• Supports ECU operations requiring ignition ON/OFF status
• Includes ignition connection cables

Special ECU Ground Connection

Supports special ECU programming requirements through:

• Independent GND4
• Independent GND5

Allows technicians to connect ECUs requiring separate grounding methods.

Functions Display:

A. Connect ECU module, special power supply to read and write ECU data, ECU clone, programming and adjustment.

B. GT105 II provides uninterrupted power supply during the car battery replacement process to protect the car ECU data.

C. OBD2 universal jumper

D. After 2016, when all Ford smart keys are lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment to program the keys.
All car keys lost matching---wake up the meter or wake up the IMMO ECU. (Support VAG 4th and 5th generation IMMO, Toyota ECU synchronization, auxiliary Mitsubishi key all-lost matching or all-lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

E.VPW CANH CANL K-Line indicator light can judge the communication status between the vehicle and the diagnostic programming device. (If the connected device can determine whether the device can send communication, simply determine whether the diagnostic programming is normal.)

F. IMMO AD Ford all lost smart keys, VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment. For all-loss matching, you need to disconnect the car battery, connect the negative pole of the battery via OBD5, and connect the 16 pin to the positive pole of the 12v battery.
Example: Use the Xhorse Key Tool Plus Pad to match a new Ford model after 2017. In the state of all keys lost, the vehicle is in the alarm state, and the tablet cannot be used for matching. If you want to match the keys, you must release the IMMO state.

If the vehicle has entered the IMMO state. Disconnect the positive pole of the battery as prompted by the device, and then connect the vehicle battery with the GT105 II power adapter cable, as the picture shows.

(In the process of key matching, the external 12V power supply is always maintained, no need to disconnect)

Follow the instructions on the Xhorse Key Tool Plus Pad to match the keys.

G. All lost car keys match---wake up the meter or wake up the IMMO ECU.
Porsche and VW 4th generation smart, 5th generation card key (model list: new A6L Touareg A4 Q5 A7) lights up the instrument, the key matching tool is connected for data collection. Some vehicle instruments do not light up, but data collection can also be performed, for example: A6L Q7.

H.Toyota replaces the engine ECU, the IMMO ECU needs to be synchronized, or some key matching equipment can match all lost keys of Toyota vehicles

I. Mitsubishi key lost all matching or all lost remote control key settings.

J. IMMO key learning for old Porsche Cayenne

K. Outdoor operation power collection
When the locksmith or ECU engineer cannot get the 12V power supply in the outdoor operation, he can use the GT105 II power adapter cable to obtain the 12V power supply from the car battery.
Provides power to a 12V powered key cutter

3. What Vehicles Does It Support?

The GODIAG GT105 II is a universal automotive ECU programming and IMMO power adapter. It is not limited to specific vehicle brands, years, or systems.

It supports vehicles equipped with compatible:

• OBD2 diagnostic systems
• CAN communication systems
• K-Line communication systems

Supported Vehicle Brands Include:

European Vehicles

• Volkswagen
• Audi
• BMW
• Mercedes-Benz
• Porsche
• Other European brands

Asian Vehicles

• Toyota
• Mitsubishi
• Hyundai
• Kia
• Other Asian brands

American Vehicles

• Ford
• General Motors
• Other vehicles using supported communication protocols

Supported Vehicle Systems

• ECU
• IMMO ECU
• Instrument cluster
• Engine control module
• Transmission control module
• Other programmable modules

Supported Communication Protocols

• CAN BUS
• CANH
• CANL
• K-Line
• PWM
• ISO9141 related communication

4. Multi-Brand All-Keys-Lost IMMO Unlock & Matching

  • Post-2016 Ford smart key all-lost release (disarms vehicle alarm & IMMO lock state for normal key programming with Xhorse/Autel/VVDI tools)
  • VAG 4th / 5th generation IMMO instrument wake-up for A4/A6L/Q5/Touareg card key data collection
  • Toyota ECU synchronization after engine ECU replacement & all-keys-lost matching
  • Mitsubishi remote key registration and old Porsche Cayenne IMMO key learning

5. Real-Time Protocol Communication Indicator

Independent LED lights for VPW(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7); flashing lights confirm normal data transmission to quickly locate communication failure points.

Indicator Light Meaning：

1. Manufactory custom
2. SJE1850 wire
3. Manufactory custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufactory custom		 9. Manufactory custom
10. SJE1850 wire (bus)
11. Manufactory custom
12. Manufactory custom
13. Manufactory custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive

6. Hardware Industrial Design

Pure copper OBD female socket for long service life; salt-spray resistant battery clamps; 0.75mm² thick DC cable with dual DC 5.5mm power interfaces.
3. What Vehicles Does It Support?

Supported Brands

Volkswagen, Audi, Skoda, Seat, Ford, Toyota, Mitsubishi, Porsche, BMW, Mercedes-Benz, all mainstream passenger car brands compatible with standard 16pin OBD2 port.

Supported Year Range

  • VAG: All models with 4/5 gen IMMO (2009–latest)
  • Ford: All smart key vehicles manufactured after 2016
  • Porsche: Old Cayenne and new VAG-platform Porsche models
  • Toyota / Mitsubishi: 2000–latest passenger vehicles
  • All OBD2-compliant cars from 1996 to present for ECU programming and battery backup power

Supported Systems

CAN BUS, K-Line, VPW multi OBD communication protocols; all factory IMMO anti-theft systems, engine & transmission ECUs supporting OBD bench flash.
4. Please Note the Following Limitations
  1. Only fits 12V passenger vehicles; incompatible with 24V heavy trucks, buses, construction machinery, motorcycles and marine equipment.
  2. Cannot independently complete ECU coding or key matching; must cooperate with separate key programmer / ECU flash tool.
  3. Does not support non-OBD old vehicles without standard 16pin diagnostic port.
  4. Not waterproof; only for indoor & dry outdoor use, cannot work under rainy or humid conditions.
  5. Unable to repair physical ECU hardware damage; only provides signal conversion and stable power supply.
  6. Some ultra-new limited-edition vehicles may have special IMMO logic requiring tool software update for compatibility.
  7. Cannot replace dedicated bench power supply for long-hour full-load ECU bench work.
5. Hardware Accessories & Licensing Requirements
  • No built-in chip activation, annual subscription or extra authorization fees for GT105 II itself; plug-and-play out of box.
  • Mandatory matched equipment (sold separately): Xhorse Key Tool Plus, Autel IM608, VVDI Prog, CGDI, MPPS, KESSV2, FGTECH and other ECU/key programming devices.
  • All core matching accessories (battery clip cable, full-protocol jumper, resistance accessories) are included in standard package, no extra adapters required for mainstream operations.
  • No paid software license tied to this breakout box; authorization rights depend on your matched programming tool.
6. Software Version & Supported Operating Systems
  • GT105 II is pure passive wiring breakout hardware with no embedded firmware or independent operating system.
  • Dependent PC software: Official software of matched ECU flash tools (MPPS, KESSV2, Xhorse Multi Prog, VVDI2 etc.)
  • Supported Computer OS: Windows 7 / Windows 10 / Windows 11 (32bit & 64bit); Mac OS and Linux are not supported.
  • No mobile APP required; all vehicle operations are controlled by your main diagnostic/programming device.
7. Software Update
  • GT105 II has no onboard firmware, so there is zero update demand, no update cost and no free update expiration date.
  • All vehicle model compatibility expansion, protocol upgrades and bug fixes rely on the official software updates of your matched ECU/key programmer.
  • Using GT105 II does not generate extra update fees; follow the original update policy of your main programming device.
8. Global Version

100% global universal version without regional lock, IP restriction or country function shielding. All CAN/K-line/VPW OBD protocols are universally applicable worldwide, fully functional for European, American, Asian vehicles without area-locked limitations.

9. Warranty
  • Standard manufacturer hardware warranty: 12 months from original purchase date.
  • Warranty coverage: Factory defects of main breakout box circuit, OBD socket, internal wiring and included jumper cable under normal dry workshop use.
  • Excluded from free warranty: Artificial cutting, liquid corrosion, overvoltage burnout, unauthorized disassembly, bent pins and cable wear caused by improper plugging.
  • 30-day return service available; buyer bears return shipping cost for non-quality issues. Lifetime text & email technical support.
10. Package List

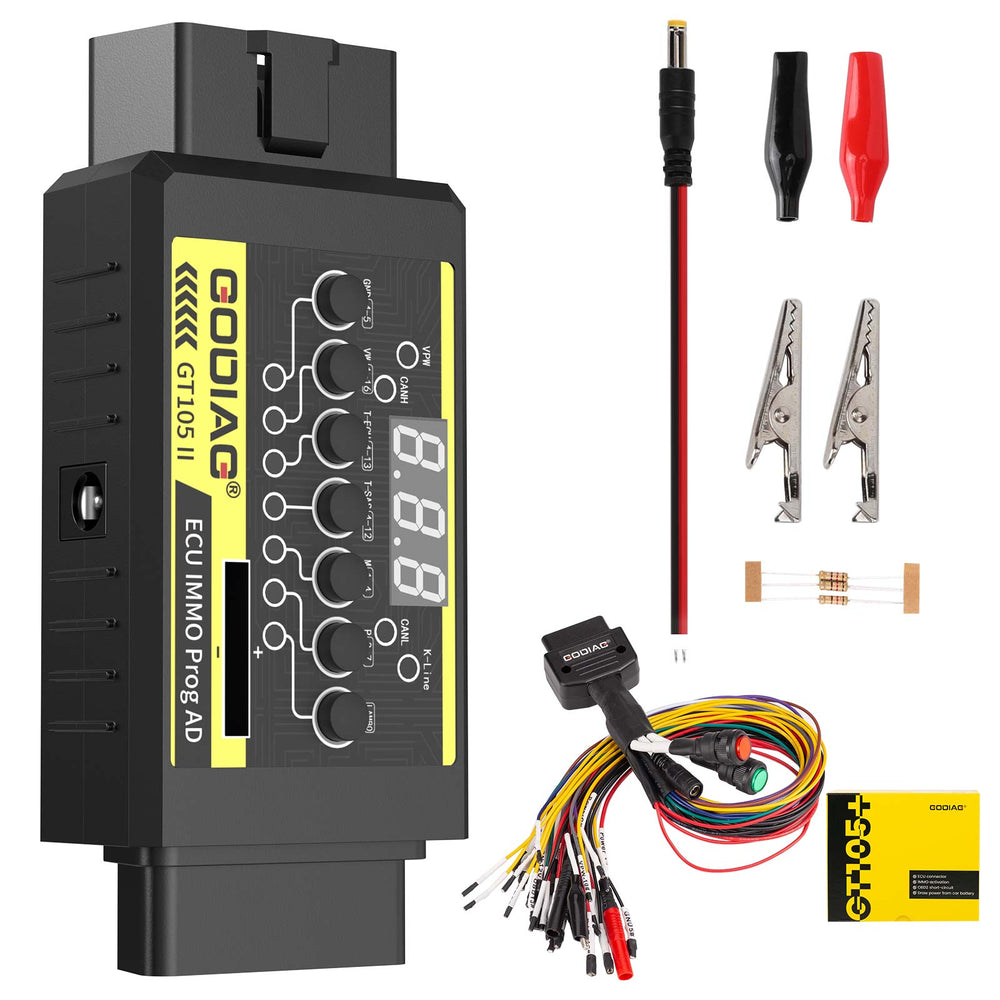

1pc x GT105 II host
1pc x Power cord with battery clip
1pc x Full protocol OBD2 jumper
3pcs x Electrical resistance

In the box

Weight
0.3 kg
Package size
13.5cm*11.2cm*6.4cm ( Inch: 5.31*4.41*2.52 )
