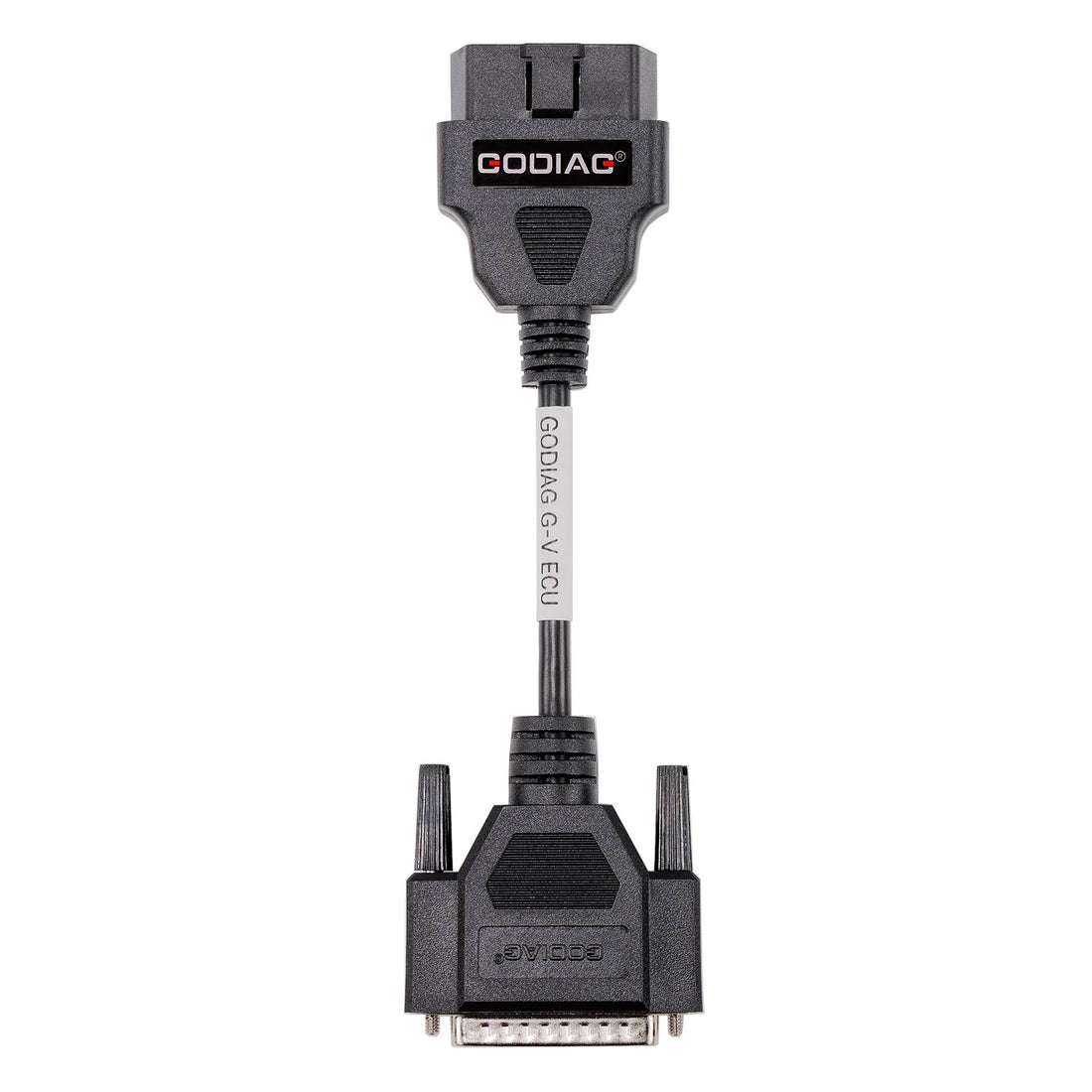

GODIAG G-V ECU Cable for Connecting Xhorse MULTI PROG with GT107 or GT107+ GPT BENCH BOOT to Read & Write Data on VAG Gearbox ECU, Engine ECU

1. The GODIAG G-V ECU Cable is designed for:

The Connection Diagram

1. To read DQ200 with Xhorse MULTI PROG & GT107+

2. To read DQ250 with Xhorse MULTI PROG & GT107+

3. To read DQ200 with Xhorse MULTI PROG & GT107

4. To read DQ250 with Xhorse MULTI PROG & GT107

5. To read ME17.8.8 with Xhorse MULTI PROG & GODIAG ECU GPT Boot AD Programming Adapter

2. Supported Key Functions & Features

ECU Data Reading and Writing

The GODIAG G-V ECU Cable supports:

• ECU data reading
• ECU data writing
• ECU backup
• ECU cloning operations

VAG DSG Gearbox ECU Programming

Supports connection with VAG transmission ECUs, including:

• TEMIC DQ200 series
• TEMIC DQ250 series
• TEMIC DQ400E
• CONTINENTAL DQ500
• BOSCH DQ380
• BOSCH DQ381

Engine ECU Programming Support

Supports various Bosch engine ECU models, including:

• BOSCH EDC17 series
• FCA BOSCH ECU models
• Other compatible Bosch ECUs

BENCH / BOOT Mode Connection

• Supports ECU bench connection
• Supports GPT BOOT related operations when used with compatible adapters
• Allows ECU programming without traditional OBD connection in supported cases

Compatible Device Connection

The GODIAG G-V ECU Cable works with:

• Xhorse MULTI PROG
• GODIAG GT107
• GODIAG GT107+ GPT BENCH BOOT Adapter
• GODIAG ECU GPT Boot AD Programming Adapter

ECU Cloning Support

Allows technicians to transfer ECU data between original and replacement ECUs when supported by ECU type and programming software.

3. What Vehicles Does It Support?

The GODIAG G-V ECU Cable is mainly designed for vehicles equipped with supported VAG transmission ECUs and Bosch engine ECUs.

Supported Vehicle Brands

VAG Group:

• Volkswagen
• Audi
• Skoda
• Seat

Other supported ECU applications may include vehicles equipped with compatible Bosch engine ECUs.

Supported ECU Models:

BOSCH DQ381
TEMIC DQ400E


Other ECU Models:

FCA BOSCH EDC17C69

FCA BOSCH EDC17C79

OTHER BOSCH EDC17C53

OTHER BOSCH EDC17CP52

BOSCH EDC17C08

BOSCH EDC17C57

BOSCH EDC17CP14




Note: Due to the large number of supported ECU models, it is impossible to list them all. Please go to the software to find more supported ECU models.

Supported Systems

• DSG Transmission Control Module (TCM)
• Engine Control Unit (ECU)
• VAG Gearbox ECU Systems
• Bosch Engine Management Systems

4. Please Note the Following Limitations

1. Only works with Xhorse MULTI PROG programmer; incompatible with other brand ECU programmers (AVDI, ZEDFULL, VVDI2 etc.)
2. Must be used together with GODIAG GT107 / GT107+ GPT bench boot adapter; cannot work alone
3. Not compatible with non-DQ series CVT, AT, MT gearbox ECUs and non-Bosch engine ECUs of VAG/FCA
4. Does not support BMW, Mercedes-Benz, Toyota, Honda, GM, Ford and other non-VAG/FCA brand ECUs
5. Pure wiring conversion cable without built-in chip or data storage; cannot complete ECU read/write without matched main programmer
6. Cannot perform OBD online ECU programming; all operations require detached ECU bench setup
7. Newly released latest ECU models may not be covered temporarily, waiting for Xhorse software database update

5. Hardware Accessories & Licensing Requirements

• No separate hardware activation, subscription or authorization fee for this cable itself
• Mandatory matched equipment (must purchase separately): Xhorse MULTI PROG ECU Programmer + GODIAG GT107 / GT107+ GPT Bench Boot Adapter
• Optional matched accessory: GODIAG ECU GPT Boot AD Programming Adapter (for ME17 / MED17 engine ECU bench operation)
• All wiring pins and connectors integrated on main cable; no extra adapter cables needed for listed supported ECUs
• Software authorization rights depend on your Xhorse MULTI PROG device; no extra license required for using G-V cable

6. Software Version & Supported Operating Systems

• The G-V cable is passive wiring hardware without embedded firmware or independent operating system
• Dependent Software: Official Xhorse MULTI PROG PC programming software
• Supported Computer OS: Windows 7 / Windows 10 / Windows 11 (32bit & 64bit); Mac OS, Linux not supported
• Connection Mode: Xhorse MULTI PROG connects to PC via USB; G-V cable bridges programmer and GT107 series bench adapter
• ECU pinout lookup resource: Official GODIAG 4000+ ECU GPT Boot pinout document (download online)

7. Software Update

• This conversion cable has no firmware, zero update requirement, no update charge or free update expiration period
• All ECU model coverage expansion, protocol upgrade and bug fixes rely on Xhorse MULTI PROG official software updates
• Using the G-V cable does not generate extra update fees; follow the original update policy of your Xhorse programmer

8. Global Version

100% global universal version without regional lock, IP restriction or country function shielding. All VAG/FCA ECU bench communication protocols are universal worldwide, usable for vehicles from Europe, America, Asia and all global regions. No area-limited function blockage.

9. Warranty

• Standard manufacturer hardware warranty term: 12 months from original purchase date
• Warranty coverage: Factory defects of cable internal wiring, plug connectors and wire harness under normal bench operation
• Excluded from free warranty: Artificial cutting, liquid corrosion, overvoltage burnout, unauthorized disassembly, pin bending damage from improper plugging
• 30-day return service available; buyer bears return shipping cost for non-quality issues

10. Package List

1pc x GODIAG G-V ECU Cable
