GODIAG GT107+ DSG Plus Gearbox Data Adapter with GODIAG G-A ECU/TCU Cable Work with AUTEL IM508 IM608 Series to Read & Write Gearbox Data DQ250, DQ200

GODIAG GT107+ DSG Plus Gearbox Data Adapter with GODIAG G-A ECU/TCU Cable

Product Introduction:

The GODIAG GT107+ DSG Plus Gearbox Data Adapter is designed for DSG gearbox diagnostics, cloning, and maintenance. It enables transmission specialists to diagnose, repair, and clone DSG gearbox ECUs, as well as read, write, and modify gearbox ECU data using compatible software such as PCMFlash, PCMTuner, and Kess V2.

The GODIAG G-A ECU/TCU Cable is used to connect devices such as AUTEL IM608 and IM508 with the GT107, GT107+, or GODIAG ECU GPT Boot Adapter. This allows users to read and write data on VAG transmission ECUs and engine ECUs, as well as perform ECU cloning operations.

The Connection Diagram

1. To read DQ250 with Autel IM608 & GT107+

2. To read DQ200 with Autel IM608 & GT107+

3.3. To read MED17.5 with Autel IM608 & GT107+

Supported ECU Models:

Transmission Control Unit (TCU)

DQ200DTC1766, DQ200_G2_PQTC1784, DQ250_MQBTC1766, DQ380, DQ500(Continental)TC1766

Engine

EDC17C46TC1767, EDC17C54TC1797, EDC17C64TC1797, EDC17C74TC1793S, EDC17CP14TC1796, EDC17CP20TC1796. EDC17CP24TC1796, EDC17CP44TC1797, EDC17U01TC1766, EDC17U05TC1796, ME17.1.1TC1797, ME17.1.6TC1797, ME17.5.20TC1767, ME17.5.22TC1724N, ME17.5.24TC1724N, ME17.5.26TC1724N, ME17.5.6TC1767, MED17.1.1TC1797,  MED17.1.6TC1797, MED17.5TC1766, MED17.5.1TC1766, MED17.5.2TC1767, MED17.5.20TC1766, MED17.5.21TC1782, MED17.5.25TC1782, MED17.5.5TC1766, MED17.5.5TC1767.

Note: Due to the large number of supported ECU models, it is impossible to list them all. Please go to the software to find more supported ECU models.

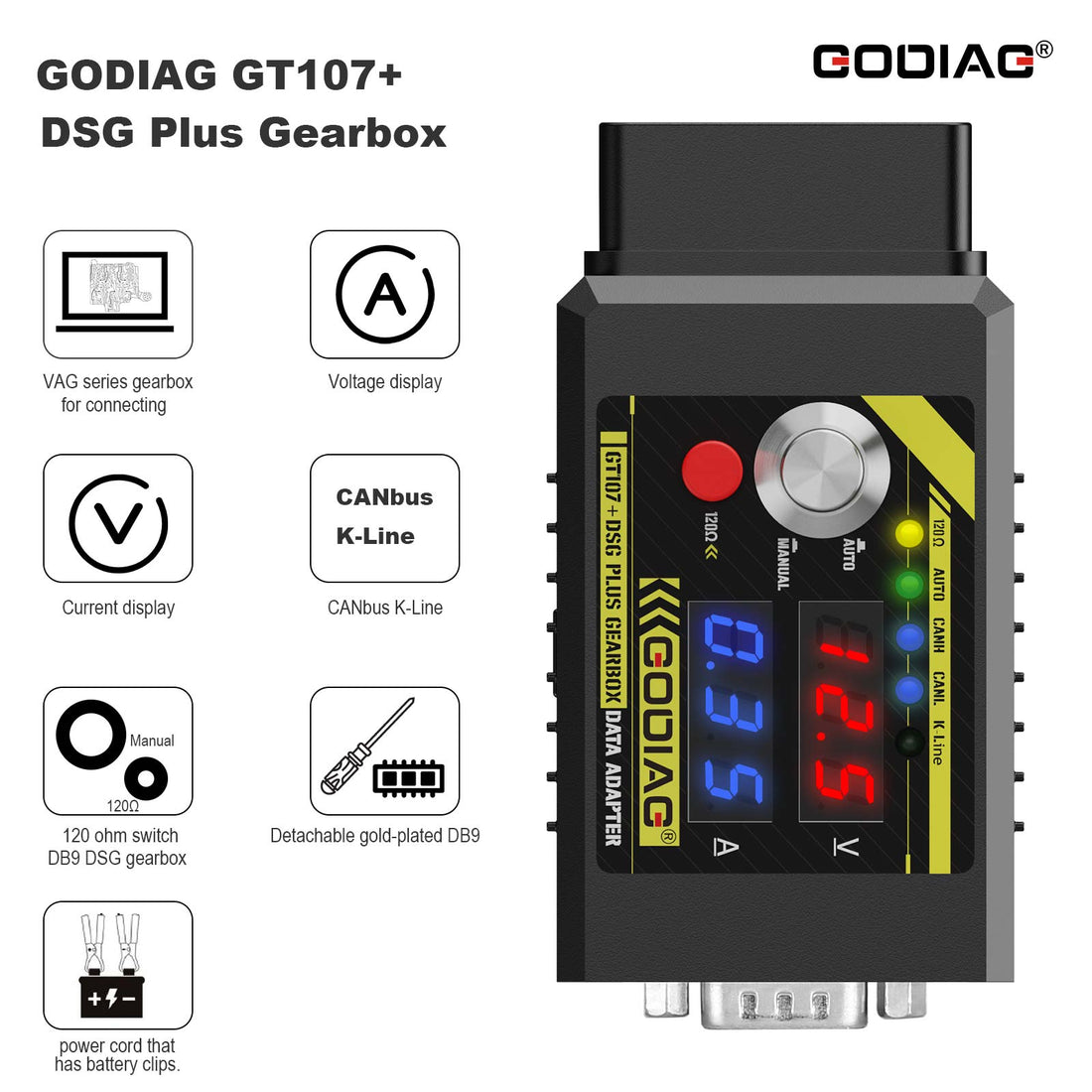

GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage and Current Display

The GODIAG GT107+ DSG Plus Gearbox Data Adapter is designed for DSG gearbox maintenance, allowing engineers to clone, diagnose, and repair DSG gearbox ECUs. It also supports reading, writing, and adjusting DSG gearbox ECU data using software such as PCMFlash, PCMTuner, and Kess V2.

The adapter offers automatic and manual mode selection for PCMFlash software: choose Auto for data reading and writing, and Manual for diagnostics. For other software such as Kess V2, DQ200, DQ250, and DQ500, the Manual mode can also be selected.

Powered directly by the vehicle battery, the adapter allows real-time data reading and writing, while the voltage and current display provides clear monitoring of the communication status throughout the process.

Product Features:

1. Compatible with VAG series gearbox ECUs, supporting DQ250, DQ200, VL381, VL300, DQ500, DL501, as well as Benz and BMW gearboxes.
2. Voltage Display: Shows the current operating voltage of the gearbox ECU. A significant drop in voltage can indicate short circuits or incorrect wiring.
3. Current Display: Shows the working current of the gearbox ECU, helping to assess the ECU’s operating condition.
4. Communication Indicator: Displays the current CAN bus and K-Line communication status.
5. Manual and automatic power switch, 120-ohm resistor switch, boot mode cable (DB9 DSG gearbox universal conversion jumper), and probe included.
6. Detachable gold-plated DB9 connection interface allows users to create custom connection ports for DIY development.
7. Equipped with a power cord with battery clips, enabling power to be drawn directly from the vehicle battery.

Package Includes:

1pc x Godiag GT107+ ECU Prog AD
1pc x DB9 DSG Gearbox Universal Conversion Jumper
1pc x Power Cord with Battery Clips
1pc x Probe
1pc x Manual
1pc x GODIAG G-A ECU/TCU cable
