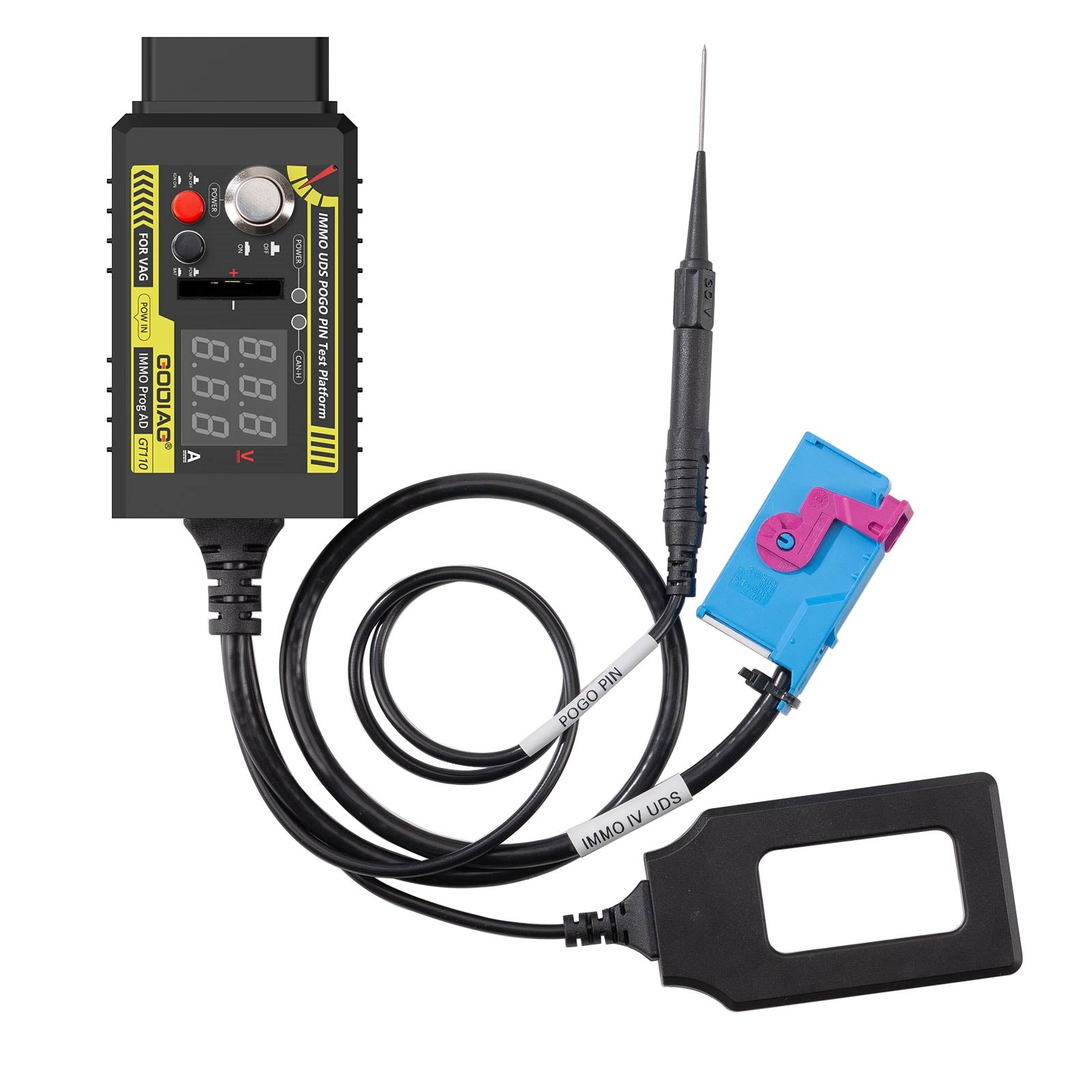

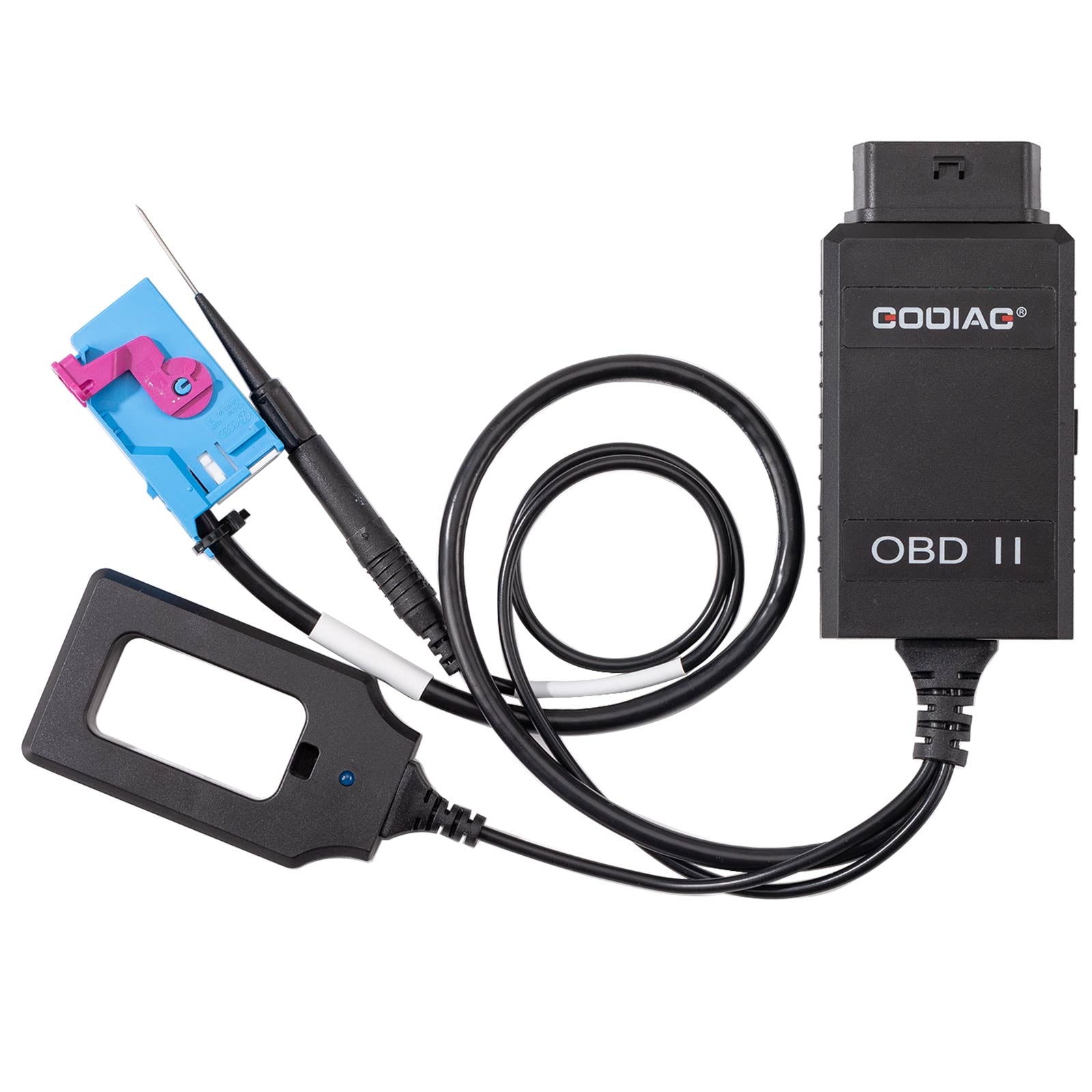

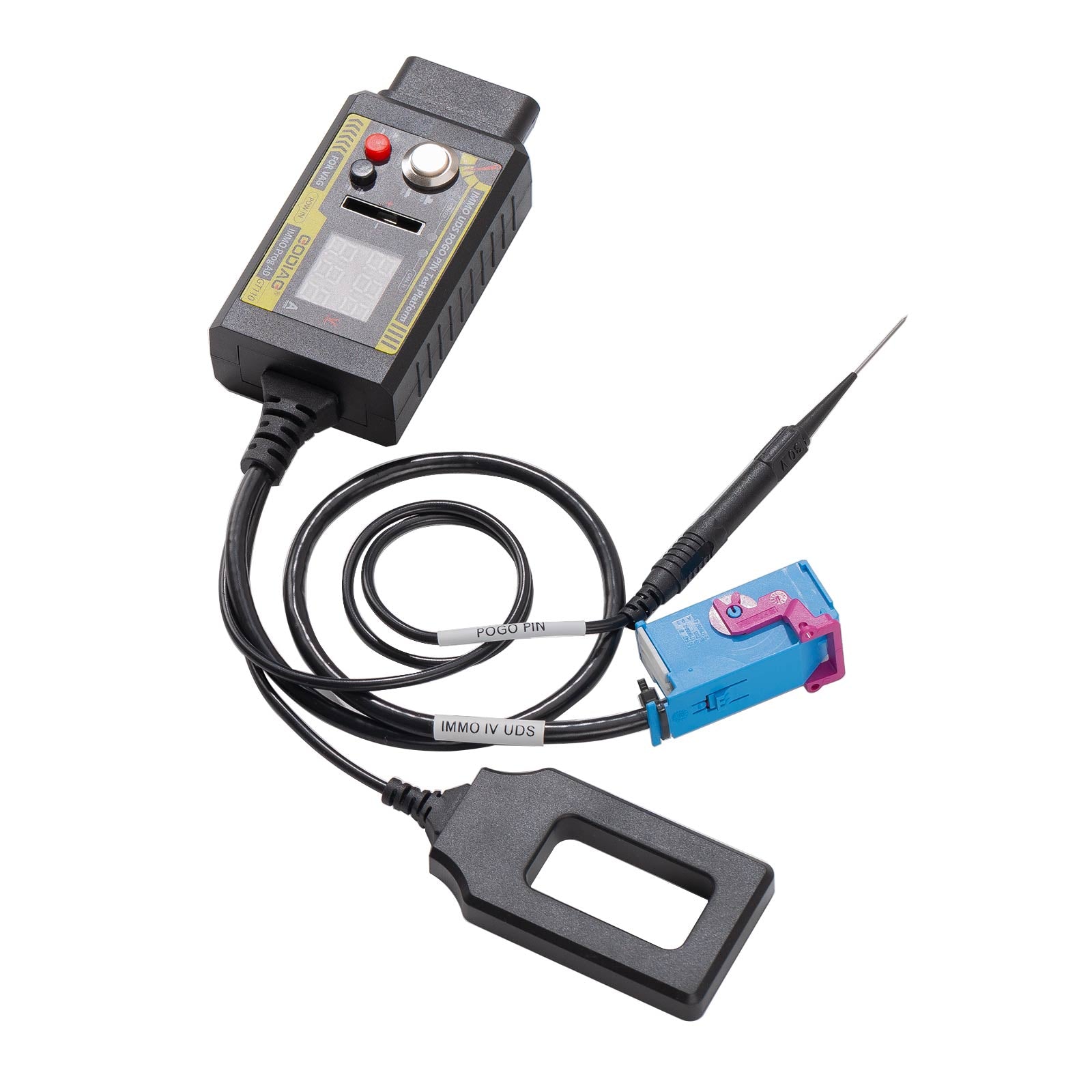

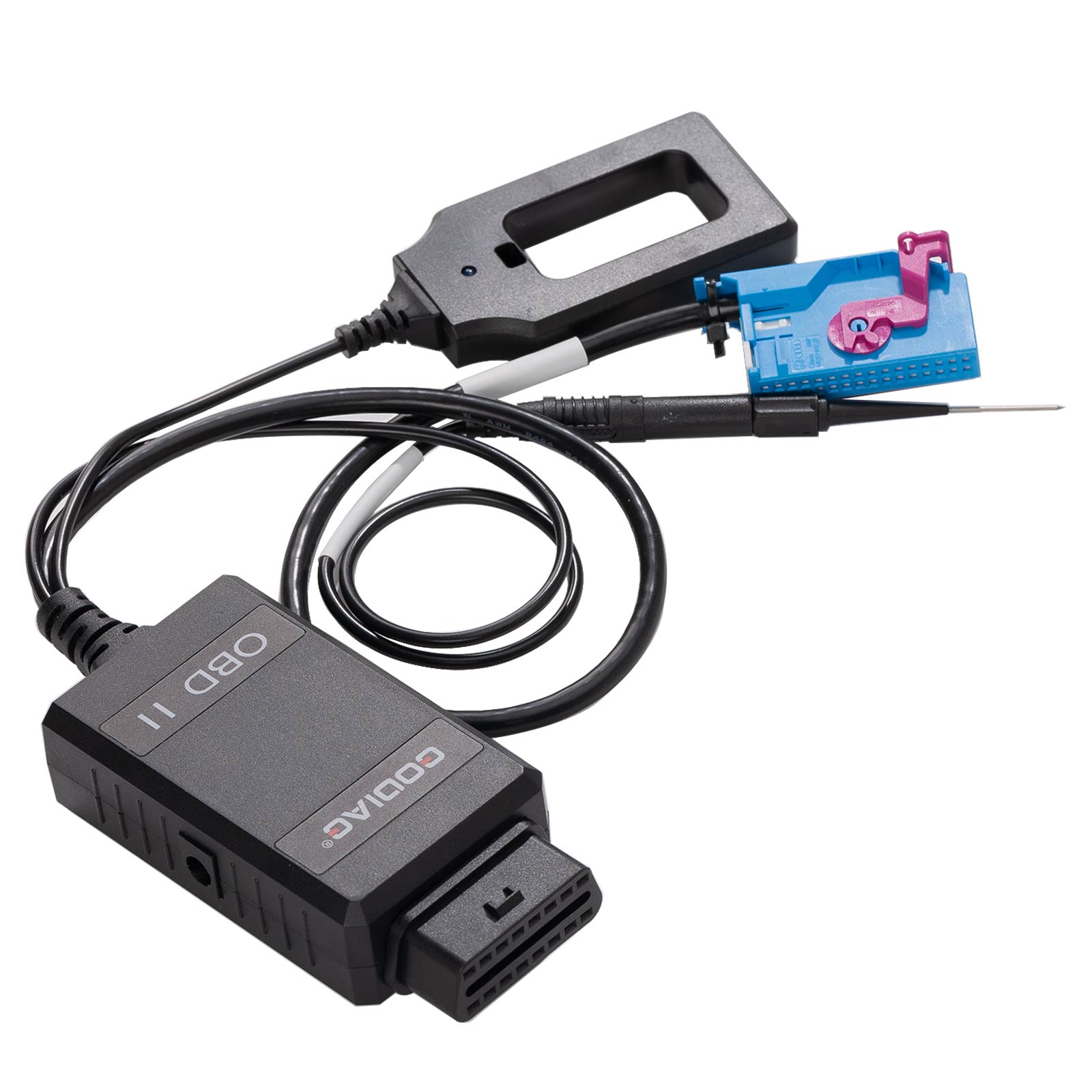

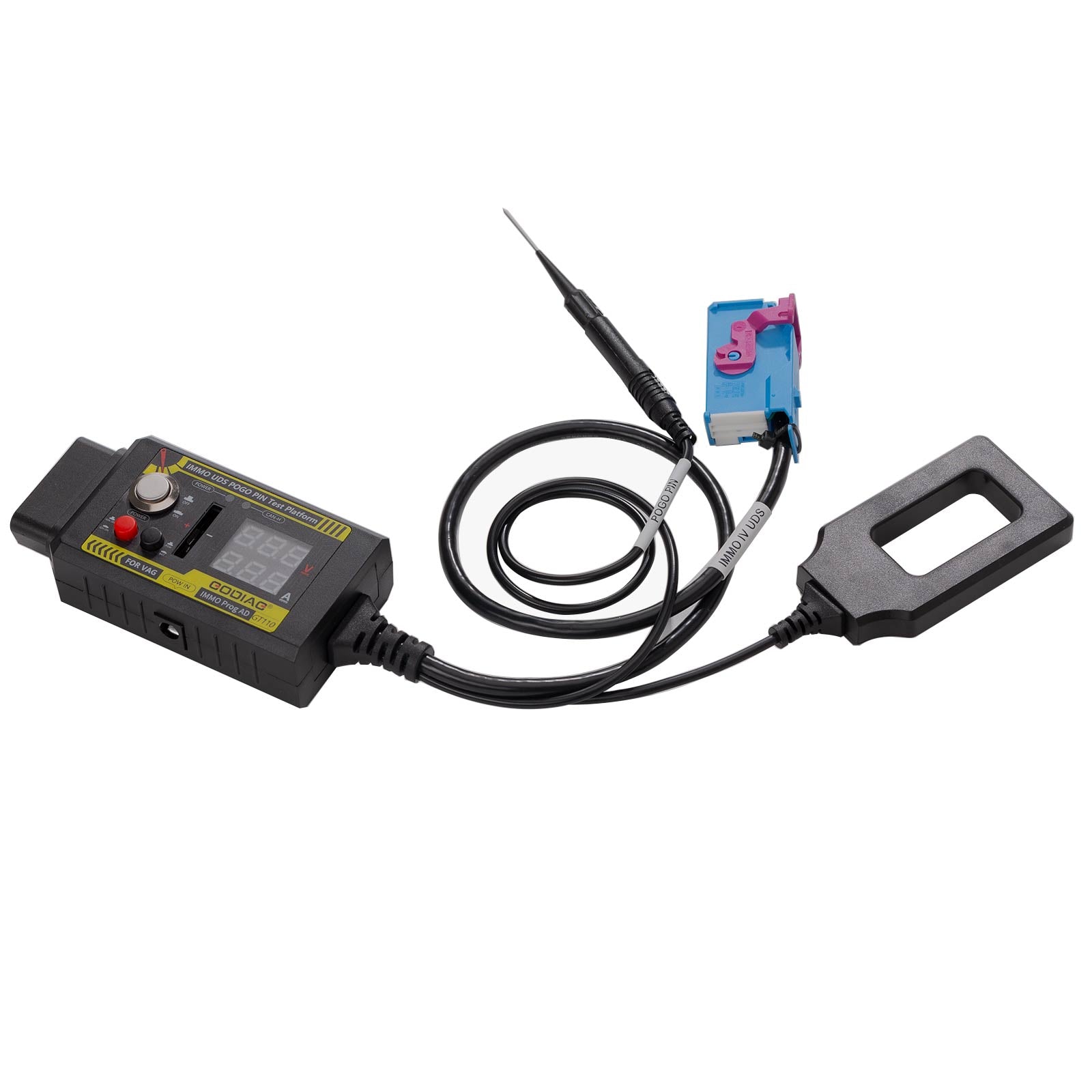

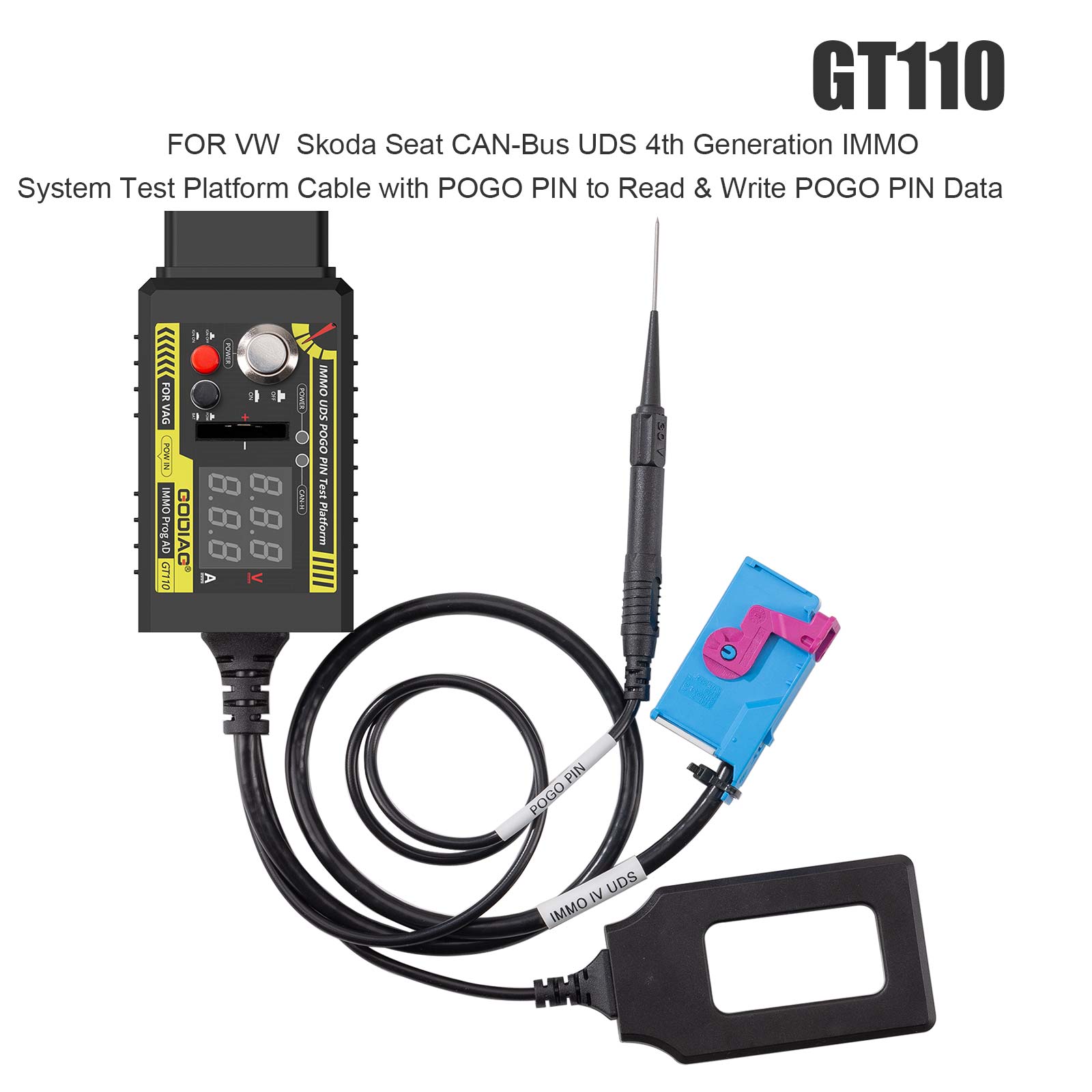

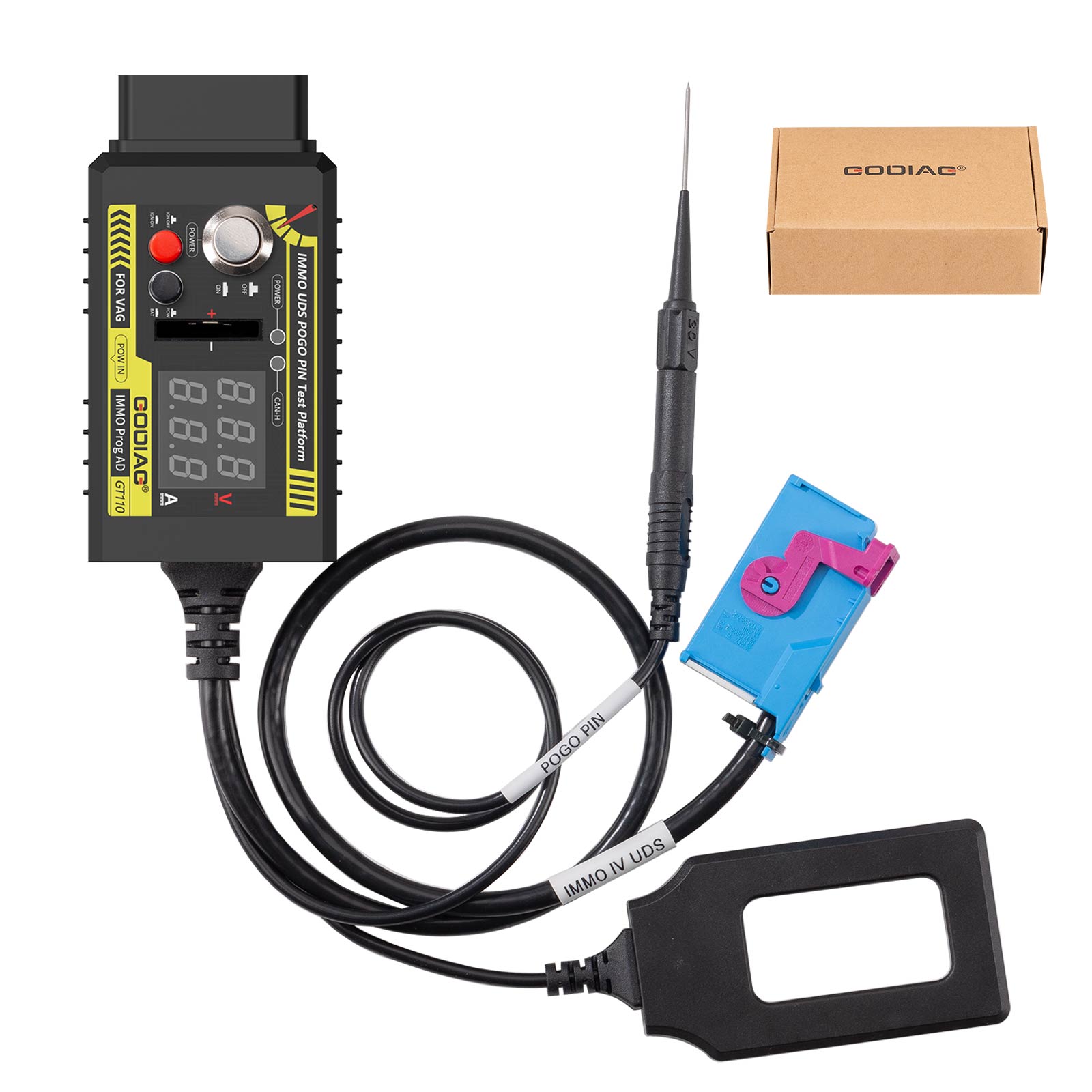

GODIAG GT110 for VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

GT110 English Manual

Pogo Pin Connection Diagram

1. The GODIAG GT110 is Designed for:

• Professional auto locksmiths performing VAG 4th‑generation UDS dashboard IMMO offline key‑matching and all‑keys‑lost jobs
• Instrument cluster repair technicians for bench read‑write, mileage correction and IMMO data recovery on VAG UDS dashboards
• Automotive electronic repair shops for offline bench diagnosis of disassembled instrument clusters
• ECU/IMMO repair specialists needing pogo‑pin non‑destructive bench access for UDS instrument PCBs
• Independent workshops without expensive original VAG dealer test equipment
• Automotive vocational training schools for hands‑on teaching of VAG 4th‑gen UDS IMMO systems

2. Supported Key Functions & Features

• POGO PIN Data Reading & Writing
Connect directly to the corresponding dashboard POGO PIN points for offline instrument data reading and writing.

• Offline Dashboard Connection
Connects the dashboard on the bench and converts the connection to a standard OBD2 interface for use with compatible diagnostic and programming equipment.

• Dashboard IMMO Data Operations
Supports instrument IMMO data reading and writing for compatible VAG dashboards.

• Key Programming Support
Can be used with compatible programming equipment for key matching and key chip related testing.

• IMMO Synchronization Test
Tests the synchronization status between the key chip and instrument IMMO system.

• Smart Key Emergency Start Area Detection
The built in key recognition coil helps identify the emergency start sensing area of compatible vehicles.

• CR2032 Remote Key Battery Detection
Checks the battery condition of CR2032 equipped remote keys.

• CANH UDS Communication Indicator
The CANH UDS indicator provides a visual indication of CAN communication status during testing.

• Voltage and Current Display
Displays the current working voltage and operating current of the connected instrument.

• Independent Power Switch
Allows technicians to conveniently control the main power supply during testing.

• Simulated Ignition Switch
Provides an ignition simulation function for operations requiring an IGN signal.

• Buzzer Prompt
Provides audible prompts for ignition power activation and shutdown.

• Extended POGO PIN
The extended POGO PIN design provides a more stable connection to dashboard test points and improves operating convenience.

3. What Vehicles Does It Support?

Supported Brands

Volkswagen, Skoda, Seat (VAG group vehicles)

Supported Year Range

VAG vehicles equipped with 4th‑generation UDS dashboard IMMO systems

Supported Vehicle Systems

UDS‑protocol instrument cluster / dashboard, 4th‑gen IMMO anti‑theft system, CAN‑Bus communication instrument hardware; supports bench testing of disassembled UDS dashboards

4. Please Note the Following Limitations

1. Only works for VAG 4th‑generation UDS IMMO dashboards; NOT compatible with 2nd / 3rd / 3.5‑gen K‑Line / CAN‑Bus IMMO systems (use GT112 / GT111 for those older generations)
2. Pure bench‑test hardware; cannot perform on‑vehicle OBD diagnosis without disassembling the physical instrument cluster
3. Cannot work alone; must pair with third‑party VAG diagnostic / key‑programming tools
4. Does not support BMW, Mercedes, FCA, Toyota or other non‑VAG vehicle IMMO systems
5. Pogo‑pin operation requires correct PCB pad positioning; mis‑alignment may lead to communication failure
6. Cannot repair physically burnt or short‑circuited dashboard mainboards; only provides bench signal access
7. Not applicable for heavy‑duty trucks, motorcycles and off‑road machinery

5. Hardware Accessories & Licensing Requirements

• Passive bench‑platform hardware; no built‑in chip activation codes, no annual‑subscription authorization fees
• Mandatory separate matching tools (sold separately): HEX V2, VCDS 5053, VAS5054A, VAS6154, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, Autel and other VAG key/programming devices
• Mandatory separate power supply: External 12V DC power adapter for bench dashboard powering
• No extra adapters required for standard UDS dashboard bench work; pogo‑pin probes are integrated with GT110 unit

6. GODIAG GT110 CAN‑Bus UDS 4th‑Gen IMMO Test Platform Specification:

• Supported Protocol: CAN‑Bus UDS (VAG 4th‑gen IMMO Dashboard)
• Operation Mode: Disassembled dashboard bench‑test only
• Connection Method: Pogo‑pin non‑soldering probe + standard OBD‑2 output port
• Control Buttons: Main power switch, simulated IGN ignition switch
• Indicators: CAN‑H UDS communication LED, key‑induction coil LED, buzzer ignition prompt
• Display: Real‑time instrument working voltage & current digital readout
• Auxiliary Functions: CR2032 remote‑key battery detection, smart‑key emergency‑start induction test
• Working Input Voltage: 12V DC
• Cable Type: Shielded automotive harness
• Product Weight: 0.45 KG
• Operating / Storage Temp: ‑20℃ ~ 70℃

7. Software Update

The GT110 is primarily a hardware connection and test platform and does not require independent software installation or activation according to the provided information.

There is no separate GT110 software version, free update period, or update fee specified in the supplied product information.

When the GT110 is used together with an external diagnostic or programming device, the software version, vehicle coverage, update policy, and subscription fees are determined by that external device.

8. Global Version

100% global‑universal hardware without regional protocol lock. Supports US, EU, UK, Asia‑market VAG 4th‑gen UDS IMMO dashboard bench operations; no country‑specific function shielding.

9. Warranty

• Standard manufacturer hardware warranty: 12 months counted from original purchase date
• Warranty coverage: Factory defects of internal wiring harness, pogo‑pin probes, digital display, switches and indicator lamps under correct bench‑installation operation
• Excluded from warranty: Damage caused by reverse power input, violent pogo‑pin pressing, PCB short‑circuit, liquid ingress, unauthorized disassembly and cable cutting
• 30‑day return service (buyer bears return‑shipping costs for non‑quality‑related issues); lifetime online text‑based technical support

10.Product Comparison

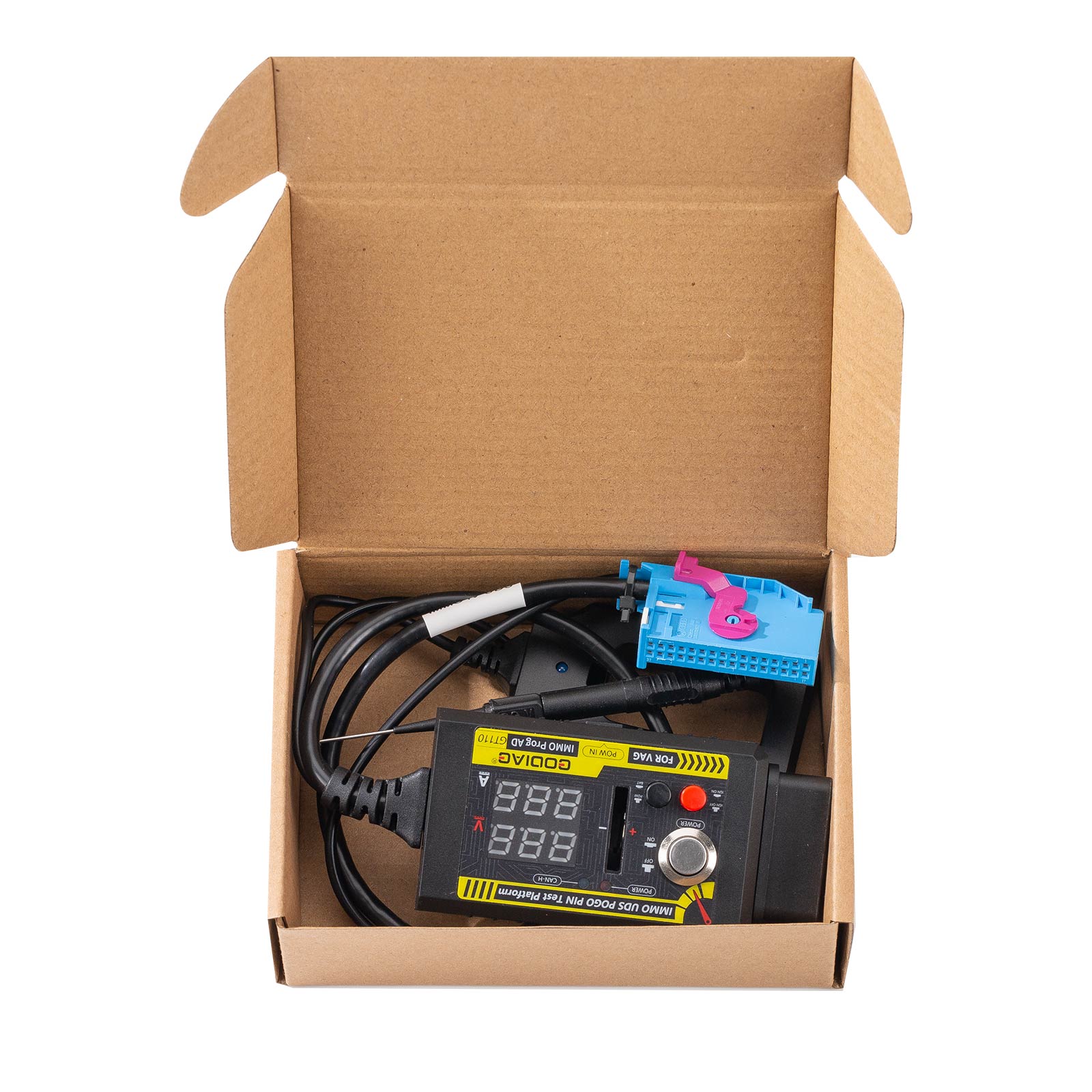

11. Package List

1pc x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

5. Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.
