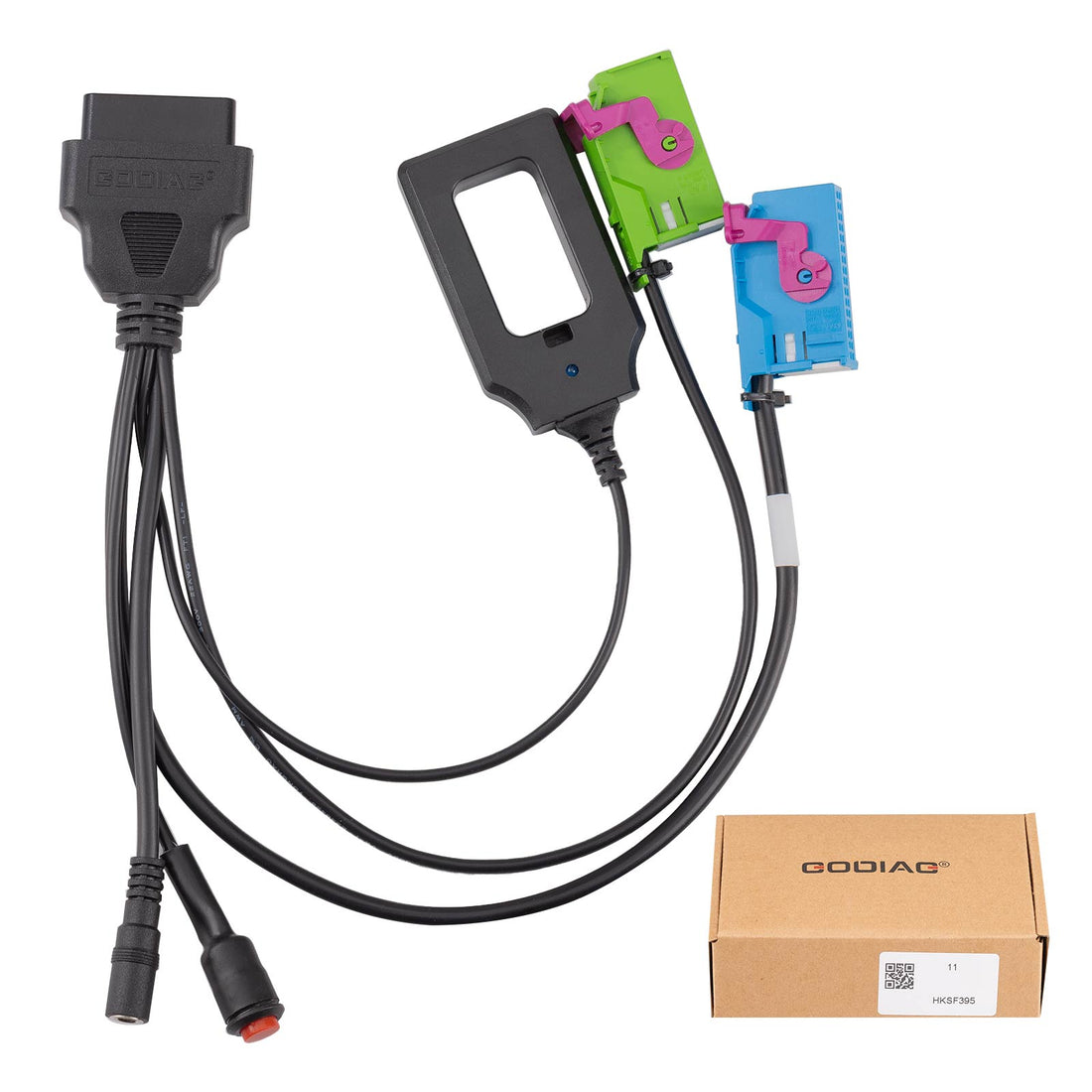

GODIAG GT112 K-Line for VW Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

GODIAG GT112 English Manual

1. The GODIAG GT112 is Designed for:

• Professional auto‑locksmiths performing VAG 2nd /3rd‑generation K‑Line dashboard IMMO offline key‑matching and all‑keys‑lost jobs
• Instrument cluster repair technicians for bench read‑write, mileage correction and IMMO data recovery for VAG K‑Line dashboards
• Automotive electronic repair shops for offline bench diagnosis of disassembled instrument clusters
• ECU / IMMO repair specialists doing bench work for older K‑Line‑based VAG instrument PCBs
• Independent workshops without expensive original VAG dealer test equipment
• Automotive vocational training schools for hands‑on teaching of VAG 2nd & 3rd‑gen K‑Line IMMO systems

2. Supported Key Functions & Features

• Off‑line bench connection for disassembled K‑Line dashboard, converts dashboard signals to standard OBD‑2 port for third‑party programming tools
• Complete bench‑mode workflows: key‑chip & instrument synchronization test, IMMO offline diagnosis, dashboard mileage repair, offline key matching
• Hardware‑built‑in independent ignition switch to simulate vehicle ignition ON/OFF status during bench testing
• Integrated key‑induction coil adapter with LED indicator for smart‑key chip detection
• Intelligent IMMO emergency‑start induction‑area detection to locate the smart‑key sensing position on target vehicles
• Visual LED feedback for key‑chip status diagnosis without connecting additional testers
  Test Result Analysis:

  1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
  2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
  3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.


3. What Vehicles Does It Support?

Supported Brands

Volkswagen, Skoda, Seat (VAG‑group vehicles with K‑Line 2nd /3rd‑gen IMMO dashboards)

Supported Year Range

VAG vehicles equipped with 2nd‑generation and 3rd‑generation K‑Line dashboard IMMO systems

Supported Vehicle Systems

K‑Line protocol instrument cluster / dashboard, 2nd /3rd‑gen IMMO anti‑theft system; supports bench testing of disassembled K‑Line instrument clusters

4. Please Note the Following Limitations

1. Only works for VAG 2nd‑gen & 3rd‑gen K‑Line IMMO dashboards; NOT compatible with 3.5‑gen CAN‑Bus (use GT111) or 4th‑gen UDS IMMO (use GT110)
2. Pure bench‑test hardware; cannot perform on‑vehicle OBD diagnosis without removing and disassembling the physical instrument cluster
3. Cannot work alone; must pair with third‑party VAG diagnostic / key‑programming tools
4. Does not support BMW, Mercedes, FCA, Toyota or other non‑VAG‑brand IMMO systems
5. Cannot repair physically burnt or short‑circuited dashboard mainboards; only provides bench signal access
6. Not applicable for heavy‑duty trucks, motorcycles and off‑road machinery

5. Hardware Accessories & Licensing Requirements

• Passive bench‑platform hardware; no built‑in chip activation codes, no annual‑subscription authorization fees
• Mandatory separate matching tools (sold separately): HEX V2, VCDS 5053, VAS5054A, VAS6154, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, Autel and other VAG key‑programming devices
• Mandatory separate power supply: External 12V DC bench power adapter for powering disassembled dashboard
• No extra adapters required for standard 2nd /3rd‑gen K‑Line dashboard bench work

6. GODIAG GT112 K‑Line 2nd & 3rd‑Gen IMMO Test Platform Specification:

• Supported Protocol: K‑Line (VAG 2nd & 3rd‑gen IMMO Dashboard)
• Operation Mode: Disassembled dashboard bench‑test only
• Connection Method: Dedicated bench harness + standard OBD‑2 output port
• Control Buttons: Simulated IGN ignition switch
• Indicators: Key‑induction‑coil LED indicator
• Auxiliary Functions: Key‑chip‑instrument synchronization test; smart‑key emergency‑start induction‑area detection
• Working Input Voltage: 12V DC
• Cable Type: Shielded automotive harness
• Product Weight: 0.2 KG
• Package Dimension: 14.5cm * 10.5cm * 4.2cm
• Operating / Storage Temp: ‑20℃ ~ 70℃

7. Software Update

• GT112 is passive analog bench hardware with no on‑board upgradable firmware or program chip
• Zero‑cost, no online / offline upgrade functions, no free‑update expiration period
• All new‑model coverage depends on the database updates of your paired third‑party VAG key‑programming tool

8. Global Version

100% global‑universal hardware without regional‑protocol lock. Supports US, EU, UK, Asia‑market VAG 2nd /3rd‑gen K‑Line IMMO dashboard bench operations; no country‑specific function shielding.

9. Warranty

• Standard manufacturer hardware warranty: 12 months counted from original purchase date
• Warranty coverage: Factory defects of internal wiring harness, switches and indicator lamps under correct bench‑installation operation
• Excluded from warranty: Damage caused by reverse‑power input, PCB short‑circuit, liquid ingress, unauthorized disassembly and cable cutting
• 30‑day return service (buyer bears return‑shipping costs for non‑quality‑related issues); lifetime online text‑based technical support

10. Package List

1pc x GODIAG GT112 K-Line FOR VW Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
