Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool Support Online Coding Programming and ADAS Calibration
$2,199.00
Package: 69cm*51cm*23cm ( Inch: 27.17*20.08*9.06 )
30-day return · buyer pays return shipping · read details
Fast Shipping & Tax Free
US
Ship from US
EU
Ship from EU
UK
Ship from UK
Launch X431 PAD VIl User Manual
Launch X431 Tablets Comparison
Launch X431 PAD VII smart link C quick start guide
How to activate Launch X431 PAD VII online programming
1.The Launch X-431 PAD VII PAD 7 is designed for:
- Professional automotive repair shops
- Independent garages
- Diagnostic technicians
- Advanced mobile mechanics
- Multi-brand service centers
- Fleet maintenance workshops
- Heavy-duty truck repair shops
2. Supported Key functions & Features
Launch X431 Pad VII Elite Features
Supports 12-in-1 Graphic Live Data Stream
Clone Mercedes Benz ECU 2015 upwards with X431 XPROG III.
Online Programming: BMW, Benz; Offline Programming: VW, Audi, Seat, Skoda, Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche
Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
Online programming function is available for Non-North American region. (How to activate online programming function for otheon PAD VII)
NEW Protocols to support the vehicles of today and tomorrow: DoIP, CAN-FD, D-PDU, J2534, RP1210. Smartlink has built-in CAN FD and DoIP protocols, doesn't need DoIP cable.
Larger memory (8GB+ 256GB), smoother operation; strong light readable screen; support for three defenses
VAG Guided Function+ FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; Need AutoAuth subscriptions.
Unlock Renault SGW security gateway; Need to buy Renault SGW license in Mall
Unlock Benz SGW security gateway ;Need to buy European SGW license in Mall
Supports Australian Ford and Holden, Brazilian, Indian and Malaysian cars
Support EV Electric Vehicle Car diagnosis (with EV diagnostic kit)
SmartLink C VCI (also as J2534-1 & -2 Pass-thru device) allows you to refresh ECU and upgrade OE software.
Supports ADAS calibration and 10+ extended modules (Extra purchase required): such as ADAS calibration toolkit; VSP-600 videoscope; X431 TPMS TSgun; BTS360 battery tester; X-PROG & X-PROG3 immobilizer, etc.
Launch X431 Pad VII Elite Functions:
ALL System Diagnosis
Powerful all system diagnostic functions (intelligent diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly
BI-Directional Control [Active Test]
Check the DTCs and all systems communication status visually by topology module mapping function
32 Service Functions: Service Lamp Reset, Electronic Throttle, Brake Reset, Immobilizer Reset, Battery Reset, Injector Coding, SAS Reset, TPMS Reset, ABS Bleeding, Gear Learning, DPF Regeneration, Gearbox Reset, Headlamp Reset, Sunroof Initialization, SUS Reset, EGR Adaption, A/F Reset, AdBlue Reset, Nox Sensor Reset, Stop/Start settings, Transport Mode, Coolant Bleed, Windows Calibrations, Seat Calibrations,Tyre Reset, Language Change
Advanced ECU Coding and Online Coding
J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service
ADAS calibration Function and Extend 8 Module Functions
Optional ADAS calibration function increases more revenue.
X431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
X431 VSP-600 Videoscope Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
Launch i-TPMS Provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors.
X431 X-PROG III IMMO For VAG Group Above 3.5,advanced immobilizer & key programmer)Vehicles that require cloning are not compatible with this accessory
X431 BST360 Battery Test For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
S2-2 SensorBox Designed to test and simulate most vehicle sensors. quickly troubleshooting the ECU)
O2-2 ScopeBox Allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis.
X431 ADAS Moblie/ADAS PRO (Calibrate a wide range of camera-based & radar-based driver assistance systems)
X431 Printer (Print out diagnostic data/reports.)
More Advanced Functions
3. What Vehicles Does It Support?
Passenger Vehicles:
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Smartlink C VCI
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols
Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
Support the latest diagnosis protocol of CAN/DOIP / CAN FD
Support 2.4G/5G dual band
Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
4. Please note the following limitations:
The PAD VII has broad vehicle coverage, but some functions are limited depending on vehicle manufacturer, model year, or regional software.
Examples include:
Advanced IMMO/key programming requires additional hardware.
ADAS calibration requires a separate ADAS calibration frame.
Heavy-duty truck diagnostics require optional HD software/modules.
Online programming is only available for supported brands.
Certain OEM online functions require manufacturer accounts.
Some ECU coding/programming features are unavailable on entry-level vehicles.
Function availability varies by vehicle model and software version.
5. Launch X-431 PAD VII PAD 7 Specification:
| X-431 PAD7 Elite | Smartlink C | |
| Operation System | Andorid 9.0 | N/A |
| CPU | 2.0GHz Octa-core | N/A |
| Display | 13.3' touch screen 1920*1080 | 3.5' touch screen 320*480 |
| Memory | 8GB | 256M |
| Storage | 256GB | 8GB |
| Camera | Rear 13MP, Front 8MP | N/A |
| WiFi | Dual Band 2.4 & 5GHz | Dual Band 2.4 & 5GHz |
| Diagnostic Communication | WiFi | WiFi & BT & USB |
| Working Temperature | 0℃~50℃ | 0℃~50℃ |
| Dimension | 353*236*71 mm | 204*110*45 mm |
6. Software Update
Free update online for 2 years. After 2 Years, Please buy Update Service when you need it.
7. Global Version
No IP restriction
Multi-language support: English, German, Italian, French, Spanish, Portuguese, Chinese, Korean, Turkish, Swedish, Japanese, Polish, Czech, Russian, Dutch, Thai, Finnish, Danish, Romanian, Arabic, Persian, Hebrew, Croatian, Greek
8. Warranty
1 Year Warranty
Lifetime Tech Support Online
9.Launch X431 PAD VII vs PAD V vs PAD III V2.0
| Launch PAD III V2.0 | Launch PAD V | Launch PAD VII Elite | |||
| Display | 10.1'' / IPS 1920*1200 | 10.1'' / IPS 1920*1200 | 13.3'' / 1920 x 1080 IPS | ||
| CPU | 2.0GHz Octa-core | 2.0GHz Octa-core | 2.0GHz Octa-core | ||
| Memory | 2 GB | 4 GB | 8 GB | ||
| Storage | 64 GB | 64 GB | 256 GB | ||
| Camera | 8MP Rear + 2MB Front | 13MP Rear + 8MB Front | 13MP Rear + 8MB Front | ||
| VCI Connector | DBScar IV | Smartbox 3.0 | Smartlink C | ||
| VCI Connection | Bluetooth | 2.4GHz & 5GHz dual WiFi | 2.4GHz & 5GHz dual WiFi | ||
| Battery | 15000mAh | 9360mAh | 71.1Wh (≈19000mAh) | ||
| Adjustable Supporting Holder | ● | ● | ● | ||
| IP65 Waterproof & Dustproof | ● | ● | |||
| Quick Charge Technology | ● | ● | |||
| Charging Station | ● | ||||
| PUSH PUSH Design | |||||
| Size (mm) | 317 * 202 * 53 | 320 * 211 * 46 | 353 * 236 * 71 | ||
| FEATURES | |||||
| Operating System | Android™ 5.1.1 | Android™ 7.1 | Android™ 9.0 | ||
| Full System Diagnosis | ● | ● | ● | ||
| OBD II Full Function | ● | ● | ● | ||
| Tech-to-Tech Remote Diangosis | ● | ● | ● | ||
| Smartlink Diagnosis | ● | ||||
| Auto VIN Identification | ● | ● | ● | ||
| Bi-Directional Control | ● | ● | ● | ||
| Advanced Coding | ● | ● | ● | ||
| VW & AUDI Guided Function | ● | ● | ● | ||
| J2534 | ● | ● | |||
| DoIP | ● | ● | |||
| RP1210/D-PDU | ● | ● | |||
| Advanced Programming | ● | ● | ● | ||
| Complete TPMS Service | with X-431 TSGUN | with X-431 TSGUN | with X-431 TSGUN | ||
| Advanced Key Programming | with X-PROG 3 | with X-PROG 3 | with X-PROG 3 | ||
| ADAS Calibration | Optional | Optional | Optional | ||
| Software Upgrade | WiFi | WiFi | WiFi | ||
| Vehicle Coverage | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | ||
| Service Functions | 21 | 26 | 32 by local diagnosis Get More by Smartlink Diagnosis |
||
| SERVICE FUNCTIONS | |||||
| Brake Reset | ● | ● | ● | ||
| Oil Reset | ● | ● | ● | ||
| SAS Reset | ● | ● | ● | ||
| Battery Match | ● | ● | ● | ||
| ABS Bleeding | ● | ● | ● | ||
| Elec. Throttle RLRN | ● | ● | ● | ||
| TPMS Reset | ● | ● | ● | ||
| DPF Regeneration | ● | ● | ● | ||
| Gear Learning | ● | ● | ● | ||
| Immobilizer | ● | ● | ● | ||
| Injector Coding | ● | ● | ● | ||
| Sunroof Initialization | ● | ● | ● | ||
| SUS Reset | ● | ● | ● | ||
| AFS Reset | ● | ● | ● | ||
| Gearbox Learning | ● | ● | ● | ||
| Adblue Reset | ● | ● | ● | ||
| Coolant Bleeding | ● | ● | ● | ||
| EGR Adaption | ● | ● | ● | ||
| Nox Sensor Reset | ● | ● | ● | ||
| Seats Call Bration | ● | ● | ● | ||
| Tyre Reset | ● | ● | ● | ||
| Windows Calibration | ● | ● | |||
| A/F Reset | ● | ● | |||
| Stop/Start Reset | ● | ● | |||
| Transport Mode | ● | ● | |||
| Language Change | ● | ● | |||
| AC System Relearn | ● | ||||
| ACC Calibration | ● | ||||
| Engine Power Balance Monitoring | ● | ||||
| GPF Regeneration | ● | ||||
| Rotation Angle Sensor Calibration | ● | ||||
| High-Voltage Battery Health Detection | ● | ||||
| More Reset Services | Via Smartlink Diagnosis | ||||
| Compatible Modules | |||||
| X-431 ADAS PRO | ● | ● | ● | ||
| X-431 ADAS Mobile | ● | ● | ● | ||
| X-PROG 3 Immobilizer | ● | ● | ● | ||
| X-PROG Immobilizer | ● | ● | ● | ||
| BST360 Battery Tester | ● | ● | ● | ||
| WiFi Printer | ● | ● | ● | ||
| X-431 TSGUN TPMS device | ● | ● | ● | ||
| VSP600 Videoscope | ● | ● | ● | ||
| X-431 O2-1 Osciloscope | ● | ● | ● | ||
| X-431 S2-2 Sensorbox | ● | ● | ● | ||
| HD III Module | ● | ||||
| Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools Smartlink Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands. |

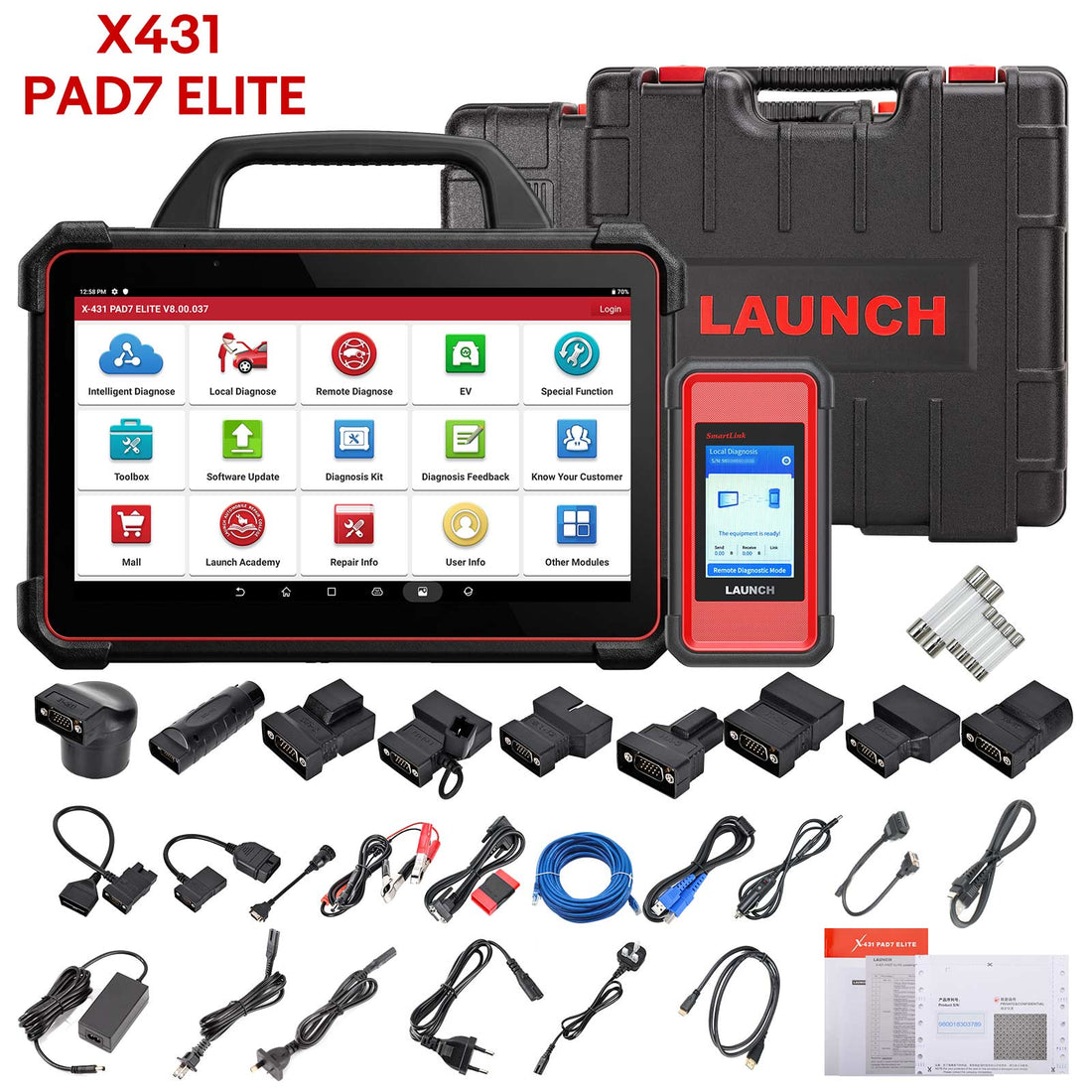

10.Package List:
1pc x PAD7 Elite tablet
1pc x SmartLink C
1pc x B-20 adapter
1pc x BZ-14 adapter
1pc x BZ-38 adapter
1pc x CR-6 adapter
1pc x FD-6+1 adapter
1pc x GV-12 adapter
1pc x HA-3 adapter
1pc x K-20 adapter
1pc x MH-12+16 adapter
1pc x NN-14+16 adapter
1pc x TA-17 adapter
1pc x TA-22 adapter
1pc x Battery clamps cable
1pc x Cigarette lighter cable
1pc x OBD adapter
1pc x OBD I adapter
1pc x USB-B cable
1pc x USB-C cable
1pc x Network cable
1pc x HDMI cable
1pc x Power adapter
1pc x Australia standard AC wire rod
1pc x Britain standard AC wire rod
1pc x European standard AC wire rod
6pcs x lighter fuses
1pc x Packing list
1pc x Quick start guide
1pc x Universal PIN envelope
1pc x User manual
1pc x Suitcase
1pc x Carton
