Launch X431 V+ SmartLink HD Heavy Duty Truck Diagnostic Tool for 12V 24V Trucks

Launch SmartLink User Manual

Product Introduction:

X-431 V+ SmarLink HD is a 10.1-inch smart car diagnostic device developed based on Android 10.0 system. It uses a 1.8Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery to run faster, more stably, and last longer. The standard new SmartLink C 2.0 diagnostic connector makes the diagnostic function more powerful. The product supports full system fault diagnosis, and has functions such as code reading, code clearing, data stream reading, special functions, and action testing.

X-431 V+ SmarLink HD covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles.

The SmartLink C 2.0 is more powerful and it is configured for passenger and commercial vehicles, mainly supporting commercial vehicles. The transmission speed is faster and the transmission is more stable; the visual operation interface makes it more convenient; it supports commercial vehicles, passenger cars, new energy and other models; it supports super remote diagnosis.

Note:This set is for trucks ONLY. If need to activate passenger car software license, purchase car software separately.

Product  Highlights:

Supports dual mode diagnosis: Local diagnosis and remore diagnosis
Supports ADAS calibration
Supports All System Diagnosis + Active Test + J2534 ECU Coding
Supports SmartLink Super Remote Diagnosis
SmartLink C 2.0 is an upgraded version of HDIII, with hardware upgrade and function upgrade.
Newly Added CANFD Connector——X431 SMARTLINK C 2.0,more powerful, faster
For trucks only, if need both cars & trucks, check X431 V+ and SmartLink C 2.0
Free update 10 truck brands. (check update details, download software in the device)
Support commercial vehicles. Covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles.
Support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test.
Supports ECU flash function (Need to purchase ECU flash license and activate function)
Added Graphic Clutch Relearn and Suspension Calibration functions for Benz, Scania, Volvo, Renault and UD trucks (De. 2025).

Product Functions:

Automatic diagnosis, local diagnosis, remote diagnosis, special functions, ADAS, vehicle coverage, Info center, upgrade center, mall, setting, feedback, toolbox and more...

Automatic diagnosis

The modular design reduces redundant scanning steps and makes diagnosis more accurate and efficient.

Local Diagnosis

The diagnostic software in this function is classified by brand and vehicle type to solve the previous menu confusion problem. Technicians can quickly select the diagnostic software they need through different menus to improve work efficiency.

Data Stream

Supports diverse data stream display modes and user-defined standard data streams.

Remote Diagnosis
Super remote diagnosis is based on the SmartLink C-side diagnostic box connected to the vehicle. Maintenance technicians can use X431 diagnostic equipment, original equipment or other third-party brand equipment to remotely detect, diagnose and program the vehicle through the LAUNCH server platform.The remote diagnosis function can realize real-time communication between equipment and equipment or equipment and computer to complete vehicle remote diagnosis. It becomes a reality for repair technicians to diagnose vehicles thousands of miles apart.

Special Functions

It supports 6 special functions commonly used in most car models, such as DPF, parameter setting, cylinder cutoff test, maintenance reset, injector programming, speed limit adjustment, etc., and is continuously updated.

ADAS

ADAS HD Calibration, Product Introduction, Product Manual, Adjustment Steps, ADAS Vehicle Coverage

Vehicle Coverage

It displays the list of testable models with current configuration. You can quickly find the corresponding software through the initial letter search and text input search functions. View the diagnostic software version, year, and system data at the same time.

Info Center

The info center contains equipment information, overall information, maintenance data and other information.

X-431 FIX

X-431 FIX maintenance data can be purchased through the mall, and LAUNCH will provide a service account. Technicians can search for information through the entrance provided on the fault code page or in X-431 FIX in the menu of "Repair Info".

Upgrade Center

It supports one-click upgrade of operating system, client, vehicle model software and firmware.

User Info

User info includes "My Report", "VCI", "VCI Management", "Activate VCI", "Firmware Fix", "Sample", "My Order", "Profile", etc.

Mall

The mall includes software store, service upgrade, other goods, etc.

Setting

Setting includes Units, shop information, printer set, clear codes, about, Auto update, device account management, log out...

Feedback

When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through diagnostic feedback, and specialized technical personnel will track and deal with the problem.

Toolbox

It includes oscilloscope, S2-2 sensorbox, multimeter(S2-2), BST360, Videoscope

Product Parameter

CPU:1.8GHz 4-core
Operating System: Android™ 10
Memory: 4GB
Storage: 64G
Display:10.0 inch
Resolution:1280*800
Rear camera8MP Rear
Battery:6300mAh, 7.6V
Operating temperature：0~50℃
Storage temperature：-20~70℃
VCI Connection：BT

Package Includes:

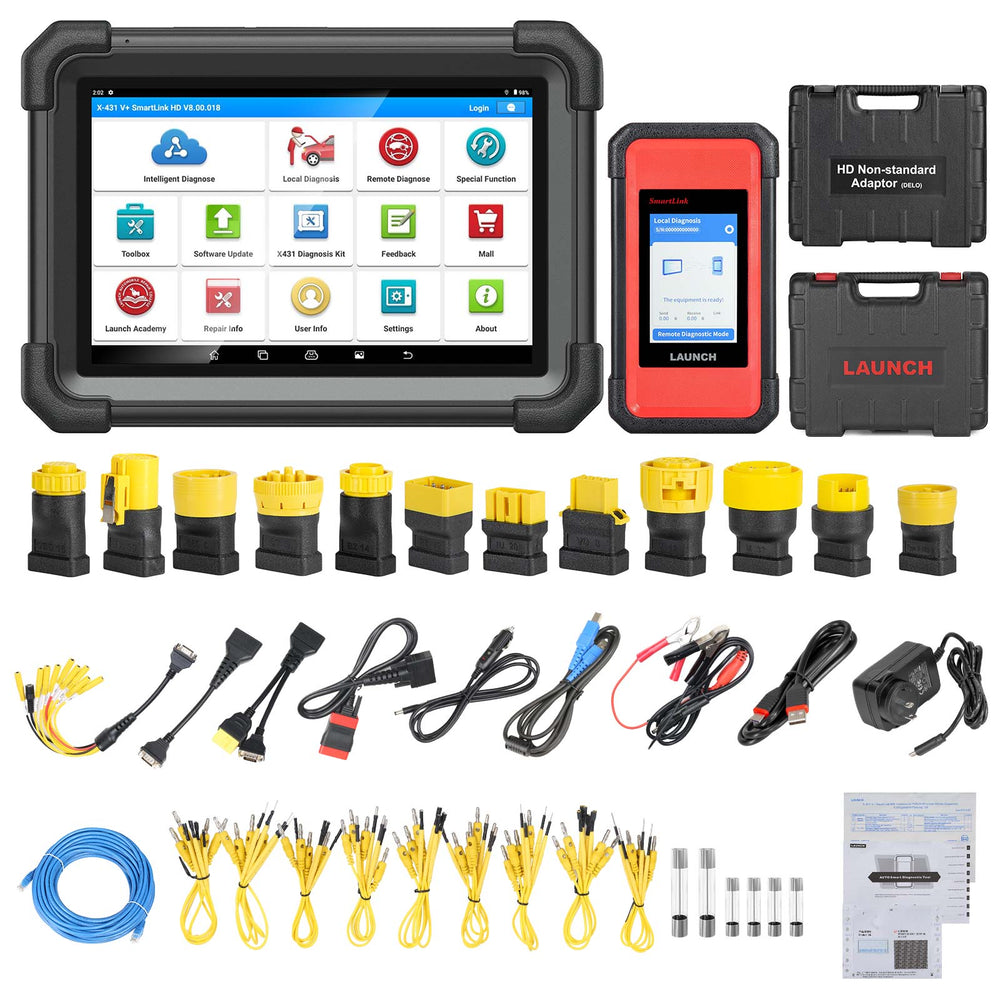

1pc x Launch X-431 V+ SmartLink HD tablet
1pc x SmartLink C 2.0 connector
1pc x Type II OBD-9 connector
1pc x IVECO 36 connector
1pc x OBD16 connector
1pc x OBD 6 connector
1pc x CAT 9 connector
1pc x BENZ 14 connector
1pc x RENAULT 12 connector
1pc x VOLVO 8 connector
1pc x MAN 37 connector
1pc x MAN 12 connector
1pc x IVECO 38 connector
1pc x ISUZU 20 connector
1pc x Jumpers
1pc x Test cable
1pc x OBD main cable
1pc x Power cable clips
1pc x Lighter
1pc x Jumper 10
1pc x HY-16 cable
1pc x M/F 12+16 cable
2pcs x USB cables
1pc x Standard power adapter
6pcs x Fuses
2pcs x Boxes
1pc x User manual
1pc x Password letter
9pcs x Jumpers
