Overview

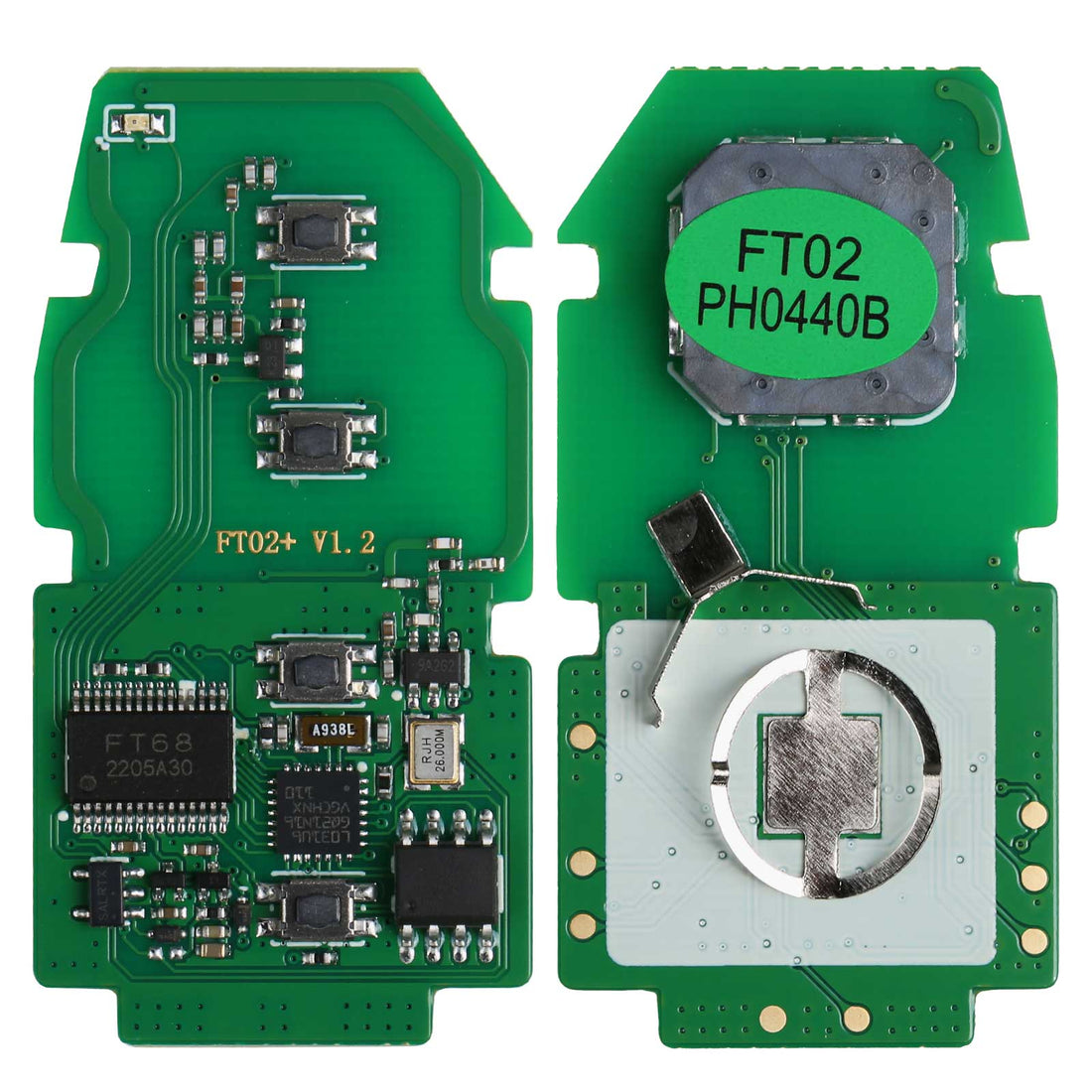

Lonsdor FT02 PH0440B - Enhanced Version of the FT11-H0410C 312/314 MHz Toyota Smart Key PCB with Shell
Key Features:
-
The FT02 PH0440B is an upgraded version of the FT11-H0410C, offering support for additional older Toyota 8A vehicle models.
-
Frequency Switchable: The frequency can be adjusted to match the specific requirements of your vehicle.
-
The new FT02 PH0440B provides versatile functionality including data collection, simulation, cloning, and direct vehicle pairing.
Function Details:
1. Collection Function:
-
Scenario 1 (Emergency Start / Key Replacement): If a customer loses one working key, the H0440C can be used to collect data and generate a new key to start the car as a replacement.
-
Note: If using a 0440B-type PCB as the blank key (P4: 9100AAAA), it can only be used for the same vehicle model. For cars requiring a 0410-type chip (9100A9A9), you must use the corresponding blank key. In this scenario, the H0440C acts as an emulator—it has no smart functions and cannot be used as a fully functional key.
-
-
Scenario 2 (All Keys Lost): In a situation where all keys are lost, the H0440C can generate a working key to start the vehicle.
-
Note: For both Scenarios 1 and 2, the H0440C supports both old 0410 (9100A9A9) models and newer 0440 models (P4: 9100AAAA), the latter of which previously required a dealer code for programming.
-
Important Note on Key Addition: When adding a key (e.g., having 2 original keys and adding a 3rd using the H0440C), a remote function conflict may occur between the newly generated H0440C key and one of the original keys, as it is designed to replace one original key.
2. Simulation Function: This allows the device to mimic a key to activate the car's dashboard, although the range of supported functions is not as comprehensive as a standard key.
3. Copy Function: The board can perform all cloning functions equivalent to the T0410B device.
4. Matching Function: It can be directly programmed and used as a new key for the vehicle.
Notice:
Need Toyota AKL Online Calculation Activation in order to be able to use this PCB, or you can use Lonsdor K518ISE with LKE Emulator and Super ADP 8A/4A Adapter.
Package includes:
1pc x Lonsdor FT02 PH0440B Toyota Smart Key PCB
1pc x Toyota Smart key Shell
