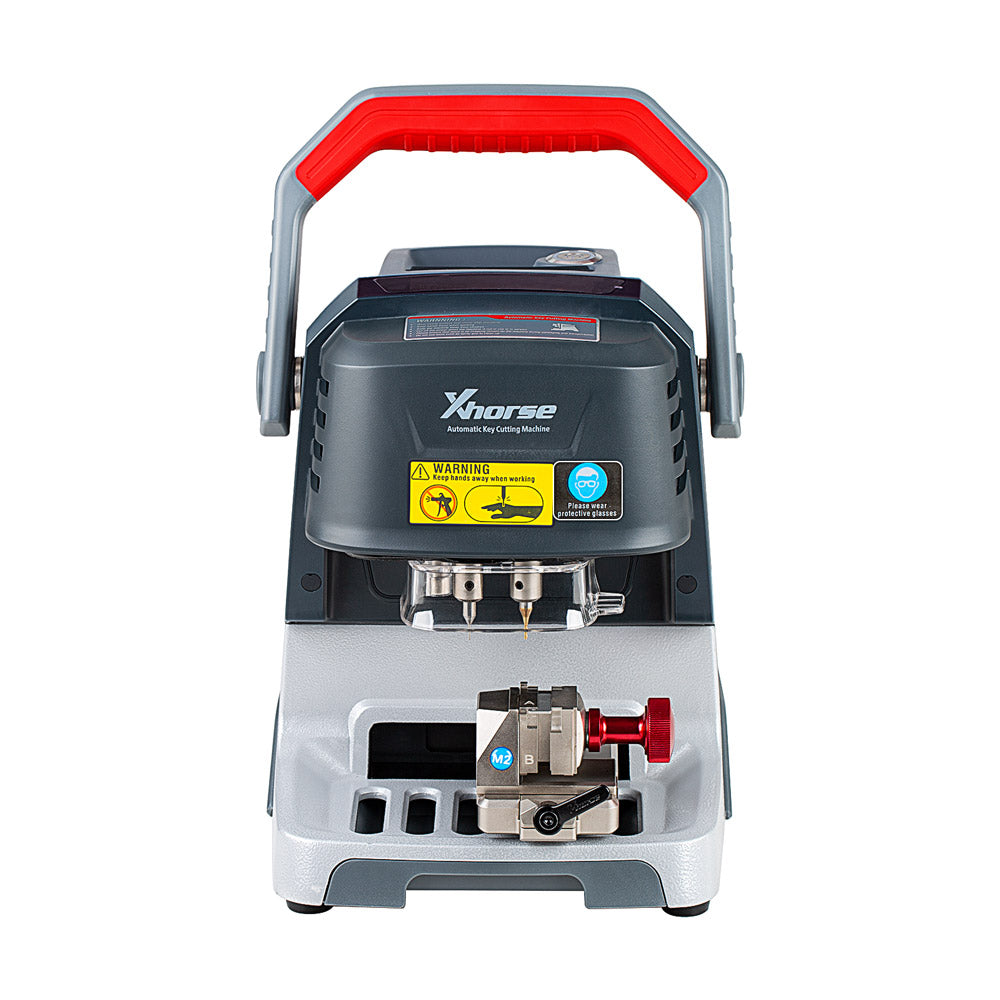

Xhorse Dolphin XP-005 XP 005 XP0501EN Key Cutting Machine with M5 Clamp, Multi-Language, Supports Sided, Track, Dimple, and Tibbe Keys

Xhorse Dolphin XP-005 User Manual

Product Introduction:
Xhorse XP-005 is the third generation key CNC machine, it is often used for duplicating automobile mechanical keys, changing key bitting, and solutions when all keys are lost.  As a portable CNC machine, it is preferred by locksmiths to take out for work by car. Moreover, Xhorse XP-005 supports online upgrade and can update the new key data in time.

Professional locksmiths.

Automotive key cutting specialists.

Key programming and key replacement service providers.

Users requiring a portable automatic key cutting machine.

2. Supported Key Cutting Functions & Features

APP Smart Operation: Supports smartphone and tablet operation through Bluetooth connection. The machine can be controlled through the Xhorse APP on iOS and Android devices.

Portable Design: Features a compact structure, built-in lithium battery, and portable handle design for convenient movement and rescue work without external power supply.

Automatic Key Cutting: Supports automatic key cutting with high efficiency and stable performance.

Key Type Support: Supports sided keys, track keys, dimple keys, and Tibbe keys.

M5 Clamp: Standard equipped clamp supports multiple key cutting functions.

Optional Clamps: Supports optional M3 and M4 clamps. M3 clamp is applicable to Ford FO21 and Citroen SX9 keys. M4 clamp is applicable to single-sided house keys.

Patented Clamp Design: Allows convenient switching between different clamps and supports common external milling, internal milling, and duplication of vertical milling keys.

Special Key Cutting: Supports special fixtures for cutting special Ford and Citroen keys.

Plastic Key Cutting: Supports cutting non-conductor keys (plastic keys).

Photo and Optical Equipment Connection: Supports connection of photo-taking, tooth-reading, and optical imaging equipment.

High Precision Cutting: Uses American imported 3-axis precision ball screw with clearance function to ensure high precision cutting.

Manufacturing Quality: Features an all-aluminum body structure manufactured by Germany-made DMG CNC machine.

High Efficiency Motor: Uses a brushless motor and screw rod system to provide high efficiency and stable cutting performance.

Built-in Lithium Battery: Equipped with an optimized lithium battery that supports cutting operations without external power supply.

Key Database: Built-in genuine key database provides tooth shape query for all keys lost situations.

Free Upgrade Service: Supports free software upgrades, including software functions and database updates.

Technical Service: Provides free technical support and online remote control support.

3. Supported Vehicles / Key Types / Systems :

Supported Key Types : Sided keys, Track keys, Dimple keys, Tibbe keys. Single-sided house keys (with M4 clamp) , Ford FO21 keys (with M3 clamp) , Citroen SX9 keys (with M3 clamp).

Key Database : The built-in genuine key database supports tooth shape query for all keys lost situations.

4. Hardware Accessories & Requirements

Standard Accessories:

M5 clamp.

Built-in lithium battery.

Bluetooth function.

Portable handle.

Optional Accessories:

M3 clamp: Applicable to Ford FO21 and Citroen SX9 keys.

M4 clamp: Applicable to single-sided house keys.

Supported Connections:

Bluetooth connection with mobile phones and tablets.

Supports operation with Key Tool Max and tablet computer.

7. Product Specifications:

Series	DOLPHIN Key Cutting Machine Series
Model	XP-005
Working temperature	-10~50℃
Working Humidity	10%~90%
Input voltage	12-24V
Battery capacity	64.75w.h
Cutting power	100W
Standby power	15W
Motor Rotation Speed	10000-13000RPM
Rated torque	0.15N.m
USB Port	USB2.0
Machine Dimension	315*218*270mm
Package Dimension	510*315*345mm
Net Weight	15kg
Gross Weight	18kg

Supports multi-language operation.



9. Free Upgrades & Services ：

10. Package Includes:
