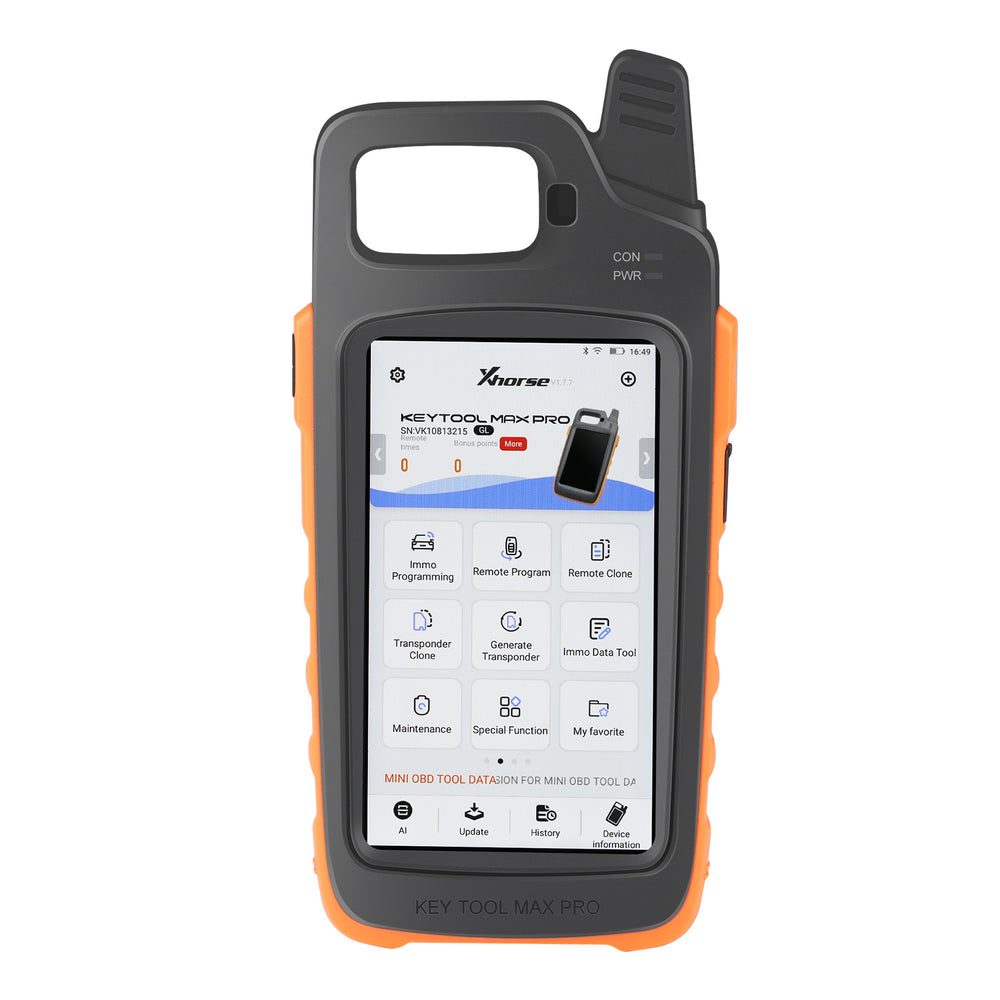

Xhorse VVDI Key Tool Max PRO 2-in-1 Key Programmer Combines Key Tool Max & Mini OBD Tool with Voltage and Leakage Current Measurement

Xhorse Key Tool Max Pro User Manual

Product Introduction:

The KEY TOOL MAX PRO is a professional all-in-one smart device with Bluetooth and Wi-Fi connectivity, designed for seamless operation with Xhorse key cutting machines. It supports a wide range of OBD functions, including vehicle diagnostics, IMMO programming, throttle adaptation, TPMS, and maintenance light reset.

Product Features:

• Combines the functions of the Key Tool Max and Mini OBD Tool.
• Built-in CAN FD support for compatible GM vehicles.
• Supports battery voltage measurement and leakage current measurement.
• Supports Toyota 8A all keys lost function with the 8A AKL Adapter.
• Compatible with Xhorse Condor and Dolphin key cutting machines.
• Professional remote programming and key programming solution.
• Supports transponder cloning and generation.
• Supports RF signal testing and remote renewal.
• Compatible with Xhorse Super Chips and Xhorse Universal Remotes, expanding vehicle coverage.

Designed specifically for professional locksmiths, the Key Tool Max Pro integrates the core functions of the Xhorse VVDI Key Tool series into a single device, providing a convenient and efficient working experience.

Note:

The device includes an OBD cable, allowing programming directly through the Key Tool Max Pro without the need for an additional programmer. It is also powered through the OBD connection, ensuring a stable power supply during operation.

Product Functions:

• Immobilizer Programming
• Service Reset
• Remote Generation
• Remote Cloning
• Transponder Generation
• Transponder Cloning
• Special Function Generation
• Remote Unlocking and Renewal
• ID Card Identification and Copying
• Garage Remote Generation and Copying
• Frequency Detection
• Remote Battery and Voltage Detection

Xhorse VVDI Key Tool MAX PRO vs Key Tool Max

Item	Xhorse Key Tool Max	Xhorse Key Tool Max Pro
CPU	Quad core CPU	Quad core CPU
RAM	1G+8G	1G+8G
OBD module	External Mini OBD Tool	Built-in
CANFD module	No	Yes
OBD Power Supply	No, power by USB only	Power by OBD or USB cable
Battery Voltage Test	No	Yes
Software Comparison
Immobilizer programming	With Mini OBD	Built-in
Cadillac CT4/CT5 CAN FD	No	Yes
Buick GL8/ ENCLAVE CAN FD	No	Yes
Chevrolet Cavalier / Trax  CAN FD	No	Yes
Service Reset	With Mini OBD	Yes, built-in
Generate remote (remote, smart card, Toyota XM remote, garage remote)	Yes	Yes
Copy remote	Yes	Yes
Identify/copy chip	Yes	Yes
Generate chip	Yes	Yes
File make key (Immo data tool)	Yes	Yes
Other special functions	Yes	Yes

Product Specifications:
