XTOOL D8S Bi-Directional Diagnostic Scan Tool CAN FD & DoIP, ECU Coding, Topology, Key Programming, Full Diagnostics, Upgraded Ver. of D8

1. The XTOOL D8S is designed for:

• Mechanics
• Electricians
• Car maintenance shops

It is an automotive smart diagnostic system with an 8-inch LCD display, designed for full-system automotive diagnostics and OBDII functions.

2. Supported key functions & Features

• Full-System Diagnostics: Perform OE-level diagnosis on all available systems, including reading ECU information, reading and clearing fault codes, viewing live data, reading freeze frames, performing actuation tests and accessing special functions.
• Bi-Directional Control / Active Test: Send commands to vehicle systems or components to perform active tests, such as EVAP Test, Fuel Pump Test, Fuel Injector Test, Cycling A/C Clutch On/Off, Cooling Fan Test and other component tests.
• ECU Coding & ECU Configuration: Perform ECU Coding to customize OE settings on specific vehicles. ECU Configuration can activate hidden features or disable certain vehicle functions.
• Offline Programming: Support Programmable Module Installation (PMI) for specific Ford, Lincoln and Mazda vehicles.
• Key Programming: Support Read PIN Code, Add New Key, Disable Lost Key, Remote Learning, Key Learning and Key Matching functions.
• VAG Guided Functions: Provide step-by-step guidance for certain complicated maintenance services or advanced functions on Volkswagen, Audi and Skoda vehicles.
• Module Topology Mapping: Scan available vehicle modules and display their diagnostic status and communication structure through a tree mapping. The function is available for specific vehicle makes, including GM, Chrysler, Jeep, Dodge, Ford, Toyota, Nissan, Honda, BMW, Benz, Hyundai and Mazda.
• Live Data & Data Analysis: Display and graph live data, combine up to 8 live data streams into one chart or display up to 8 individual graphs, record and replay live data, and export live data to CSV files.
• Diagnostic Reports: Generate, save, print and share diagnostic reports, including pre- and post-repair reports.
• 38+ Special Functions: Include Oil Reset, EPB Reset, BMS Reset, DPF Regeneration, Key Programming, Injector Coding, ABS Bleeding, SAS Adjustment, Throttle Relearn, Airbag Repair, TPMS Reset, Air Suspension, Gear Learning, Gearbox Match, Headlight Adjustment, Window Initialization, Seat Configurations, Transport Mode, Tire Upgrade, Electronic Pump Activation, Power Balance, A/F Reset, Start/Stop Reset, Language Change, Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, FRM Reset, SRS, Clutch Adaptation, Speed Limit and more.
• ADAS Calibration: ADAS calibration is supported as an optional function and requires the ASCT-1000 ADAS system.
• CAN FD & DoIP: Built-in CAN FD and DoIP protocols provide access to newer communication protocols, including CAN FD for MY2020+ GM models and DoIP for BMW E/F/G Chassis, Jaguar and Land Rover vehicles.



3. What Vehicles, Years And Systems Does It Support?

Vehicle Coverage: XTOOL D8S covers over 10,000 vehicles from America, Europe, Asia, Australia and China, with more than 85 global vehicle makes.

It supports 12V petrol sedans, SUVs, minivans and light-duty trucks worldwide, including vehicles from the United States, Europe, Asia and Australia after 1996 that use the OBDII port.

Built-in CAN FD Protocol & DOIP

can also work on GM vehicles manufactured after 2020, no need for adapters.

• Works For GM/GMC Vehicles After 2020

• Works For Cadillac After 2020

• Works For Chevrolet After 2020

• Works For Buick After 2020

Vehicle Coverage:

LANCIA	FIAT	TOYOTA	LEXUS
SCION	HUMMER	BUGATTI	ROEWE
SQTYWL	GM	SEAT	CHANGHE
ABARTH	VAUXHALL	EURFORD	CITROEN
LIFAN	YQVW	AUSFORD	MAZDA
BMW	HONDA	ACURA	GAC GONGW
AUDI	NISSAN	INFINITI	NISSANGTR
GMC	HYUNDAI CV	SUBARU	HYUNDAI
KIA	DFPEUGEOT	RENAULTSAM	CHRYSLER
DODGE	JEEP	MIT	SSANGYONG
CHEVROLET	ROMEO	PORSCHE	RENAULT
ISUZU	TLISUZU	BENTLEY	BENZ
MAYBACH	BUICK	JAC	VW
MASERATI	BAOJUN	CADILLAC	CHANGAN FORD
LANBORGHINI	USAFORD	PEUGEOT	DACIA
PROTON	HOLDEN	GEELY	FERRARI
BRILLIANCE	ZHONGHUA	DAEWOO	SAAB
PERODUA	VOLVO	DAIHATSU	POLESTAR
ASTONMARTIN	LANDROVER	CHERY	DFCITROEN
LINCOLN	SKODA	SATURN	SMART
SUZUKI	CHINA MAZDA	MG	JAGUAR
GAZ	UAZ	LUXGEN	YQAUDI
GREATWALL	BYD	TRANSPORTER	CVVW
MINI	MAXUS	OPEL	ROLLS

4. Please note the following limitations:

• Not for 24V Heavy-Duty Trucks: Designed for 12V petrol sedans, SUVs, minivans, and light-duty trucks. It does not support 24V heavy-duty trucks.
• Vehicle-Specific Compatibility: Functions and menus vary by vehicle make and model year, and not all functions are available for all vehicles.
• Auto VIN / Auto Scan: Auto VIN and Auto Scan do not work on all vehicles. Manual VIN input, automatic detection, and manual vehicle selection are available when required.
• ECU Coding: ECU Coding varies by vehicle and is not universally compatible. It is used to change supported vehicle settings and is not ECU Programming.
• DoIP: DoIP functionality is vehicle-specific and does not work on all vehicles.
• Module Topology: Topology Mapping is not available for all vehicle makes.
• Special & Service Functions: Service and maintenance functions vary by vehicle and may not be available for all vehicles.
• ADAS Calibration: ADAS Calibration is an optional function and requires the ASCT-1000 ADAS system.
• Compatibility Check: Vehicle compatibility should be confirmed by Make, Model, Year, and VIN before purchase.

5. Additional Equipment And Authorization Requirements:

Some specific functions work with additional XTOOL equipment.

Key Programming Accessories

For specific key programming applications, D8S can work with:

• KC100 — VW 4th/5th IMM

• KC501 — Mercedes-Benz infrared key

• KS01 — Toyota all-keys-lost; requires KC100

• M821 — Mercedes-Benz all-keys-lost; requires KC501

• M822 — Toyota 8A Key; requires KC501

• SK1 — Toyota bench-free, PIN-code-free Auto Key Coding

• XV100 Endoscope

NOTE: Accessories are not included, All the services/functions are not compatibility. Please check with us with your vehicle VIN.

D8S can work with the XTOOL XV100 endoscope to inspect vehicle details through an endoscope.

ASCT-1000 ADAS: The optional ADAS Calibration function requires the ASCT-1000 ADAS system.

8+12 Cable Adapter: D8S can work with an 8+12 Cable Adapter for Chrysler 2018 and later vehicles. The 8+12 Cable Adapter is not included.

WARM TIPS: Functions are NOT universally compatible with all vehicles. Please check compatibility first.

6. Product Specifications:

Items	Description
Operating System	Android 10
Processor	4 Core 1.50GHz
Memory	4G RAM, 64 ROM
Display	8-inch capacitive touch screen with 1024×768P resolution
Communication Method	Wired
Connectivity	WIFI 2.4/5G | DB15 to VAG USB
Camera	Rear camera, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor
Auto Input/Output	Microphone, Speaker
Input Voltage	9 to 36V
Operating Temperature	-10 to 40℃
Storage Temperature	-40 to 60℃
Humidity	<90%
Dimension (L×W×H)	274.0×175.0×33.8 mm
Protocol	CANFD, DOIP
Weight	2.9KG
Live or not	Live

System Features:

• New User Interface
• Movable Navigation Bar
• Online User Manual
• CAN FD & DoIP built in

Supported Languages: Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, Turkish.

7. Software Updates & Free Update Period

XTOOL D8S includes 3 years of free software updates.

During the free update period, software updates can:

• Add vehicle model coverage

• Improve software performance

• Improve capabilities

After the free update period expires, the scanner can still be used normally.

The software update price is $199 per year after the free update period.

Firmware Update

1. Go to Diagnosis → Ford (USA) or another vehicle brand → Manual Selection to activate the firmware update process.

2. Return to the main menu.

3. Go to Settings → VCI Information and check whether VCI firmware information is displayed.

4. Select Update VCI Firmware until “Update completed” is displayed.

8. Global Version or Regional Version?

XTOOL D8S is described as a global vehicle diagnostic tool, with coverage across:

America
Europe
Asia
Australia
China

It supports 85+ global vehicle makes, 140+ models, and 10,000+ vehicles, with vehicle coverage continuing to grow through software updates.

9. XTOOL D8S vs D8 BT vs D8

XTOOL D8S has a more Powerful Configuration:

New User Interface
Android 10.0 OS
Quad Core 1.5GHz
4GB ROM + 64GB RAM Large Storage
CAN FD & DoIP (built in)
Movable Navigation Bar
Online User Manual, making diagnosis easier, faster, more stable, and more durable.

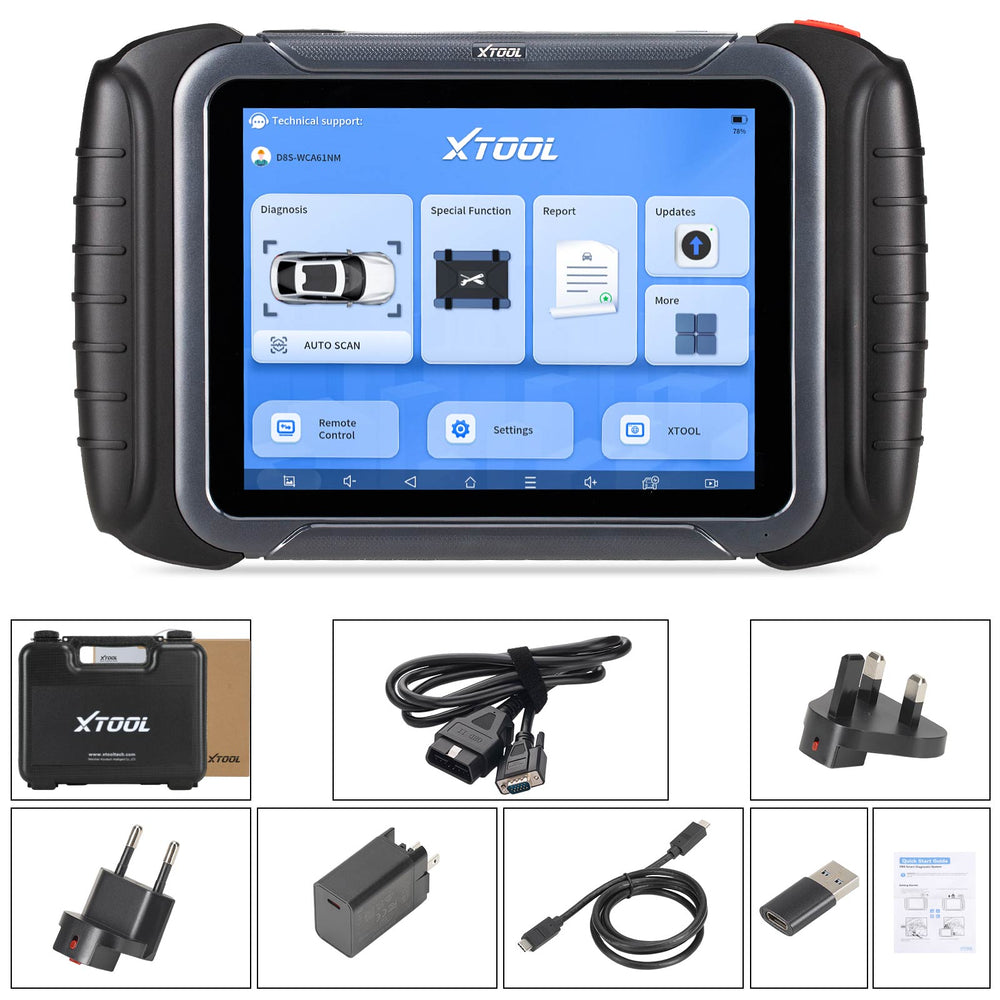

10. Package Includes:

Category	No.	Name
Accessories	1	Tool kit
	2	Packing List
	3	Carton
	4	Certificate of Quality
	5	Quick Start Guide
Main Units	6	Power adapter
	7	EU power adapter
	8	Tablet
	9	US power adapter
	10	UK power adapter
	11	USB cable
Test Connectors	12	USB to type C adapter
	13	DB15 Main Cable
