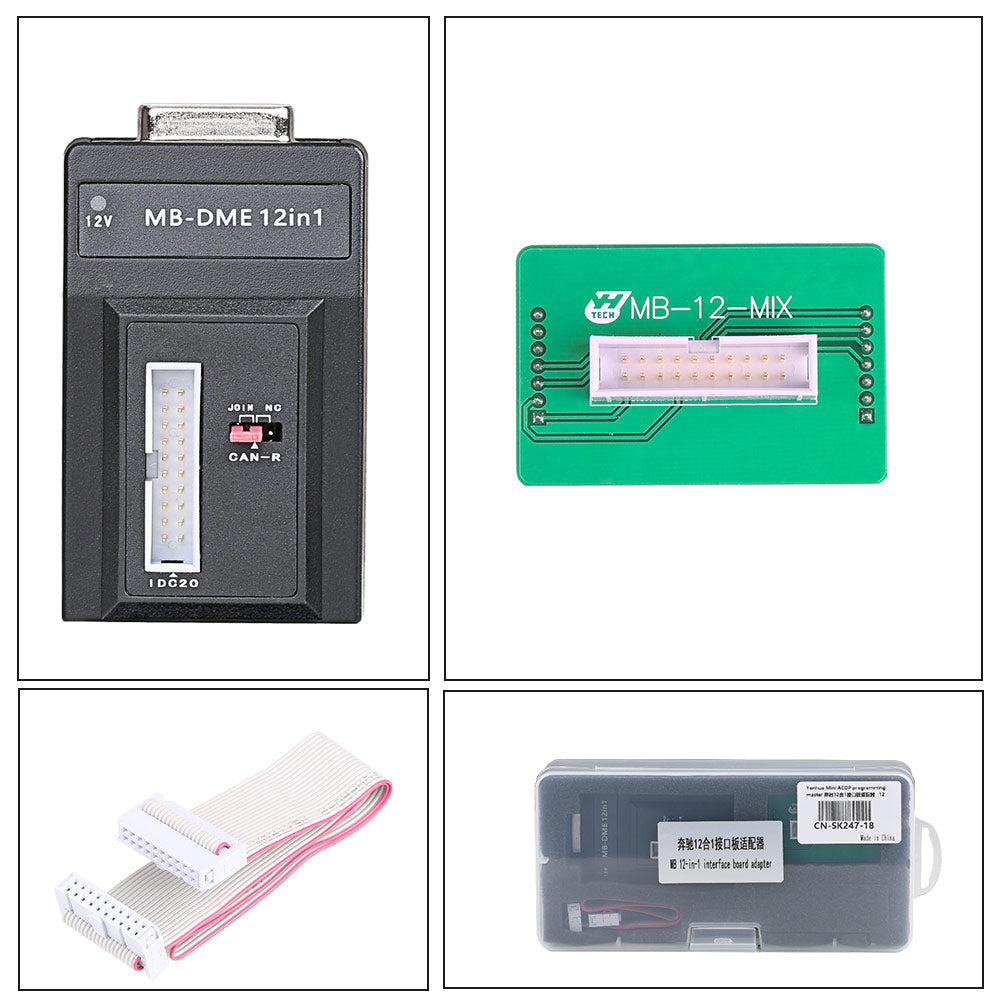

Yanhua ACDP MB 12-in-1 Interface Board Adapter for ACDP Module 18
Notice:
This adapter cannot be used independently. It must be used together with the ACDP Mercedes-Benz DME/ISN Refresh Module 18.
Supported Models:
Supports refreshing the following Mercedes-Benz DME types:
- CR4.XX
- CRD2.XX
- CR5
- ME9.7
- SIM271KE2.0
- CRD11
- SIM271DE2.0
- CR3.XX
- SIM4LKE
- MED17.7X
- CR6
- SIM266
Features:
-
Dedicated Mercedes-Benz interface design with no wire separation required, allowing quick connection and disconnection.
-
Automatically identifies and connects 12 types of Mercedes-Benz DME modules.
-
Intelligent pin detection ensures safe and reliable operation while helping prevent circuit damage caused by incorrect wiring.
How is Yanhua Mini ACDP connected to MB 12-in-1 interface board adapter on bench?
Step 1. Please prepare ACDP, adapter, interface board and DME.
Step 2. Connect the interface board correctly to the DME interface as shown.
Step 3. Short the CAN resistor on the adapter to the “CAN-R Join”.
Step 4. Connect ACDP, adapter, interface board and DME.
Package Includes:
1pc x Yanhua Mini ACDP MB 12-in-1 Interface Board Adapter
