Yanhua Mini ACDP Module 34 with License A609 for MQB 5A 5C RH850 Cluster IMMO Mileage on Bench (For Customer without Module 33)

Yanhua Mini ACDP Module 34 with License A609 for MQB RH850 Cluster IMMO Mileage on Bench

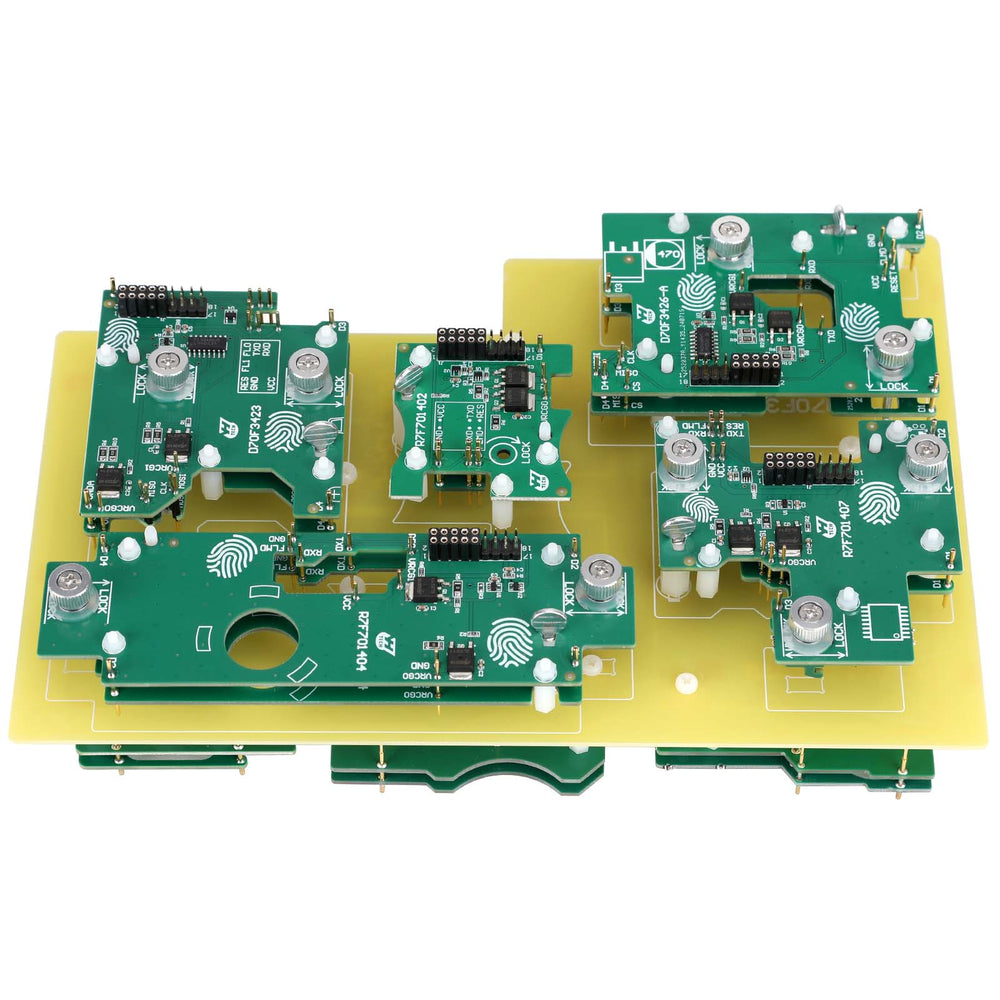

Module 34 included 9 piece bench interface board and License.
It can work both ACDP-1 and ACDP-2 Master.
If you have MQB-33 Module already, you are offered buy the new MQB RH850 module 34 alone.

No removing components.
No lifting pins.
No wring.
No hurt on cluster.

Module functions:
1: Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
2: Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
3: Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4: Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instruments.
5:  For 2019-2022 VW Polo/VW Virtue, need buy R7F701402-B Interface Board extra
6:  For VW MQB 5D, Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L…mileage correction, need buy R7F701401/21-5D Interface Board extra

Module Features:

1: Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2. The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3. The software comes with pin detection function, making data reading and writing safer and more reliable.

Supported odometer number (not limited to):
R7F701401/ R7F701402/ R7F701407 5A:
83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B

R7F701401/ R7F701402/ R7F701404/ R7F701405/ R7F701406/ R7F701407 5C:

3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C ,5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B ,55G920650C,5HG920340 ,5HG920340A ,5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E

D70F3423 +95320:
31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C,
34D920850E, 31G920860A, 34D920850G

D70F3426 +95128:
5GG920640, 5GG920860, 5GG920860A, 5G0920861A


Package includes:
 1pc x R7F701401 Interface board
1pc x R7F701402 Interface board
1pc x R7F701404 Interface board
1pc x R7F701406-1 Interface board
1pc x R7F701406-2 Interface board
1pc x R7F701407 Interface board
1pc x D703423 Interface board
1pc x D703426-A Interface board
1pc x D703426-B Interface board
1pc x D703426-C Interface board
1pc x PCF-KEY adapter
1pc x MQB V2 adapter
1pc x 20 PIN cable
8pcs x screws
