Autel MaxiLink ML629 CAN OBD2 Scanner Code Reader +ABS/SRS Diagnostic Scan Tool

1. The Autel MaxiLink ML629 is Designed for:

• Small independent repair shops and quick‑service technicians for engine, ABS, SRS, transmission basic fault diagnosis
• DIY vehicle owners, car enthusiasts for checking warning lights (MIL, ABS, airbag) at home
• Used‑car dealers for quick pre‑purchase vehicle fault inspection
• Mobile roadside maintenance personnel for basic multi‑system code reading & clearing
• Automotive vocational training schools for OBD‑II basic diagnostic practical teaching

2. Supported Key Functions & Features

ABS, SRS, Engine & Transmission Diagnosis

Read and erase DTCs for ABS, SRS, Engine and Transmission systems on most supported 1996 and newer vehicle models.

Complete OBDII Diagnostics

Supports all 10 OBDII test modes for comprehensive vehicle emissions and diagnostic testing.

DTC Reading & Clearing

Retrieve generic P0, P2, P3 and U0 codes, manufacturer specific P1, P3 and U1 codes, as well as pending codes.

Clear diagnostic trouble codes and turn off the Check Engine Light when the underlying fault has been properly addressed.

Live Data

Read, store and play back live PCM data streams and live sensor data.

Graph Data

Display live data in graphical format to make changing sensor parameters easier to observe and analyze.

Freeze Frame Data

View freeze frame information recorded when a diagnostic trouble code was triggered.

Vehicle Information

Retrieve available vehicle information, including VIN, CALID and CVN.

I/M Readiness

Check the vehicle's emissions readiness status and help determine whether the vehicle is ready for an emissions inspection.

TF Memory Card

The included TF memory card can be used for data backup and software updates.

PC Printing

Connect the scanner to a PC to print available diagnostic data.

Multilingual Support

Supports multiple languages, including English, Spanish and French.

3. What Vehicles Does It Support?

Supported Brands

GM, Ford, Mazda, Toyota, Lexus, Scion, Suzuki, Peugeot, Citroen, Fiat, Abarth, Lancia, Alfa Romeo, Honda, Acura, Subaru, Nissan, Infiniti, Chrysler, Renault, Dacia, Land Rover, Jaguar, VW, Audi, Bugatti, Skoda, Seat, Bentley, Volvo, Porsche and other global OBD‑II compliant passenger vehicles

Supported Year Range

All OBD‑II / CAN compliant passenger cars from 1996 up to latest 2026 models

Supported Vehicle Systems

OBD‑II powertrain(Engine), Transmission, ABS anti‑lock brake system, SRS airbag safety restraint system

4. Please Note the Following Limitations

1. Only read & clear fault codes for ABS/SRS/Engine/Transmission; NO special service reset functions (oil reset, EPB, SAS, DPF etc.)
2. Does NOT support bi‑directional active test / actuator control
3. No IMMO key programming, TPMS programming, ECU coding or online ECU flashing functions
4. Not compatible with heavy‑duty trucks, construction machinery, motorcycles, new‑energy high‑voltage systems
5. Some manufacturer‑enhanced system functions are subject to vehicle factory protocol limits
6. Firmware & database update requires Windows PC; Mac / mobile phone cannot complete the update operation

5. Hardware Accessories & Licensing Requirements

OBDII Connection

The ML629 communicates with the vehicle through the included OBDII cable and receives operating power from the vehicle.

PC Connection

A PC connection is required when using the data printing function.

TF Card

The included TF memory card supports data backup and software update functions.

6. Autel MaxiLink ML629 Specification:

• Display: 2.8‑inch LCD (320 x 240 dpi)
• Connectivity: USB mini 2.0, OBD II DB15 interface
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• External Power Supply: 8.0‑18.0V, powered from vehicle battery via OBD port
• Dimensions(L×W×H): 182.8 mm (7.2") × 90.9 mm (3.6") × 33.2 mm (1.3")
• Net Weight: 247 g (0.544 lb.)
• Supported Languages: English, Spanish, French, German, Portuguese, Japanese, Dutch, Polish, Korean, Swedish, Italian, Russian

7. Software Update

• Device firmware and vehicle database update via Mini‑USB connection to Windows computer
• No official defined free‑update term limitation; subject to Autel official product maintenance cycle
• Once Autel stops supporting this model, there will be no further new‑model database upgrades

8. Global Version

100% global‑unlocked hardware, no regional protocol lock. Works for US, European, Asian market 1996+ OBD‑II compliant passenger vehicles, multi‑language menu available.

9. Warranty

• Standard manufacturer hardware warranty: 12 months counted from original purchase date
• Warranty coverage: Factory defects of LCD screen, mainboard, internal circuit under normal workshop / home usage
• Excluded from warranty: Damage caused by reverse power‑in, liquid ingress, heavy impact, violent plug‑in, unauthorized disassembly
• 30‑day return service (buyer bears return‑shipping costs for non‑quality‑related issues); lifetime online text‑based technical support

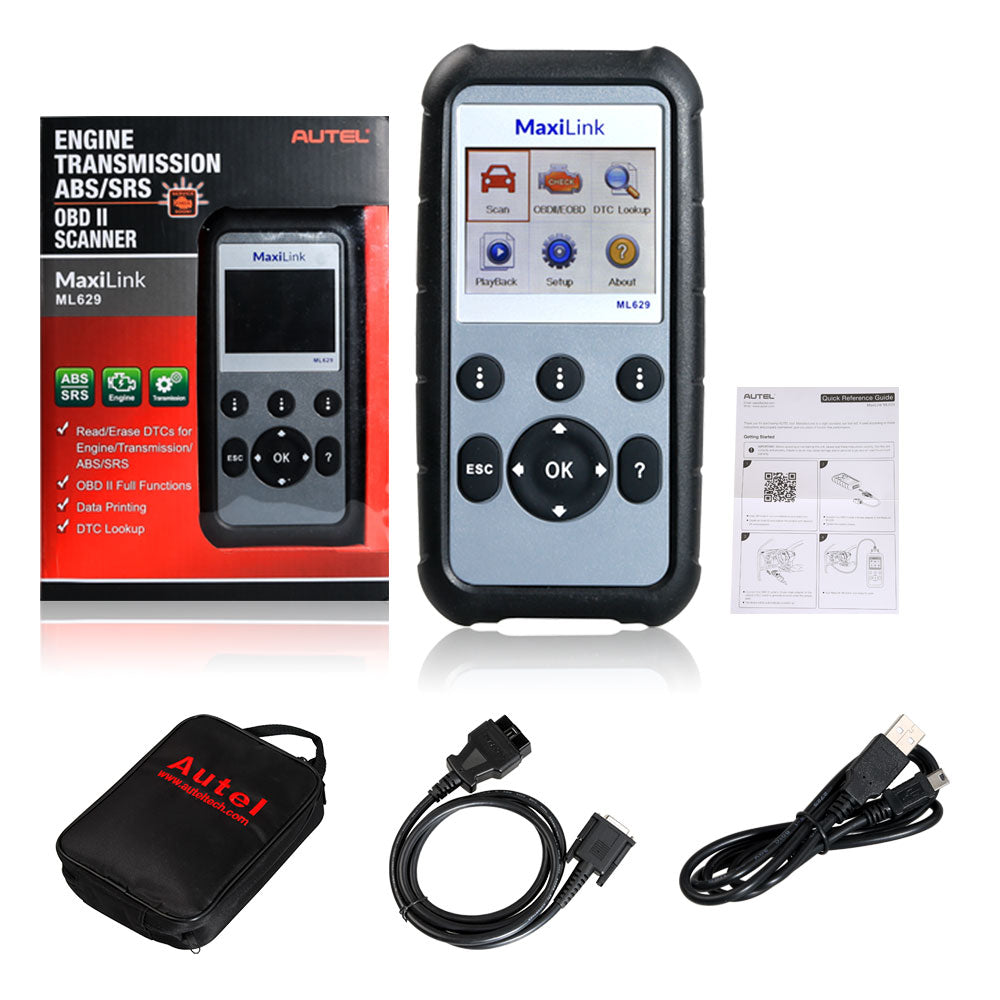

10. Package List
