OBDSTAR iScan DUCATI Motorcycle Diagnostic Scanner

DUCATI DIAG

DUCATI IMMO

1.The iScan DUCATI is designed for:

This professional diagnostic tablet is developed for dedicated Ducati repair shops, full-time Ducati maintenance technicians, professional motorcycle locksmiths handling Ducati anti-theft key programming, and private Ducati motorcycle owners who carry out self-inspection and daily routine maintenance.

2. Supported Key Functions & Features

OBDSTAR iScan DUCATI is a portable industrial-grade diagnostic tablet with stylish appearance, serving as a new generation intelligent maintenance tool exclusively customized for Ducati motorcycles. It adopts RK3128 quad-core processor and is equipped with a five-inch capacitive touch screen to deliver stable, professional diagnosis experience.

• Built-in complete fault guidance, maintenance help data, official technical bulletins and diagnostic socket wiring diagrams to realize fast and accurate fault troubleshooting
• Diversified data display forms including text, waveform graph and instrument panel layout for intuitive fault data analysis
• Comprehensive full-system operations: automatic full vehicle scan, automatic VIN recognition, control module programming & coding, ECU parameter setting, instrument coding, tire pressure monitoring calibration, maintenance light reset, CO adjustment, idle speed calibration, air-fuel ratio reset, ABS parameter configuration, factory EOL mode activation, transmission memory erasure and fault memory clearing
• Exclusive special service functions: Ducati anti-theft key programming, factory accessory activation including fog light and heated grip enablement, suspension calibration and dashboard parameter adjustment
• Supports multiple mainstream global languages for users from all regions
• Simple freely switchable menu layout for quick operation
• Supports recording and playback of real-time data stream to rapidly locate faulty sensors and electronic components
• Built-in Wi-Fi module to realize one-click online software upgrade and one-click remote technical assistance from official OBDSTAR technical staff

Available Diagnostic & Service Tasks

• Basic diagnostic work: Read and erase fault codes, display real-time live data stream, bi-directional actuator test, record and replay real-time sensor data
• Advanced calibration work: Full vehicle automatic scanning, automatic VIN recognition, ECU & instrument coding, tire pressure monitoring setup, maintenance lamp reset, ABS module parameter adjustment and factory mode activation
• Exclusive anti-theft service: Ducati motorcycle immobilizer key matching and programming
• Exclusive special tuning: Activate hidden factory accessories such as fog lights and heated grips, rear suspension rotary sensor calibration, dashboard date/time adjustment
• Auxiliary maintenance tools: Built-in factory repair documents, one-click online firmware update, official remote technical support

Key Programming

Supports DUCATI motorcycle key programming functions, including:

• Key programming
• Key learning (supported models)
• Immobilizer-related functions (supported models)

Data Analysis Functions

• Text display
• Waveform display
• Instrument display

Additional features include:

• Live data recording
• Data playback
• Fast sensor and actuator fault analysis

Remote Support

• One-click remote assistance from OBDSTAR technical support
• Wi-Fi one-click software updates

3. What Vehicles Does It Support?

• Supported Brand: Exclusively developed for all Ducati series motorcycles
• Supported Vehicle Coverage: Mainstream Ducati motorcycle models. Official team continuously adds newly released models and special calibration functions through regular online firmware updates, and complete vehicle coverage, immobilizer and odometer lists can be downloaded from official product resources.
• Supported Electronic Control Systems: Engine control ECU, instrument cluster, tire pressure monitoring module, ABS brake control unit, transmission control module, vehicle anti-theft immobilizer system and all other factory original on-board electronic modules.

4. Please Note the Following Limitations

• Only compatible with Ducati motorcycles; cannot diagnose other motorcycle brands, ATV, UTV, snowmobiles, jet skis, passenger cars and commercial vehicles
• Incompatible with aftermarket refitted non-standard ECUs and customized racing engine control computers
• This device only supports electronic diagnosis, parameter calibration and module coding, and cannot perform mechanical disassembly, physical component maintenance or spare parts replacement
• Odometer correction function requires separate paid license activation
• Some late-model Ducati motorcycles need to purchase dedicated connecting cables separately for full diagnosis
• Unable to diagnose vintage Ducati motorcycles without factory original ECU and standard OBD diagnostic ports

5. Hardware Accessories & Licensing Requirements

• Basic diagnostic and key programming functions are pre-activated before factory delivery, no extra annual subscription or hardware dongle needed
• Odometer adjustment function requires purchasing an additional independent license
• Dedicated connecting cables for certain late Ducati models need to be bought separately
• All standard diagnostic cables and power supplies are contained in the original package, no extra basic adapters need to be purchased
• Wi-Fi network connection is only required for online firmware updates and remote technical support; all core diagnostic functions can run offline stably

6. iScan DUCATI Specification

• Built-in Operating System: Android 5.1.1
• Main Processor: RK312 Quad-Core ARM Cortex A7
• Display Screen: Five-inch capacitive touch screen
• Screen Resolution: 800*480
• Built-in Storage: 16GB
• Expandable Storage: Supports TF memory card expansion
• Built-in Battery: Rechargeable polymer lithium battery
• External Connection: Built-in wireless Wi-Fi module
• Working Temperature Range: Minus twenty degrees to fifty-five degrees Celsius
• Storage Temperature Range: Minus twenty degrees to seventy degrees Celsius
• Whole Machine Weight: About seven hundred grams
• Overall Dimension: 198mm115mm31mm

7. Software Update

• Every unit comes with a full period of free official online firmware and database updates after registration
• After the free update validity period expires, users can choose to renew the update service according to personal maintenance demands
• All basic diagnostic and key programming functions can be used permanently without update service renewal
• Official annual renewal fees follow the unified pricing standard released by OBDSTAR

8. Global Version

This is a full global universal device without regional locks, country restrictions or partial function shielding. Multiple mainstream global languages are pre-installed to serve maintenance technicians and private motorcycle owners in all regions around the world.

9. Warranty

The whole machine enjoys official limited warranty valid from the purchase date. Free repair or component replacement service is provided for non-artificial manufacturing defects. Damage caused by falling impact, unauthorized disassembly, self-modified wiring and water ingress will not be covered under warranty terms.

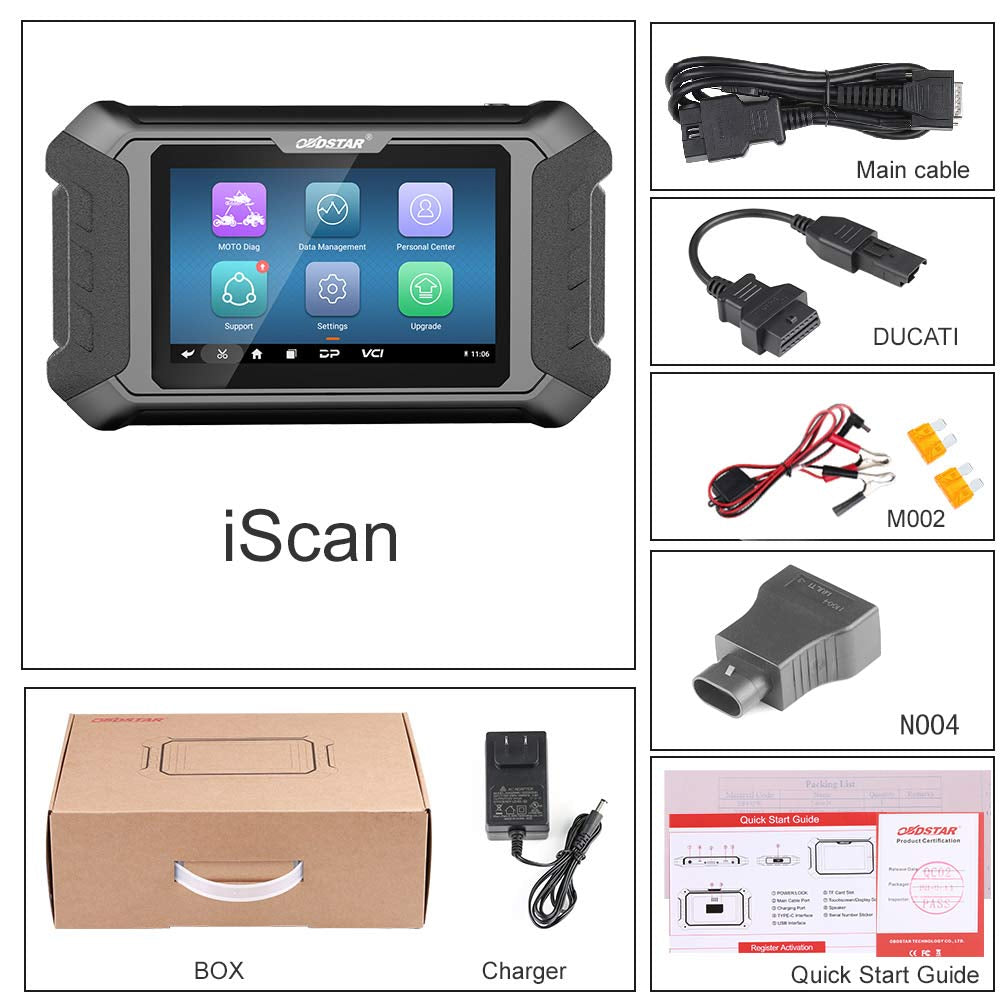

10. Package List

1pc x iScan DUCATI Main Unit
1pc x M001A Main Cable
1pc x M002 Power Cable
1pc x N004 Adapter
1pc x M037 DUCATI Cable
1pc x 12V2A Charger
1pc x Quick Start Guide
