Autel MaxiSYS MS919 Diagnostic Tablet with 5 in 1 VCMI Same as MSUltra Supports Online Programming, Topology 2.0, Motor TruSpeed Repair

1. The Autel MaxiSYS MS919 is designed for:

• Professional automotive technicians and repair shops

• Auto professionals performing advanced vehicle diagnostics and repairs

• Technicians requiring OE-level all-system diagnostics, active tests, ECU programming and coding

• Technicians who need oscilloscope, multimeter, waveform generator, CAN BUS testing and VCI functions in one device

• Technicians requiring remote programming and access to Remote Experts

2. Supported key functions & Features

• Advanced 5-in-1 VCMI: Integrates five functions into the MaxiFlash VCMI: VCI, Oscilloscope, Multimeter, Waveform Generator, and CAN BUS Tester. It provides simultaneous and in-depth analysis on test components.
• VCI: Provides fast and stable wireless data communication up to 164 feet/50m, with diagnostic speed increased by 30%.
• Oscilloscope: Provides 20MHz bandwidth and up to 80MS/s sampling rate, with built-in preset guided tests for easier operation.
• CAN BUS Tester: Provides easy and fast multi-function OBD2 CAN BUS detection.
• Waveform Generator: Integrated into the 5-in-1 MaxiFlash VCMI for component testing and analysis.
• Multimeter: Integrated into the 5-in-1 MaxiFlash VCMI for component testing and analysis.
• Topology Mapping 2.0: Displays the distribution diagram of all vehicle control modules, marks the number of DTCs, and uses different colors according to diagnostic results. The module status and ECU connection are displayed in a clear tree structure.
• OE-Level All-System Diagnostics: Performs deep analysis on all available vehicle systems and modules, reads and clears DTCs, and lists DTC reasons by priority.
• Active Tests / Bi-directional Control: Interacts with vehicle onboard systems by sending commands to ECUs and controls or activates various vehicle systems, sub-systems, and components, including ABS pumps, valves, windows, doors, roofs, and lamps, to check whether they are functioning normally.
• ECU Programming: Supports advanced ECU programming for BMW and Mercedes-Benz, including reprogramming new ECU modules after replacement.
• Mercedes-Benz ECU Programming: Supports Post-programming Learning, Programming Restoration, Vehicle Configuration Synchronization, Read/Write Adjustment Value, Implicit Coding, and other functions.
• BMW ECU Programming: Supports Entertainment System HTTP Programming, High Voltage System Programming, Automatic Calculation Programming, Personalized Data Backup, and other functions.
• ECU Coding: Performs ECU coding to match replaced modules, write adaptive data, install pre-programmed modules, simulate high-end functions, and optimize specific vehicle performance. ECU Coding works on BMW, Porsche, VW, Audi, Nissan, Hyundai, Kia, Renault, and other vehicles.
• Hidden Function Refresh: Supports BMW, Mini, VW, Audi, Skoda, Nissan, Infiniti, Toyota, Lexus, Scion, and other vehicles.
• 40+ Service Functions: Includes Oil Reset, Brake Bleed, EPB, SAS, BMS, Throttle Reset/Relearn, Injector Coding, Suspension Calibration, Transmission Relearn, Cylinder Power Balance, Crankshaft Sensor Relearn, Crank Relearn, Power Balance Test, and other vehicle maintenance functions.
• Key Programming: Included among the supported service functions.
• Auto Scan 2.0: Provides scanning speeds up to 3X faster for vehicles using CAN protocols, with GM under 8 seconds and BMW, Ford, VAG, and Chrysler under 10 seconds.
• FCA AutoAuth: Supports FCA vehicles in and after 2017, including Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat.
• Pre-Scan & Post-Scan Reports: Supports pre-scan and post-scan reports.
• Remote Expert: Provides a cloud-based solution for technicians requiring module programming, connecting them with pre-qualified Remote Experts to complete programming needs. The 12-digit SN is required to add authorization.
• Cloud Services: Stores customer records, diagnostic reports, and technician notes securely in the cloud for access and organization.
• Remote Programming: Supports remote programming and updates through cloud-based services.
• Motor TruSpeed Repair: A 2025 newly released feature with comprehensive OEM-sourced repair and service data. It provides OEM TSB, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, Relevant Cases, and advanced Searching to streamline the diagnostic process and prioritize detected fault codes.
• Motor TruSpeed Repair Availability: Motor TruSpeed is an optional paid function, only suitable for US/Canada IP, and costs an additional $650 per year.
• Battery Test: Supports battery testing with the additional purchase of BT506.
• Endoscope Functions: Supports endoscope functions with MV108.
• Luxury Vehicle Diagnostics: Supports luxury vehicle diagnostics including Tesla and McLaren.
• EV Diagnostics Upgrade: Can be upgraded to Autel MS919EV with the additional purchase of the Autel EVDiag Box kit to expand into new energy vehicle diagnostics and EV battery pack analysis.
• Vehicle Compatibility: Supports 80+ American, Asian, and European makes, 140+ brands, and 15,000+ models, including newer vehicle models with CAN FD and DoIP protocols for high-speed vehicle diagnostic communication.

3. What Vehicles, Brands, Years & Systems Does It Support?

• Vehicle Coverage: Supports 80+ American, Asian, and European makes, 140+ brands, and 15,000+ models.
• Supported Vehicle Brands: Includes BMW, Mercedes-Benz, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda/Acura, Toyota/Lexus, Jaguar/Land Rover, Hyundai, Kia, Volvo, PSA, Porsche, Renault, Infiniti, Mini, Skoda, Scion, Alfa Romeo, Fiat, Tesla, McLaren, and other brands.
• FCA Vehicle Coverage: Supports FCA vehicles in and after 2017, including Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat.
• Supported Communication Protocols: Supports CAN FD and DoIP for high-speed vehicle diagnostic communication.
• Supported Diagnostic Systems: Provides OE-level diagnostics on all available vehicle modules and supports access to all modules in all systems.
• Supported Topology Systems: BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda/Acura, Toyota/Lexus, Jaguar/Land Rover, Mercedes-Benz, Hyundai, Kia, Volvo, and PSA.
• Supported ECU Coding: BMW, Porsche, VW, Audi, Nissan, Hyundai, Kia, Renault, and other vehicles.
• Supported Hidden Functions: BMW, Mini, VW, Audi, Skoda, Nissan, Infiniti, Toyota, Lexus, Scion, and other vehicles.

4. What Does It Not Support?

• Battery Pack Diagnostics: MS919 does not support battery pack diagnostics. The MS919 vs Ultra EV comparison lists SOC and SOH analysis as a function of Ultra EV.
• High-Voltage System Diagnostics: MS919 does not support high-voltage system diagnostics. The MS919 vs Ultra EV comparison lists high-voltage system block diagrams as a function of Ultra EV.
• Universal Topology Coverage: Topology Mapping is not universal and currently supports the vehicle brands listed above.

5. Does It Require Other Equipment or Authorization?

• Motor TruSpeed: Optional paid function, only suitable for US/Canada IP, requiring an additional $650 per year.
• BT506: Battery testing requires the additional purchase of BT506.
• MV108: Endoscope functions require MV108.
• Autel EVDiag Box: Upgrading to Autel MS919EV for new energy vehicle diagnostics and EV battery pack analysis requires the additional purchase of the Autel EVDiag Box kit.
• Remote Expert Authorization: The 12-digit SN is required to add authorization for Remote Expert.

6. Autel MaxiSYS MS919 Specification

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
	BT v.2.1 + EDR
	GPS
	USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight
	Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery
	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

7. Software Update

• Free Update: 1 year of free software updates.
• Update Cost After Free Period: $899 per year.
• Motor TruSpeed: Optional paid function at $650 per year and only suitable for US/Canada IP.

8. AUTEL Scanners Comparison （MS919 vs Ultra EV）

	Model	MS919	Ultra EV
hardware	Connection	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
	Screen	9.7inch touchscreen	12.9inch touchscreen
	Battery	15,000mAh	18,000mAh
	Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
	Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
	Camera	16MP rear/16MP front	16MP rear/5MP front
	Docking Station	×	Included
	EVDiag Box	×	Included
software	Operating System	Android 10.0	Android 7.0
	Service Resets	36 service features	36 service features
	OBDII Test Modes	All 10 test modes	All 10 test modes
	System Diagnostics	Access all modules in all systems	Access all modules in all systems
	Battery Pack Diagnostics	×	SOC and SOH analysis
	High-voltage System Diagnostics	×	Diagrams of high-voltage system block
	Component Activations	Bi-directional control	Bi-directional control
	Cloud Services	Remote programming & Report storage	Remote programming & Report storage
	Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
	Diesel PM	Reset  diesel emissions Light&medium duty vehicles	Reset  diesel emissions Light&medium duty vehicles
	Oscilloscope	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

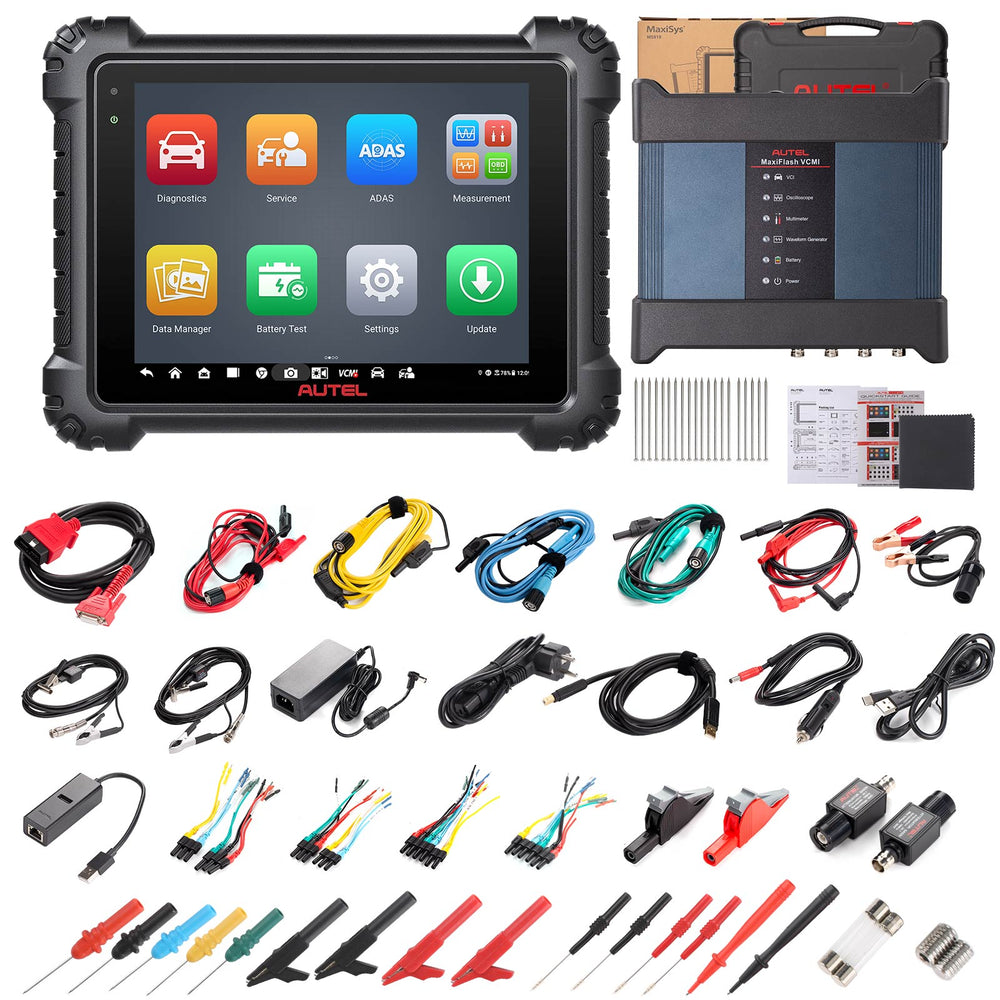

9. Package includes:
1pc x main unit
1pc x MaxiFlash VCMI
1pc x main cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x cigarette Lighter
2pcs x light fuse 6*30mm
1pc x clipper cable
4pcs x scope test lead
2pcs x multimeter test lead
2pcs x secondary ignition pickup
2pcs x attenuator 20:1
4*6pcs x breakout lead
1*2pcs x multimeter probe
2*2pcs x flexible back-pinning probe
1*5pcs x back-pinning probe red/green/blue/yellow/black
2pcs x back-pinning Probe Screw
20pcs x back-pinning probe replacement needle
2*2pcs x small crocodile clip
1*2pcs x large dolphin clip
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
1pc x tool box
1pc x carrying case
