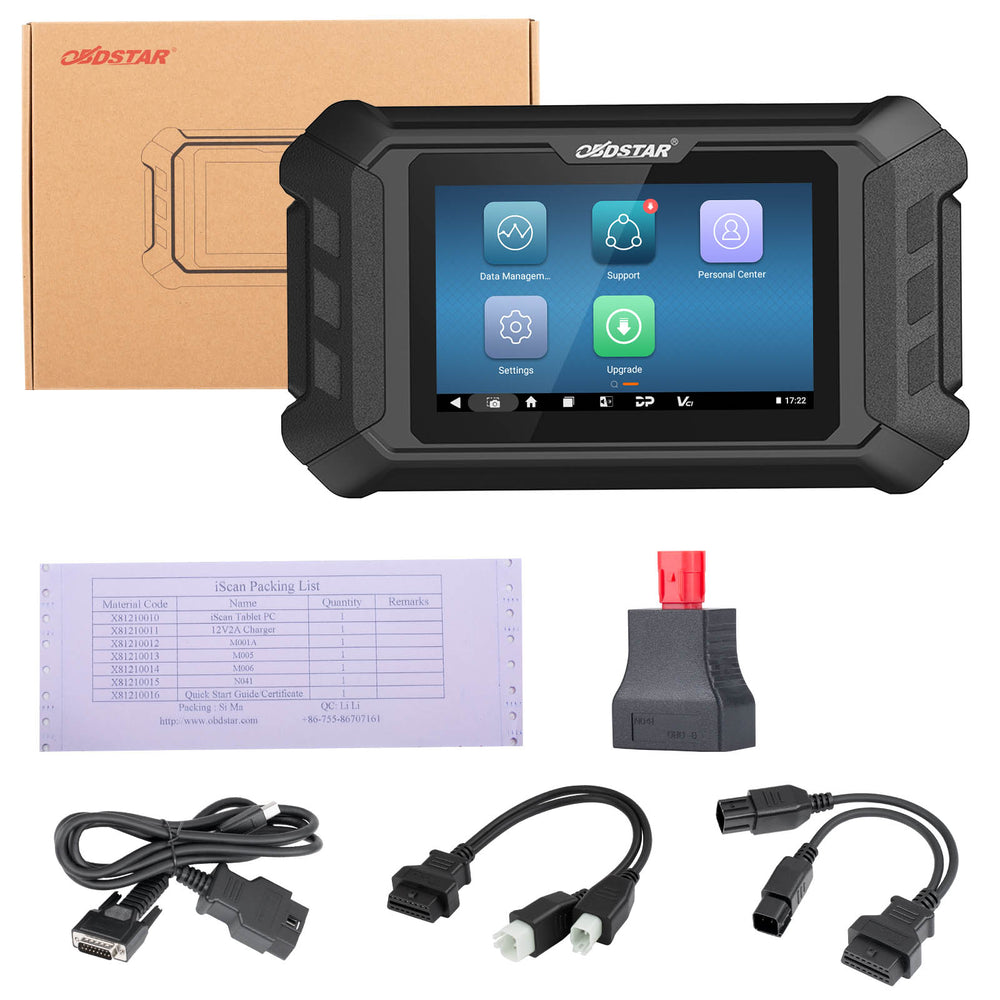

OBDSTAR iScan Kawasaki Intelligent Motorcycle Diagnostic Equipment for KAWASAKI

ISCAN KAWASAKI Model List

Applicable Crowd

This professional diagnostic tablet is tailored for professional motorcycle repair shops, exclusive Kawasaki maintenance technicians, motorcycle locksmiths for Kawasaki IMMO anti-theft key programming, and experienced DIY owners of Kawasaki motorcycles.

Product Introduction

ISCAN KAWASAKI is a portable tablet which has super performance and industrial appearance design specialized for KAWASAKI. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, it brings customer professional diagnosis experience. This tool supports full diagnostics for all Kawasaki motorcycle models up to 2025.

Product Highlights

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
4. Supported languages: EN,ES,RU,PT,TH,TR,FA,FR,DE,PL,IT,ID,VN
5. Full diagnostic coverage for all Kawasaki motorcycles manufactured till 2025, continuous model expansion via online updates.

Product Features

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced function

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV diagnostic support series

KAWASAKI Related downloadable files: OBDSTAR KAWASAKI Diagnostic Coverage.xlsx, OBDSTAR KAWASAKI IMMO Coverage.xlsx Latest Update (March 2025): Added diagnostic access for newly released 2025 Kawasaki motorcycle models

Available Diagnostic & Service Tasks

• Basic diagnostic functions: Read & erase diagnostic trouble codes, real-time live data stream display, bi-directional actuator test, record and playback real-time sensor data
• Advanced special calibration: Automatic full vehicle scan, one-click VIN identification, ECU programming & coding, instrument cluster coding, TPMS tire pressure calibration, service maintenance light reset, CO value adjustment, idle speed calibration, air-fuel ratio reset, ABS module parameter setup, factory EOL mode activation, transmission memory reset and ECU fault memory erasure
• Additional practical services: Kawasaki anti-theft IMMO key matching & programming, Wi-Fi one-click online firmware upgrade, one-click remote technical support from official OBDSTAR engineers
• Auxiliary troubleshooting resources: Built-in fault troubleshooting guides, factory repair technical bulletins and diagnostic socket wiring diagrams

Supported Brands, Vehicle Years & Electronic Control Systems

• Supported Brand: Exclusively designed for all Kawasaki two-wheel motorcycles
• Supported Vehicle Years: Covers mainstream Kawasaki motorcycle models from 2008 to 2025. New vehicle models and special functions will be continuously added through monthly online firmware updates. Complete vehicle coverage and IMMO programming lists are available for Excel download.
• Supported Electronic Control Systems: Engine control ECU, IMMO immobilizer anti-theft system, instrument cluster, TPMS tire pressure monitoring system, ABS brake control system, transmission control module and all other factory on-board electronic modules.

Unsupported Scope & Limitations

1. It only supports Kawasaki motorcycles and does not work with other motorcycle brands, ATV, UTV, snowmobiles, marine jet skis, passenger cars or trucks.
2. It is incompatible with aftermarket modified non-standard ECUs and custom racing refitted engine computers.
3. This tool only provides electronic diagnosis, ECU coding and parameter calibration; it cannot complete mechanical disassembly, physical hardware repair or spare parts replacement.
4. It cannot diagnose vintage Kawasaki motorcycles without factory ECU and standard OBD diagnostic ports.

Additional Equipment & Authorization Requirements

No extra paid authorization, software annual subscription or hardware dongle is required. All full-function licenses for Kawasaki diagnosis and IMMO key programming are pre-activated before factory shipment. All necessary diagnostic connecting cables are fully included in the package, so no extra adapters need to be purchased separately. A Wi-Fi internet connection is only required for online firmware updates and remote technical support sessions.

Software Version & Hardware Operating System Specifications

• Built-in Operating System: Android 5.1.1
• Main Processor: RK3128 Quad-Core Processor
• Display Screen: 5.0-inch capacitive touch screen
• Diagnostic Application Software: Exclusive customized professional diagnostic program for Kawasaki motorcycles, with monthly firmware updates to expand vehicle coverage and add new special service functions.

Update Charging Standard & Free Update Valid Period

• Free Update Term: Every unit comes with 1 full year of free official online firmware updates after purchase.
• Renewal Fee After Expiry: The annual renewal charge for extended update service is 80 US dollars. Renewal unlocks newly added motorcycle models and newly launched special diagnostic functions.
• Permanent Retained Functions After Expiry: Basic diagnostic functions such as code reading, code erasing and live data stream checking can be used permanently without renewal.

Version Type: Global or Regional Lock

This device is a fully global universal version without any regional lock, country restriction or cut-off of functional features. It supports 13 global multi-languages to meet the diagnostic demands of technicians and users from all regions worldwide.

Official Warranty Period

The whole machine enjoys a 1-year official limited warranty starting from the purchase date. Free repair or replacement service is available for non-artificial damage. Damage caused by manual dropping, unauthorized disassembly, cable modification, water ingress and other man-made failures is not covered under warranty.

FAQ

Q1: Can this device read and clear fault codes?
A: Yes, this is a core function. It supports reading and clearing fault codes from all Kawasaki electronic control systems.

Q2: Do I need to register or activate the device before first use?
A: The device is typically ready to use upon power-on. For specific activation procedures, please refer to the included quick-start guide or consult your seller.

Q3: How do I get software updates?
A: Connect the tablet to the internet via built-in Wi-Fi, then tap the "Online Update" button on the main interface. The system will automatically check and install the latest version.

Q4: What if the diagnostic connector doesn't fit my model?
A: The package includes N041, M005, and M006 adapter cables, which cover the vast majority of Kawasaki diagnostic connectors. For very rare special interfaces, additional adapters may be needed.

Q5: Does the device need an external power source to operate?
A: The device has a built-in battery and can be used for settings and data viewing without connecting to the vehicle. However, for diagnostics and programming, it is strongly recommended to connect to the vehicle battery or charger to maintain stable voltage.
