Overview
1. The Xtruck Y006 is designed for:
Professional heavy-duty truck repair shops, fleet maintenance technicians, diesel SCR/urea system specialists, and mechanics who mainly service EURO 6 diesel trucks, commercial vans and heavy machinery with NOx, urea, exhaust and particle sensor fault troubleshooting demands. It is the upgraded replacement model of Xtruck Y005.
2. Supported Key Functions & Features
Xtruck Y006 is a professional CAN module detection tool designed for heavy-duty vehicles. It helps technicians quickly identify CAN network nodes and diagnose EURO 6 emission-related components.
Main Functions
- CAN bus node automatic search
- CAN node accurate search
- Lost CAN node detection
- CAN communication analysis
- EURO 6 emission component testing
Advanced EURO 6 Detection Functions
1. EURO 6 Integrated Exhaust Temperature Module Detection
- Test EURO 6 integrated exhaust temperature modules
- Help identify temperature sensor/module problems
2. EURO 6 Urea Quality & Liquid Level Sensor Detection
- Test urea quality sensor
- Test urea liquid level sensor
- Help diagnose SCR system related issues
3. EURO 6 PM Particle Sensor Detection
- Test EURO 6 PM particle sensors
- Help identify particle sensor faults
NOx Sensor Detection
- Detect nitrogen and oxygen sensors
- No need to remove the sensor
- Quickly judge whether the NOx sensor is working properly\
3. What Vehicles Does It Support?
Xtruck Y006 is designed for EURO 6 commercial vehicles and CAN bus systems.
Supported Vehicle Types
- Heavy-duty trucks
- Commercial vehicles
- Diesel vehicles
- EURO 6 vehicles equipped with CAN systems
Supported Communication Protocols
- CAN
- CAN J1939
- Other CAN-based protocols
Supported Systems
- CAN network modules
- EURO 6 exhaust systems
- SCR systems
- NOx sensor systems
- Urea injection systems
- PM particle sensor systems
Vehicle compatibility depends on vehicle communication protocol, CAN system configuration and emission standard.
- Only applicable to EURO 6 diesel heavy trucks/commercial vans; not compatible with gasoline passenger cars, motorcycles, construction machinery without J1939 protocol, marine vessels
- Cannot diagnose light vehicle OBD-II passenger car engine systems; does not support 500k baud rate J1939 CAN bus gateway node search
- Only realizes sensor and CAN bus signal detection; lacks ECU fault code reading, programming, coding and bidirectional actuator test functions
- Cannot test pre-EURO 4/EURO 5 vehicles without matched EURO 6 aftertreatment sensors
- Does not support aftermarket modified non-OEM SCR sensor modules
- 12V sensor testing only works for equipment with J1939 protocol; other 12V non-J1939 sensors are unsupported
- All built-in EURO 6 sensor detection functions are factory-unlocked, no extra activation code, serial number or annual authorization fees required
- Full set of matched special sensor cables and CAN jumper wires are included in the standard package, no separate adapters needed for mainstream EURO 6 sensors
- External 12V/24V vehicle battery power supply via alligator clip cable is required for sensor testing; built-in recharge battery is not equipped on the main unit
- Windows PC with USB port is required for firmware upgrade operation (USB cable included)
- Supported Protocols: SAE J1939 heavy-duty CAN bus
- Supported Sensor Voltage: 12V (J1939 only), all 24V heavy-duty sensors
- Operation Method: On-board OBD CAN scan / Offline sensor bench test via dedicated cables

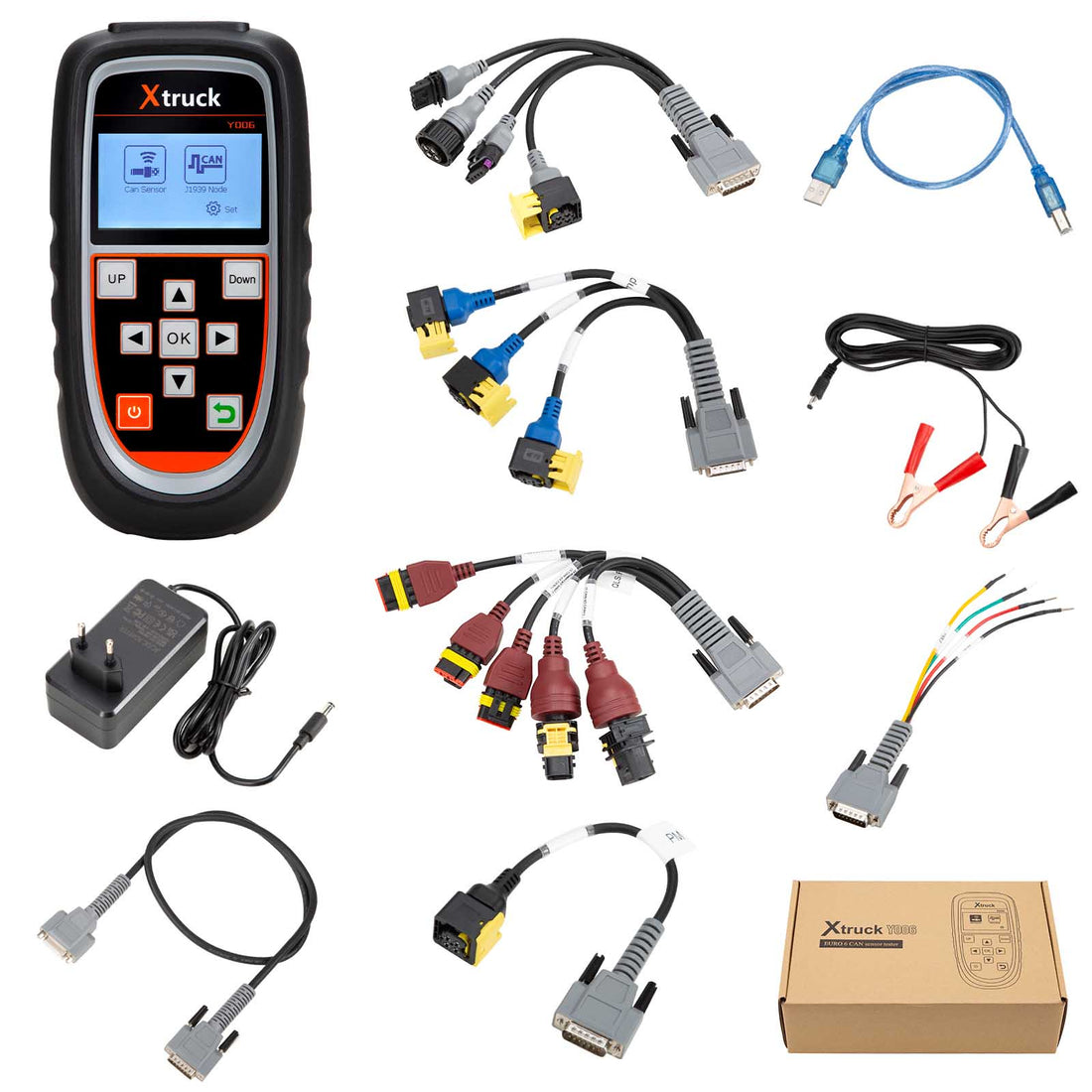

- Matching Accessories: NOx cable, urea sensor cable, exhaust temp cable, PM sensor cable, CAN search jumper, battery clip power harness, USB upgrade cable, main OBD cable, power adapter cable
- Gross Package Weight: 2.0KG
- Supported Languages: Multiple global operation languages
- Free official firmware upgrades via USB connection to Windows PC after purchase; no initial free update time limit
- No mandatory annual update subscription fee; all existing detection functions can be permanently used without renewal
- New EURO 6 sensor model data and protocol optimizations are released irregularly by the official
- Power cannot be disconnected during firmware flashing to avoid main unit damage
