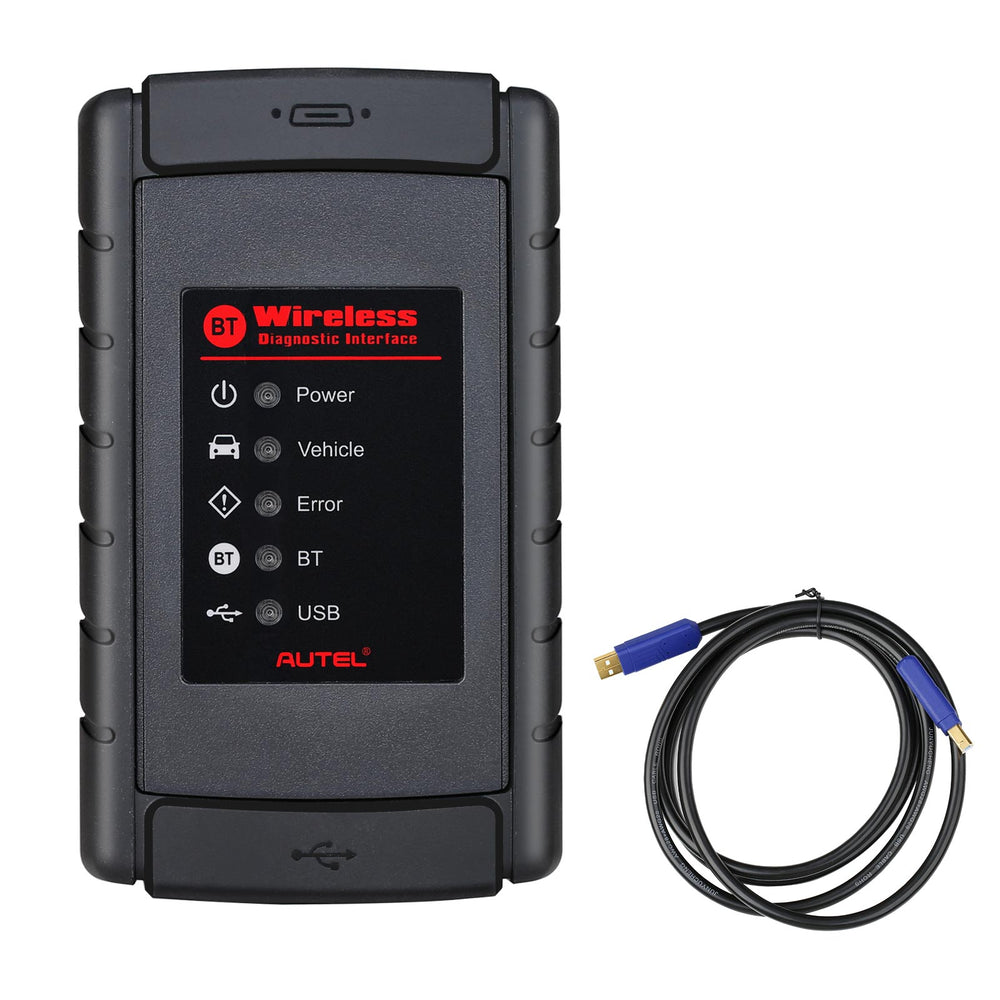

Autel VCI Bluetooth Adapter Wireless Diagnostic Interface Bluetooth Connection VCI For MS908S/ MS908/ MK908/ MS905/ MaxiSys Mini

1. The Autel VCI Bluetooth Wireless Diagnostic Interface is Designed for:

• Repair shop technicians whose original Autel VCI communication adapter is lost, damaged or faulty and need replacement spare‑part
• Workshops using Autel MaxiSys series diagnostic tablets, requiring stable wireless vehicle‑tablet communication
• Mobile repair technicians who want wireless freedom to move around vehicle during diagnosis
• Service personnel needing USB wired connection between PC and vehicle for Autel diagnostic software

2. Supported Key Functions & Features

Wireless Bluetooth Communication

The VCI adapter supports Bluetooth wireless communication, allowing technicians to move freely around the vehicle during diagnostic operations.

USB Wired Communication

The adapter also supports USB 2.0 full speed communication for wired connection with compatible devices.

Comprehensive Vehicle Communication

When used with a compatible Autel MaxiSys diagnostic scanner, the VCI provides communication with vehicle control modules for diagnostic operations.

ECU Diagnostics

Supports vehicle diagnostic communication for reading and clearing error memory, displaying system parameters and checking ECU status.

Activation, Adjustment & Configuration

When supported by the connected Autel diagnostic scanner and vehicle, the VCI can be used for activation, adjustment and configuration functions.

Service Reset Functions

Supports communication required for functions such as service light reset and airbag system related operations when supported by the connected diagnostic tool.

ECU, Key & Remote Control Functions

Supports communication for ECU configuration, key and remote control related functions when these functions are available on the connected Autel diagnostic scanner and vehicle.

Online Update

The VCI adapter supports online updates.

3. What Vehicles Does It Support?

Compatible Autel Diagnostic Scanners

The VCI adapter is designed to work with the following Autel scanners:

• MaxiSys Mini

• MS905

• MaxiSys Pro

• MS908

• MS908S

• MK908

Vehicle Coverage

The VCI adapter itself does not provide independent vehicle coverage. Vehicle makes, models, years and supported diagnostic functions depend on the compatible Autel diagnostic scanner being used.

It can be used for multi-brand vehicle diagnostics when connected to a compatible Autel MaxiSys diagnostic device.

4. Please Note the Following Limitations

1. It is only a spare‑part communication adapter; cannot work standalone, must be matched with designated Autel MaxiSys series host tablet
2. Compatible host list: MaxiSys Mini, MS905, MaxiSys Pro, MS908, MS908S, MK908. Not compatible with other Autel series (MK series, IM series, ML series etc.)
3. Does not expand diagnostic functions; all functions inherit the capability of your connected Autel tablet
4. Cannot work with third‑party non‑Autel diagnostic software or tablets
5. No built‑in battery; power supplied entirely from vehicle OBD‑II port
6. Not for heavy‑duty truck, construction machinery special J1939 diagnosis unless supported by your Autel host

5. Hardware Accessories & Licensing Requirements

Required Equipment

A compatible Autel MaxiSys diagnostic scanner is required to use this VCI adapter.

Compatible models listed in the product information include MaxiSys Mini, MS905, MaxiSys Pro, MS908, MS908S and MK908.

Connection Methods

The VCI supports:

• Bluetooth V2.1 + EDR wireless communication

• USB 2.0 wired communication

No standalone diagnostic software is included with this VCI adapter.

6. Autel VCI Bluetooth Wireless Diagnostic Interface Specification:

• Communication: Bluetooth V2.1 + EDR / USB 2.0 Full‑Speed
• Wireless Frequency: 2.4 GHz
• Input Voltage: 12 VDC
• Supply Current: 200 mA @12 VDC
• Operating Temperature: 0°C ~ 50°C (ambient)
• Storage Temperature: ‑20°C ~ 70°C (ambient)
• Dimensions (L × W × H): 147.5 mm (5.80”) × 85.5 mm (3.37”) × 29.0 mm (1.14”)
• Indicators: Power LED, Vehicle LED, Error LED, BT LED, USB LED

7. Software Update

• VCI firmware is updated online through the paired compatible Autel MaxiSys tablet via Bluetooth or USB cable
• No independent update subscription for VCI hardware; update eligibility follows the update service status of your Autel host tablet
• If your host tablet’s software update service expires, you can no longer upgrade VCI firmware, but existing communication function still works.

8. Global Version

100% global‑universal communication hardware, no regional hardware lock. Works for worldwide vehicles when paired with corresponding global‑version Autel MaxiSys host tablet.

9. Warranty

• Standard manufacturer hardware warranty: 12 months counted from original purchase date
• Warranty coverage: Factory defects of mainboard, Bluetooth module, USB port, LED indicators under normal workshop usage
• Excluded from warranty: Damage caused by reverse power input, liquid ingress, heavy impact, violent plug‑in, unauthorized disassembly
• 30‑day return service (buyer bears return‑shipping costs for non‑quality‑related issues); lifetime online text‑based technical support

10. Package List

1pc x Autel VCI Bluetooth Adapter
