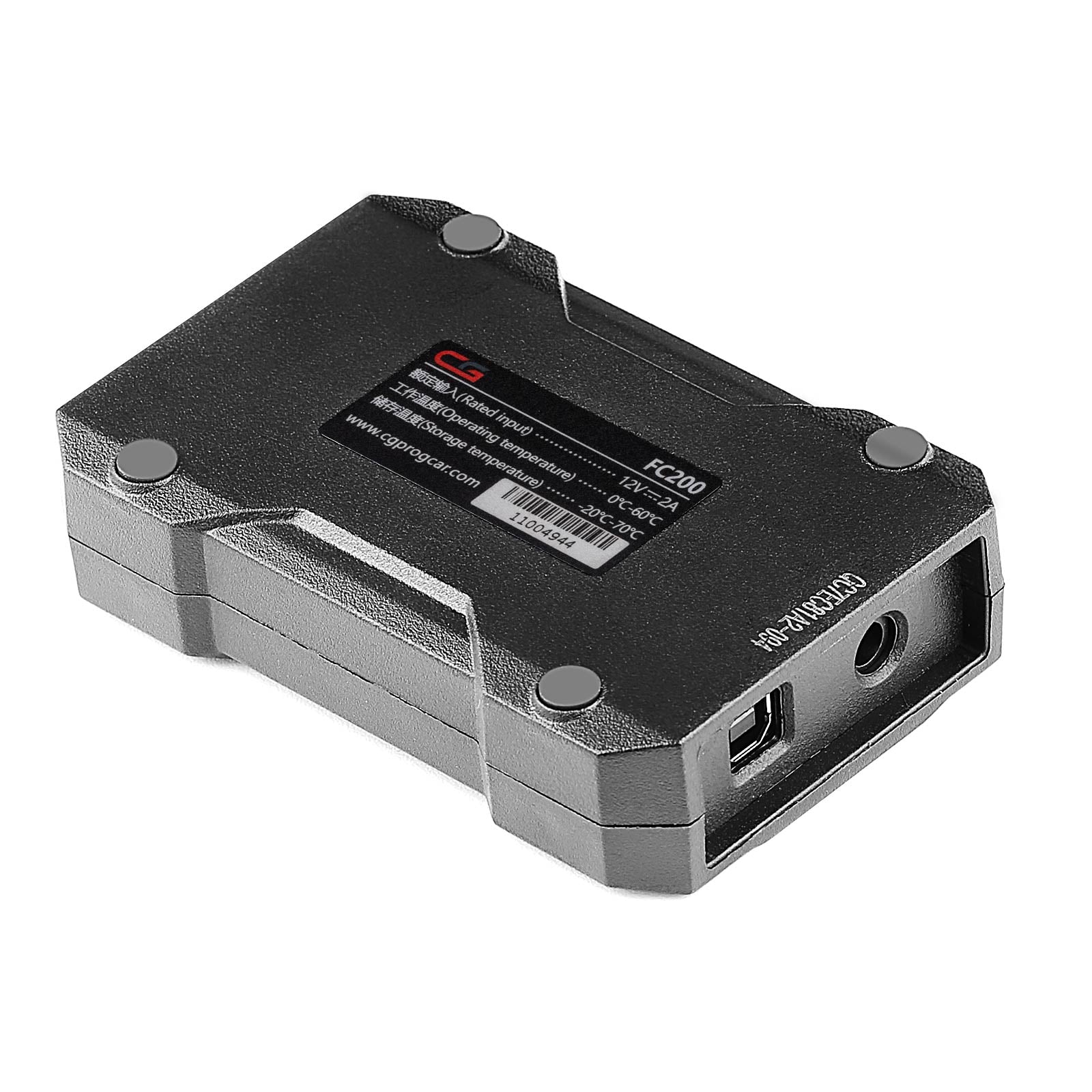

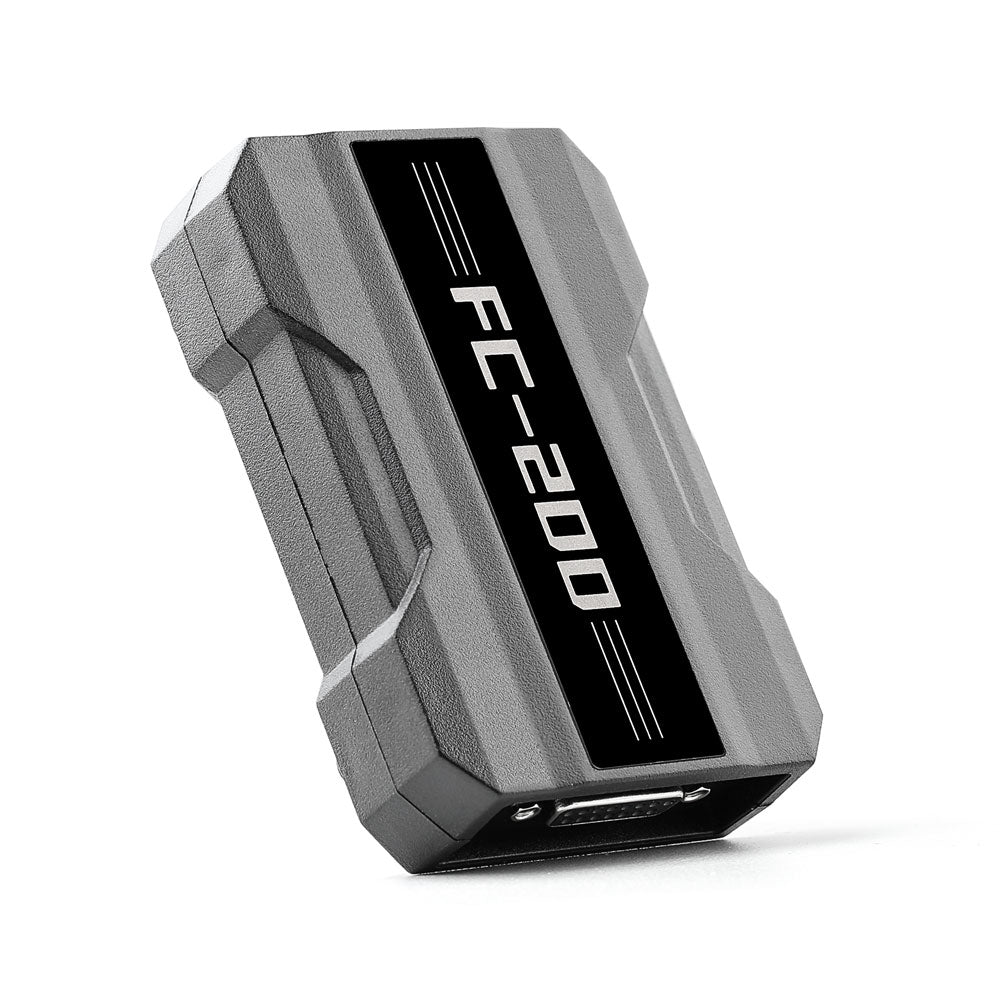

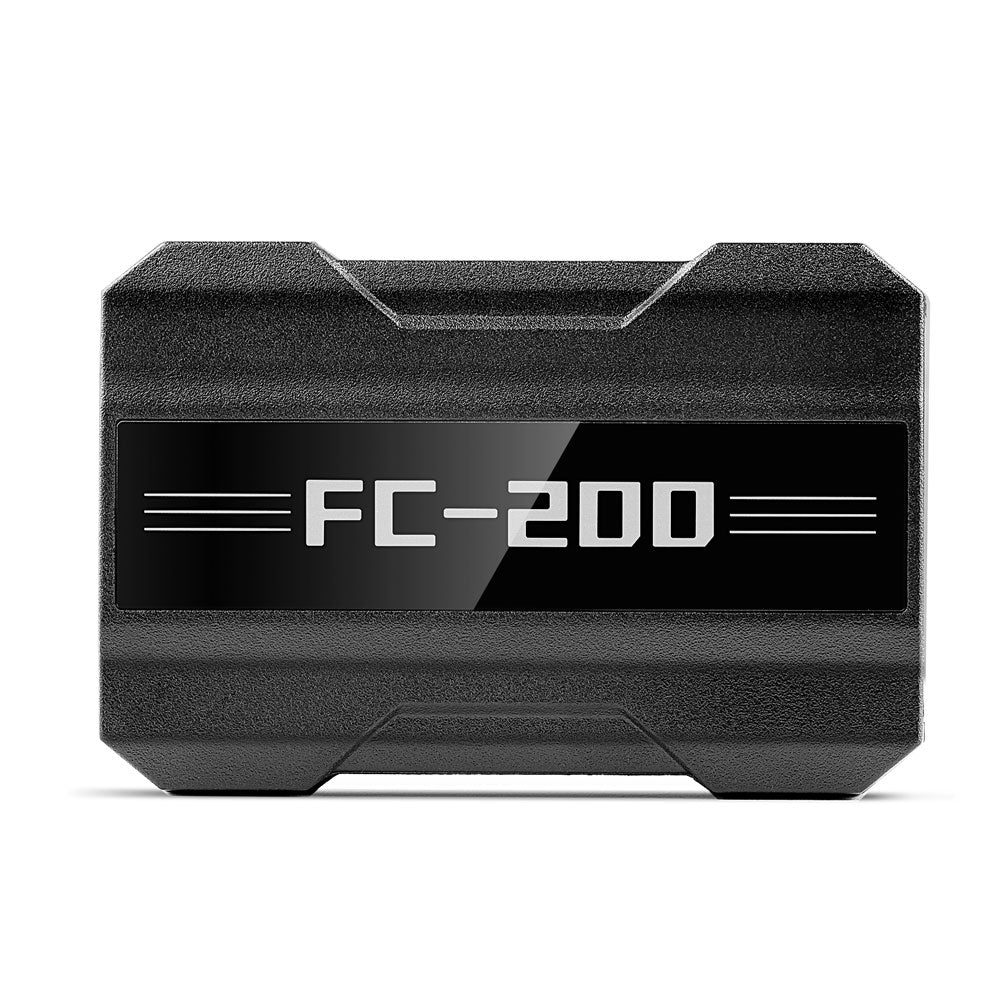

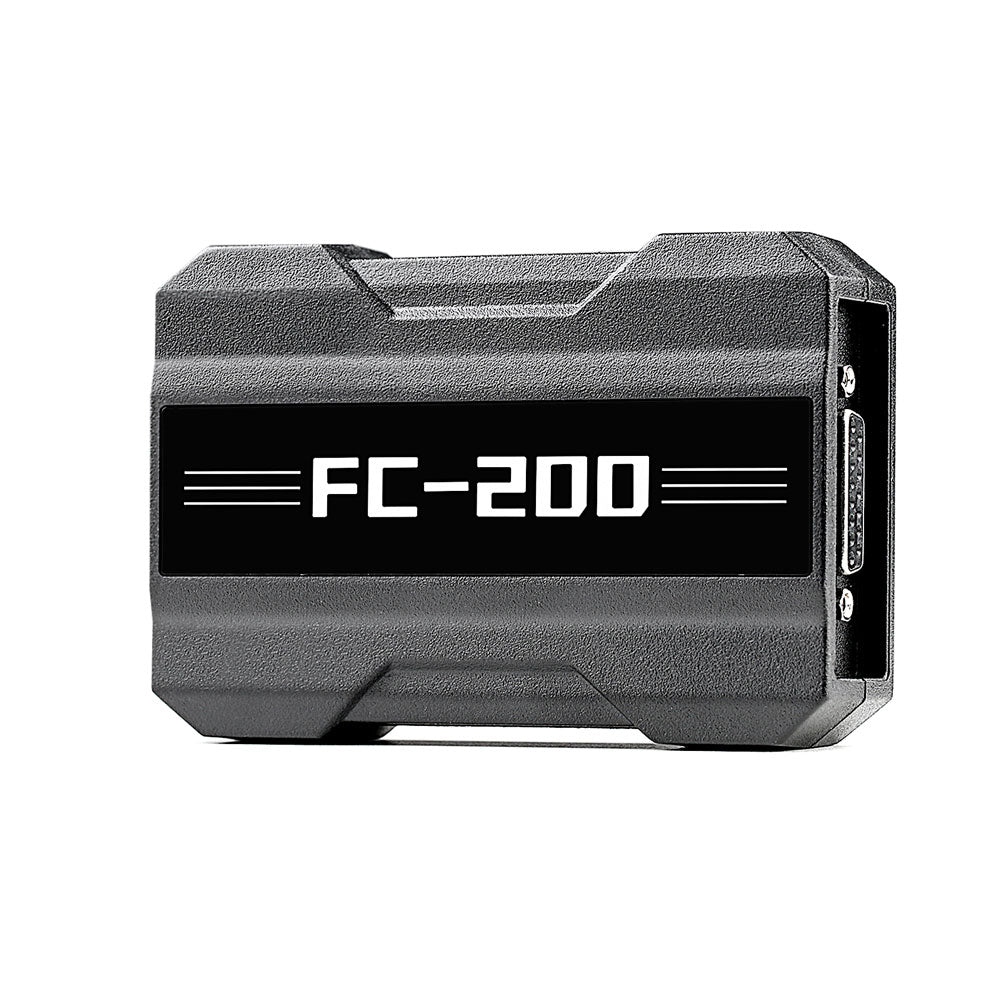

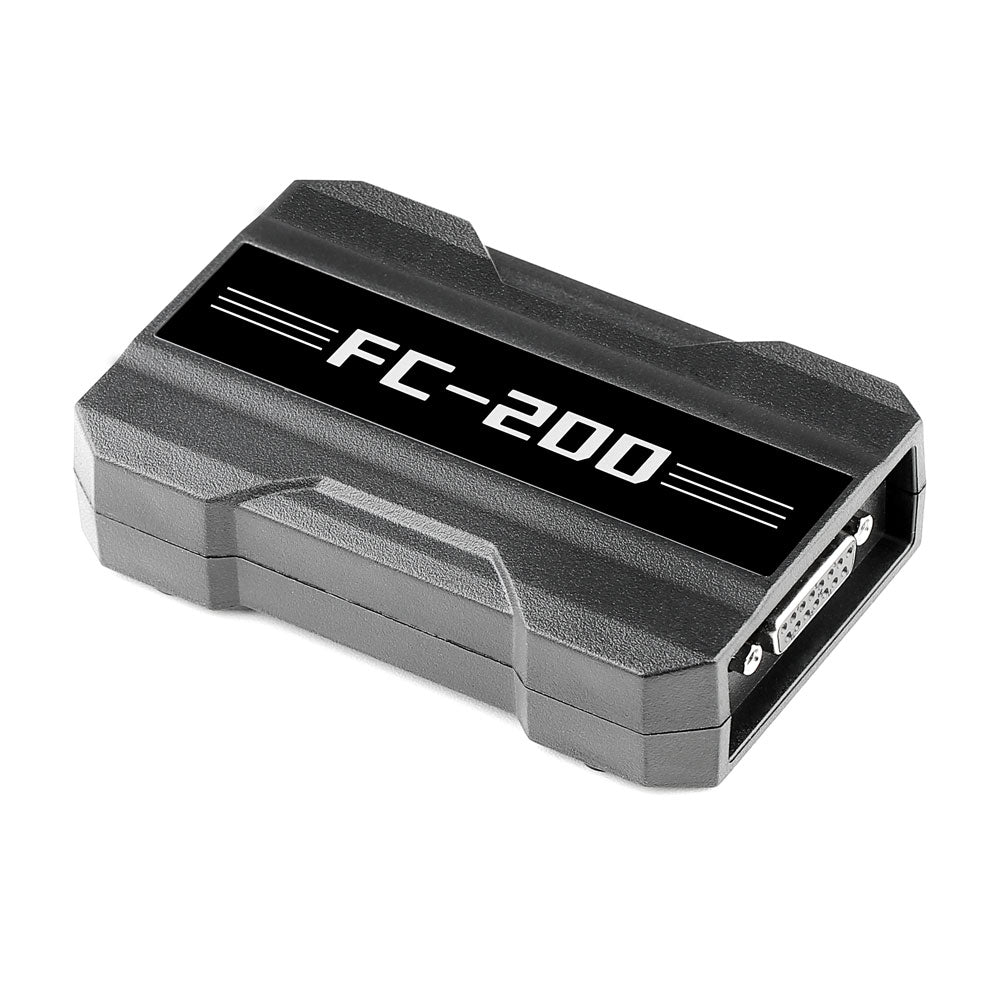

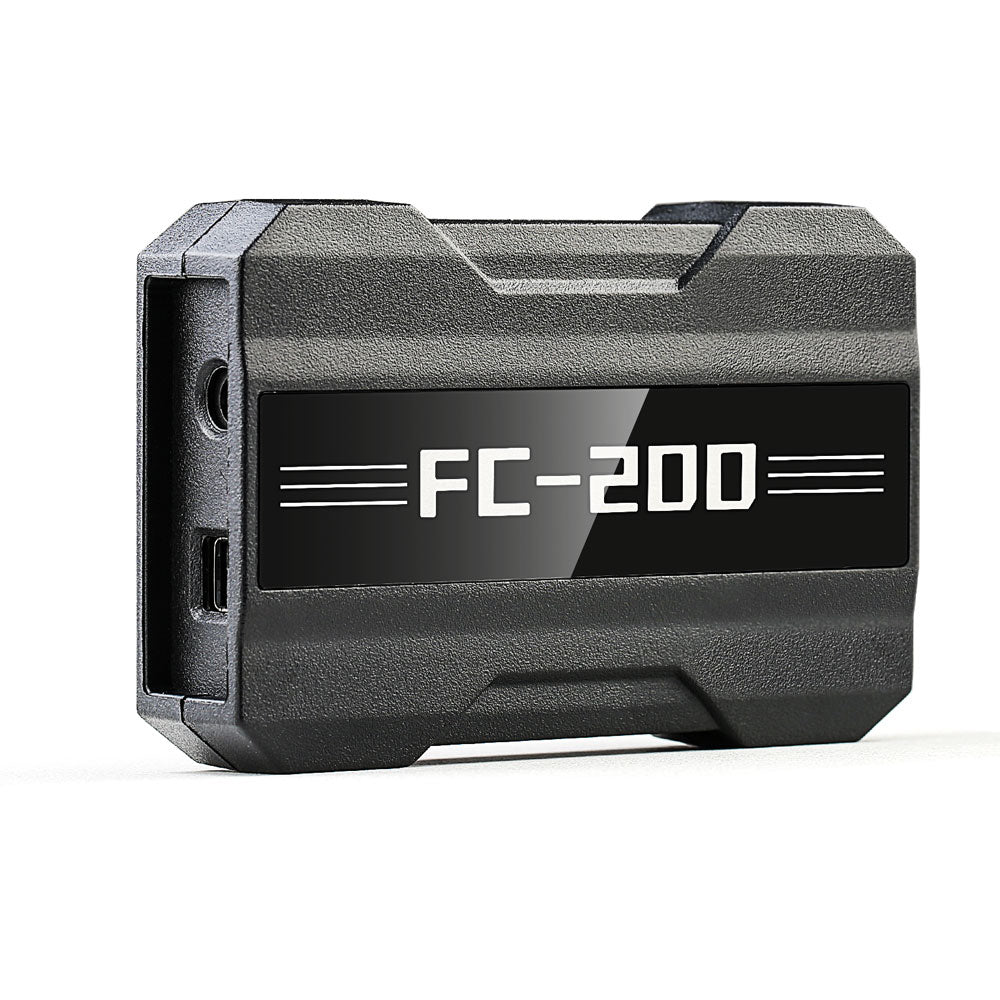

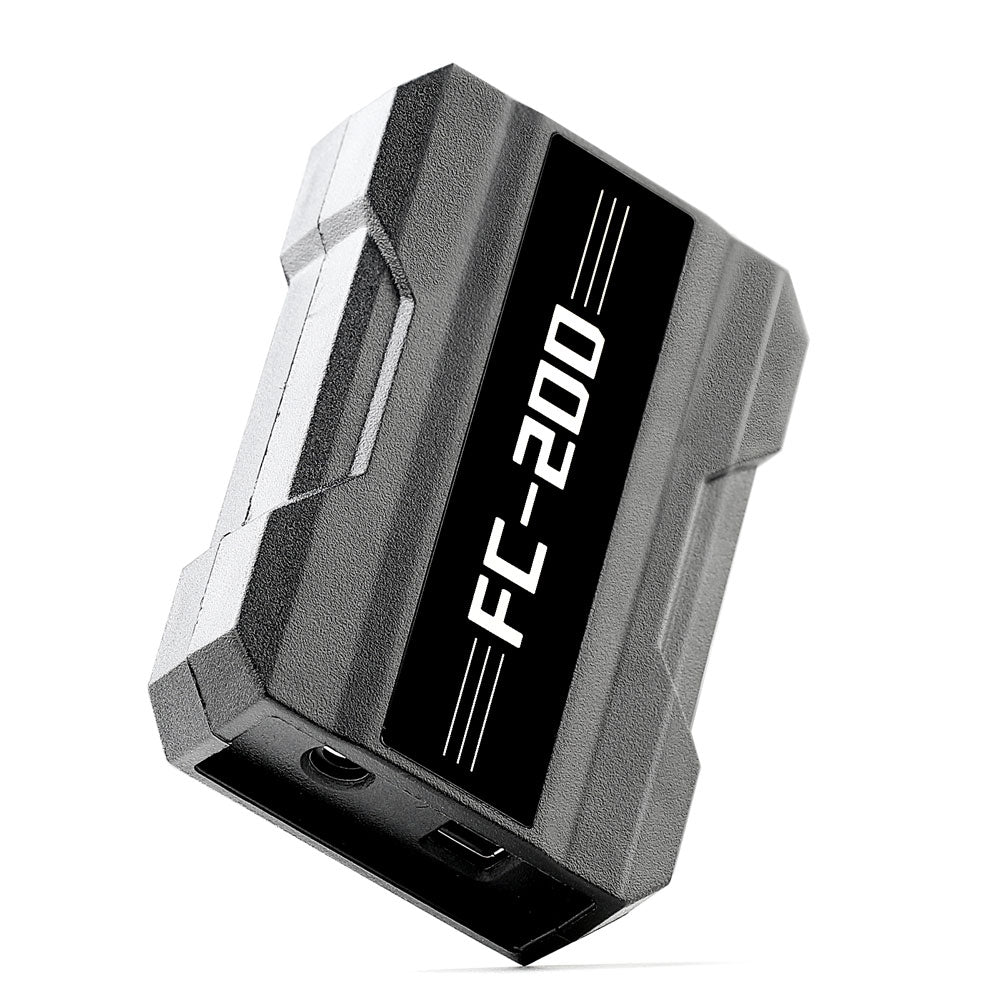

CG FC200 ECU Programmer Full Version Support 4200 ECUs and 3 Operating Modes Get Free Denso ECU and CHINA DELPHI MTxx License



1. Original Parts Protection

FC200 supports OBD and platform mode for more than 98% of ECU/EGS. There is no need to open shell and no punch. FC200 protects original parts of the vehicle.



2. Smart Identification

The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.

If the ECU module is not damaged and can be communicated, and if the wiring is correct and identification is successful, FC200 can read chip and firmware information.



3. Module Clone

FC200 supports ECU/EGS reading&writing and modules clone, synchronization matching, without online programming, flash data by area, automatic check, chips and modules protection.



4. ISN Reading and Writing

FC200 supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.



5. VIN Writing

FC200 solves the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.



6. Data Processing

FC200 supports data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs.

Turn off anti-theft system for Bosch MED/EDC17 series ECU

TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. DTC Shielding
The engine DTC code can be shielded, such as the shielding of the 28A0/101F01 fault code of the BMW N55 engine, read the engine data via FC200, then load the data into the hexadecimal data modification tool, modify and save the bytes of the fault code comparison, and then use FC200 to load the modified data and write it back to ECU.

Product Features:



1. Auto ECU Programmer for repair necessary--Support BMW ECU Data reading, writing and clone.

Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.

Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.

Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.



2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD.

Quickly solve the problem for data collection of bmw all key lost.

With more stable and efficient irremovable functions.

If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.



3. Work together with CGDI BMW, VVDI2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc to program keys, save your money

(The cost of similar equipment is very expensive).



4. With stable and effective functions by professional quality test. It is easy to operate and quick to start.



5. Add Mercedes-Benz 271 Audi Volkswagen 06J and other ecu types (Some are paid service).

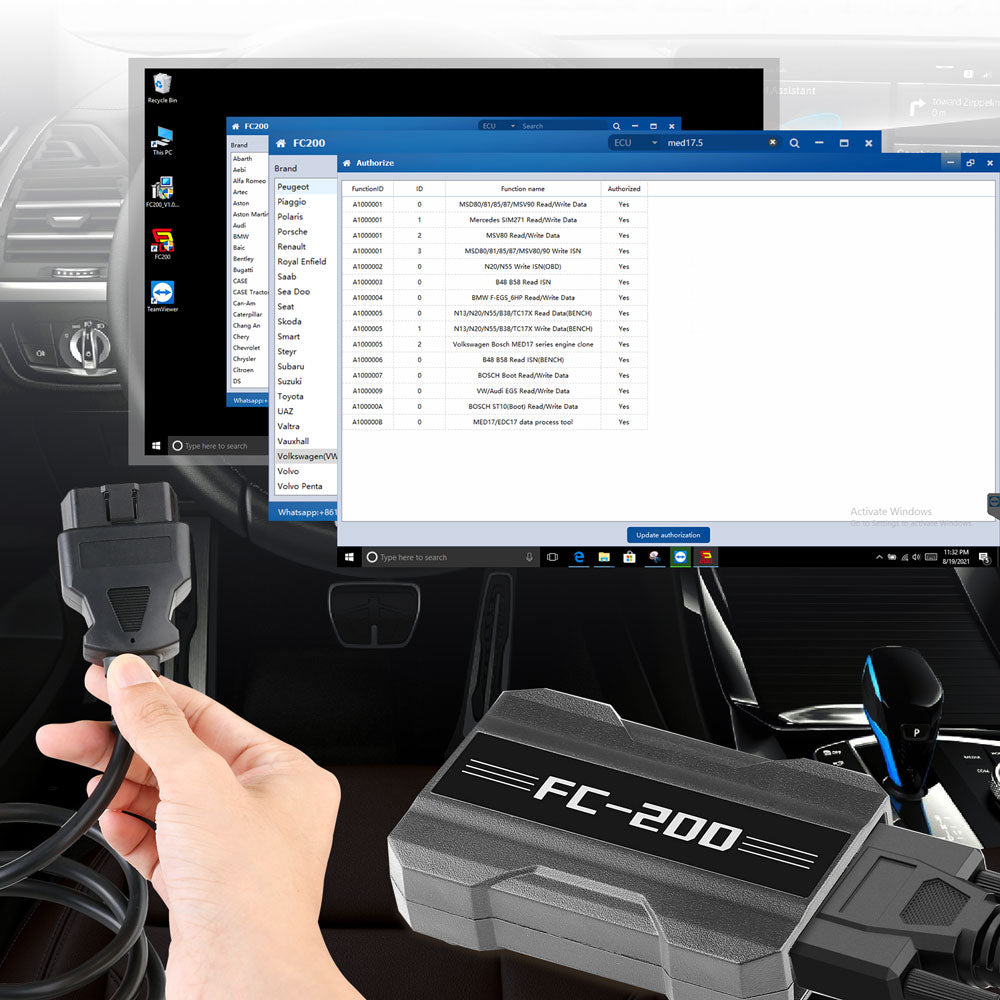

6. Full Version with All License Activated. Free Update Online for One Year. Annual fee needs to be checked with us after the first year. If you don't pay the annual fee, you can still use it, but some bosch ecu does not have the verification function (the function that needs to be connected to the server cannot be used)



7. Multi-Language: English, French, Spanish, Polish, Traditional Chinese and Simplified Chinese

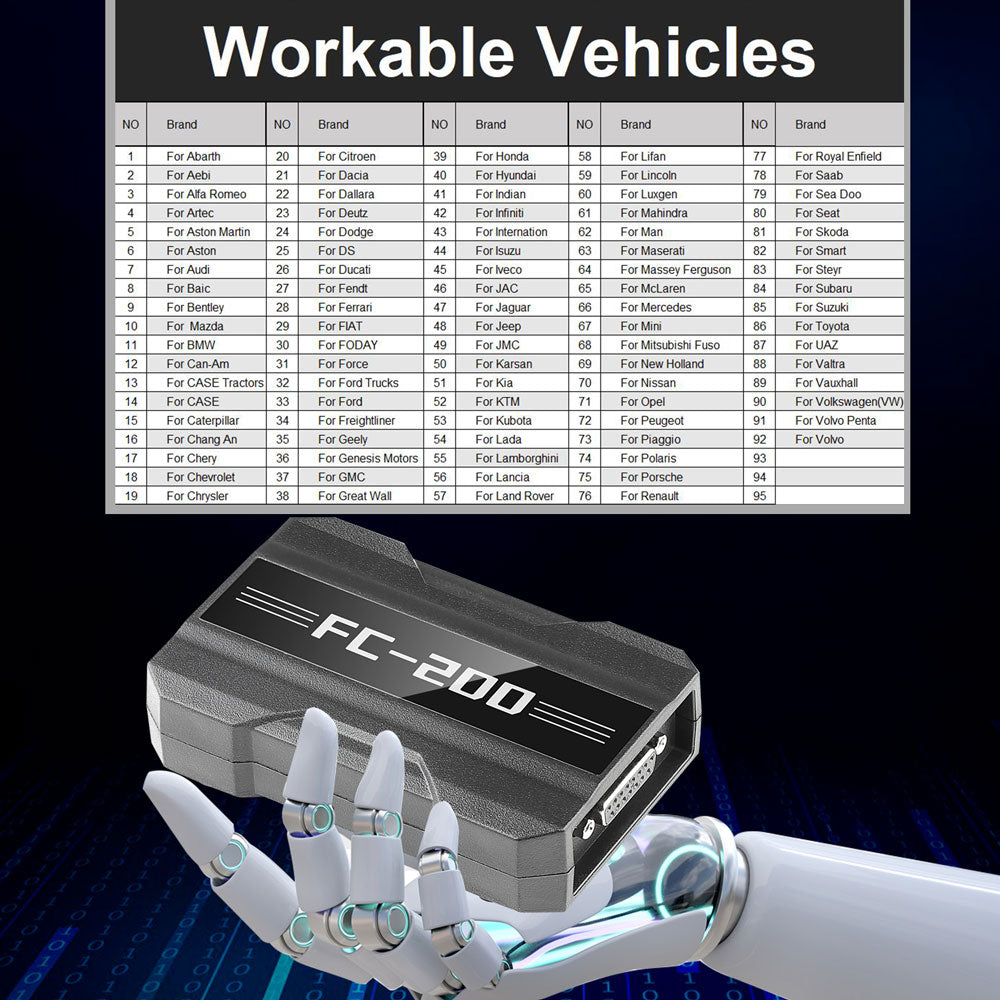

8. With new update, FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, kessy, Dimsport etc.



9. Bosch ECU serach : Free to find out what ECU type  (except bosch made in China)



10. With CAN-bus ,and no disassembly (platform mode), and boot mode

Please Note:
FC200 Software Download Link – Please download here upon receiving your package.
A User Manual is also available for your reference.

CG FC200 Latest Updae Information:
Version 1.3.4.3 (2026‑2‑12)
New Features:

• BMW: MSD85.1

• Hyundai: ME17.9.8
• Hyundai / Jaguar: MED17.9.8
• Hyundai / Kia:
• ME17.9.21.1 / ME17.9.11.1 / MEDG17.9.8 / MEG17.9.12 / MEG17.9.13 /
• MEG17.9.2 / MEG17.9.21
• Hyundai / Kia / Dodge: ME17.9.11
• Hyundai / Kia / Ducati: ME17.9.21

• Optimized Flash write for Toyota 76F00xx modules
• Added password read during BMW SID209 mode recognition
• Optimized Not Ready recovery for Audi SIMOS8.5x
• Optimized Not Ready recovery for Ford
• MED17.0 / MED17.0.1 / MED17.0.7 / MEDG17.0
• Optimized Not Ready recovery for Suzuki
• ME17.9.61 / ME17.9.64 / ME17.9.6 / ME17.9.51 /
• ME17.9.5 / MED17.9.63
• Optimized Immo Off algorithm for M7.8.8 / ME7.8.8 / M7.9.7 / M7.9.7.1 / ME7.9.71 (ST10F275)

• Fixed read issue on BYD ME17.8.8 (TC1767)
• Fixed read issue on JAC / Chevrolet / Daewoo MT60

Version 1.3.4.2 (2026‑2‑4)
New Features:

• (DAP adapter required)
• Toyota / Lexus:
• DENSO 275036-xxx 76F0039AGD
• DENSO 275036-xxx 76F0038GD
• DENSO 275236-xxx 76F0038GD
• DENSO 275922-xxx 76F0085

• MT62.1U:
• Huanghai / BAIC / BYD / Changan / Chery / Dongfeng / FAW / Foton / Geely / Great Wall / JAC / Jinbei / Jiangling / Lifan / MG / Roewe / SAIC / Suzuki / GAC / Wuling / Zhonghua
• Ford: SID209 (BENCH mode)
• Peugeot / Citroën: ME7.4.5 ST10F276 (BOOT mode)

• Chery: 9GC
• Hyundai / Kia: SIMK43
• Changan Visteon: STC-113, STC-213

• M7.9.7 / M7.9.7.1 / ME7.9.71:
• Buick / BYD / Changan / Chery / Chevrolet / Dongfeng / Geely / Great Wall / Haima / Hyundai / Jinbei / Kia / Lada / Leopaard / Mitsubishi / Polaris / SAIC / GAC

Version 1.3.4.1 (2026‑1‑28)

New Features:

• Acura / Honda:
• KEIHIN 37820-R62-H71 (SH7058)
• KEIHIN 37820-R62-H64 (SH7058)

• Foton / Hafei Minyi / Jinbei: TR40
• Jinbei: TR4C, LEC4A, STC-213

• Foton / Hafei Minyi / Jinbei: TR40 (Platform mode)
• Jinbei: TR4C, LEC4A, STC-213 (Platform mode)
• Acura / Honda: KEIHIN 37820-R62-H71, 37820-R62-H64 (SH7058)
• Dongfeng / BAIC / Great Wall / JAC / JCB / TATA / Mahindra: DCM7.24
• Chrysler / Dodge / Jeep: GPEC2A
• Chrysler / Dodge / Fiat / Jeep: GPEC3
• Jeep: GPEC4
• Fiat / Jeep: GPEC4LM

• Optimized unlock issue for Roewe 550 – F01R00D674 (ME7.8.8).

Version 1.3.4.0 (2026‑1‑22)

New Features:

• Honda: HITACHI EFI SH7055, HITACHI EFI SH7058, HITACHI EFI SH7059, HITACHI EFI SH72531, HITACHI EFI SH72533
• BAIC / Wuling / Jinbei: STC-113, STC-213

• MSD80, MSD81

3. Added VIN modification functions

• Changan / Chery / Dongfeng / Feidie / Foton / JAC / Jinbei / Tangjun: LEC4AF
• Changan / Foton / Jinbei: LEC4AP

4. Added “The three monitors not ready” fix

• Hyundai / Kia: SIMK43
• Chrysler / Dodge / Jeep / Lancia / Volkswagen: GPEC2 (MPC5566)
• Honda / Acura: MED17.9.3
• Chevrolet / Daewoo / JAC: MT60
• Chery: 9GC

5. Added CALID modification functions

• SAIC / Wuling: SCE60, SIM2K-D51, SIM2K-51.4

CG FC200 Version 1.3.2.5 (Released 2025.12.08)

1. New CAN Unlock Support for M7 & ME7.8.8 ECUs

ME7.8.8 Supported Brands:
BYD, BAIC, Buick, Changan, Changhe, Chery, Chevrolet, Dongfeng, Fujian Motor, Foton, FAW, Geely, Great Wall, Hafei, Hawtai, Haima, JAC, Jinbei, Leopaard, Lifan, MG, Mitsubishi, Roewe, SWM, SAIC, Soueast, Suzuki, Trumpchi, Wuling, Xiali, Zotye, Brilliance

M7 Supported Brands:
BYD, BAIC, Buick, Changan, Changhe, Chery, Chevrolet, Dongfeng, Fujian Motor, Foton, FAW, Geely, Great Wall, Hafei, Hawtai, Haima, JAC, Jinbei, Leopaard, Lifan, MG, Mitsubishi, Roewe, SWM, Soueast, Suzuki, Trumpchi, Wuling, Xiali, Zotye, Brilliance

2. New DTC Deactivation (DTC‑Off) Support Added for:

• BMW: MG1CS024

• Ford: EMS2204, EMS2205

• Hyundai / Kia: MD1CS012

• Volkswagen: MED9.5

• Ferrari: MED9.6.1

3. Functionality Improvements & Optimizations:

Enhanced “Not Ready State Repair” algorithms for:
M7, M7.9.7, M7.9.7.1, ME7.8.8, ME7.9.71

Bug Fixes:

• Resolved VIN programming issue for MEV17.2.1

• Fixed Mazda Pxxx SH72543 ECU identification failure

Performance Enhancements:

• Improved “Not Ready State Repair” for ME7.5.10 and SIM2K‑D51

• Optimized DTC‑Off functionality for:

  Land Rover: MED17.8.3x, MED17.9.7, MED17.9.9, MEDC17.9
  Mercedes‑Benz: MED17.7.x, MD1CP001, ME9.7
  BMW: MEVD17.2.x, MG1CS201, MED17.2
  Volkswagen / Audi Group: MG1CS002, MG1CS003, MG1CS011, ME7.1, ME7.5, MED17.1, MED17.1.1, MED17.1.6, MED17.1.21, MED17.1.27, MED17.5, MED17.5.2, MED17.5.5, MED17.5.21, MED17.5.25, MED9.1
  Ford: MD1CS005
  Fiat: ME17.3.0
  Peugeot / Citroën: MED17.4.x

Version 1.3.2.4 (2025‑12‑03)

New Features:

• Added CALID (Calibration Identification) repair support for:

  • Hyundai / Kia: M7.9.8

  • Hyundai / Kia / Dodge: ME17.9.1

  • BAIC / Bestune / Buick / BYD / Changan / Changhe / Chevrolet / Chery / Dongfeng: ME17.8.8 TC1728 (BOOT), ME17.8.8 TC1767 (BOOT)

• Added support for new ECU types:

  • Mahindra / Leyland: DCM2.5

  • Tata: DCM2.5P

  • Isuzu: DCM7.1AP

• Added VIN repair support for:

  • Hyundai: ME17.9.8

Improvements:

• Optimized read/write functions for Tata DCM2.5.

Version 1.3.2.3 (2025‑11‑21)

New ECU Support Added:

• Hyundai/Kia: MG7.9.8 (Boot)

• Tangjun: ME7.8.8 M7

• BMW: MSV80.0 / MSD87.2 / MSD85.0

• Huanghai: ME7.8.8 / M7 / MT62.1

• Isuzu: EDC17C81

• Soueast: MG1UA008 / MG1UA‑UP8

• Zhonghua: ME17.8.8 1728 1767 / ME17 (black)

• SAIC: MG1UA008

New Functions:

• Added BMW Coolant Temperature Setting support for:

  • MG1CS024

  • MG1CS201

Bug Fixes & Optimizations:

• Repaired and optimized data processing for:

  • EDC17CV53

  • EDC17CV54

  • EDC17C63

Version 1.3.2.2 Registered Edition (2025‑11‑17)

New Features:

1. Added new ECU type: Dongfeng DCM7.1AP.

2. Added new BMW coolant temperature settings for:

   • N54 (MSD87 / MSD87.2)

   • MEV17.2.1

3. Added new Immobilizer Off (IMMO‑Off) support for:

   • ME7.4.5

4. Optimized functions:

   • SIM2K‑260 password reading

   • ME7.8.8 and M7 series unlocking procedures.

V1.3.2.1 Registered Version (2025.11.13)

Bug Fixes:

1. Resolved a software crash that occurred during data writing on certain ECUs.

2. Fixed an issue where the "Three Monitor Not Ready" repair function failed to execute on ECUs including FC‑34, LEC4AF, and LEC4AP.

3. Corrected a data writing failure affecting the ME9.7 ECU.

V1.3.2.0 (2025.11.11)

New Features:

1. Added PCR2.1 lock and unlock capabilities.

2. Added support for the following new ECU types:

   • Volkswagen/Audi: SIMOS16.1

   • Mercedes‑Benz: ME9.7

   • Jianghuai (JAC): MT92

   • Foton: MD1CC878

   • Iveco: MD1CS089

   • FAW: EDC16C39, MED17.8.32

   • Zhonghua/Haima: SIM2K‑91

   • Chevrolet: MT60 (TC1766)

   • Great Wall: EDC17C55

   • Jiangling/Jianghuai: EDC17C53

   • Dongfeng/Fuqi: ME17.8.8 (TC1767)

   • Fuqi: ME17.8.8 (TC1728)

   • Feidie: MG1UA‑UP8, MG1UA008

   • BAIC/Changan/Qirui/Dongfeng/FAW/Foton/Geely/Jianghuai/Jinbei/Jiangling/Lifan/MG/Roewe/Suzuki/Zhonghua/Trumpchi: MT20U2

3. Added DTC disable (DTC‑Off) function for:

   • Volkswagen: VAG Delphi DCM 3.7, VAG Bosch EDC17_CP24

   • Fiat: Fiat Marelli MJD6F

   • Jeep: Jeep Motorola NGC4/NGC5

4. Added PCR2.1 immobilizer disable (IMMO‑Off) function.

5. Added ME9.7 "Not Ready State Repair" function.

6. Performance improvements and bug fixes:

   • Optimized read/write function for MG1US008.

   • Enhanced mileage correction function for Volkswagen DQ200 transmission (TC1784).

   • Fixed read/write function in platform mode for CPEGD2.20.3.

   • Streamlined the read/write process for MT62.1.

V1.3.1.0 Registered Version (2025.09.30)

New Features:

1. Added New ECU Support:

   • Ford: ESU‑131, ESU‑411, ESU‑418, ESU‑415

   • Volkswagen Group (VW/Škoda/Porsche/Cupra/Audi): SIMOS18.1, SIMOS18.2, SIMOS18.3, SIMOS18.6, SIMOS18.7

   • Chinese Brands (BAIC/Changan/Chery/Dongfeng/Foton/JAC/Jinbei/Jinlu/KAMA/Khodro/Golden Dragon/Nanjun/SAIC): FC‑34 (0F)

   • SAIC/ROEWE: MG1US008

   • Suzuki: Easy_U2W

   • Jinbei/FOTON: LEC4AP

   • Lynk & Co: MED17

   • Mercedes‑Benz: DSM222 MC9S12XEQ512MAL

2. Added Immobilizer Disable (IMMO‑Off) Support for multiple brands & ECUs, including:

   • BMW: EDC17C41, EDC17C50, EDC17CP45, MEV17.2.x, MEVD17.2.x

   • Volkswagen/Audi: EDC17CP44, EDC17CP54, ME17.5.22, MED17.1.x, MED17.5.x

   • Mercedes‑Benz: EDC17C66, EDC17CP10, EDC17CP46, ME17.7.x, MED17.7.x

   • Land Rover: EDC17CP11, EDC17CP42, EDC17CP55, MED17.0, MED17.8.x, MED17.9.x

   • PSA (Peugeot/Citroën): MED17.4.x

   • Ford: EDC17C10, EDC17C70, EDC17CP05, EDC17CP42, EDC17.2.2

   • Hyundai‑Kia: ME17.9.x, MED17.9.8, MEG17.9.x

   • Maserati: MED17.3.4, MED17.3.5

   • Volvo: MED17.0

   • Honda: EDC17C58, EDC17CP06, EDC17CP16, EDC17CP50, MED17.9.3

   • FIAT: ME17.3.0

   • Chinese Market: EDC17C53, EDC17C63, EDC17C81, ME17.U.6, MED17.3.8, MED17.8.10, MED17.8.2

   • Suzuki: MED17.9.5, MED17.9.61

   • VW/Audi/Cupra/Škoda: ME7.5.20

3. Added Oxygen Sensor Disable (O2‑Off) Function for:

   • Honda: SH7058, SH72543

4. Added “Not Ready State Repair” Function for:

   • Ford: MED17.0, MED17.0.1, MEDG17.0

   • Volkswagen/Audi/Porsche: SIMOS8.5x

   • Hyundai‑Kia: SIM2K_241, SIM2K‑141

   • VW/Audi: SIMOS8.3x

   • Volkswagen: MG1CA811

   • Chinese Brands: FC‑34, LEC4AF, LEC4AP, Easy_U1 2W

Bug Fixes & Optimizations:

• Optimized password reading for SIM2K‑250, SIM2K‑260.

• Fixed VIN modification failures for ME7.8.8, M7 series, M7.9.7, M7.9.7.1, ME7.9.71, SIM2K‑51.4, SIM2K‑D51, SEC60.

• Fixed readiness‑state repair for Audi SIMOS8.6.

• Optimized readiness‑state repair for SIM2K_240, SIM2K_240R.

V1.3.0.0 Registered Version (2025‑08‑29)

New Additions:

1. New ECU Models Supported:

   • Volkswagen: Marelli 7GV

   • SAIC / Wuling (Platform Mode): SIM2K‑D51, SIM2K‑51.4, SCE60

   • Shuanglong: SIM2K_C201_SCU

   • Mercedes‑Benz: DSM MC9S12XEQ512MAL

   • PSA / Ford / Land Rover / Mazda: SID208

   • Renault / Dacia: EMS3120

   • Wuling: SIM2K‑34, Easy_U1 2W

   • JAC / Wuling: FC‑34

   • Jinbei (BOOT Mode): SIM2K‑91

   • KEIHIN: KEIHIN 37820‑Rxx‑xxx MPC5566

2. New “Not Ready State Repair” Functions Added for:

   • Hyundai‑Kia: SIM2K‑140, EDC17C57

   • Volkswagen / Audi: MED17.1.27, MED17.1.61, MED17.1.62, SIMOS8.6, MED9.1

   • Mercedes‑Benz: SIM271DE20

   • Chinese Domestic: MD1CE108, EDC17CV54, EDC17CV53, EDC17CV44, EDC17CV43, MT22.1, MT22.1.1, MG1US008

   • Wuling: Easy_U3.6, Easy_U2W, Easy_U2.5, Easy_U1 2W

   • Geely: Easy_U2

   • Ford: SID209

   • Dongfeng / Jianghuai / Isuzu / Deutz: MD1CC878

   • Suzuki: ME17.9.61, ME17.9.64, ME17.9.6, ME17.9.51, ME17.9.5, MED17.9.63

   • BAIC / BESTUNE / BYD / Changan / Cirelli / Dongfeng / FAW / Geely / Great Wall / Jianghuai / Proton / Trumpchi / Wuling: MG1UA‑UP8

   • Changan: MED17.9.63

3. New DTC Disable (DTC‑Off) Support for:

   • Volkswagen: EDC17CP20, EDC17CP44, ME7.1, ME7.1.1

   • Ford: SID208, SID209

   • Mercedes‑Benz: EDC17CP46, MED9.7, ME9.7

   • PSA: SID807, SID807EVO, EDC17CP42

   • Renault: SID307, SID310

   • Volvo: SID807, SID807EVO

   • Porsche: SDI10.x

4. Added VIN Modification Function for:

   • Ford: EDC17CP65

5. New Verification Functions for:

   • Dongfeng / Jianghuai / Isuzu / Deutz: MD1CC878

   • Dongfeng: FC‑34

   • Dongfeng / BAIC / Great Wall / Geely / Cirelle / Proton: MG1UA008

6. Function Optimizations:

   • Readiness‑State Repair enhanced for: ME7.4.4, ME7.5, TR40, LEC4A, STC‑213

   • DTC‑Off performance improved for: Ford Delphi DCM 6.1, Hyundai‑Kia Bosch EDC16C39, Bosch EDC17C49, VAG Bosch EDC17_CP14, Mercedes‑Benz Bosch EDC17CP46, BMW Bosch MED17.2, BMW Continental MSD808185, Porsche Continental SDI10.x, VAG Continental SIMOS12, BMW Bosch MG1CS003, Mercedes‑Benz Bosch EDC17CP46

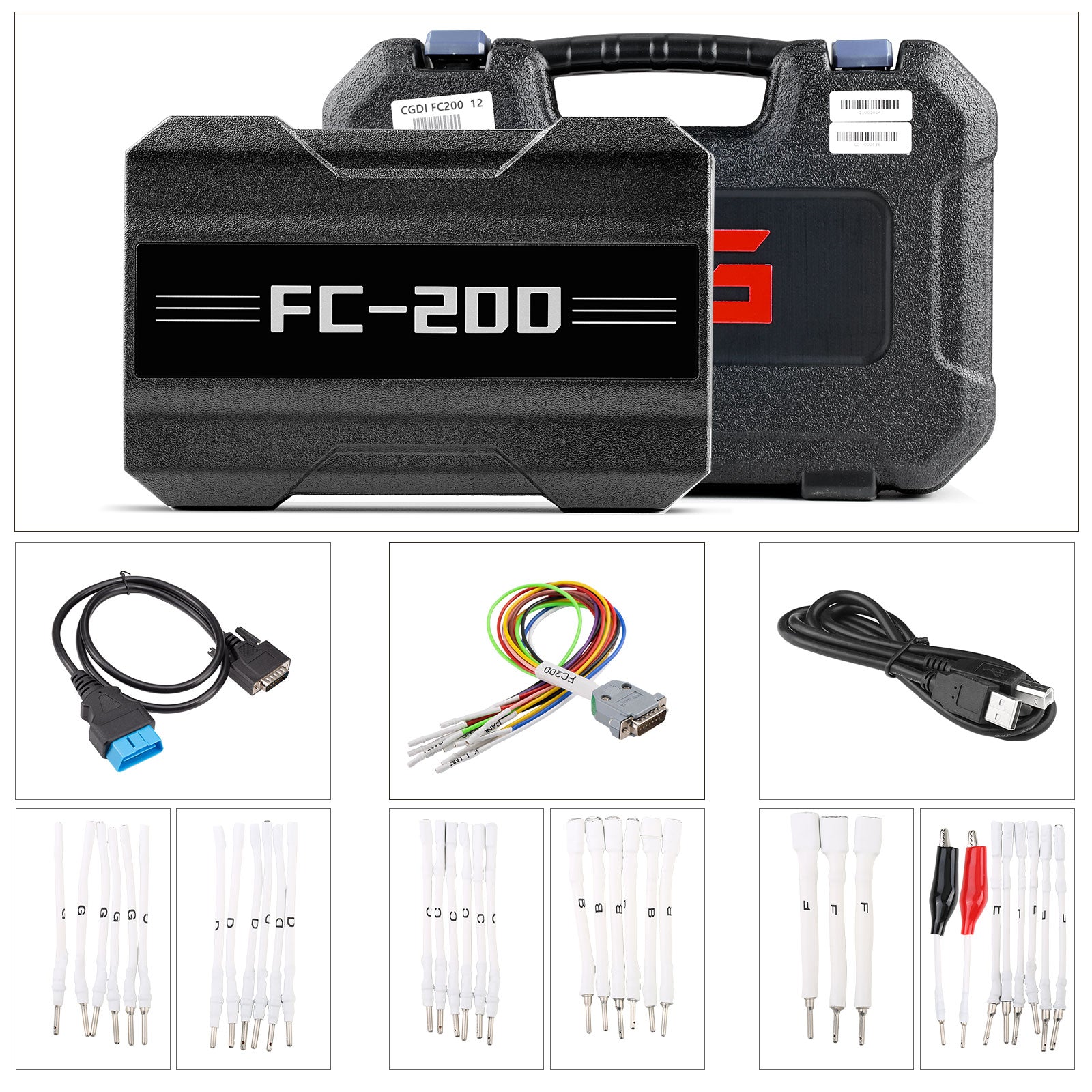

CG FC200 Package Contents:

• 1 × CGDI FC200 Main Unit

• 1 × OBD‑II Cable

• 1 × Jumper Adapter

• 1 × USB Cable

• 6 × G‑Type Adapter Cables

• 3 × F‑Type Adapter Cables

• 6 × E‑Type Adapter Cables

• 6 × D‑Type Adapter Cables

• 6 × C‑Type Adapter Cables

• 6 × B‑Type Adapter Cables
