[Global Version] 2026 LAUNCH CRP919X BT Diagnostic Scanner with Bluetooth Supports CAN FD DoIP and ECU Coding

LAUNCH CRP919X BT: Advanced Bluetooth OBD2 Diagnostic Scanner

Comprehensive Diagnostic Suite:
The LAUNCH CRP919X BT delivers a complete professional diagnostic solution, featuring All-System Diagnostics, Full OBD-II Functions, 31+ Reset Services, Bi-Directional Control, CAN FD & DoIP protocol support, FCA Secure Gateway Access (Autoauth), ECU Online Coding, Key Programming, Programmable Module Installation (PMI), ECU Configurations, and an integrated camera function. It includes 2 Years of Complimentary Software Updates.

Powerful Hardware & Performance:
Equipped with a high-performance Android 10.0 operating system and 3GB RAM + 32GB storage, the CRP919X BT ensures swift and responsive diagnostic operations, representing a significant upgrade over the standard CRP919X model.

Market Positioning & Connectivity:

• Functional Parity: It offers identical diagnostic capabilities to the CRP919E BT model.
• Logistical Advantage: Key differentiator is stock availability for faster shipping from US, UK, and EU warehouses.
• Wireless Operation: Connects to vehicles via Bluetooth using the included DBScar VII diagnostic interface (VCI).

Important Regional Compliance Notice:

• UK/EU Version: Intended for sale and use within the United Kingdom and European Union countries.
• Global Version: For customers in all other regions outside the UK and the EU.

LAUNCH CRP919X BT: Core Product Features

1. Connectivity & Protocol Support:

• Wireless Diagnostics: Connect to vehicles via Bluetooth using the integrated DBScar VII VCI.
• Future-Proof Protocols: Supports modern communication standards CAN FD and DoIP for the latest vehicle architectures.

2. Enhanced User Experience:

• Guided Repairs: Includes dedicated Guided Functions for Audi and BMW vehicles to simplify complex procedures.
• Automatic Identification: Features Auto VIN Scan for instant vehicle recognition.

3. Professional Diagnostic Power:

• OE-Level Diagnostics: Performs Full-System, Manufacturer-Level Diagnostics.
• Advanced Programming: Enables ECU Online Coding and Bi-Directional Control (Active Test).
• Comprehensive Service: Offers 31+ (and growing) Special Reset Services.
• Optional Integration: Can be extended with optional FCA (Stellantis) account access for secure gateway services.

4. Hardware & Performance:

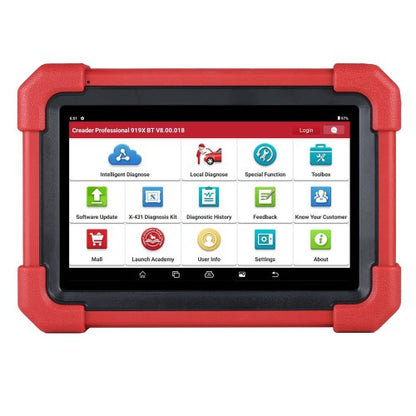

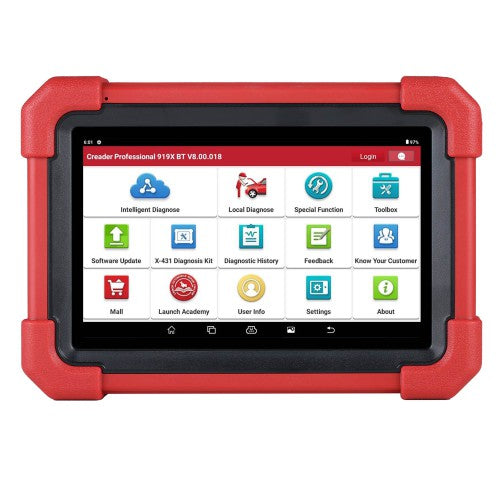

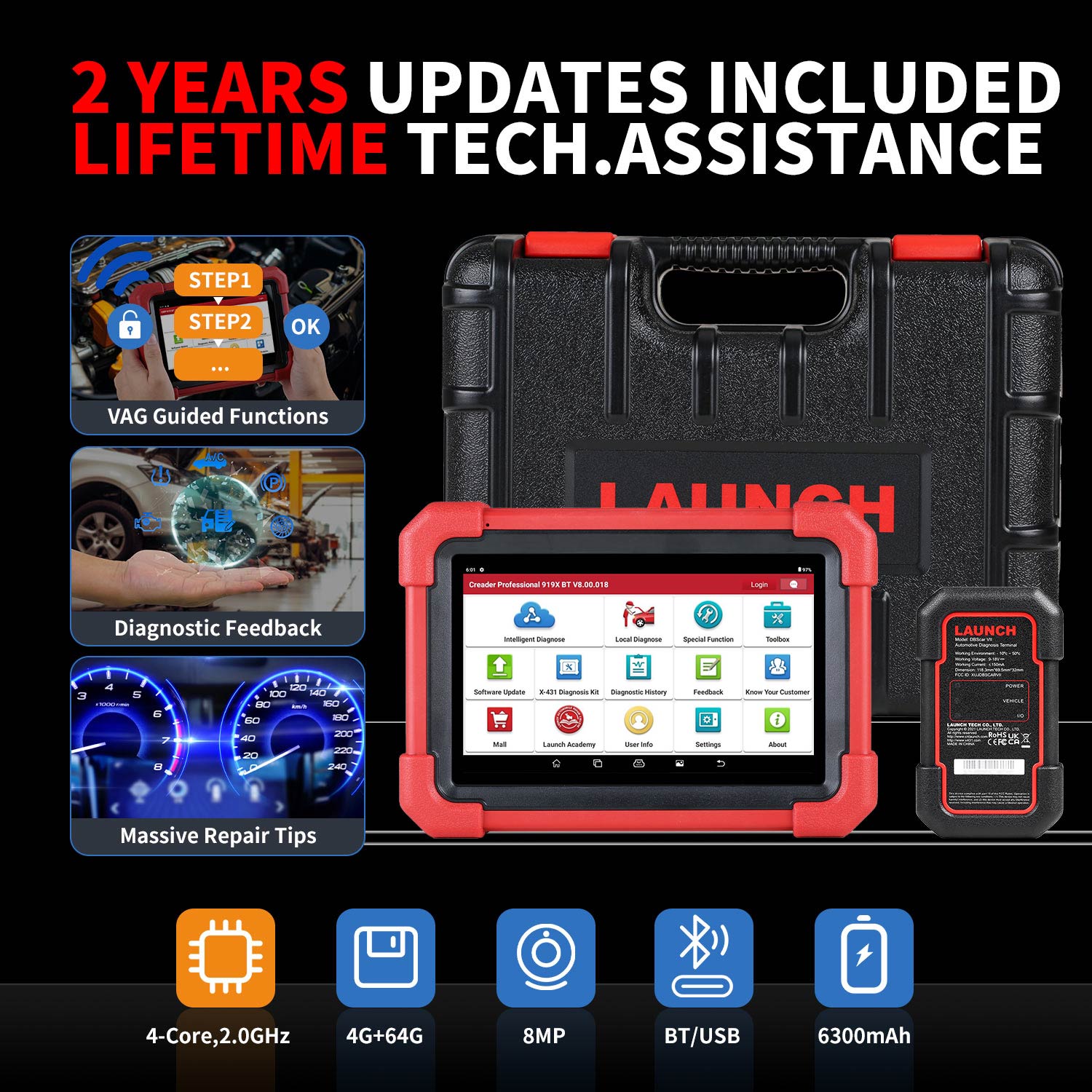

• Premium Configuration: 7-inch Touchscreen, Android 10.0 OS, 4GB RAM, 64GB Storage, and a 6300mAh high-capacity battery for fast, stable, and long-lasting operation.

5. Global Accessibility:

• Multilingual Support: Interface available in 23 languages, including major European and Asian languages.

ECU Programming & Coding Capabilities

This advanced function enables the reprogramming of vehicle control modules. It is used to update module software to the latest version and reprogram adaptive data following component repair or replacement. This provides solutions for drivability issues, fuel economy, power loss, fault codes, and mechanical durability.

Important Notice: ECU coding support is not universal. Compatibility is vehicle-specific. Always verify compatibility by providing the Vehicle Identification Number (VIN) prior to purchase.

Coding Function Categories:

1. Online Coding: Requires a direct connection to the manufacturer's server. Exclusive to: Volkswagen, Audi, Skoda, Ford, Lincoln, Mazda.

2. Offline Coding: Performed locally without a live server connection. Compatible with brands such as: Mercedes-Benz, BMW, Ford, Mazda, Jaguar, Vauxhall, Opel, and others.

3. Feature Personalization: Activate or refresh hidden vehicle features and customize settings.

4. Component Matching: Perform matching, relearning, and calibration procedures for new or replaced components.

5. OE Settings Customization: Modify factory settings to support retrofitting and modification projects.

Brand Coverage Summary:
• Online Coding: Volkswagen, Audi.
• Offline Coding: Volkswagen, Audi, Mercedes-Benz, BMW, Land Rover, Jaguar, Porsche, Toyota.

Comprehensive OBD-II Diagnostic Suite

1. Diagnostic Trouble Code (DTC) Readout: Retrieves and displays fault codes with detailed definitions.

2. Code Erasure & System Reset: Clears DTCs, extinguishes the Malfunction Indicator Lamp (MIL/Check Engine Light), and resets monitor status.

3. Live Data Stream & Graphing: Reads and displays real-time ECU/PCM data parameters. Features graphical plotting and freeze frame data capture and storage.

4. I/M Readiness Monitor Check: Indicates the operational readiness status of all emissions-related systems for compliance with Inspection and Maintenance (I/M) testing.

5. Freeze Frame Data Review: Accesses and displays a snapshot of vehicle operating conditions (e.g., RPM, load, temperature) recorded by the ECU at the moment an emissions-related DTC was set.

6. O2 Sensor Monitor Test: Retrieves and displays the results of the vehicle's most recent oxygen sensor performance tests.

7. On-Board Monitor Test Results: Reads and presents test results for specific emission-related components and systems as performed by the vehicle's onboard computer.

8. Vehicle Information Retrieval: Displays key vehicle data, including the Vehicle Identification Number (VIN), Calibration Identification (CID), and Calibration Verification Number (CVN).

9. Bi-Directional Component Test: Allows active testing by sending commands to specific vehicle components (e.g., relays, solenoids) to verify their operation.

Advanced Bi-Directional Control (Active Testing)

This feature enables two-way communication with the vehicle's ECUs, allowing the diagnostic tool to send commands to drive specific actuators and subsystems for functional testing. By monitoring the ECU's response data or the actuator's physical operation, technicians can verify system integrity and isolate faults with precision.

Example Applications with the LAUNCH CRP919X BT:
The tool can command components such as relays, fuel injectors, ignition coils, and various solenoids (e.g., EGR valves) to perform system-specific tests. Observing changes in parameters like idle speed or oxygen sensor voltage during these commands provides critical diagnostic insights.

Crucial Compatibility Notice:
Active Test availability is NOT universal. It varies significantly by vehicle manufacturer, model, and year. Only tests supported by the specific vehicle will appear in the tool's menu. Always verify compatibility by checking the Vehicle Identification Number (VIN) prior to purchase.

Partial List of Active Test Examples (for efficient fault isolation):
• Injector Buzz Test
• Fuel Pump & Valve Control Tests
• A/C Compressor Clutch Activation
• Wiper System Activation (ON/OFF)
• Throttle Valve Modulation
• Acceleration Simulator Test

CRP 919E BT: Comprehensive Function List

1. ABS Bleeding: Bleeds air from the Anti-lock Braking System hydraulics.

2. TPMS Reset: Relearns tire pressure sensors and resets warning lamps.

3. Oil Service Reset: Resets the engine oil life monitor.

4. Electronic Throttle Body Reset: Re-initializes throttle actuator learning values.

5. Injector Coding: Programs new injector identification codes to the ECU.

6. Steering Angle Sensor (SAS) Reset/Calibration: Clears fault memory and calibrates the steering angle sensor.

7. Brake Pad Reset: Resets the brake pad wear indicator and performs service mode functions.

8. Transmission Adaptive Learning (Gear Learning): Relearns gear shift parameters after ECU or sensor replacement.

9. Immobilizer (IMMO) Service: Programs and matches keys to the vehicle's anti-theft system.

10. Battery Registration: Registers a new battery with the vehicle's power control module.

11. DPF Regeneration: Forces regeneration of the Diesel Particulate Filter.

12. EGR Valve Adaptation: Learns the position of a new or cleaned EGR valve.

13. Air Suspension Calibration: Calibrates ride height sensors.

14. NOx Sensor Reset: Resets learned values for the NOx catalyst system.

15. Tire Size Programming: Programs new tire circumference/size data.

16. Power Window Initialization: Relearns window motor end stops.

17. Start/Stop System Toggle: Enables or disables the automatic engine stop/start function.

18. A/C System Initialization: Relearns actuator positions for the climate control system.

19. AdBlue/DEF Reset: Resets the Diesel Exhaust Fluid level counter.

20. Adaptive Headlight (AFS) Reset: Initializes the adaptive headlight aiming control.

21. Air/Fuel Ratio Reset: Resets fuel trim or mixture adaptation values.

22. Transmission Reset: Performs self-adaptive learning for the transmission control unit.

23. Coolant System Bleeding: Activates the electric pump to purge air.

24. Transport Mode: Activates or deactivates vehicle shipping/conservation mode.

25. Memory Seat Calibration: Calibrates electronic seat memory modules.

26. High-Voltage Battery Scan: Reads diagnostic data from hybrid/electric vehicle battery systems.

27. Sunroof Initialization: Resets the sunroof control module and memory positions.

28. Engine Cylinder Balance Test: Checks the relative power output of each cylinder.

29. System Language Change: Changes the vehicle's infotainment display language.

30. GPF Regeneration: Forces regeneration of the Gasoline Particulate Filter.

31. Adaptive Cruise Control Calibration: Initializes the intelligent cruise control module.

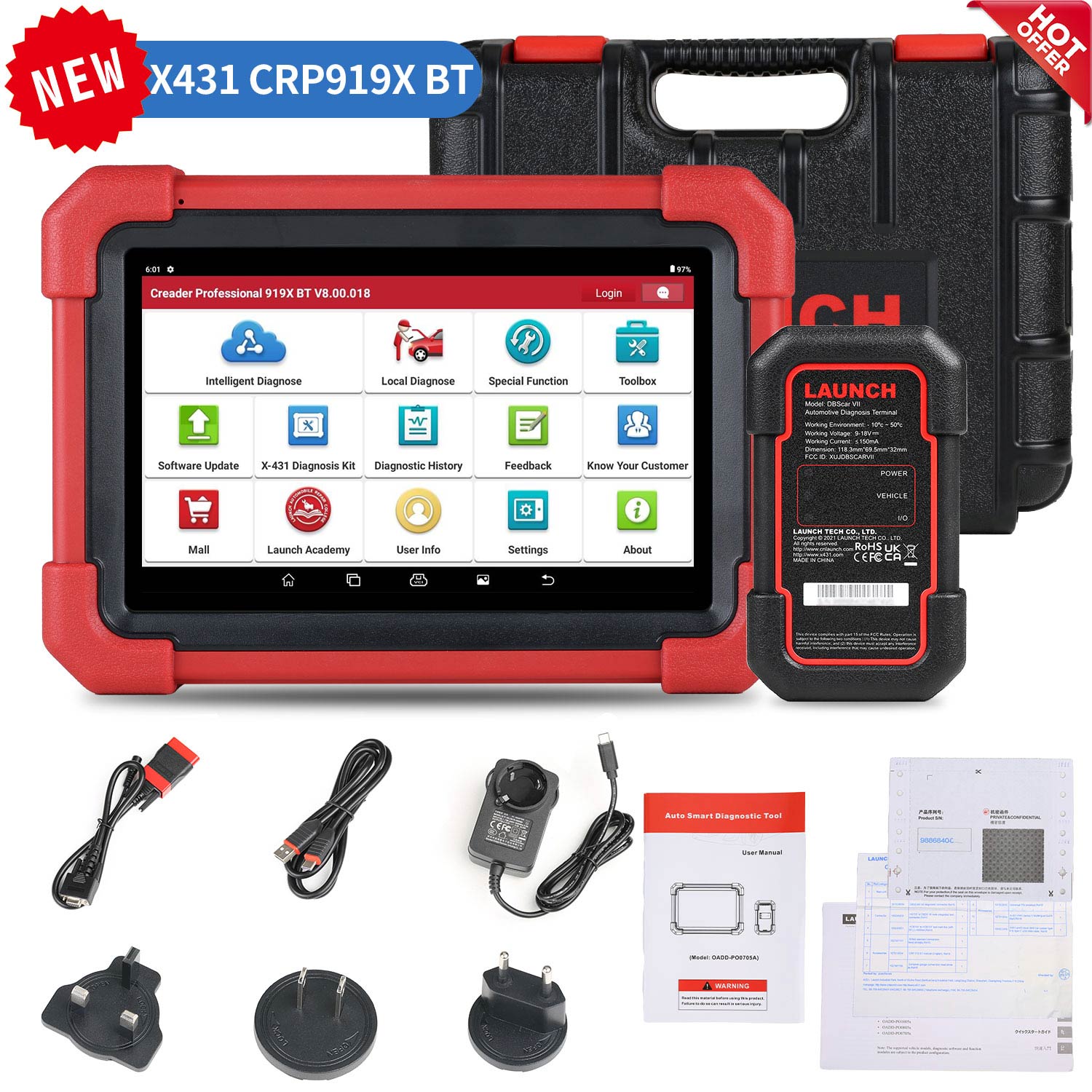

Package Contents:
1 x LAUNCH CRP919X BT Diagnostic Kit
