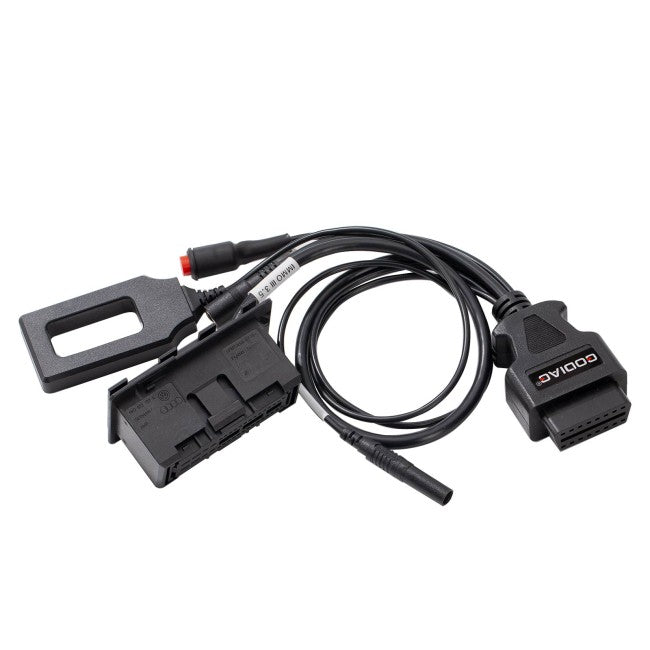

GODIAG VAG Test Platform GT110 plus GT111 CAN-Bus With Pogo Pin for 3rd & 3.5th & 4th Generation VAG Dashboard IMMO Key Matching

GODIAG VAG Test Platform GT110 + GT111 CAN-Bus with POGO PIN for 3rd, 3.5th & 4th Gen VAG Immobilizer Key Programming

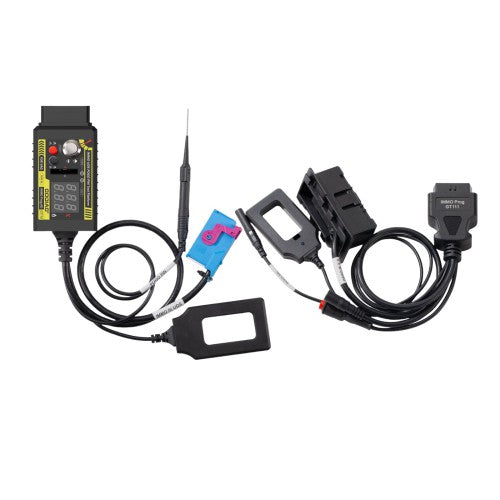

GODIAG Bundled Package:

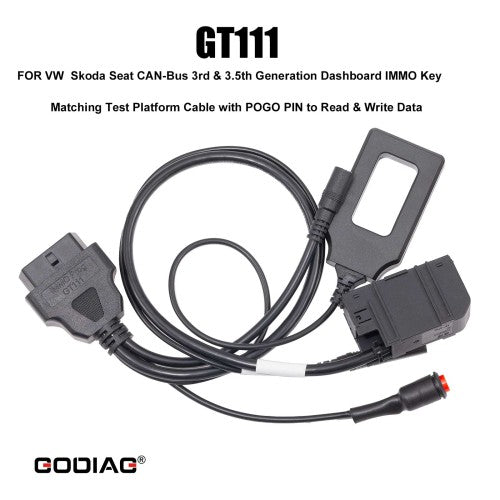

• GODIAG GT111: This cable and test platform is designed for VW, Skoda, and Seat vehicles with 3rd and 3.5th generation instrument clusters. It utilizes POGO PIN technology for offline data reading and writing. Core functions include key and immobilizer (IMMO) instrument synchronization testing, intelligent IMMO emergency start zone detection, offline instrument cluster diagnosis, IMMO data read/write, mileage correction, and key programming.

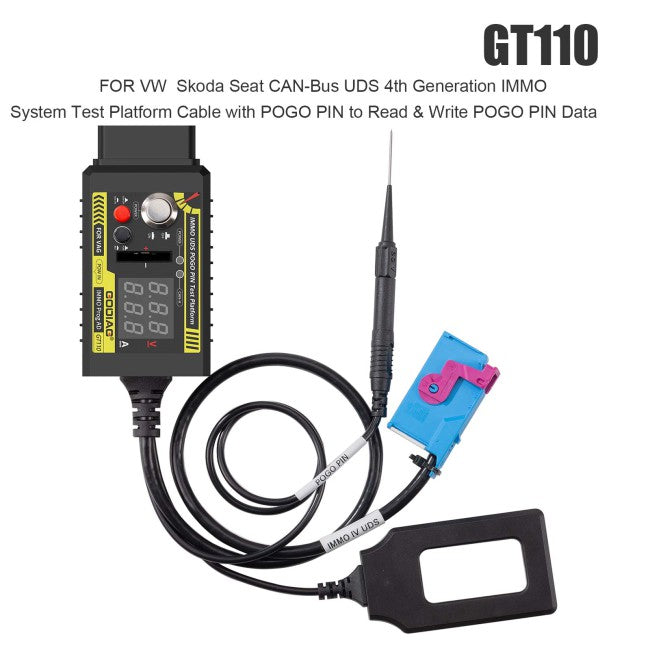

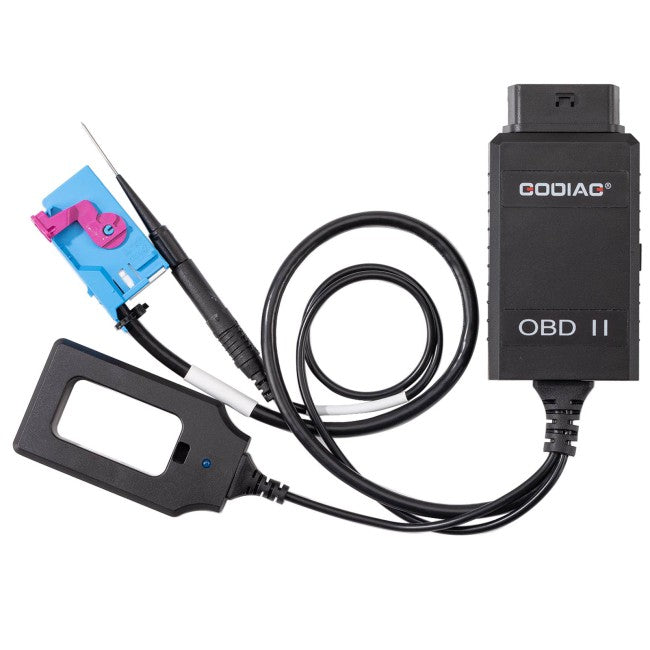

• GODIAG GT110: This cable and test platform supports VW, Skoda, and Seat vehicles with the 4th generation UDS-based immobilizer system. It also performs offline POGO PIN data operations and is designed for dashboard key programming (including boot probe access) on all Volkswagen Group UDS systems. It features a display for real-time voltage and current, a power switch, a simulated ignition switch, and a buzzer for start/stop confirmation. It supports CANH/UDS communication indicators, CR2032 remote key battery detection, key-instrument synchronization tests, intelligent IMMO emergency start detection, offline cluster diagnosis, IMMO data read/write, mileage correction, and key matching.

Compatible Devices: This platform can be used with a wide range of tools including HEX-V2/VCDS (VAG-COM 5053), VAS 5054A, VAS 6154, SUPER VAG K+CAN, Obdstar, Lonsdor, Abrites (AVDI), ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, AUTEL, and others.

Product Specifications:

1. POGO PIN Interface: Uses POGO PIN contacts for stable, non-damaging read/write access to the instrument cluster.

2. Offline Dashboard Interface: Connects directly to the instrument cluster offline and converts it to a standard OBD-II port.

3. Key/Instrument Sync Test: Performs synchronization testing between the transponder chip and the immobilizer instrument.

4. Dedicated Power Switch: Independent power control switch.

5. Simulated Ignition Switch: Features a switch to simulate vehicle ignition power.

6. Live Voltage Display: Shows the current operating voltage of the connected unit.

7. CR2032 Key Fob Battery Test: Tests the battery in remote key fobs.

8. Live Current Display: Displays the real-time working current of the instrument cluster.

9. CANH/UDS Communication Indicator: LED light indicates CAN High line or UDS protocol communication activity.

10. Key Detection Adapter with Light: An inductive key identifier with an indicator light.

11. Secure POGO PIN Connection: The POGO PIN connection provides a stable hold without damaging cables or circuit boards.

Intelligent IMMO System Emergency Start Zone Detection:

Press the vehicle's start button and move the device's key identifier near different areas of the dashboard/console. If the identifier light flashes or illuminates, that area is the vehicle's emergency start induction zone. If a smart key's battery is dead, placing it in this zone allows the vehicle to start.

Vehicle IMMO Start & Transponder Chip Detection - Test Results:

1. Light flashes briefly then turns off: Indicates the IMMO chip and the key's transponder are functioning correctly and are synchronized.

2. Light flashes continuously: Indicates the key's transponder is not recognized or matched with the vehicle's IMMO system. The key needs to be re-synchronized or programmed.

3. Light does not flash: Indicates a potential fault within the vehicle's IMMO system itself. Further diagnosis of the vehicle's immobilizer system is required.

Package Contents:

• 1 x GODIAG GT111 Test Platform Cable (for 3rd/3.5th Gen)

• 1 x GODIAG GT110 Test Platform Cable (for 4th Gen UDS)
