Product Introduction:
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.
Product Features:
1. ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.
Product Specification:
Package includes:
Product Specification:
ES200 Specification
Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 1.7kg
AC and DC Voltage Test Performance Parameters
Voltage Type DC Voltage AC Voltage
Measuring Range ±30~±600V 30~600V(50/60Hz)
Resolution 1V 1V
Measurement Accuracy ±3% ±3%
Insulation Resistance Test Performance Parameters
Test Voltage: 500V 1000V
Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ
Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5)
Short Circuit Current： <3.0mA
Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ
Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5)
Short Circuit Current： <3.0mA
Test Voltage: 2000V 5000V
Measuring Range: 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
Open Circuit Voltage: DC2000V(0～20%) DC5000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)
Measuring Range: 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
Open Circuit Voltage: DC2000V(0～20%) DC5000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)

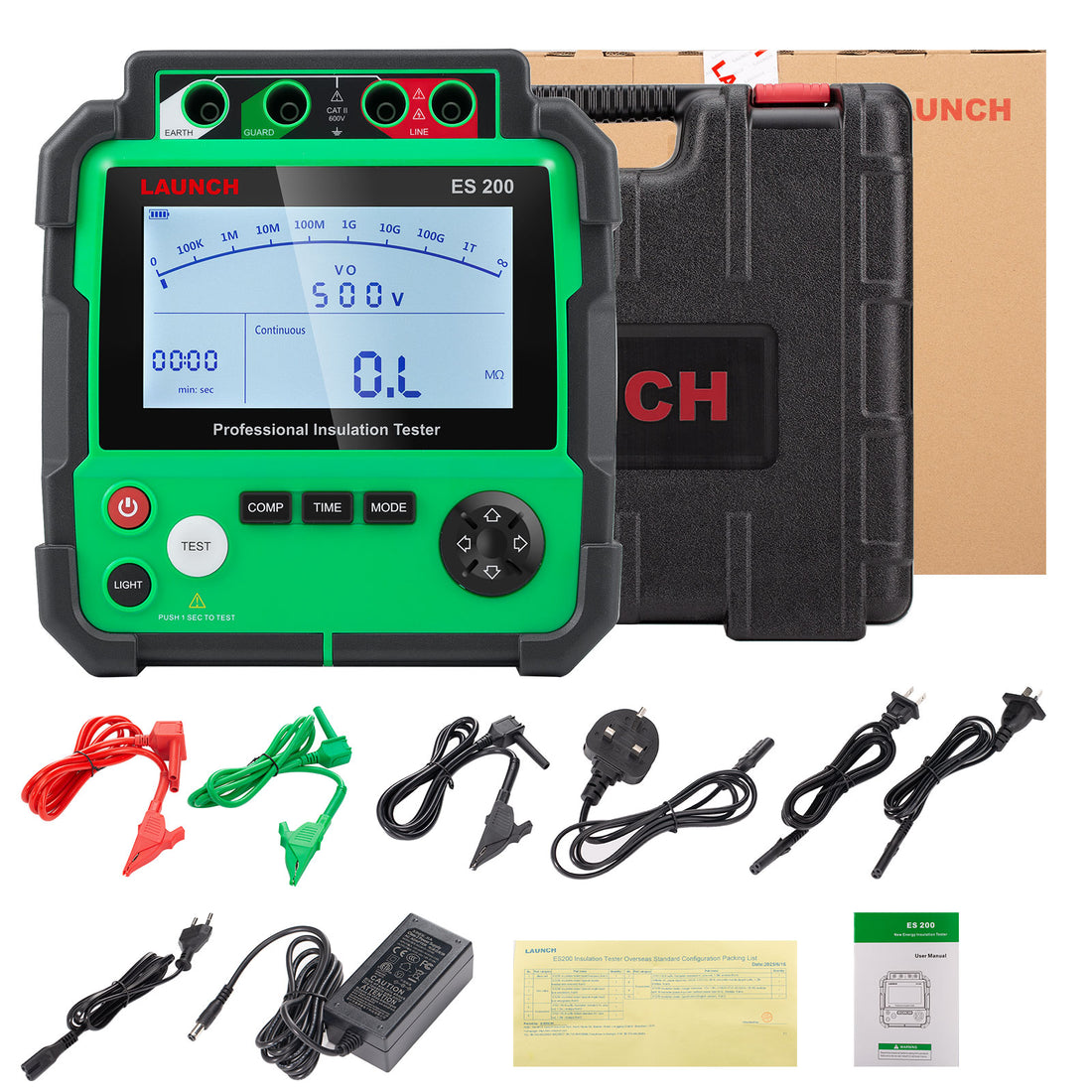

Package includes:
1pc x Main unit
1pc x double headed test wire(red)
1pc x single head test wire(black)
1pc x single head test wire(green)
1pc x Autralian standard AC wire rod
1pc x European standard AC wire rod
1pc x British standard AC wire rod
1pc x Adapter AC input line
1pc x charger
1pc x manual
