D700 A Coverage

OBDSTAR D700 A Intelligent Marine Scanner for Jetski

The OBDSTAR D700 A is a new-generation intelligent marine diagnostic scanner designed mainly for jet skis. Powered by a Rexchip microprocessor and equipped with a 7-inch touchscreen display, the D700 A delivers fast and smooth performance. Built on the latest 3.0 APK platform, it features intelligent functions such as auto identification, smart search, and one-click feedback. With fast software updates and built-in help resources, the D700 A is an excellent diagnostic solution for marine maintenance professionals.

Functions

• Settings

• Coding

• Live Data Stream

• Action Test

• ECU Information

• Read Fault Codes

• Clear Fault Codes

• Freeze Frame Data

• Read Working Hours

Product Features

1. Powered by the latest Android operating system for smooth and stable performance.

2. Simple and intuitive menu navigation allows users to quickly learn and operate the device.

3. Supports comprehensive diagnostic functions including ECU information, fault code reading/clearing, live data, freeze frames, action tests, settings, coding, and working hour reading.

4. Record and replay live data streams to quickly and accurately identify sensor and component faults.

5. Built-in Wi-Fi supports internet connection and one-click software updates.

6. One-click remote assistance allows OBDSTAR technicians to provide remote technical support.

Advanced Functions

The OBDSTAR mobile application integrates functions such as diagnostic port location (DLC), flash code lookup, technical service bulletins, manual warning light reset, interactive wiring diagrams, and system parameter viewing. When used together with the D700 unit, it enables more accurate and efficient diagnostics (free for D700/D800 users).

Multiple real-time data display modes, including text, waveform graphs, and gauge displays, make fault analysis easier and more intuitive.

Supports a wide range of advanced control and calibration functions, including:

• Auto Scan

• Station Quantity Adjustment

• Lever Adaptation

• Foot Throttle Calibration

• Active Trim Setup

• Auxiliary Joystick Configuration

• Instrument Panel Programming

• Compass Calibration

• Drive Alignment

• Helm Station Setup

• TDS Reset

• Tilt Limit Adjustment

• SMUX Module Configuration

• Trackpad Setup

• Key Programming

• Maintenance Reminder Settings

• Idle Speed Adjustment

• And more

Supported Brands

The OBDSTAR D700 A (mainly for jet skis) supports the following brands:

• BRP

• HONDA

• KAWASAKI

• YAMAHA

• And more

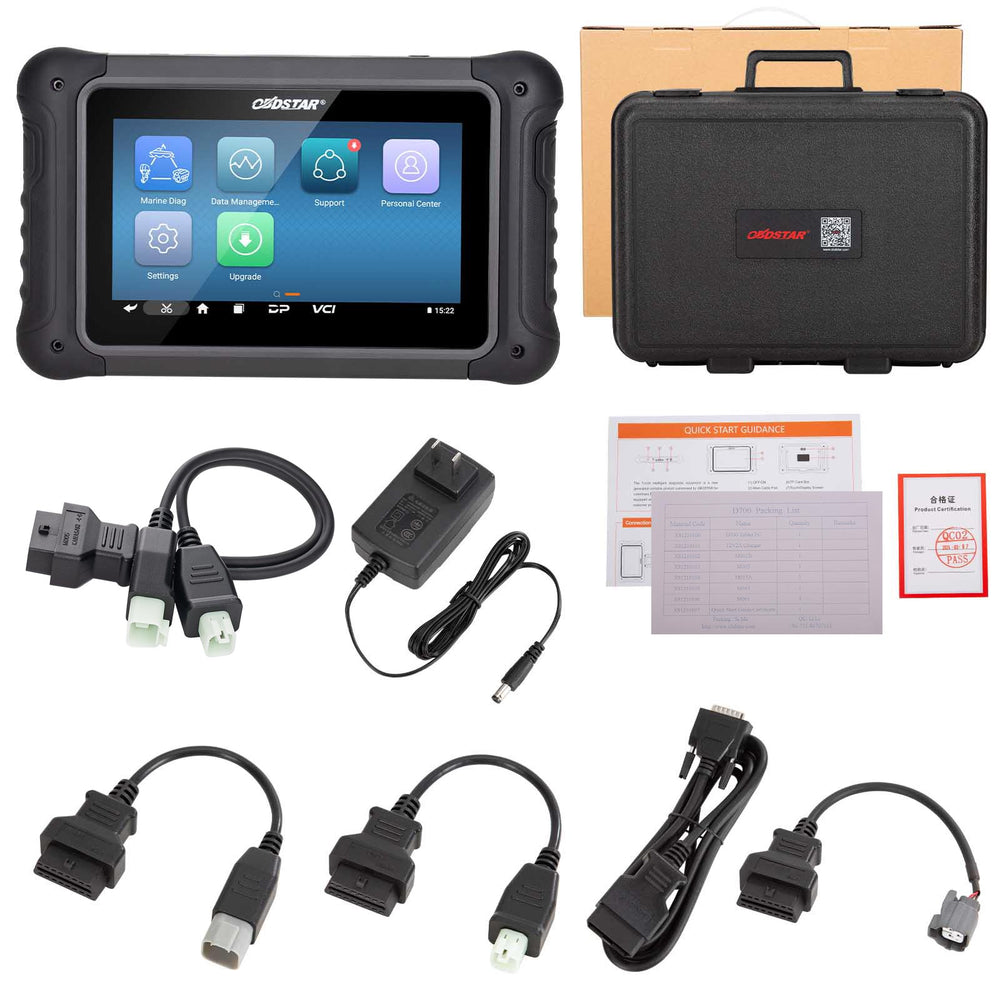

Package Includes:

1pc x OBDSTAR D700 A（ Mainly for Jetski）Intelligent Marine Scanner
1pc x M001B main cable
1pc x M015A Honda
1pc x M043 BRP
1pc x M061 Yamaha
1pc x M068 Kawasaki
1pc x 12V 2A charger
