OBDSTAR MS50 Professional Motorcycle Diagnostic Scanner

1.The OBDSTAR MS50 is designed for:

This motorcycle diagnostic tablet is suitable for professional motorcycle repair shops, full-time motorcycle maintenance technicians, scooter repair specialists, and small motorbike service stores that focus on Asian and European two-wheelers. It is also available for enthusiasts who perform self-inspection and routine maintenance on their own motorcycles.

2. Supported Key Functions & Features

OBDSTAR MS50 is a portable tablet with super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, it brings professional diagnosis experience.

• New Android 5.1.1 operation system
• Simple and intuitive menu guidance allows you to quickly master the equipment operation, arbitrary menu selection for convenient operation
• Complete basic diagnosis: read codes, clear codes, data stream, action test, setting, coding
• Record and play back real-time data streams, quickly and accurately locate sensor and component faults
• Wi-Fi one-click software upgrade, one-click remote assistance from OBDSTAR technical staff
• Built-in first fault guidance, help data, technical bulletin, diag socket information
• Diversified data stream display modes: text, waveform diagram and instrument diagram
• Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory

3. What Vehicles Does It Support?

4. Please Note the Following Limitations

1. Not support passenger cars, trucks, ATV, UTV, motorboat, agricultural machinery.
2. No native support for Aprilia, DUCATI, BMW, HARLEY, INDIAN and other brands, extra dedicated cables are required.
3. Unable to diagnose modified racing ECUs without factory standard protocols.
4. Only electronic diagnosis and calibration functions, cannot complete mechanical hardware maintenance work.
5. Immobilizer related functions need optional P001 Immo Kit, not built-in.
6. Old motorcycles without standard OBD interface and original ECU are not supported.

5. Hardware Accessories & Licensing Requirements

1. All standard diagnostic functions are pre-activated, no mandatory basic authorization fee required.
2. Immobilizer programming function needs optional P001 Immo Kit, sold separately.
3. Special adapters for Aprilia, Ducati, BMW are not included in the package and need separate purchase.
4. Network connection is only required for online upgrade and remote assistance; offline diagnosis works without internet.
5. No extra hardware dongle needed for regular diagnosis.

6. OBDSTAR MS50 Specification

Operating System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 700g（Main Unit)
Dimension: 140mm*89mm\*18mm

7. Software Update

1. Includes 1 full year free official online firmware and vehicle database updates after activation.
2. After the free update period expires, users can voluntarily renew the update service.
3. All core diagnostic functions can be used permanently without renewal.
4. New motorcycle models and special functions will be added monthly during the free update period.

8. Global Version

This is universal global version without regional lock, no area function restriction. Suitable for motorcycle maintenance technicians all over the world.

9. Warranty

The main unit enjoys 1-year official limited warranty from the date of purchase. Free repair or replacement for non-artificial quality defects. Damage caused by drop, unauthorized disassembly, water ingress, modified wiring and other man-made faults is not covered by warranty.

10.MS80 vs MS50

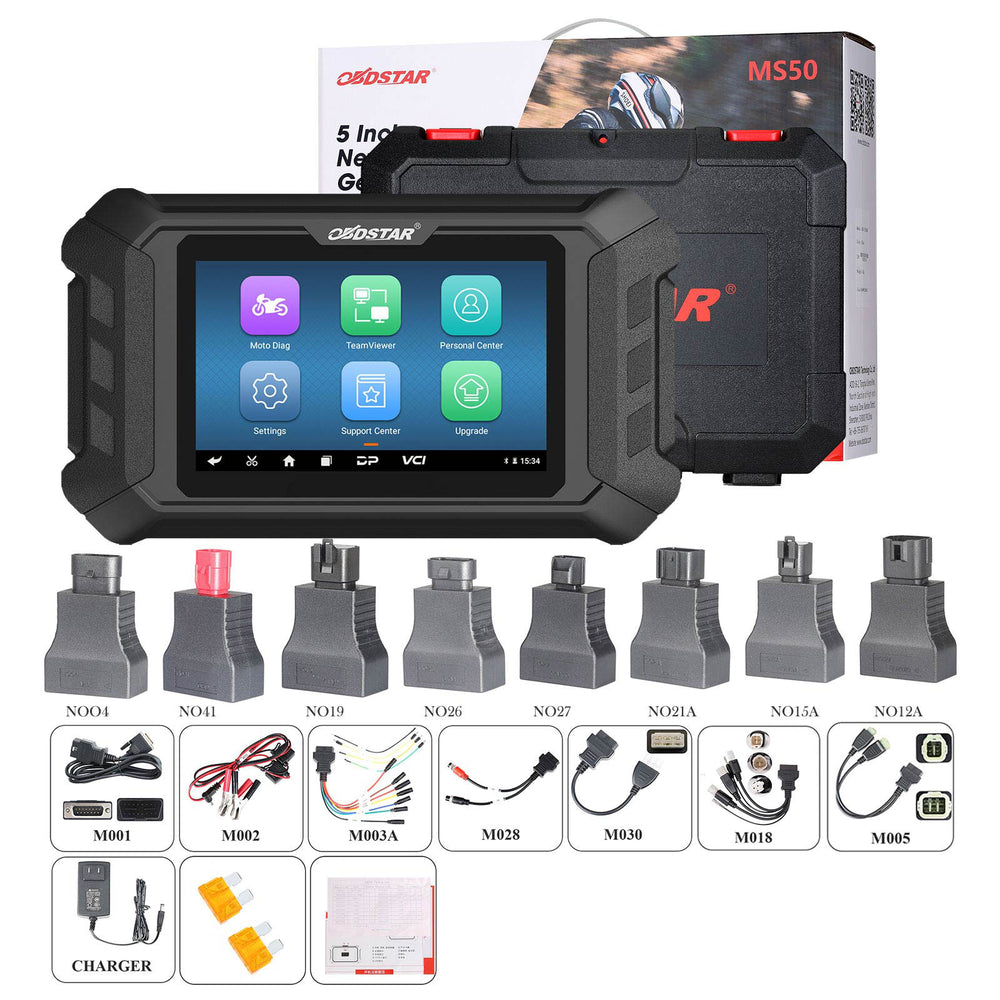

11.Package List

1pc x OBDSTAR MS50 main unit
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NO04 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter
