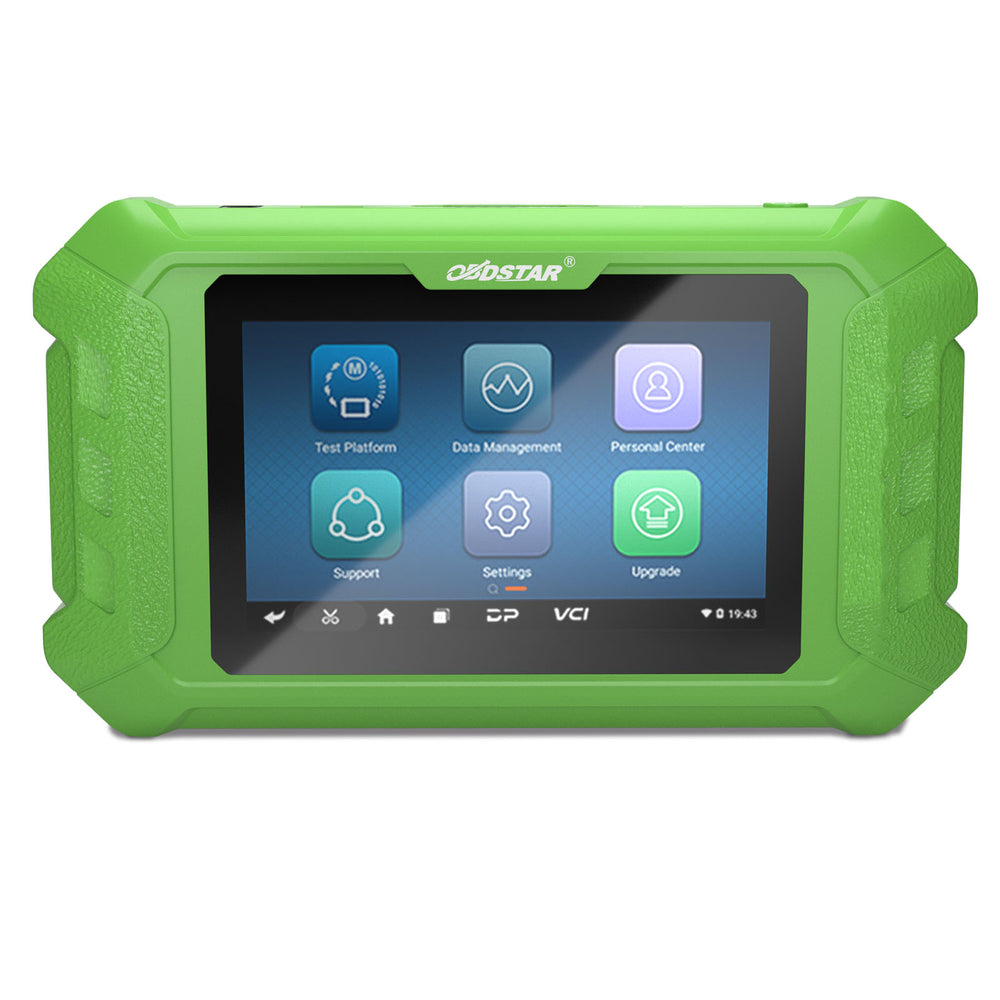

OBDSTAR MT501 Test Platform Tool 4 Types of Modules Power On by BENCH

OBDSTAR MT501 Bench Test Platform for 4 Module Types

Problem & Solution:
In modern vehicles, components such as instrument clusters, stereos, and electronic gear selectors require active CAN BUS communication to power on and operate properly. This makes conventional bench testing difficult or impossible. The OBDSTAR MT501 solves this problem by simulating the required CAN BUS communication, allowing these modules to power on and function outside the vehicle for testing and repair.

Tool Description:
The OBDSTAR MT501 is a multi-functional automotive bench testing platform designed to independently power on and test key vehicle modules. It integrates multiple functions into one device and is mainly used for testing:

• Instrument Clusters (Dashboards)
• ABS Control Modules
• Electronic Gear Selectors (Gear Levers)
• Climate Control Panels (A/C Panels)

Running on the latest Android 3.0 APK operating platform, the MT501 is an essential tool for automotive technicians, helping simplify repairs, improve diagnostic accuracy, and save both time and cost.

Product Features:

1. Modern Operating System: Powered by the Android 5.1.1 platform.

2. User-Friendly Interface: Features simple, intuitive menu guidance for quick mastery of all operations.

3. Seamless Connectivity: Supports Wi-Fi connection for convenient one-click software and database updates.

4. Smart Functionality: Equipped with intelligent search and integrated help guides for straightforward and efficient use

Advanced Bench Power-On Functions for 4 Module Types:

1. Instrument Cluster (Dashboard) Power-On:
   Supports bench activation for the following brands: Audi, BMW, Bentley, Dodge, Ford, Jaguar, Lamborghini, Land Rover, Mercedes-Benz (BENZ), Porsche, Rolls-Royce, Volkswagen, Volvo.

2. BMW G-Series Climate Control Panel:
   Enables bench power-on for BMW G-Chassis A/C (climate control) panels.

3. Land Rover / Jaguar Gear Selector:
   Supports bench power-on for Land Rover and Jaguar electronic gear levers/selectors.

4. Mercedes-Benz ABS Module:
   Enables bench power-on for Mercedes-Benz (BENZ) ABS control units.

Package Contents:

• 1 piece x M001 Main Interface Cable

• 1 piece x P004 Universal Adapter

• 1 piece x P004 ECU Clone Jumper Cable

• 1 piece x 12V/2A Power Charger
