Yanhua ACDP-2 Module 29 for Audi Gen5 BCM2 IMMO Programming A4 A5 Q5 A6 A7 A8 Immobilizer Module

The Yanhua ACDP Module 29 for Audi Gen5 BCM2 IMMO enables safe, solder-free reading and writing of IMMO data.

Supported Models:

• Add key and all-key-lost functions for 2013-2018 Audi A4, A5, Q5, and other compatible models. Supported BCM2 types: 0711, 0650, 0641.
• Add key for 2013-2019 Audi A6, A7, A8, and other compatible models. Supported BCM2 types: 0825, 0824, 0827. BCM2 IMMO data can be read when all keys are lost; synchronization data may require a third-party source.

Module Functions:

• Supports Audi 5th generation non-encrypted and partially encrypted BCM2, allowing IMMO data reading via OBD.
• Supports Audi 5th generation fully encrypted BCM2, allowing IMMO data reading via ICP.
• Compatible with chip models: D70F3379, D70F3380, D70F3381, D70F3382, D70F3634, D70F3635.

Module Features:

• OBD identification function helps determine if the vehicle supports OBD IMMO data reading, identifies encrypted BCM2 versions, and indicates if module removal is required.

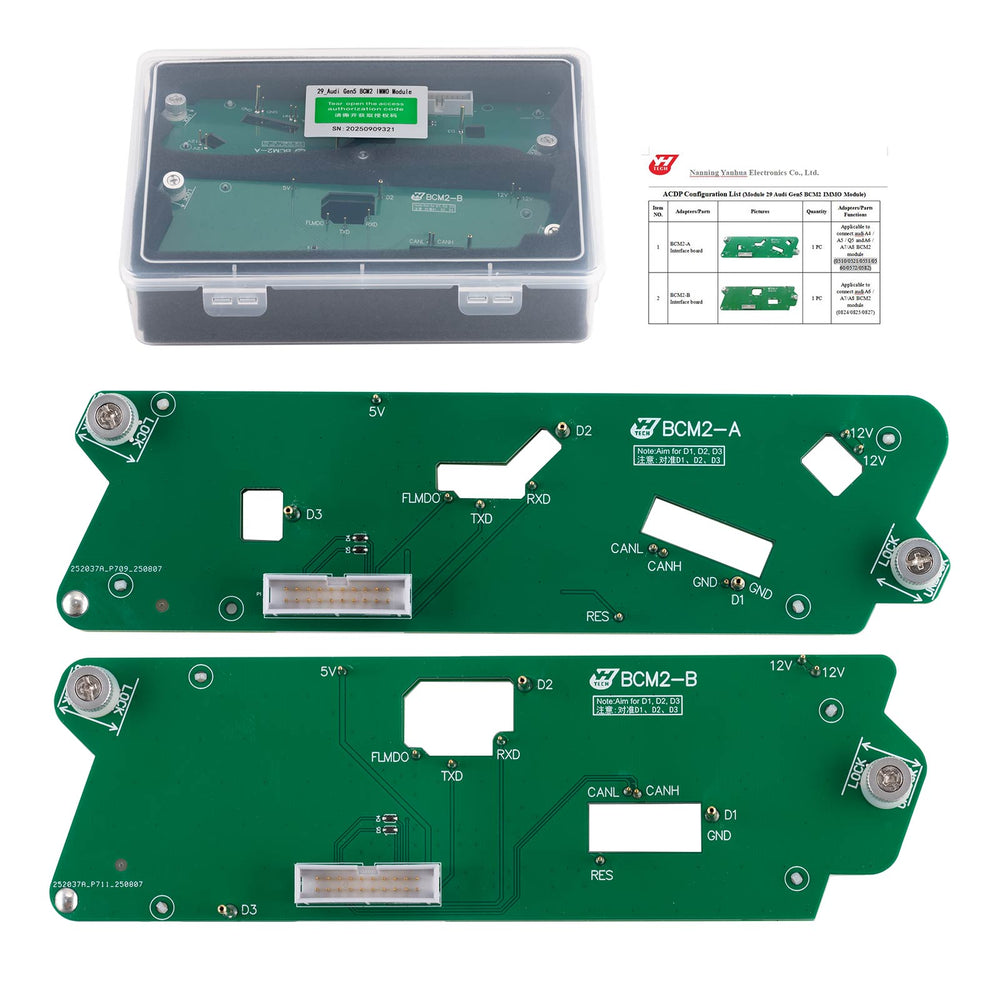

• Special interface board with intelligent pin detection ensures safe and reliable data reading and writing.

Package Includes:

1pc x YANHUA ACDP Module 29
