JDiag M100 Pro Moto Scanner Universal Motorcycle Scan Tool Full Version

2. Supported Key Functions & Features

Complete Motorcycle Diagnostic Functions

• Read system information
• Read ECU data
• Read live data stream
• Read stored fault codes (history faults)
• Read current fault codes
• Erase fault codes
• View freeze frame data
• Display dynamic data with numerical and waveform formats

Service and Adjustment Functions

• CO idle speed adjustment
• Throttle Position Sensor (TPS) adjustment
• Auto adaptive parameter reset
• Idle speed adjustment
• Injector testing
• Ignition coil testing
• Fuel pump testing
• ABS system test
• Immobilizer unlocking and configuration (for supported models)
• Service light reset (for supported models)

3. What Vehicles Does It Support?

JDiag M100 Pro is designed for motorcycle electronic fuel injection (EFI) system diagnostics.

Supported Motorcycle Brands

• Honda
• Yamaha
• Suzuki
• Kawasaki
• Kymco
• SYM
• Piaggio
• PGO
• KTM
• Hartford
• Aeon
• Other supported motorcycle brands

Supported Vehicle Years

Supports a wide range of EFI equipped motorcycles. Exact vehicle coverage depends on motorcycle brand, model, year, ECU type, and available diagnostic protocols.

Supported Motorcycle Systems

• EFI Engine System
• ECU System
• Battery System
• ABS System (for supported models)
• Immobilizer System (for supported models)
• Throttle Control System
• Fuel Injection System

Note:
Please confirm compatibility with your motorcycle model before purchase.

Hardware Features

• Handheld standalone design, no external computer required
• 3.5 inch color screen
• Faster data processing speed
• Clear diagnostic display
• SD card support for data storage and software upgrades
• Reserved CAN bus interface
• USB upgrade port
• COM communication interface

4. Please Note the Following Limitations

• Designed mainly for motorcycle diagnostics, not passenger cars or trucks.
• Functions vary depending on motorcycle brand, model, year, and ECU system.
• Some special functions may only work on specific supported motorcycles.
• Immobilizer functions are only available for compatible models.
• Not designed for key programming, ECU cloning, or ECU replacement programming.
• Some advanced dealer level functions may not be available on all motorcycles.

5. Hardware Accessories & Licensing Requirements

Hardware Requirements

JDiag M100 Pro is a standalone handheld diagnostic tool and does not require:

• Smartphone
• Tablet
• Computer
• Additional diagnostic software

The package includes the necessary motorcycle diagnostic cables.

Licensing Requirements

• No additional subscription authorization is required for basic diagnostic functions.
• Software upgrades require compatible update files through the upgrade port.
• Some functions depend on vehicle ECU support.

6. JDiag M100 Pro Specification

Power Supply: DC 10V to 15V

Operating Current: 250mA

Display: 3.5 inch color screen

Operating Temperature: 0°C to 70°C

Storage Temperature: -10°C to 85°C

Humidity: Less than 90%

Upgrade Port: USB port

Communication Port: COM port

Data Storage: SD card support

7. Software Update

JDiag M100 Pro supports software upgrades through SD card and USB upgrade interface.

Software updates may include:

• New motorcycle model coverage
• Diagnostic function improvements
• Software optimization
• Bug fixes

Free Update Period: Please confirm with the manufacturer.

Update Fee After Free Period: Please confirm with the manufacturer.

8. Global Version

JDiag M100 Pro is a global version motorcycle diagnostic tool.

It supports users worldwide with multiple language options.

Supported languages include:

• English
• Traditional Chinese (BIG5)
• Spanish
• French
• Cambodian
• Thai
• Turkish
• Vietnamese
• Indonesian
• Portuguese
• Japanese
• Korean
• German

(Language availability depends on the software version.)

9. Warranty

JDiag M100 Pro includes manufacturer warranty support.

Warranty covers:

• Hardware defects
• Manufacturing quality issues

Warranty does not cover:

• Damage caused by incorrect operation
• Physical damage
• Water damage
• Unauthorized modification

Warranty Period: Please confirm with the manufacturer before publishing.

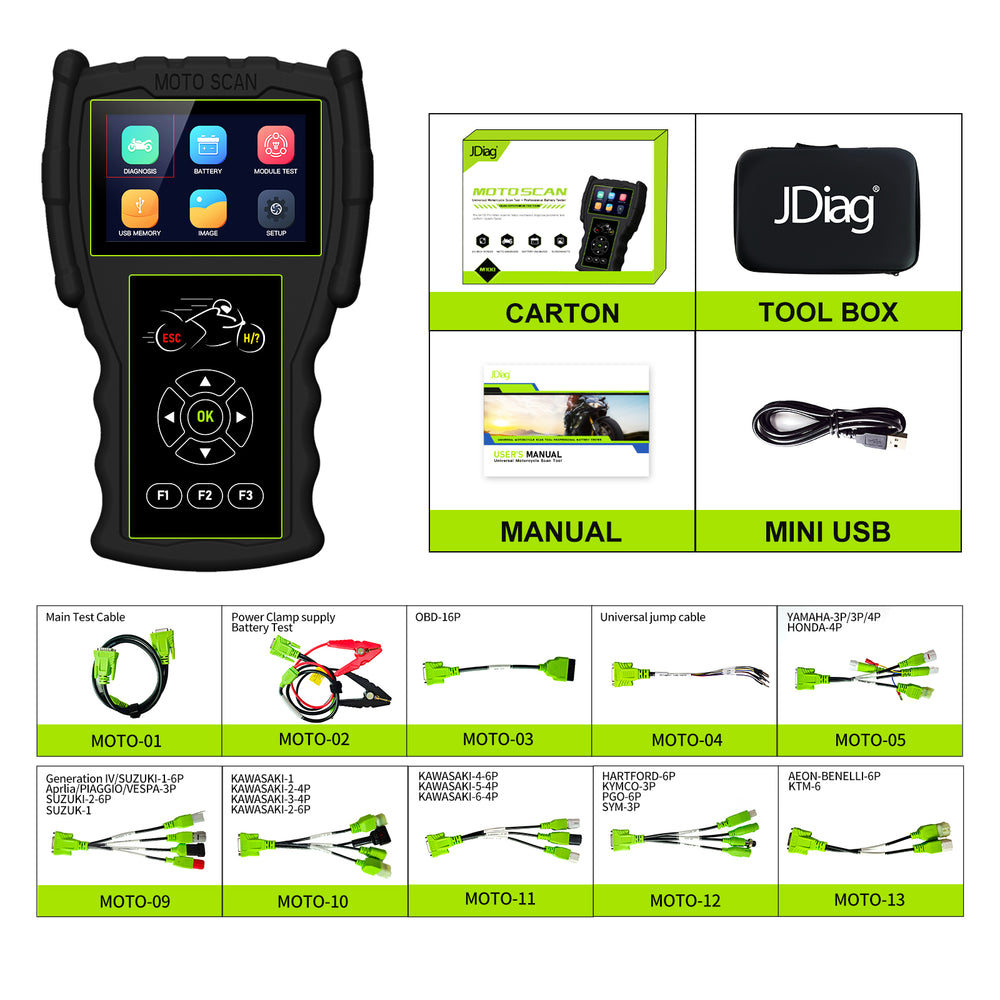

10. Package List

1pc x JDiag M100 Pro main unit
1pc x MOTO-13 cable
1pc x MOTO-12 cable
1pc x MOTO-11 cable
1pc x MOTO-10 cable
1pc x MOTO-09 cable
1pc x MOTO-05 cable
1pc x MOTO-04 cable
1pc x MOTO-03 cable
1pc x MOTO-02 cable
1pc x MOTO-01 cable
1pc x MINI USB cable
1pc x Manual

11. FAQ

Q1: What vehicles does JDiag M100 Pro support?

A: JDiag M100 Pro supports multiple motorcycle brands, including Honda, Yamaha, Suzuki, Kawasaki, Kymco, SYM, Piaggio, PGO, KTM, Hartford, and Aeon.

Q2: Is JDiag M100 Pro suitable for cars?

A: No. It is designed specifically for motorcycle EFI system diagnostics.

Q3: Does JDiag M100 Pro require a smartphone or computer?

A: No. It is a standalone handheld diagnostic tool with its own display screen.

Q4: Can it read and clear motorcycle fault codes?

A: Yes. It supports reading, displaying, and clearing fault codes on compatible motorcycles.

Q5: Can it display live data?

A: Yes. It can display live ECU data including RPM, battery voltage, throttle angle, and other available parameters.

Q6: Does it support ABS diagnosis?

A: Yes. ABS system testing is supported on compatible motorcycle models.

Q7: Does it support software updates?

A: Yes. Software can be upgraded through the USB port and SD card.

Q8: Does it require additional adapters?

A: The package includes multiple motorcycle cables. Additional adapters may be required for motorcycles not covered by the included cables.
